OLED (Organic Light Emitting Diode) screens have become increasingly popular due to their superior picture quality, offering deeper blacks, brighter whites, and a wider range of colors compared to LCDs. However, determining if a screen is OLED can sometimes be challenging, especially when purchasing refurbished or second-hand devices. This article will guide you through various methods to check if your screen is OLED, along with explanations of OLED technology and its advantages over LCD.
- Composition: OLED displays consist of self-lit pixels, eliminating the need for a backlight. In contrast, LCDs use a backlight to illuminate liquid crystals.
- Contrast Ratio and Black Levels: OLEDs achieve superior contrast ratios and true blacks by turning off individual pixels, while LCDs always emit some light.
- Color Accuracy and Saturation: Both can offer impressive color accuracy, but OLEDs generally have an edge due to their ability to control light at the pixel level.
- Viewing Angles: OLED screens provide nearly perfect viewing angles, whereas LCDs can suffer from color and contrast shifts when viewed from sharp angles.
One of the simplest methods to determine if a screen is OLED is by displaying a black image at full brightness in a dark room. If the screen appears completely black and does not emit any light, it is likely an OLED screen. This is because OLED pixels can be turned off completely, unlike LCDs which always emit some light due to their backlight.
To perform this test, follow these steps:
1. Open a full-screen black image on your device.
2. Turn the brightness to its maximum setting.
3. Move to a dark room to minimize external light interference.
4. Observe the screen; if it appears completely black without any light emission, it is likely an OLED screen.
For laptops and computers, you can check the device manager to identify the display type. Here's how:
1. Press `Windows + Spacebar`, type "Device Manager," and open it.
2. Locate the "Monitors" section.
3. Look for the display model; OLED screens often have specific model numbers or descriptions indicating they are OLED.
For example, the Dell XPS 15 7590 with an OLED screen might be listed with a specific code like "Dell SDCA029" in the device manager[1].
This method involves shining a bright light at the screen from the side in a dark room. On an OLED screen, you can see where pixels are turned off, creating distinct regions of light and darkness. This is not as noticeable on LCD screens due to their uniform backlight.
For Windows devices, checking the Windows HD Color settings can also indicate if your screen supports features typical of OLED displays, such as HDR and Wide Color Gamut.
1. Go to Windows Settings > System > Display.
2. Look for "Windows HD Color" settings.
3. If your screen is compatible with HDR and WCG, it might be an OLED screen.
Some OLED screens, especially on laptops, do not have touch functionality. If your device lacks a touch screen and has excellent black levels, it could be an OLED model.
OLED screens offer several advantages over LCDs:
- Superior Contrast and Black Levels: OLEDs can achieve true blacks, enhancing the overall viewing experience.
- Wider Viewing Angles: OLED screens maintain color accuracy and contrast even when viewed from the side.
- Faster Response Time: This reduces motion blur, making OLEDs ideal for fast-paced content.
- Less Blue Light Emission: Some OLED devices emit less harmful blue light, which can reduce eye strain.
Despite their advantages, OLED screens also have some drawbacks:
- Burn-in Risk: Static images can cause permanent burn-in on OLED screens.
- Higher Cost: OLED technology is generally more expensive than LCD.
- Shorter Lifespan: The organic materials in OLEDs can degrade over time, reducing their lifespan compared to LCDs.

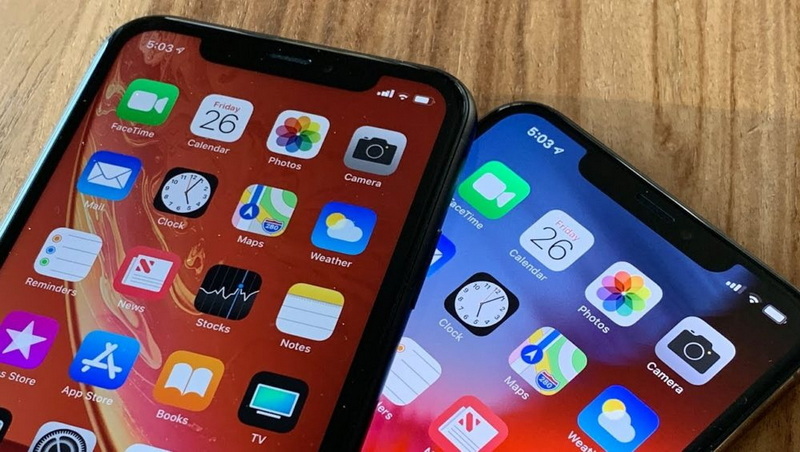

In smartphones, OLED screens are becoming more prevalent due to their energy efficiency and superior display quality. AMOLED (Active Matrix OLED) is a variant commonly used in smartphones, offering better contrast and deeper blacks compared to LCDs. However, AMOLED screens are more susceptible to burn-in, especially when static images are displayed for extended periods[3].
OLED technology is highly praised in large-screen devices like TVs and high-end monitors. These displays offer vibrant colors, wide viewing angles, and superior contrast, making them ideal for cinematic experiences. However, they are generally more expensive than LCD alternatives.
Transparent OLED displays are a newer innovation, allowing for unique applications such as transparent signage or interactive displays. To identify if a transparent OLED display is of high quality, look for uniform color, no dead pixels, and a smooth surface without scratches or dents[2].
Determining if a screen is OLED can be done through simple tests like the black screen test or by checking device specifications. OLED screens offer superior picture quality with deeper blacks and wider viewing angles but come with potential drawbacks like burn-in risk and higher cost. Understanding these differences can help consumers make informed decisions when choosing between OLED and LCD displays.
The primary difference lies in how they emit light. OLED displays consist of self-lit pixels, while LCDs use a backlight to illuminate liquid crystals.
You can check by displaying a black image at full brightness in a dark room. If the screen appears completely black, it is likely an OLED screen. Alternatively, check the device manager for specific OLED model numbers.
Yes, OLED screens are more susceptible to burn-in compared to LCDs, especially when static images are displayed for extended periods.
It depends on the content displayed. OLEDs are more energy-efficient with dark or black images, while LCDs are more efficient with bright or white images.
Yes, OLED screens are generally more expensive than LCDs due to their advanced technology and manufacturing process.
OLED screens in smartphones offer better contrast, deeper blacks, and are more energy-efficient, especially when displaying dark content. However, they are more prone to burn-in.
To prevent burn-in, use features like screen savers, adjust the screen timeout, and avoid displaying static images for extended periods. Some devices also offer pixel shifting or image retention compensation features.
Yes, OLED technology can be used in transparent displays, offering unique applications such as transparent signage or interactive displays. These screens must be inspected for uniform color and lack of defects to ensure quality[2].
Yes, OLED screens are suitable for gaming due to their fast response time and low motion blur, providing a smoother gaming experience.
You can use Samsung's internal diagnostic menu to check for screen burn-in. Turn off auto-brightness, set the screen to maximum brightness, and look for any signs of image retention[5].
