Is your Droid Maxx 2 showing a cracked screen, discoloration, or simply not displaying anything at all? A damaged LCD can severely impact your phone's usability. While professional repair services are an option, replacing the LCD yourself can save you money and give you a sense of accomplishment. This comprehensive guide will provide you with detailed instructions, accompanied by images and videos, to ensure you can confidently replace your Droid Maxx 2 LCD screen.
Before diving into the replacement process, it's important to accurately assess the damage to your screen. Sometimes, what appears to be a broken LCD is merely a cracked outer glass layer. Here's how to tell the difference:
- Cracked Glass Only: If the display beneath the cracked glass is still functional – showing images, colors, and responding to touch without any distortions, black spots, or lines – you might only need to replace the outer glass. However, replacing just the glass is a more advanced repair and requires specialized equipment like a hot wire separator, OCA (Optically Clear Adhesive) film, and a laminating machine. Due to the complexity and risk of damaging the underlying LCD, it's generally recommended to replace the entire LCD and digitizer assembly.
- Damaged LCD: If you observe any of the following, your LCD is likely damaged and needs replacement:
- Black Spots or "Ink Bleeding": Dark, irregular patches on the screen that spread over time.
- Lines or Distortions: Vertical or horizontal lines running across the screen, or areas with distorted colors.
- No Display: The screen remains black or white even when the phone is powered on.
- Touchscreen Malfunction: The touchscreen doesn't respond to touch in certain areas or responds erratically.
If you've determined that you need to replace the entire LCD assembly, continue with the following steps.

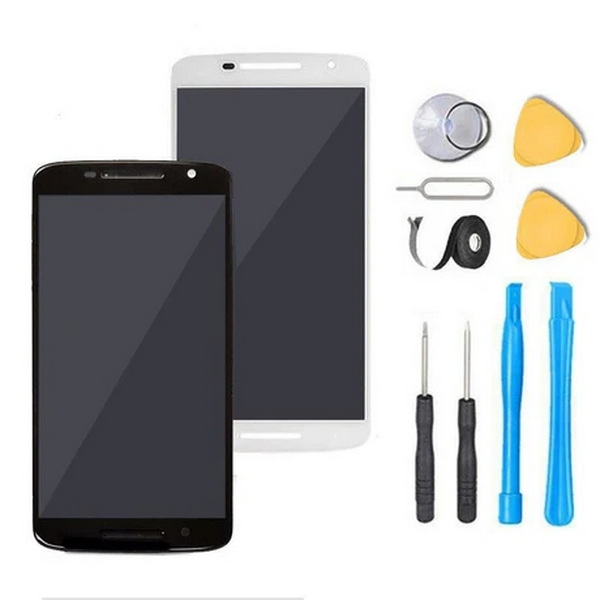

Before you begin, ensure you have all the necessary tools and materials. Working with the right equipment will make the process smoother and reduce the risk of damaging your device. Here's a complete list:
- T3 and T4 Torx Screwdrivers: These small screwdrivers are essential for removing the screws that hold the back cover and internal components in place. Make sure they are high-quality to prevent stripping the screw heads.
- Spudger or Plastic Opening Tool: These tools are designed to safely pry open the device without scratching or damaging the plastic casing. Avoid using metal tools, as they can easily cause permanent damage.
- Heat Gun or Hairdryer: Gentle heat is required to soften the adhesive that secures the back cover and the LCD to the frame. A heat gun is more precise, but a hairdryer can also work if used carefully.
- Tweezers: Tweezers are helpful for manipulating small components like ribbon cables and connectors. Choose a pair with fine tips for precision.
- Suction Cup (Optional): A small suction cup can be used to gently lift the LCD assembly from the frame after the adhesive has been loosened.
- Replacement LCD Screen: Purchase a high-quality replacement LCD screen that is specifically designed for the Droid Maxx 2. Look for screens that include the digitizer (touchscreen) for a complete replacement.
- Adhesive Strips or B-7000 Glue: New adhesive is necessary to re-secure the back cover and the LCD to the frame. Pre-cut adhesive strips are convenient, but B-7000 glue can also be used. Apply the glue sparingly and evenly.
- Isopropyl Alcohol (90% or higher): Isopropyl alcohol can be used to clean the frame and remove any residual adhesive.
- Microfiber Cloth: Use a microfiber cloth to clean the LCD screen and remove any fingerprints or smudges.
- Anti-Static Wrist Strap (Recommended): An anti-static wrist strap will prevent electrostatic discharge, which can damage sensitive electronic components.
- Organization Tray or Magnetic Mat: Keep track of the screws and small parts by placing them in an organization tray or on a magnetic mat. This will prevent you from losing them and make reassembly easier.
Before you even think about touching any tools to your phone, ensure it is completely powered down. Holding the power button until the phone completely shuts off is vital. This prevents short circuits and potential damage to the device's sensitive electronics. Place your phone on a clean, well-lit, and static-free workspace. Consider using an anti-static mat for added protection.
Locate the SIM card tray, usually on the side of the phone. Use the SIM ejector tool (or a straightened paperclip) to gently push into the small hole and release the tray. Remove the tray and set it aside.
This is often the trickiest part of the process. The back cover is secured with both screws and adhesive.
1. Remove the Screws: Locate and remove all the Torx screws securing the back cover. Typically, there are around 17 screws, so ensure you remove them all. Use the T3 or T4 Torx screwdriver. Place the screws in your organization tray or magnetic mat, noting their positions, as some may be different sizes.
2. Apply Heat: Use a heat gun or hairdryer to gently warm the edges of the back cover. Move the heat source in a circular motion to evenly distribute the heat. Be careful not to overheat the phone, as this can damage the battery or other internal components. The goal is to soften the adhesive, not melt it.
3. Pry Open the Back Cover: Once the adhesive is softened, use a spudger or plastic opening tool to gently pry open the back cover. Start at one corner (usually near the SIM card slot) and carefully work your way around the edges. Insert the spudger only a millimeter or two to avoid damaging internal components. If you encounter resistance, apply more heat to the area.
4. Separate the Back Cover: Once you've worked your way around the entire perimeter, the back cover should lift off. Be careful, as there may still be some adhesive remaining.
Now that the back cover is off, the first thing you should do is disconnect the battery.
1. Locate the Battery Connector: The battery connector is usually a small, rectangular connector that plugs into the motherboard.
2. Disconnect the Connector: Use a plastic spudger to gently pry the battery connector upwards from the motherboard. Be careful not to use any metal tools, as this could cause a short circuit.
Depending on the Droid Maxx 2 model and the specific LCD assembly you purchased, you may need to remove other internal components to access the LCD. This could include:
1. Camera Modules: Some camera modules may be attached to the frame and need to be disconnected and removed. Use tweezers or a spudger to carefully disconnect the ribbon cables and lift the camera modules out of their sockets.
2. Ribbon Cables: Disconnect any other ribbon cables that are connected to the LCD or the motherboard. Use a spudger to gently flip up the retaining clips on the connectors and then carefully pull the ribbon cables out.
With all the components disconnected, you can now remove the old LCD.
1. Apply Heat: Use a heat gun or hairdryer to gently warm the edges of the LCD screen. This will soften the adhesive that is holding it in place.
2. Use a Suction Cup (Optional): Attach a small suction cup to the LCD screen.
3. Pry and Lift: Use a spudger to gently pry around the edges of the LCD screen while simultaneously pulling on the suction cup. Be patient and apply heat as needed. If you encounter resistance, check to make sure you have disconnected all ribbon cables and removed all screws.
4. Remove the LCD: Once the adhesive is softened, the LCD should lift out of the frame.

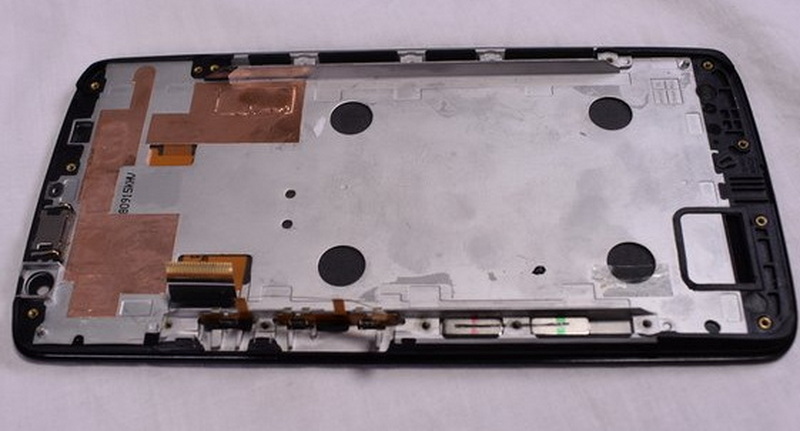

Before installing the new LCD, thoroughly clean the frame to remove any residual adhesive.
1. Apply Isopropyl Alcohol: Apply a small amount of isopropyl alcohol to a microfiber cloth.
2. Clean the Frame: Use the cloth to scrub away any remaining adhesive from the frame. Be careful not to get any alcohol on the internal components.
3. Dry the Frame: Allow the alcohol to evaporate completely before proceeding.

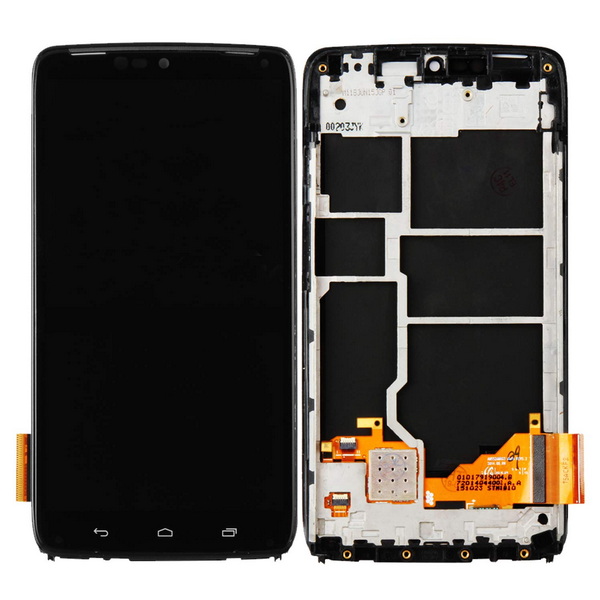

Now it's time to install the new LCD.
1. Test the LCD: Before fully installing the LCD, connect it to the motherboard and power on the phone to test it. This will ensure that the LCD is functioning properly before you secure it in place.
2. Apply Adhesive: Apply new adhesive strips or a thin, even layer of B-7000 glue to the frame. Be careful not to apply too much adhesive, as this can cause the LCD to lift or create pressure points.
3. Position the LCD: Carefully align the new LCD with the frame and press it into place. Make sure the LCD is flush with the frame and that all the connectors are properly aligned.
4. Secure the LCD: Apply gentle pressure to the LCD to secure it in place. You can use clamps or weights to hold it in place while the adhesive dries.
Now that the new LCD is installed, it's time to reassemble the phone.
1. Reconnect Components: Reconnect all the ribbon cables, camera modules, and other internal components that you removed earlier.
2. Reconnect the Battery: Reconnect the battery connector to the motherboard.
3. Replace the Back Cover: Carefully align the back cover with the frame and press it into place. Make sure all the tabs are properly aligned.
4. Replace the Screws: Replace all the screws that you removed earlier.
Power on the phone and test the new LCD. Make sure the display is clear, the touchscreen is responsive, and all the buttons are working properly.
- Display Not Working: Double-check all connections, especially the LCD ribbon cable. Ensure the battery is properly connected and charged.
- Touchscreen Not Responding: Ensure the digitizer cable is securely connected. Try cleaning the screen. If the problem persists, the LCD may be faulty.
- Back Cover Not Seating Properly: Ensure all internal components are correctly positioned and that no cables are obstructing the back cover.
- Phone Won't Power On: Double-check the battery connection. Try charging the phone for at least 30 minutes.
Replacing the LCD on your Droid Maxx 2 requires patience, precision, and the right tools. By following this detailed guide and taking your time, you can successfully restore your phone to its former glory. Remember to double-check all connections and test the phone thoroughly before fully reassembling it. Good luck!
You will need T3 and T4 Torx screwdrivers, a spudger, a heat gun or hairdryer, tweezers, and adhesive strips for reassembly.
It is generally recommended to replace both together since they are often bonded; however, if you have experience, you may attempt just glass replacement.
The process typically takes about an hour to two hours if you follow each step carefully.
Yes, but be cautious not to overheat any components; keep moving your heat source around rather than focusing on one area for too long.
Replacement parts can be found online through various retailers such as eBay or specialized repair sites like iFixit or Repairs Universe.
