The Yamaha V Star 950 is a popular cruiser motorcycle known for its comfortable ride and classic styling. One of the key features of this bike is its LCD display, which provides important information to the rider. However, some riders may find the need to adjust the display for better visibility or personal preference. In this comprehensive guide, we'll explore the various methods to adjust the LCD display on your Yamaha V Star 950, along with some tips and tricks to enhance your riding experience.

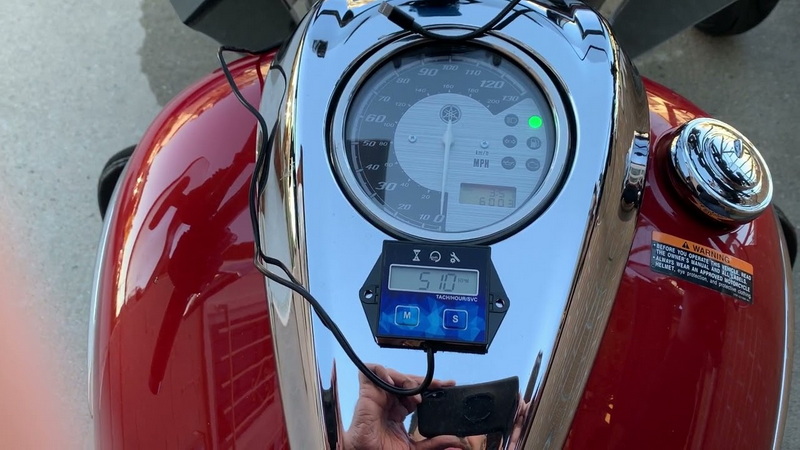

The V Star 950's LCD display is mounted on the fuel tank, giving it a traditional look while providing modern functionality. This display includes several important features:
- Speedometer
- Fuel level warning light
- Oil level warning light
- Odometer with two trip meter functions
- Fuel trip meter
- Clock display
The LCD display illumination can be adjusted using a switch on the right side of the handlebar, allowing riders to customize the brightness for optimal visibility in various lighting conditions[1].
To adjust the brightness of your V Star 950's LCD display, follow these steps:
1. Locate the right handlebar switch cluster.
2. Find the display adjustment switch, which is typically a small button or toggle.
3. Press or toggle the switch to cycle through different brightness levels.
4. Choose the brightness level that provides the best visibility for your riding conditions.
It's important to note that the ideal brightness setting may vary depending on the time of day and ambient lighting conditions. You may need to readjust the display brightness when transitioning from daylight to nighttime riding or vice versa.
While the brightness adjustment is straightforward, some riders may want to customize other aspects of the LCD display. Here are some additional adjustments you can make:
To set the clock on your V Star 950's LCD display:
1. Turn the ignition key to the "ON" position.
2. Press and hold the "SELECT" button on the right handlebar switch until the clock display starts flashing.
3. Use the "RESET" button to adjust the hours.
4. Press the "SELECT" button to switch to minutes.
5. Use the "RESET" button to adjust the minutes.
6. Press the "SELECT" button again to confirm and exit the clock setting mode.
The V Star 950 features two trip meters. To switch between them:
1. Press the "SELECT" button briefly while the display shows the odometer or trip meter.
2. The display will cycle through ODO (odometer), TRIP 1, and TRIP 2.
To reset a trip meter:
1. Select the trip meter you want to reset (TRIP 1 or TRIP 2).
2. Press and hold the "RESET" button for a few seconds until the display resets to zero.
To ensure your LCD display continues to function properly and remains easily readable, consider these maintenance tips:
1. Clean the display regularly with a soft, damp cloth to remove dust and debris.
2. Avoid using harsh chemicals or abrasive materials that could damage the display surface.
3. Check the display for any signs of moisture or condensation, which could indicate a seal issue.
4. If you notice any flickering or inconsistent behavior, have your bike inspected by a qualified technician.
If you encounter problems with your V Star 950's LCD display, try these troubleshooting steps:
1. Check the battery voltage, as a weak battery can cause display issues.
2. Inspect the wiring connections to ensure they're secure and free from corrosion.
3. Verify that the fuses related to the instrument cluster are intact.
4. If the display is completely blank, it may indicate a more serious electrical issue that requires professional diagnosis.

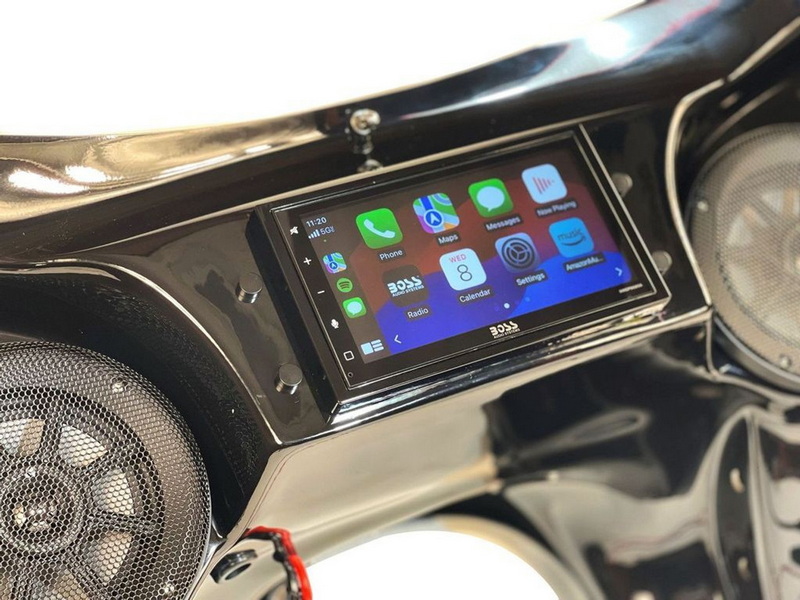

While the stock LCD display on the V Star 950 is functional, some riders may want to enhance their bike's instrumentation. Here are some aftermarket options to consider:
1. GPS mounts: Add a GPS unit for navigation without obstructing the stock display.

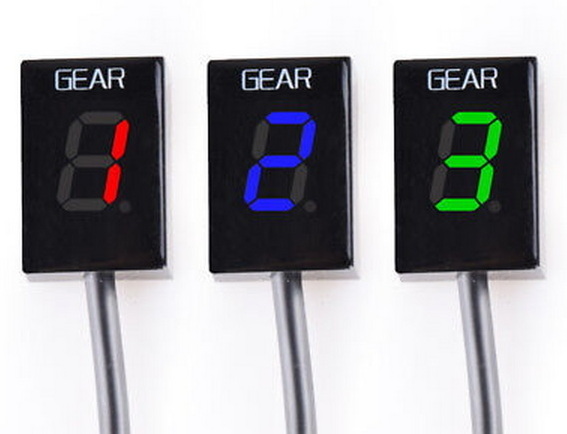

2. Auxiliary gauges: Install additional gauges for monitoring other bike parameters.
3. Smartphone mounts: Use your smartphone as a supplementary display for navigation or music control.
Remember to choose accessories that are compatible with your V Star 950 and don't interfere with the bike's controls or your ability to ride safely.
A properly adjusted LCD display on your Yamaha V Star 950 is crucial for several reasons:
1. Safety: Clear visibility of speed and warning indicators helps you ride safely.
2. Convenience: Easy access to trip information and the clock enhances your riding experience.
3. Comfort: Proper brightness reduces eye strain during long rides.
4. Compliance: Accurate speedometer readings help you adhere to speed limits.
By taking the time to adjust and maintain your LCD display, you'll ensure that you always have the information you need at a glance, allowing you to focus on the joy of riding your V Star 950.
Adjusting the LCD display on your Yamaha V Star 950 is a simple process that can significantly improve your riding experience. By following the steps outlined in this guide, you can customize the display's brightness, set the clock, and manage trip meters with ease. Regular maintenance and troubleshooting will help keep your display in top condition, providing you with clear, accurate information for years to come.
Remember that while the stock display offers essential functionality, there are also aftermarket options available to enhance your bike's instrumentation. Whatever your preferences, a well-adjusted and maintained LCD display will contribute to safer, more enjoyable rides on your V Star 950.
It's recommended to clean your LCD display at least once a month or more frequently if you ride in dusty or dirty conditions. Use a soft, damp cloth to gently wipe the display surface, avoiding any abrasive materials or harsh chemicals that could damage the screen.
While it's possible to add supplementary displays or gauges, replacing the stock LCD display entirely is not typically recommended. The stock display is integrated into the bike's electrical system and designed specifically for the V Star 950. Instead, consider adding compatible aftermarket accessories to enhance your instrumentation without modifying the original display.
LCD displays can sometimes be challenging to read in direct sunlight due to glare. To improve visibility, try adjusting the display's brightness to its maximum setting. If issues persist, you might consider adding an anti-glare screen protector designed for motorcycle displays or positioning a small sun visor above the display area.
If your LCD display is showing incorrect information, such as an inaccurate speed or fuel level, first check all electrical connections and fuses. If the problem persists, it may indicate a sensor issue or a problem with the display unit itself. In this case, it's best to have your bike inspected by a qualified Yamaha technician to diagnose and resolve the issue.
Yes, it's normal for the LCD display to dim or turn off completely when the engine is not running to conserve battery power. The display should return to full brightness once the engine is started. If you notice the display remains dim even with the engine running, check your battery's voltage and charging system to ensure they're functioning correctly.
