How The Brightness of An OLED Screen Can Be Controlled?

Views: 222     Author: Tina     Publish Time: 2025-06-01      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
How The Brightness of An OLED Screen Can Be Controlled?

Content Menu

Understanding OLED Brightness Control

Pulse Width Modulation (PWM) Dimming

>> Advantages of PWM Dimming

>> Disadvantages of PWM Dimming

Direct Current (DC) or Analog Dimming

>> Advantages of DC Dimming

>> Challenges and Disadvantages

Automatic Brightness Limiter (ABL) and Protective Dimming Features

>> Automatic Brightness Limiter (ABL)

>> Automatic Static Brightness Limiter (ASBL)

>> Logo Dimming

>> Temporal Peak Control (TPC) and Global Static Reduction (GSR)

Hardware Innovations for Brighter OLEDs

>> Multi-Layer RGB Tandem Structure

>> Energy Efficiency Improvements

>> Ultra-Low Reflection Technology

Software and User Controls for Brightness Adjustment

>> OLED Light or Pixel Brightness

>> Panel Brightness and Contrast

>> Auto Dynamic Contrast

>> Ambient Light Sensors

>> Peak Brightness Limiting

Practical Example: Disabling Auto Dimming on OLED TVs

Summary of OLED Brightness Control Techniques

Conclusion

Related Questions and Answers

>> 1. What is Pulse Width Modulation (PWM) dimming in OLED screens?

>> 2. How does Direct Current (DC) dimming differ from PWM dimming?

>> 3. What is the Automatic Brightness Limiter (ABL) in OLED displays?

>> 4. Can I disable automatic dimming features on my OLED TV?

>> 5. How do ambient light sensors affect OLED screen brightness?

Organic Light Emitting Diode (OLED) technology has revolutionized the display industry by offering superior contrast, vibrant colors, and thinner panels compared to traditional LCDs. One of the key advantages of OLED screens is their ability to control brightness at the pixel level, enabling deep blacks and high dynamic range. However, controlling the brightness of an OLED screen is a complex interplay of hardware, electrical driving methods, and software algorithms designed to optimize image quality, power consumption, and panel longevity.

This article delves deeply into the various techniques and technologies used to control OLED brightness, explores their benefits and limitations, and explains how users can adjust brightness settings to improve their viewing experience. By understanding these mechanisms, you can better appreciate the sophistication behind OLED displays and make more informed choices when using or purchasing OLED devices.

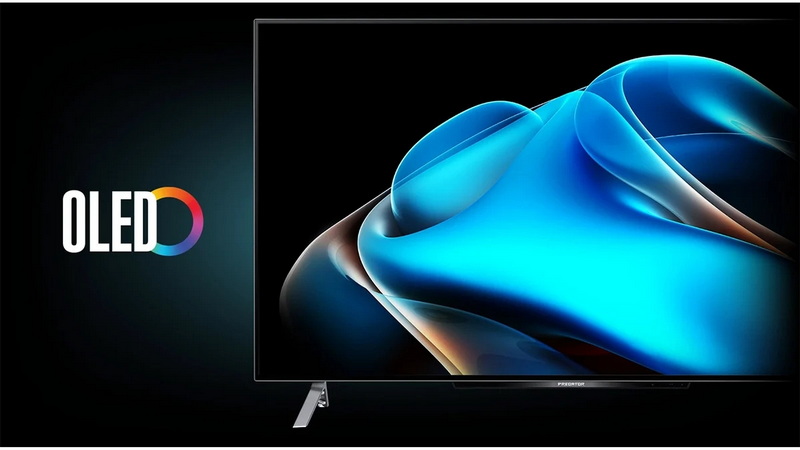

how the brightness of an OLED screen can be controlled

Understanding OLED Brightness Control

Unlike LCD displays that rely on a backlight shining through liquid crystals, OLED screens are self-emissive. Each pixel consists of organic compounds that emit light when an electric current passes through them. This fundamental difference means that OLED brightness control is achieved by directly modulating the light output of individual pixels, offering unparalleled precision.

Brightness control in OLED displays is primarily managed through electrical driving techniques that regulate the current flowing through each pixel. The amount of current determines the intensity of light emitted, and thus the brightness of that pixel. However, simply increasing current to boost brightness is not straightforward because it can accelerate pixel aging and cause uneven wear, leading to burn-in.

To balance brightness, image quality, and panel health, manufacturers employ several methods, including Pulse Width Modulation (PWM), Direct Current (DC) dimming, and automatic protective dimming features. These methods are often combined with hardware innovations and intelligent software algorithms.

Pulse Width Modulation (PWM) Dimming

Pulse Width Modulation is the most widely used method for controlling brightness in OLED screens. PWM works by rapidly switching the pixels on and off at a frequency typically higher than what the human eye can perceive. The brightness level is controlled by adjusting the duty cycle — the proportion of time the pixel is on versus off within each cycle.

For example:

- At 100% duty cycle, the pixel is continuously on, producing maximum brightness.

- At 50% duty cycle, the pixel is on half the time and off half the time, resulting in half the perceived brightness.

- At lower duty cycles, the pixel spends more time off, reducing brightness accordingly.

Advantages of PWM Dimming

- Efficiency: PWM allows for precise brightness control without changing the voltage or current supplied to the OLED, which helps maintain color accuracy.

- Simplicity: It is relatively easy to implement in hardware and software.

- Burn-in Mitigation: By limiting continuous current flow, PWM can help reduce the risk of burn-in.

Disadvantages of PWM Dimming

- Flicker Sensitivity: Although the switching frequency is usually very high, some users are sensitive to PWM flicker, especially at lower brightness levels. This sensitivity can cause eye strain, headaches, or visual fatigue.

- Complexity in Tuning: Manufacturers must carefully tune the PWM frequency and duty cycle to minimize flicker while maintaining image quality.

Direct Current (DC) or Analog Dimming

Direct Current dimming controls brightness by varying the electrical current or voltage supplied to the OLED pixels, rather than switching them on and off rapidly. This method adjusts the intensity of the light emitted by changing the current amplitude.

Advantages of DC Dimming

- Flicker-Free: Since pixels remain continuously on, DC dimming eliminates flicker, reducing eye strain for sensitive users.

- Smooth Brightness Transitions: DC dimming can provide smoother changes in brightness, especially at low levels.

Challenges and Disadvantages

- Color and Brightness Uniformity: At low brightness, DC dimming can cause color shifts and uneven brightness across the screen due to the nonlinear behavior of organic materials.

- Technical Complexity: Implementing DC dimming requires complex driver circuits and calibration to maintain color accuracy.

- Limited Adoption: Due to these challenges, DC dimming is less common in OLED TVs but is increasingly used in smartphones and monitors where flicker-free operation is a priority.

Some manufacturers adopt hybrid approaches that combine PWM and DC dimming to balance flicker reduction and image quality.

Automatic Brightness Limiter (ABL) and Protective Dimming Features

OLED panels incorporate several automatic dimming features designed to protect the screen from damage and extend its lifespan.

Automatic Brightness Limiter (ABL)

The ABL function limits the maximum brightness when large bright areas are displayed on the screen. This is necessary because OLED pixels consume more power and generate more heat when displaying bright content, especially white or near-white images.

- When a large portion of the screen is bright, ABL reduces overall brightness to prevent overheating and excessive power draw.

- This often results in peak brightness being limited to around 150-200 nits for full white screens, which is lower than the peak brightness for small bright highlights.

- ABL helps prevent permanent damage and extends panel longevity but can sometimes make bright scenes appear dimmer than expected.

Automatic Static Brightness Limiter (ASBL)

ASBL detects static images or UI elements that remain on the screen for extended periods and gradually dims those areas to prevent burn-in.

- This feature is crucial for OLED longevity because static content can cause uneven pixel aging.

- ASBL dimming is subtle and usually unnoticeable during normal viewing but can be perceived when static images are displayed for a long time.

- Some users find ASBL intrusive, and certain OLED TVs allow disabling it through service menus, though this is generally not recommended.

Logo Dimming

Logo dimming targets static logos or interface elements, reducing their brightness independently to prevent burn-in without affecting the rest of the screen.

Temporal Peak Control (TPC) and Global Static Reduction (GSR)

These are advanced dimming controls found in some OLED TVs' service menus:

- TPC manages peak brightness dynamically based on content.

- GSR reduces static brightness globally to protect the screen.

Disabling these features can increase brightness but may risk panel health.

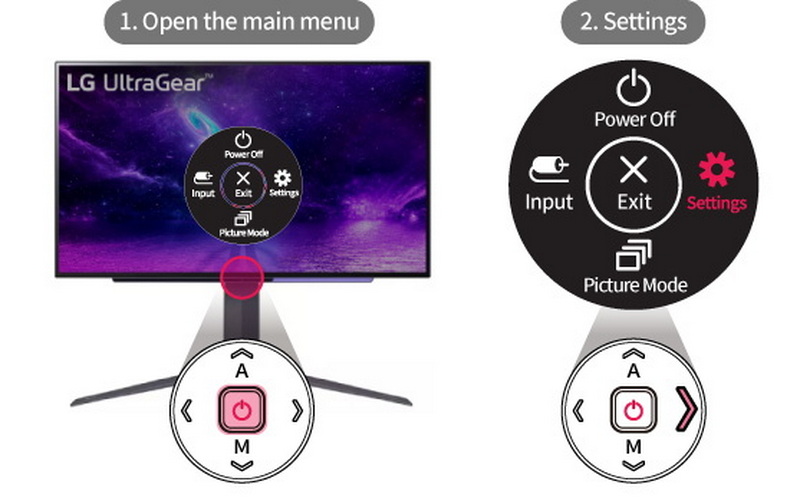

PWM Control For OLED Brightness

Hardware Innovations for Brighter OLEDs

Recent advances in OLED panel design have significantly improved brightness capabilities and energy efficiency.

Multi-Layer RGB Tandem Structure

- Newer OLED panels use multiple stacked layers of red, green, and blue organic materials.

- This tandem structure allows more light to be emitted per pixel, increasing maximum brightness up to 4,000 nits.

- Color brightness can reach approximately 2,100 nits, enhancing vividness and HDR performance.

Energy Efficiency Improvements

- The tandem design improves energy efficiency by about 20%, reducing heat generation and power consumption.

- Lower heat helps maintain panel longevity and consistent brightness over time.

Ultra-Low Reflection Technology

- Advanced anti-reflective coatings minimize ambient light reflections.

- This technology preserves OLED's perfect black levels and color accuracy, even in brightly lit environments.

These hardware improvements enable OLEDs to compete with LED-backlit LCDs in brightness while maintaining superior contrast and color.

Software and User Controls for Brightness Adjustment

Most OLED devices provide users with various settings to customize brightness and optimize viewing conditions.

OLED Light or Pixel Brightness

- Controls the intensity of individual OLED pixels.

- Increasing this setting boosts overall screen brightness but may increase power consumption and heat.

Panel Brightness and Contrast

- Panel brightness adjusts the general luminance output.

- Contrast settings control the difference between the darkest and brightest parts of the image, affecting perceived brightness and detail.

Auto Dynamic Contrast

- Automatically adjusts contrast based on scene content to enhance perceived brightness and detail.

Ambient Light Sensors

- Detect the lighting conditions in the viewing environment.

- Automatically adjust screen brightness to maintain comfortable viewing and conserve energy.

Peak Brightness Limiting

- Allows users to cap maximum brightness, reducing power use and extending panel life.

Users should balance brightness settings to avoid excessive power consumption or accelerated panel wear while maintaining a comfortable viewing experience.

Practical Example: Disabling Auto Dimming on OLED TVs

Some users prefer to disable automatic dimming features like TPC and GSR to maintain consistent brightness. This is possible on certain OLED TV models by accessing a service menu with a special remote and password.

Important: Disabling these features can increase the risk of burn-in and may void warranties. Proceed with caution and only if you understand the risks.

Summary of OLED Brightness Control Techniques

Method/Feature Description Advantages Disadvantages
Pulse Width Modulation (PWM) Rapid on/off cycling of pixels to adjust brightness Efficient, precise control Flicker, eye strain for sensitive users
Direct Current (DC) Dimming Varying current/voltage to adjust brightness Flicker-free, gentler on eyes Color shifts, uneven brightness at low levels
Automatic Brightness Limiter (ABL) Limits brightness for large bright areas to protect panel Protects OLED lifespan Reduces peak brightness on bright scenes
Automatic Static Brightness Limiter (ASBL) Dims static images to prevent burn-in Prevents image retention May cause unwanted dimming during static content
Logo Dimming Dims static logos/UI elements Protects specific areas from burn-in Minimal impact on overall brightness
Hardware Innovations Multi-layer RGB stacks, low reflection films Higher brightness, better color accuracy More complex and costly manufacturing

Conclusion

Controlling the brightness of an OLED screen is a sophisticated process involving multiple layers of technology. Pulse Width Modulation remains the dominant method for brightness control, offering efficient and precise adjustments but with potential flicker issues for some users. Direct Current dimming provides a flicker-free alternative but is limited by technical challenges. Protective dimming features like Automatic Brightness Limiter and Automatic Static Brightness Limiter dynamically adjust brightness to safeguard the panel against overheating and burn-in.

Recent hardware innovations have pushed OLED brightness and efficiency to new heights, making these displays suitable for a wide range of lighting environments. Users can also customize brightness settings through software controls and ambient light sensors to optimize their viewing experience.

By understanding these brightness control mechanisms, users can better appreciate the technology behind OLED displays and make informed decisions to enjoy the best image quality while preserving their device's longevity.

Controlling OLED Display Brightness

Related Questions and Answers

1. What is Pulse Width Modulation (PWM) dimming in OLED screens?

PWM dimming controls brightness by rapidly switching pixels on and off at a high frequency. The perceived brightness depends on the ratio of on-time to off-time. It is efficient but can cause flicker that some users find uncomfortable.

2. How does Direct Current (DC) dimming differ from PWM dimming?

DC dimming adjusts brightness by varying the electrical current supplied to pixels, reducing flicker. However, it can cause uneven brightness and color shifts, especially at low brightness levels, making it less common in OLED TVs.

3. What is the Automatic Brightness Limiter (ABL) in OLED displays?

ABL limits the maximum brightness when large bright areas are displayed to prevent overheating and excessive power consumption. This protects the OLED panel but can reduce brightness on certain scenes.

4. Can I disable automatic dimming features on my OLED TV?

Some OLED TVs allow disabling features like ASBL and TPC via service menus, giving more manual control over brightness. However, this may risk voiding warranties or reducing panel lifespan.

5. How do ambient light sensors affect OLED screen brightness?

Ambient light sensors detect room lighting and automatically adjust screen brightness to optimize viewing comfort and reduce power consumption, preventing the screen from being too bright or too dim.
