LCD (Liquid Crystal Display) technology has become ubiquitous in modern devices, from smartphones and laptops to televisions and digital signage. A crucial factor in the viewing experience is the display's brightness. Brightness affects readability, visibility in different lighting conditions, and overall user satisfaction. This article delves into the intricacies of LCD display brightness, covering measurement methods, influencing factors, adjustment techniques, and common issues.
Brightness, in the context of LCD displays, refers to the amount of light emitted by the screen. It determines how easily the display can be viewed in different ambient lighting conditions. Brightness is often used interchangeably with luminance, although luminance is a more comprehensive term that considers the viewer's perception of brightness, taking into account factors such as screen reflectivity and viewing conditions[10].
The standard unit for measuring LCD display brightness is candela per square meter (cd/m²), also known as nits[1][11]. One nit is equal to one cd/m². This unit quantifies the amount of light emitted from a specific area of the screen. Higher cd/m² values indicate a brighter display.
- Nits: Commonly used in the display industry for emissive displays like smartphones and TVs[2][10].
- Lumens: Measures the total amount of light emitted by a light source (e.g., projectors) but isn't directly applicable to displays[10].
- Luminance: A more encompassing term that includes nits (cd/m²) and considers the perceived brightness[10].
The brightness of LCD displays varies depending on the application:
- General-purpose monitors: Typically range from 250 to 350 cd/m²[3][11].
- High-brightness displays (for outdoor use or HDR): Can exceed 1000 cd/m²[3].
Several factors influence the brightness of an LCD display:
LCDs do not emit light themselves; they rely on a backlight to illuminate the liquid crystals. The type of backlight significantly affects the display's brightness:
- LED (Light Emitting Diode): The most common type, offering good brightness, energy efficiency, and lifespan. LED backlights can be edge-lit or direct-lit, with direct-lit offering more uniform brightness[9].
- CCFL (Cold Cathode Fluorescent Lamp): An older technology, less energy-efficient and with a shorter lifespan than LEDs.
- OLED (Organic Light Emitting Diode): While technically not an LCD, OLED displays are often compared. OLEDs are emissive, meaning each pixel produces its own light, resulting in excellent contrast and brightness.
The LCD panel itself affects how much light from the backlight is transmitted:
- Transmittance: The percentage of light that passes through the panel. Higher transmittance results in a brighter display.
- Polarizers and Filters: These components control the direction and color of light, affecting brightness.
- Panel Design: The arrangement of liquid crystals and other layers can impact light transmission.
Software settings play a crucial role in controlling brightness:
- Brightness Control: Adjusts the intensity of the backlight.
- Contrast Ratio: Affects the difference between the brightest and darkest parts of the image[11].
- Gamma: Influences the overall brightness and color accuracy.
Ambient lighting conditions significantly impact perceived brightness:
- Direct Sunlight: Makes it difficult to see the screen, requiring higher brightness levels.
- Low-Light Conditions: Can make a bright screen uncomfortable, necessitating lower brightness settings.
Measuring LCD brightness accurately requires specialized equipment and techniques:

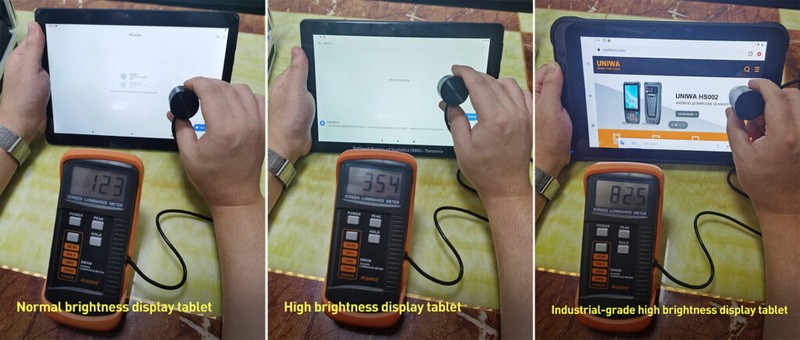

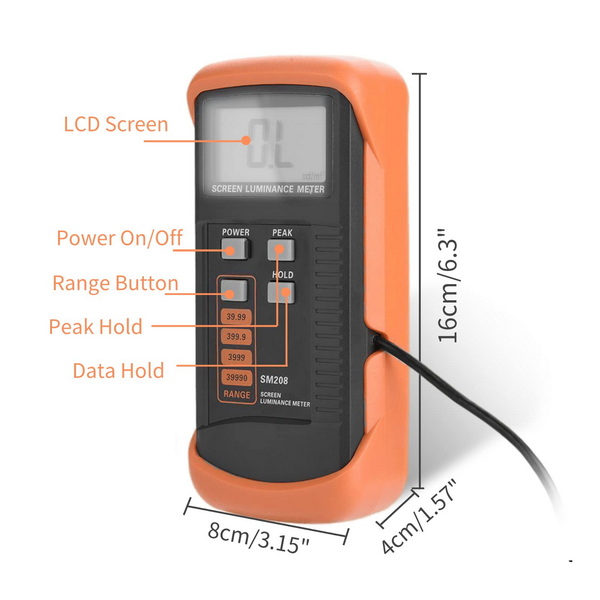

A photometer is a device that measures light intensity in candelas per square meter (cd/m²)[1]. To measure brightness:
1. Turn off the lights in the room to eliminate external light sources[1].
2. Maximize the display's brightness setting[1].
3. Display a full-white screen (e.g., open a blank document)[1].
4. Place the photometer's sensor flat against the screen[1].
5. Record the reading in cd/m² or nits[1].
A luminance colorimeter is a more advanced instrument that measures luminance, color temperature, and color difference[3]. It is suitable for low-brightness measurements and can be used with different measuring angles[3].
Software tools can help calibrate the display and provide an approximate brightness measurement. These tools are less accurate than dedicated hardware but can be useful for minor adjustments[5].
Some smartphone apps claim to measure display brightness using the phone's light sensor. However, these measurements are generally not very accurate and should only be used for rough estimates[5].
Adjusting LCD brightness is essential for optimal viewing and comfort:
Most devices allow manual brightness adjustment through:
- Hardware Buttons: Dedicated buttons on the device.
- Operating System Settings: Brightness sliders in the display settings.
Many devices feature automatic brightness adjustment, which uses an ambient light sensor to adjust the screen's brightness based on the surrounding lighting conditions.
- Benefits: Conserves battery life, reduces eye strain.
- Drawbacks: Can be inaccurate in certain situations, leading to undesirable brightness levels.
For professional use, calibrating the display ensures accurate color and brightness. This involves using a colorimeter and calibration software to create a custom color profile for the display[5].
Several issues can affect LCD brightness and viewing experience:

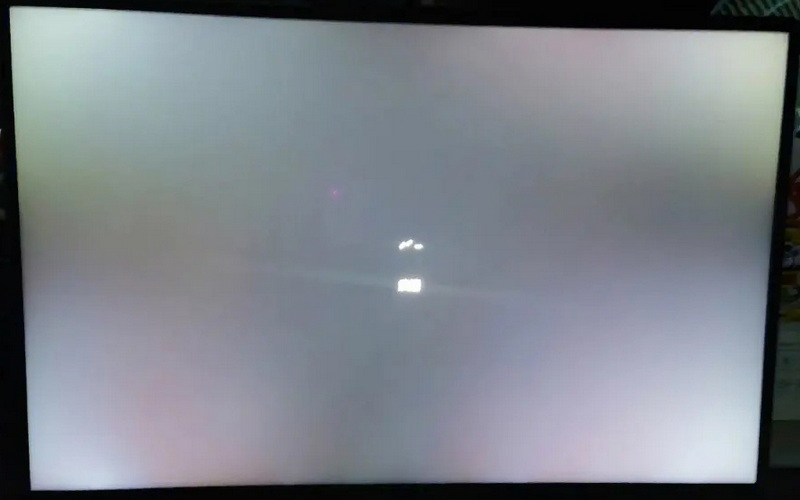

Uneven brightness, also known as backlight bleeding or clouding, occurs when some areas of the screen are brighter than others[9]. This can be caused by:
- Poor Backlight Design: Uneven distribution of light from the backlight.
- Panel Imperfections: Variations in the liquid crystal layer.
- Pressure on the Screen: Can cause localized brightness variations.
Over time, the brightness of LCDs can decrease due to the degradation of the backlight[6]. This is more common in older displays and those with CCFL backlights.
Dead pixels are pixels that do not light up, appearing as black spots on the screen. While not directly related to brightness, they can be more noticeable on brighter displays[3].
Although less common on LCDs than on OLEDs, image retention (or "burn-in") can occur if a static image is displayed for extended periods[7]. This can cause a faint ghost image to remain visible even when the display is showing other content.
Adjusting brightness levels according to the environment and task enhances viewing comfort and reduces eye strain:
- Office Environment: 250-350 cd/m² is typically sufficient[11].
- Home Use (Dimly Lit Room): Lower brightness levels are preferable to avoid eye strain.
- Sunny Conditions: Higher brightness levels (500 cd/m² or more) are needed to overcome glare.
- Reflective Surfaces: Consider anti-glare coatings to reduce reflections.
- Gaming: Higher brightness and contrast ratios can enhance the gaming experience.
- Video Editing/Graphic Design: Accurate color reproduction is crucial, requiring calibrated displays.
Display brightness significantly affects power consumption. Higher brightness levels require more power to drive the backlight, reducing battery life in portable devices.
- Use Automatic Brightness: Allows the device to adjust brightness dynamically based on ambient light.
- Lower Brightness Levels: Reduce brightness when possible, especially in dimly lit environments.
- Enable Dark Mode: Reduces the amount of white displayed on the screen, saving energy (especially on OLED displays).
Understanding LCD display brightness is crucial for optimizing the viewing experience, reducing eye strain, and conserving energy. By considering the factors that influence brightness, measuring it accurately, and adjusting it appropriately for different scenarios, users can ensure that their LCD displays provide the best possible performance. From backlight technology to software settings and environmental conditions, each aspect plays a vital role in achieving optimal brightness levels. As technology advances, further innovations in display technology will continue to improve brightness, contrast, and overall image quality, enhancing the way we interact with our digital devices.
The ideal brightness level depends on the environment and the task. For typical indoor office use, a brightness of 250-350 cd/m² is usually sufficient[11]. In dimly lit rooms, lower brightness levels are preferable to reduce eye strain. For outdoor use or for viewing HDR content, higher brightness levels (500 cd/m² or more) may be necessary.
To improve the brightness of your LCD screen:
- Increase the brightness setting in the display settings or using hardware buttons.
- Disable any energy-saving modes that may be limiting brightness.
- Ensure that the display is clean and free of dust or smudges.
- Consider using a display with a higher brightness rating (cd/m²) if the current display is not bright enough.
Brightness refers to the amount of light emitted by the screen, measured in candelas per square meter (cd/m²) or nits. Contrast ratio is the ratio between the brightest white and the darkest black that the display can produce[11]. A higher contrast ratio indicates a greater difference between the brightest and darkest parts of the image, resulting in a more vibrant and detailed picture.
Unfortunately, uneven brightness (backlight bleeding) is often a hardware issue that is difficult to fix. Some possible solutions include:
- Gently massaging the screen in the affected areas (use caution to avoid damaging the display).
- Adjusting the display's gamma settings.
- Replacing the display if the issue is severe.
Yes, prolonged exposure to high brightness levels can cause eye strain, fatigue, and even headaches. It's important to adjust the brightness to a comfortable level based on the ambient lighting conditions. Using automatic brightness settings or manually reducing brightness in dimly lit environments can help reduce eye strain.
