Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, found in everything from smartphones to televisions. The LCD module structure plays a crucial role in determining the overall display quality. Understanding how the various components of an LCD module work together can help manufacturers optimize performance and consumers make informed purchasing decisions. This article delves into the intricate structure of LCD modules, examining how each layer contributes to display quality.

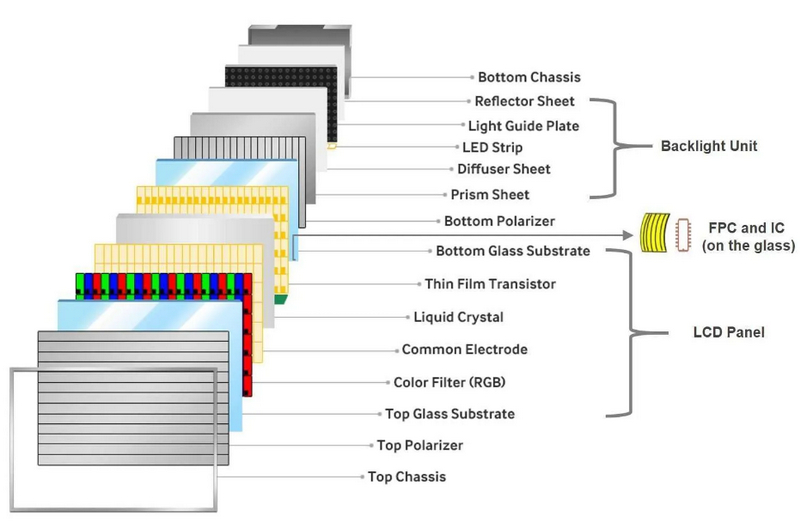

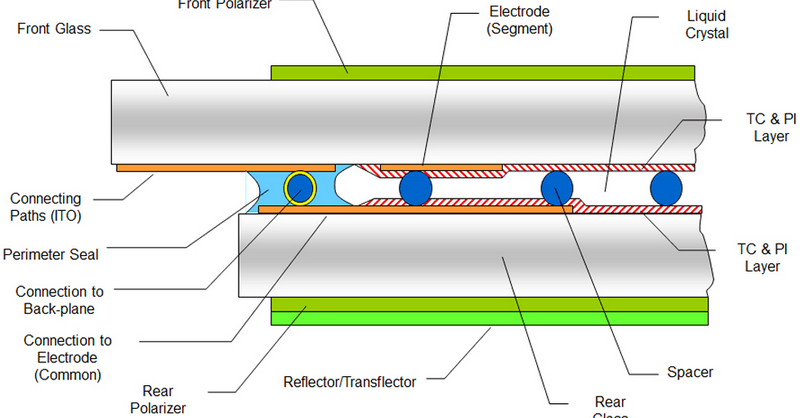

An LCD module typically consists of several key components, including:
- Liquid Crystal Layer: The heart of the display, where light modulation occurs.
- Backlight Unit: Provides illumination for the display.
- Polarizers: Control the light entering and exiting the liquid crystal layer.
- Color Filters: Determine the color output by filtering specific wavelengths of light.
- Glass Substrates: Protect and support the internal components.
The liquid crystal layer is essential for manipulating light. The quality of the liquid crystals used can significantly affect color reproduction, response time, and viewing angles. High-quality liquid crystals can provide better contrast ratios and more vibrant colors.
The backlight unit is responsible for illuminating the LCD panel. Different technologies, such as LED or CCFL, can be used here, affecting brightness and energy efficiency. LED backlighting generally offers better brightness control and color accuracy compared to traditional CCFL.
Polarizers are critical in controlling light passage through the liquid crystal layer. Poor quality polarizers can lead to issues like reduced brightness and color distortion. High-quality polarizers enhance contrast and improve viewing angles.
Color filters are responsible for producing the colors you see on the screen. The precision and quality of these filters directly affect color accuracy and saturation. Advanced techniques in color filter manufacturing can lead to a wider color gamut.
The glass substrates protect internal components while allowing light to pass through with minimal distortion. Variations in glass quality can lead to reflections or refractions that degrade image quality.
Each component in an LCD module structure does not function independently; they interact in complex ways that influence overall performance:
- Light Modulation: The liquid crystal layer modulates light from the backlight unit based on electrical signals, affecting brightness and contrast.
- Color Accuracy: The combination of polarizers and color filters ensures that only specific wavelengths reach your eyes, impacting how colors are perceived.
- Viewing Angles: The arrangement of layers affects how light is transmitted at different angles, which is crucial for wide viewing angles.
Several external factors can also influence the performance of an LCD module:
Extreme temperatures can affect liquid crystal behavior, leading to slower response times or color shifts.
High humidity levels can cause condensation within the module, potentially damaging internal components and affecting display quality.
Mechanical stress from bending or twisting can damage the glass substrates or disrupt the alignment of liquid crystals, leading to dead pixels or discoloration.
The structure of an LCD module is fundamental to its display quality. Each component plays a vital role in ensuring that images are bright, colorful, and clear. By understanding these elements—liquid crystal layers, backlight units, polarizers, color filters, and glass substrates—manufacturers can optimize their designs for better performance. Consumers benefit from this knowledge when selecting devices that meet their visual expectations.
LCD modules can be categorized into various types based on their technology:
- TFT (Thin Film Transistor)
- IPS (In-Plane Switching)
- VA (Vertical Alignment)
Each type has unique characteristics affecting display quality.
LED backlights provide higher brightness levels, better energy efficiency, and improved color accuracy compared to traditional CCFL backlights.
A color gamut refers to the range of colors that a display can reproduce. A wider color gamut allows for more vibrant colors and better overall image quality.
Viewing angle impacts how colors appear when viewed from different positions relative to the screen. A good viewing angle ensures consistent color reproduction regardless of where you sit.
Regular cleaning with appropriate materials is essential to maintain clarity and prevent damage to polarizers and glass substrates.
