A liquid-crystal display (LCD) is a flat-panel display technology widely used in various electronic devices, including LCD televisions, computer monitors, smartphones, and instrument panels[1][7]. LCDs utilize the light-modulating properties of liquid crystals combined with polarizers to display information[1]. Unlike other display technologies, liquid crystals do not emit light directly but instead rely on a backlight or reflector to produce images in color or monochrome[1].
Each pixel of an LCD typically consists of a layer of molecules aligned between two transparent electrodes, often made of indium tin oxide (ITO), and two polarizing filters[1]. These filters are arranged so that their axes of transmission are perpendicular to each other[1]. Without the liquid crystal between the polarizing filters, light passing through the first filter would be blocked by the second[1].

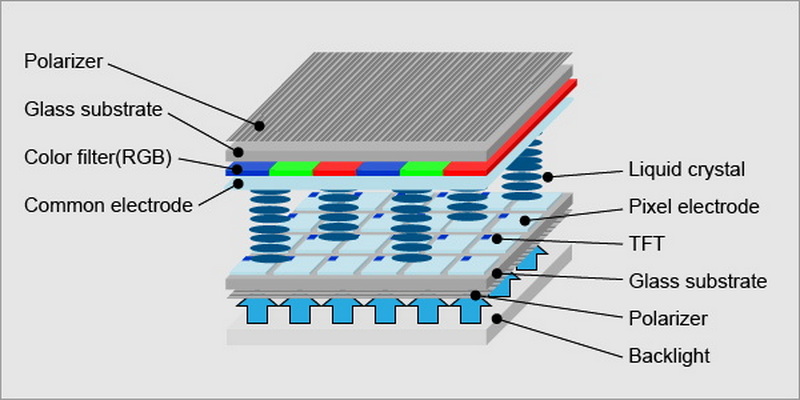

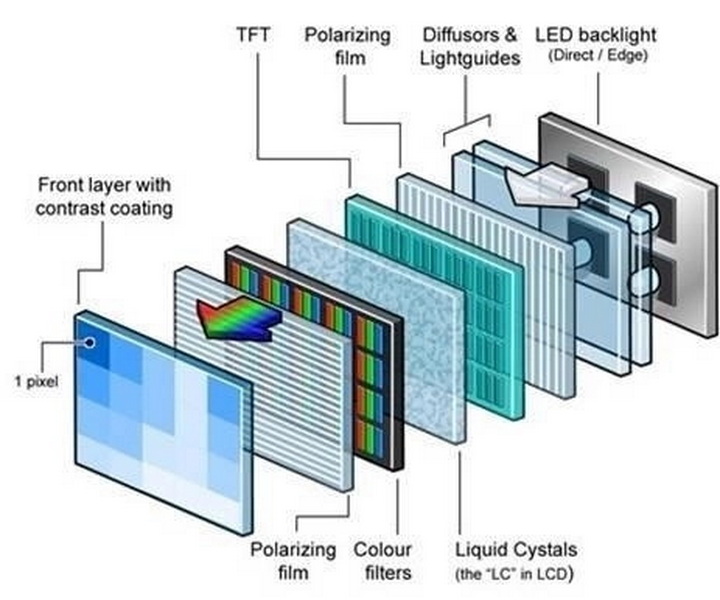

An LCD screen consists of several key components[9]:
- Backlight: Provides the source of illumination for the display, typically made up of LED (Light Emitting Diode) or CCFL (Cold Cathode Fluorescent Lamp) lights[9].
- Liquid Crystal Layer: A layer of liquid crystals sandwiched between two glass substrates. These crystals can change their orientation in response to an electric field[9].
- Polarizing Filters: Two polarizing filters are placed at the front and back of the liquid crystal layer, controlling the direction of light passing through the liquid crystals[9].
- Color Filters: Each pixel is divided into three sub-pixels—red, green, and blue (RGB)—which combine to produce a full spectrum of colors[5][9].

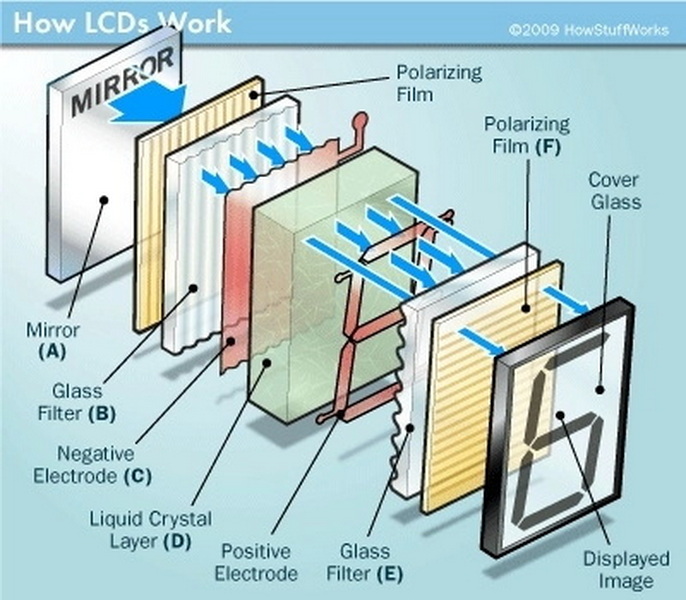

The operation of an LCD screen involves several steps[5][9]:
1. Backlight Activation: The backlight emits white light that passes through the first polarizer[5].
2. Polarization: The first polarizer filters the light, allowing only waves vibrating in one direction to pass through[5][9].
3. Liquid Crystal Manipulation: When no voltage is applied to the liquid crystals, they remain twisted, allowing polarized light to pass through and reach the second polarizer[5][6][9]. If voltage is applied, the liquid crystals untwist and block the light from passing through[5][6][9].
4. Color Production: Each pixel's sub-pixels (RGB) can be activated independently by controlling the voltage applied to them[5][9]. By adjusting the intensity of each sub-pixel, various colors can be produced[5][9].
5. Image Formation: The combination of all pixels creates a complete image on the screen[5][9].
1. Backlighting: The backlight emits a white light, which is the initial light source for the LCD[5][9]. This light needs to be polarized to function correctly with the liquid crystals.
2. Polarization: The first polarizing filter ensures that only light waves vibrating in a specific direction can pass through[5][9]. This is crucial because liquid crystals manipulate polarized light[2].
3. Liquid Crystal Layer: The liquid crystal layer is where the magic happens. Liquid crystals are substances that have properties between those of a conventional liquid and a solid crystal[1][2][3]. Their orientation can be controlled by an electric field[9].
- Twisted Nematic (TN) LCDs: In TN LCDs, when no electric field is applied, the liquid crystals are twisted at 90 degrees[1]. This allows the polarized light to pass through the second polarizing filter, and the pixel appears bright[6]. When a voltage is applied, the liquid crystals untwist, blocking the light and making the pixel appear dark[1][6][9].
4. Sub-pixels and Color Filters: Each pixel is divided into three sub-pixels: red, green, and blue (RGB)[2][5][9]. Each sub-pixel has a color filter that allows only that color of light to pass through[5][9][12]. By controlling the intensity of each sub-pixel, a wide range of colors can be produced[5][9][12]. For example, if all three sub-pixels are fully lit, the pixel appears white. If all three are off, the pixel appears black.
5. Active vs. Passive Matrix LCDs: LCDs are made with either a passive matrix or an active matrix display grid[2].
- Passive Matrix LCD: Has a grid of conductors with pixels located at each intersection[2]. A current is sent across two conductors on the grid to control the light for any pixel[2].
- Active Matrix LCD (TFT): Has a transistor located at each pixel intersection, requiring less current to control the luminance of a pixel[2]. The current in an active matrix display can be switched on and off more frequently, improving the screen refresh time[2].
6. Image Creation: By controlling the voltage applied to each pixel, the amount of light passing through each sub-pixel can be precisely controlled[1][5][9]. This allows the LCD to create a wide range of colors and shades, forming a complete image[5][9]. The rapid switching of pixels on and off creates the dynamic images we see on the screen[2].
There are several types of LCD technologies that differ in how they control pixels and produce images[5]:
- Twisted Nematic (TN) Panels: One of the oldest and most common types of LCD technology[6]. TN panels offer fast response times but have limited viewing angles and color reproduction capabilities[5].
- In-Plane Switching (IPS) Panels: Offer wider viewing angles and better color accuracy than TN panels[5]. However, they typically have slower response times[5].
- Vertical Alignment (VA) Panels: Provide high contrast ratios and good viewing angles[5]. They fall in between TN and IPS panels in terms of response time and color accuracy[5].
LCDs have replaced cathode-ray tube (CRT) displays in nearly all applications due to their numerous advantages[1]:
- Flat Panel Display: LCDs are thin and lightweight, making them suitable for portable devices and wall-mounted displays[1][7].
- Energy Efficiency: LCDs consume less power than CRTs, making them more energy-efficient[1].
- No Screen Burn-in: LCDs are not subject to screen burn-in like CRTs[1].
- High Resolution: LCDs can display high-resolution images with sharp details[2].
Despite their advantages, LCDs also have some drawbacks:
- Limited Viewing Angles: Some LCD technologies, like TN panels, have limited viewing angles, where the image quality degrades when viewed from an angle[5].
- Backlight Dependency: LCDs require a backlight to produce images, which can add to the display's thickness and power consumption[1][9].
- Image Persistence: LCDs are still susceptible to image persistence, although not as severe as burn-in[1].
- Black Level: LCDs may struggle to display true black due to light leakage from the backlight[10].
The manufacturing process of LCD panels is complex and involves several steps[11]:
1. Front Segment Array: This involves the deposition of thin films, photolithography, etching, and film peeling to create the TFT array on the glass substrate[1][11].
2. Middle Segment Cell: This involves assembling the front segment array with color filters and liquid crystals to form the LCD cell[11].
3. Rear Segment Module: This involves attaching the backlight unit, polarizers, and other components to the LCD cell to complete the LCD panel[11].
LCD technology continues to evolve, with ongoing research and development focused on improving viewing angles, color accuracy, response times, and energy efficiency. Innovations such as quantum dot technology and mini-LED backlights are enhancing LCD performance and bringing it closer to that of other display technologies like OLED[5].
LCDs are a ubiquitous display technology that relies on the unique properties of liquid crystals to modulate light and create images[1]. By controlling the orientation of liquid crystals with an electric field, LCDs can precisely control the amount of light passing through each pixel, enabling the display of a wide range of colors and shades[1][5][9]. While LCDs have some limitations, their advantages in terms of form factor, energy efficiency, and resolution have made them the dominant display technology in use today[1][7]. Ongoing advancements promise to further enhance LCD performance and extend their lifespan in various applications[5].
An LCD (Liquid Crystal Display) is a flat-panel display technology that uses liquid crystals to modulate light and display images[1][7]. It is commonly used in televisions, computer monitors, and portable devices[1][7].
An LCD works by controlling the orientation of liquid crystals with an electric field to modulate the amount of light passing through each pixel[1][5][9]. The light is then filtered through red, green, and blue sub-pixels to create a wide range of colors[2][5][9].
LCDs are thinner, lighter, and more energy-efficient than CRTs (Cathode Ray Tubes)[1][7]. They also do not suffer from screen burn-in and can display higher-resolution images[1][2].
The main types of LCD panels are Twisted Nematic (TN), In-Plane Switching (IPS), and Vertical Alignment (VA)[5]. Each type offers different trade-offs in terms of response time, viewing angles, and color accuracy[5].
The backlight provides the light source for the LCD, as liquid crystals do not emit light themselves[1][9]. The backlight shines white light through the liquid crystal layer, which then modulates the light to create the image[5][9].
