How Does An Oled Screen Work?

Content Menu

Introduction to OLED Screens

Basic Structure of an OLED Screen

How OLEDs Work

Advantages of OLED Screens

Applications of OLED Screens

Recent Developments in OLED Technology

Challenges and Future Developments

Future of OLED Technology

Conclusion

Frequently Asked Questions

>> 1. What does OLED stand for?

>> 2. How do OLEDs achieve true blacks?

>> 3. What are the advantages of OLEDs over LCDs?

>> 4. What are some common applications of OLEDs?

>> 5. What challenges do OLEDs face?

Citations:

Introduction to OLED Screens

OLED screens, or Organic Light-Emitting Diode screens, have revolutionized the display technology industry with their superior image quality, flexibility, and efficiency. Unlike traditional LCDs, OLEDs do not require a backlight, making them thinner and more energy-efficient. This article will delve into the workings of OLED screens, their advantages, and their applications, accompanied by explanations to enhance understanding.

how does an oled screen work_1

Basic Structure of an OLED Screen

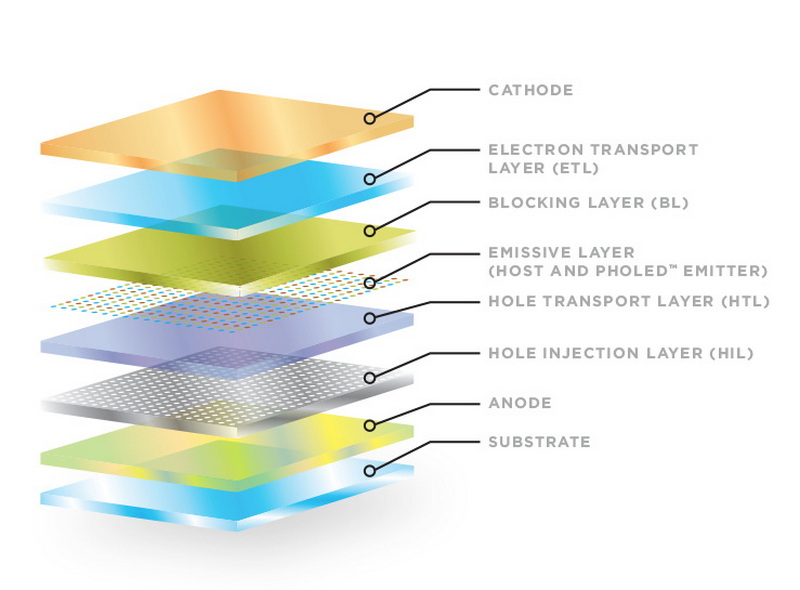

An OLED screen consists of several layers, including a substrate, an anode, a cathode, and organic material layers sandwiched between them. The organic material layers typically include a conductive layer and an emissive layer. The substrate provides the base, while the anode and cathode are the electrodes that facilitate the flow of electrical current.

How OLEDs Work

When an electrical current is applied, electrons from the cathode and holes from the anode combine in the emissive layer, forming excitons. As these excitons decay, they release energy in the form of light, which is then emitted through the transparent electrode. This process allows each pixel to produce its own light, enabling true blacks and high contrast ratios.

Advantages of OLED Screens

1. High Contrast and True Blacks: Since each pixel can be turned on and off independently, OLEDs can achieve true blacks, unlike LCDs which rely on a backlight.

2. Wide Viewing Angles: OLEDs maintain their color accuracy and contrast even when viewed from the side.

3. Fast Response Time: This makes them ideal for fast-paced content like sports and video games.

4. Flexibility and Thinness: OLEDs can be made flexible and are much thinner than LCDs, allowing for innovative designs like foldable phones.

how does an oled screen work_3

Applications of OLED Screens

OLEDs are widely used in:

- Smartphones: Many flagship models feature OLED displays for their vibrant colors and deep blacks.

- TVs: OLED TVs are renowned for their superior picture quality and slim designs.

- Wearables: Smartwatches and fitness trackers often use OLEDs for their efficiency and flexibility.

Recent Developments in OLED Technology

In recent years, OLED technology has seen significant advancements. For instance, LG Display has unveiled its fourth-generation OLED TV panel, which is optimized for AI TVs and offers a maximum brightness of up to 4,000 nits, making it 33% brighter than its predecessor[1]. This panel uses LG's proprietary Primary RGB Tandem structure, enhancing brightness and efficiency[1].

Samsung Display has also made notable improvements with its QD-OLED technology, achieving a peak brightness of over 4,000 nits and incorporating advanced panel-driving technology and new organic materials[4][7]. Their latest panels are 30% brighter than previous models and offer improved durability and efficiency[4].

Challenges and Future Developments

Despite these advancements, OLEDs still face challenges such as material degradation over time and high production costs. Research is ongoing to improve material efficiency and reduce costs, with innovations like ink-jet printing for OLED deposition and new manufacturing methods like eLEAP, which eliminates the need for traditional metal masks[3][5].

eLEAP technology allows for larger, higher-definition displays with improved lifespan and energy efficiency. It also enables free-form designs and can be scaled up to larger substrate sizes, reducing environmental impact by minimizing organic solvent use[3].

Future of OLED Technology

The future of OLED technology looks promising, with ongoing innovations in materials and manufacturing processes. New technologies such as blue PHOLED and plasmonics are being explored to further enhance OLED efficiency and brightness[5]. Additionally, advancements in QD-OLED and WOLED technologies are expected to continue, with Samsung and LG leading the way in these developments[4][5].

Samsung's On-Cell Film (OCF) OLED technology has also shown significant improvements, achieving higher brightness and reduced power consumption by eliminating polarizer layers[6]. This technology enhances the potential for foldable displays by reducing panel thickness.

Conclusion

OLED screens have transformed the display industry with their superior image quality, flexibility, and efficiency. As technology continues to evolve, we can expect even more innovative applications of OLEDs in various devices.

how does an oled screen work_2

Frequently Asked Questions

1. What does OLED stand for?

OLED stands for Organic Light-Emitting Diode. It is a display technology that uses organic materials to produce light when an electric current is applied.

2. How do OLEDs achieve true blacks?

OLEDs achieve true blacks because each pixel can be turned on and off independently. When a pixel is turned off, it emits no light, resulting in true blacks.

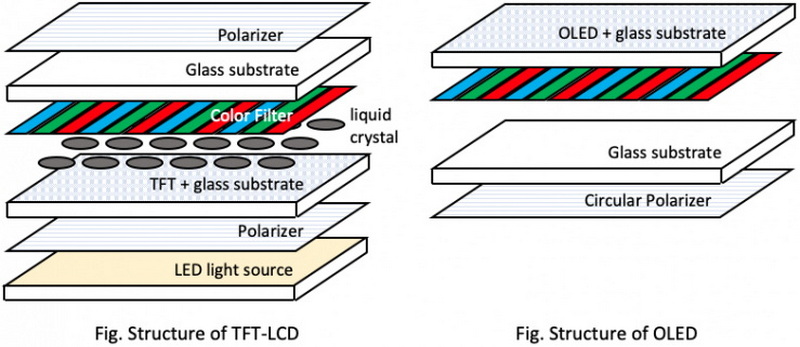

3. What are the advantages of OLEDs over LCDs?

OLEDs offer higher contrast, wider viewing angles, faster response times, and are thinner and more energy-efficient than LCDs.

4. What are some common applications of OLEDs?

OLEDs are commonly used in smartphones, TVs, wearables, and laptops due to their superior display qualities and flexibility.

5. What challenges do OLEDs face?

OLEDs face challenges such as material degradation over time, high production costs, and the difficulty of scaling up production efficiently.

Citations:

[1] https://www.lgcorp.com/media/release/28575

[2] https://overclock3d.net/news/gpu-displays/expect-to-see-major-improvements-in-oled-technology-at-ces-2025/

[3] https://www.j-display.com/en/product_tech/eleap.html

[4] https://tftcentral.co.uk/videos/gen-4-samsung-qd-oled-2025-panels-and-improvements

[5] https://www.flatpanelshd.com/focus.php?subaction=showfull&id=1738315055

[6] https://www.oled-info.com/samsung-launches-new-5000-nits-amoled-display-based-its-next-gen-ocf-oled

[7] https://global.samsungdisplay.com/31326

[8] https://tftcentral.co.uk/news/oled-news-and-rumours-round-up-for-2025

[9] https://www.oled-info.com/samsung-display-shows-its-latest-oled-technologies-mwc-2025

[10] https://www.oled-info.com

[11] https://www.techradar.com/televisions/the-tv-tech-to-watch-out-for-in-2025-from-even-brighter-oleds-to-better-lcds

[12] https://www.wired.com/gallery/best-oleds/

[13] https://ir.appliedmaterials.com/news-releases/news-release-details/applied-materials-breakthrough-bring-oled-displays-tablets-pcs/

[14] https://www.youtube.com/watch?v=eyYRevThUUw

[15] https://news.samsung.com/au/samsung-brings-its-biggest-and-most-accessible-oled-tvs-to-its-2025-australian-av-lineup

[16] https://www.cas.org/resources/cas-insights/oled-technology

[17] https://www.tomsguide.com/tvs/lgs-2025-oled-tvs-have-a-secret-weapon-that-could-blow-away-the-competition

[18] https://omdia.tech.informa.com/om128494/display-dynamics--february-2025-panel-suppliers-are-focusing-on-increasing-oled-tvs-brightness-by-adding-more-emitting-layers

[19] https://www.sekisui.co.jp/electronics/lp_nex-gen-d/en/

[20] https://www.youtube.com/watch?v=ojEufS3AfDg
