In the realm of display technology, various types of screens are utilized across different devices, each with its unique advantages and disadvantages. Among these, the a-Si TFT (Amorphous Silicon Thin Film Transistor) LCD display stands out for its widespread application in smartphones, tablets, laptops, and televisions. This article delves into how a-Si TFT LCD displays compare to other types of displays, such as OLED (Organic Light Emitting Diode) and IPS (In-Plane Switching) LCDs.

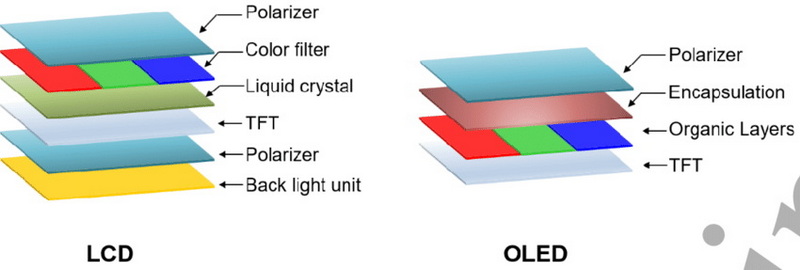

TFT LCDs utilize a thin-film transistor technology that enhances image quality by controlling individual pixels more effectively than traditional passive matrix displays. The structure of a TFT LCD includes:
- Glass Substrates: Two layers sandwiching the liquid crystal.
- Liquid Crystal Layer: The core component that modulates light.
- Thin-Film Transistors: Control the voltage applied to each pixel.
This configuration allows for higher resolution, faster refresh rates, and improved color accuracy compared to older technologies like CRT (Cathode Ray Tube) displays.

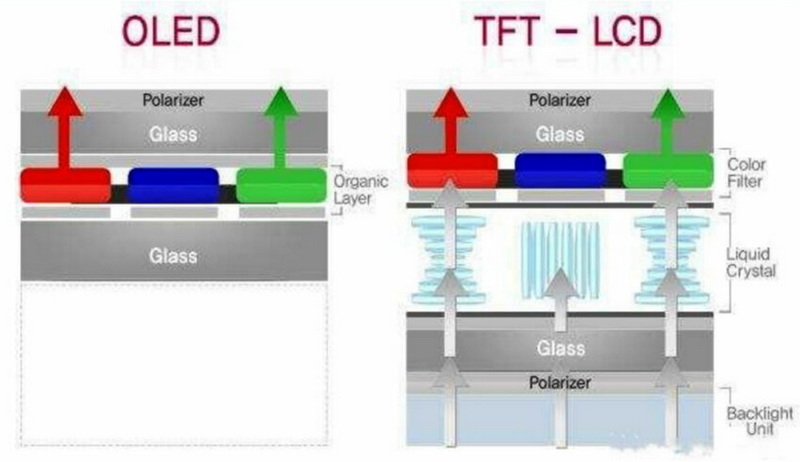

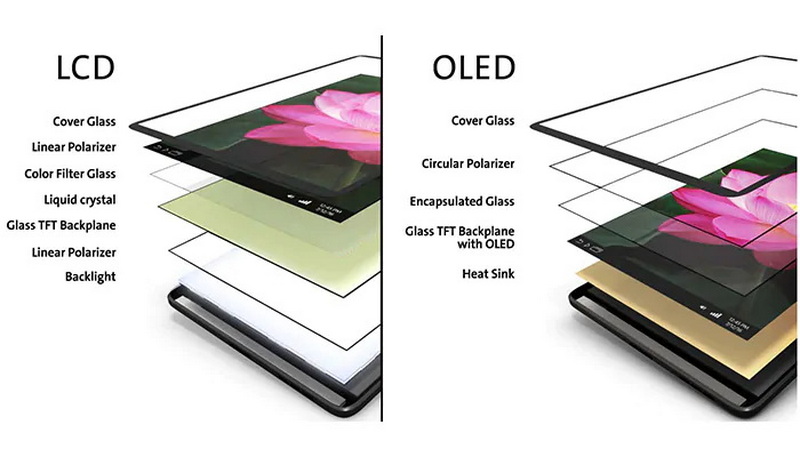

OLED displays have gained popularity due to their superior performance in several key areas:
Feature | TFT LCD | OLED |
---|---|---|
Light Emission | Requires backlighting | Self-emissive |
Contrast Ratio | Lower due to backlight | Higher with true blacks |
Viewing Angles | Limited; colors shift at angles | Excellent; consistent colors |
Power Consumption | Higher when displaying bright images | Lower for dark images |
Lifespan | Longer lifespan | Shorter due to organic material degradation |
TFT LCDs are generally more energy-efficient when displaying bright images because they rely on a uniform backlight. However, OLEDs excel in contrast and color accuracy due to their ability to turn off individual pixels completely.
IPS technology is a subtype of TFT that improves upon standard TFT displays by offering wider viewing angles and better color reproduction:
Feature | Standard TFT | IPS TFT |
---|---|---|
Viewing Angles | Narrow | Wide (up to 85 degrees) |
Color Accuracy | Moderate | High |
Response Time | Faster than traditional LCDs | Slightly slower than standard TFT |
IPS displays are preferred for applications where color accuracy and viewing angles are critical, such as graphic design and photography.
- Cost-Effectiveness: A-Si TFT displays are cheaper to manufacture compared to OLEDs, making them widely used in budget devices.
- Durability: They have a longer lifespan than OLEDs since they do not suffer from burn-in issues.
- Low Power Consumption: While they consume more power than OLEDs for dark images, they are generally more efficient for bright images.
- Fast Response Time: A-Si TFT displays can achieve response times around 5 milliseconds or lower, making them suitable for fast-moving content like video games.
- High Resolution: Modern a-Si TFT displays can support high resolutions up to 4K, providing clear and detailed images.
- Limited Viewing Angles: Color distortion occurs when viewed from an angle.
- Contrast Ratio: The contrast is not as high as that of OLED displays, leading to less vivid images.
- Power Consumption in Dark Scenes: When displaying darker images, a-Si TFT LCDs consume more power due to the need for backlighting.
TFT LCDs are commonly found in:
- Smartphones
- Tablets
- Laptops
- Monitors
- Televisions
Their versatility makes them suitable for both consumer electronics and industrial applications.
The display technology landscape is continuously evolving with innovations aimed at improving performance and user experience. Some notable advancements include:
LTPS technology offers better electron mobility than a-Si, allowing for higher resolution and faster refresh rates. This technology is often used in high-end smartphones and tablets where performance is critical.
IGZO is another emerging technology that provides even higher electron mobility compared to both a-Si and LTPS. It allows for thinner screens with higher pixel densities, making it ideal for ultra-high-definition displays.
Many modern a-Si TFT displays integrate touch functionality directly into the display panel itself, reducing thickness and enhancing user interaction.
HDR technology enhances the range of brightness levels displayed on screens, providing richer colors and deeper contrasts. This feature is becoming increasingly common in new a-Si TFT models.
As consumer demand for higher-quality visuals continues to rise, several trends are shaping the future of display technologies:
- Flexible Displays: The development of flexible display technologies will allow screens that can bend or fold without losing image quality.
- Higher Refresh Rates: As gaming and video content become more dynamic, the demand for faster refresh rates will push manufacturers towards adopting LTPS or IGZO technologies.
- Sustainability Initiatives: With growing environmental concerns, manufacturers are focusing on creating more energy-efficient displays that use sustainable materials.
The journey towards modern display technologies began with cathode ray tubes (CRTs), which dominated until the late 20th century when flat-panel technologies emerged. The introduction of liquid crystal displays (LCDs) marked a significant shift due to their reduced size and weight compared to CRTs. A significant breakthrough occurred with the development of thin-film transistor (TFT) technology which allowed individual pixel control leading to improved image quality.
In the early 2000s, as mobile devices began proliferating globally, manufacturers sought ways to enhance battery life while providing vibrant visuals—this led to the adoption of amorphous silicon-based TFT-LCDs which were cheaper yet effective enough for everyday use cases like smartphones and laptops.
Consumer preferences have shifted dramatically over recent years towards high-resolution screens capable of delivering immersive experiences—this has driven manufacturers towards adopting advanced technologies like LTPS and IGZO which offer benefits such as improved color accuracy alongside energy efficiency without compromising on performance standards expected from modern devices.
Moreover, consumers today prioritize sustainability; hence manufacturers are increasingly looking at eco-friendly materials during production processes which not only reduce carbon footprints but also cater towards environmentally conscious buyers who seek products aligning with their values—this trend is likely going to shape future innovations within this space significantly.
Display technologies find applications across various sectors including healthcare where high-resolution monitors are essential for accurate diagnostics; education where interactive whiteboards enhance learning experiences; automotive industries leveraging advanced HUD systems providing drivers real-time information without diverting attention away from roads—these examples highlight just how integral display technologies have become across diverse fields pushing boundaries further than ever before!
As we look ahead into future innovations within display technologies—AI integration stands out as an exciting frontier! Imagine smart screens capable of adjusting brightness levels based on ambient light conditions or even altering color profiles automatically depending on content being displayed—these advancements promise not only enhanced user experiences but also pave way towards more intuitive interactions between humans & machines alike!
Additionally—with ongoing research into quantum dot technology—a potential game-changer emerges allowing displays capable of producing richer colors while maintaining energy efficiency—this could redefine how we perceive visuals altogether!
In summary, a-Si TFT LCD displays offer a balanced combination of cost-effectiveness, durability, and decent image quality. However, they fall short in terms of viewing angles and contrast when compared to OLED and IPS technologies. As display technology continues to evolve with advancements like LTPS and IGZO coming into play, the choice between these types will depend largely on specific use cases and consumer preferences.
OLED displays provide superior contrast ratios and better color accuracy because they emit their own light, allowing for true blacks.
Yes, a-Si TFT LCDs can be used outdoors; however, their visibility may be affected by direct sunlight compared to brighter technologies like OLED.
A-Si TFT displays generally have a longer lifespan than OLEDs due to the lack of organic materials that degrade over time.
Yes, many modern a-Si TFT displays support high refresh rates suitable for gaming and fast-moving content.
IPS technology offers better viewing angles and color reproduction, making it ideal for professional applications where accuracy is essential.
