Introduction

Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, serving as the screens for our smartphones, televisions, computer monitors, and various other devices[2][49]. They have revolutionized the way we visualize information, offering a flat-panel display technology that is energy-efficient and capable of producing high-quality images[4][49]. But how exactly do LCDs work? This article delves into the intricate workings of LCD technology, exploring its components, principles, and variations.

What is an LCD?

LCD stands for Liquid Crystal Display[46][49]. It is a type of flat-panel display that uses the properties of liquid crystals to modulate light and create images[4][14]. Unlike older display technologies like Cathode Ray Tubes (CRTs), LCDs do not emit light directly[18][39]. Instead, they rely on a backlight to illuminate the liquid crystals, which then control the passage of light to form the visible image[1][4].

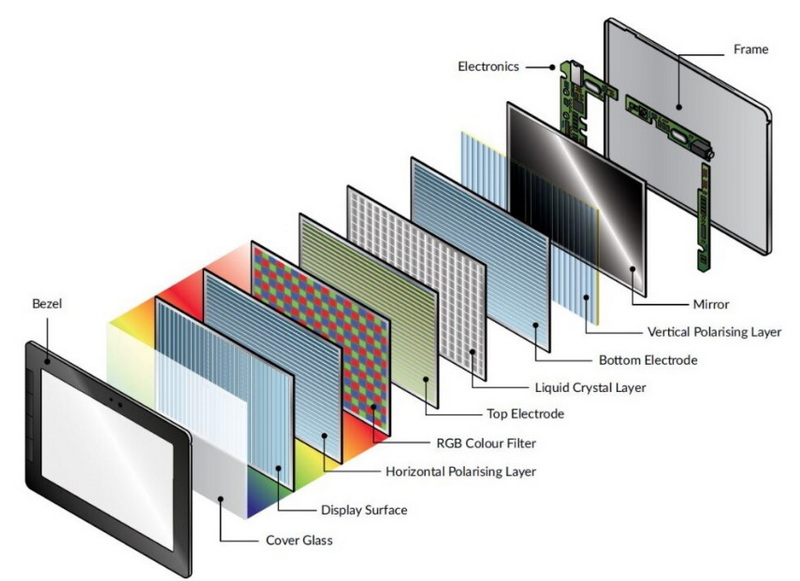

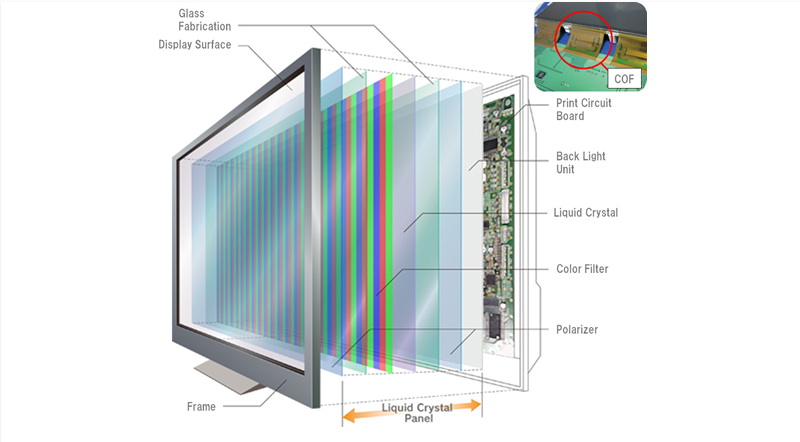

Basic Components of an LCD

An LCD screen comprises several layers that work in harmony to produce images[8][16]:

-  Backlight: The backlight is the light source for the display[4][16]. It is typically composed of fluorescent lamps or LEDs (Light Emitting Diodes)[4]. The light from the backlight passes through the other layers of the LCD to create the image[2][4].

-  Polarizing Filters: LCDs use two polarizing filters, arranged perpendicularly to each other[2][3]. The first filter polarizes the light from the backlight, allowing only light waves vibrating in a specific direction to pass through[2]. The second filter is oriented at a 90-degree angle to the first, blocking any light that passes through the first filter[2].

-  Liquid Crystal Layer: This is the core of the LCD[4]. Liquid crystals are substances that exhibit properties between those of a conventional liquid and a solid crystal[3][7]. They can flow like a liquid, but their molecules are arranged in an ordered pattern like a crystal[3][7]. The liquid crystal layer is composed of millions of tiny liquid crystal cells sandwiched between two glass plates[4].

-  Transparent Electrodes: These are thin layers of a transparent conductive material, such as indium tin oxide (ITO), that are deposited on either side of the liquid crystal layer[3][6]. These electrodes apply an electric field to the liquid crystals, which controls their orientation[3].

-  Color Filters: Color filters are used to produce color images[4][23]. Each pixel on an LCD screen is divided into three sub-pixels: red, green, and blue (RGB)[1][2]. Each sub-pixel has a color filter that allows only light of that color to pass through[23]. By controlling the intensity of light passing through each sub-pixel, the LCD can create a wide range of colors[1][2].

-  Glass Substrates: These are the front and back layers of the LCD, providing support and structure for the other components[3][16].

How LCDs Work: The Underlying Principle

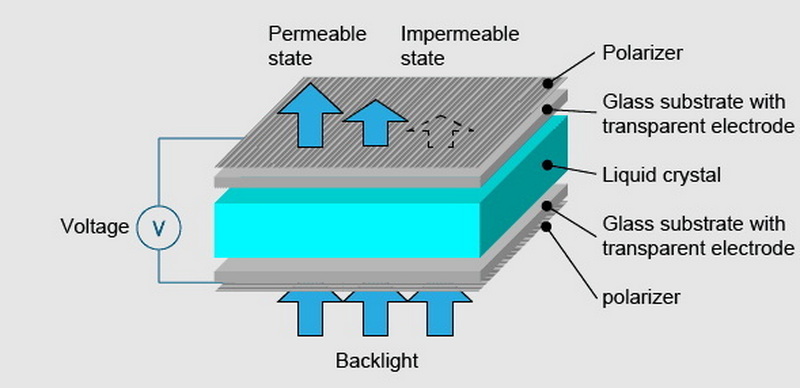

The operation of an LCD hinges on the ability of liquid crystals to control the polarization of light[1][4][5]. Here's a step-by-step explanation of how an LCD works:

1. Backlight Illumination: The backlight emits white light, which travels through the first polarizing filter[4][16].

2. Polarization: The first polarizing filter ensures that only light waves vibrating in a specific direction can pass through[2][3].

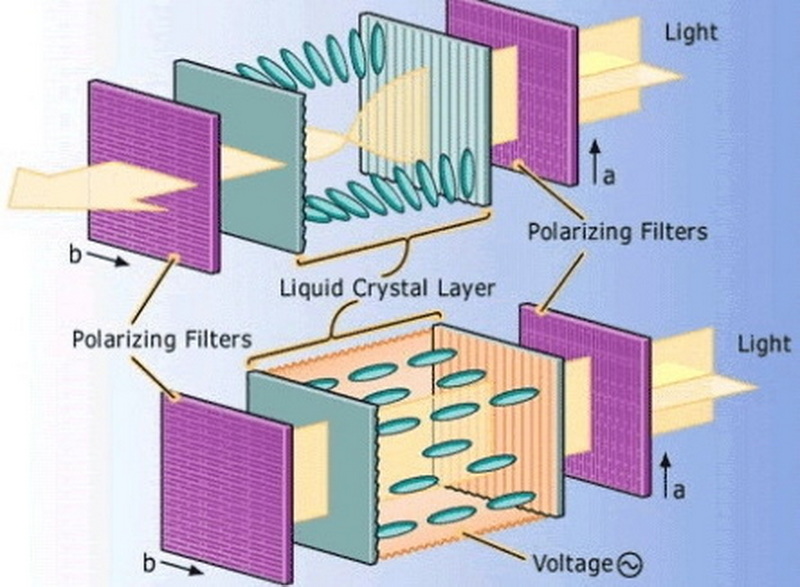

3. Liquid Crystal Alignment: The liquid crystal molecules are aligned in a specific direction, typically in a twisted configuration[3][5]. This alignment guides the light through the liquid crystal layer, causing its polarization to rotate to match the orientation of the molecules[3][5].

4. Voltage Application: When an electric voltage is applied to the transparent electrodes, the liquid crystal molecules untwist and align themselves with the electric field[3][5]. The degree of untwisting is proportional to the voltage applied[23].

5. Light Modulation: As the liquid crystals untwist, they alter the polarization of the light passing through them[2][3]. If the liquid crystals are fully aligned, the light's polarization is not rotated[3].

6. Second Polarizing Filter: The light then reaches the second polarizing filter, which is oriented perpendicularly to the first[2][3]. If the light's polarization has been rotated by 90 degrees due to the twisted liquid crystals (in the absence of voltage), it can pass through the second filter[3]. However, if the liquid crystals are aligned due to the applied voltage, the light's polarization remains unchanged, and it is blocked by the second filter[3][10].

7. Color Generation: The light that passes through the second polarizing filter then goes through the color filters, which create the red, green, and blue sub-pixels[23]. By varying the intensity of each sub-pixel, the LCD can produce a wide range of colors[2][23].

8. Image Formation: The combination of all the pixels on the screen creates the final image[1][4].

Types of LCDs

LCDs are broadly classified into two main types:

-  Passive Matrix LCD: Passive matrix LCDs use a simple grid of conductors to apply voltage to the liquid crystals[1]. Each pixel is controlled by a pair of conductors, one horizontal and one vertical[1]. Passive matrix LCDs are less expensive to manufacture but have slower response times and narrower viewing angles[1].

-  Active Matrix LCD: Active matrix LCDs, also known as Thin Film Transistor (TFT) LCDs, use a transistor at each pixel to control the voltage applied to the liquid crystals[1]. This allows for faster response times, wider viewing angles, and better image quality compared to passive matrix LCDs[1][18]. Active matrix LCDs are the most common type of LCD used in modern displays[1].

Advantages of LCDs

LCDs offer several advantages over older display technologies:

-  Thin and Lightweight: LCDs are much thinner and lighter than CRTs, making them suitable for portable devices and flat-panel displays[47].

-  Low Power Consumption: LCDs consume less power than CRTs and other display technologies, making them more energy-efficient[35][44][47].

-  High Brightness and Contrast: LCDs can produce bright images with high contrast ratios, resulting in vibrant and clear displays[47].

-  Long Lifespan: LCDs have a long lifespan compared to other display technologies, reducing the need for frequent replacements[4][47].

-  No Screen Burn-in: Unlike CRTs and plasma displays, LCDs do not suffer from screen burn-in, which is the permanent ghosting of an image on the screen[4][35].

Disadvantages of LCDs

Despite their numerous advantages, LCDs also have some limitations:

-  Limited Viewing Angle: The image quality of LCDs can degrade when viewed from an angle, especially with older LCDs[37]. However, newer LCD technologies like IPS (In-Plane Switching) have significantly improved viewing angles[18].

-  Black Levels: LCDs can struggle to produce true black colors, as some light from the backlight can always leak through[3]. This can result in a lower contrast ratio compared to other display technologies like OLEDs[34].

-  Response Time: Older LCDs had slower response times, which could lead to motion blur in fast-moving images[1]. However, modern LCDs have significantly improved response times, making them suitable for gaming and video playback[18].

-  Manufacturing Defects: LCDs are susceptible to manufacturing defects like dead pixels or backlight bleeding, which can affect image quality[47].

LCD Variations and Technologies

Over the years, various LCD technologies have been developed to improve performance and address the limitations of earlier LCDs[18]:

-  TN (Twisted Nematic): TN panels are the oldest and most common type of LCD[18][37]. They offer fast response times but have narrower viewing angles and lower color accuracy[18][37].

-  IPS (In-Plane Switching): IPS panels offer wider viewing angles and better color accuracy than TN panels[18]. They are commonly used in high-end monitors and smartphones[18].

-  VA (Vertical Alignment): VA panels offer a good compromise between TN and IPS panels, with decent viewing angles, good color accuracy, and high contrast ratios[18].

-  LED-backlit LCD: These LCDs use LEDs as the backlight source instead of fluorescent lamps[4][47]. LED backlighting offers several advantages, including lower power consumption, higher brightness, and longer lifespan[4][47].

-  Quantum Dot LCD: Quantum dot LCDs use quantum dots to enhance color accuracy and brightness[47]. Quantum dots are tiny semiconductor nanocrystals that emit light of specific colors when illuminated[47].

-  High Dynamic Range (HDR) LCD: HDR LCDs offer a wider range of brightness and contrast, resulting in more realistic and immersive images[47].

The Future of LCD Technology

While LCD technology has been dominant for many years, it is now facing competition from newer display technologies like OLED (Organic Light Emitting Diode) and microLED[34]. OLEDs offer several advantages over LCDs, including true black levels, infinite contrast ratios, and wider viewing angles[34]. However, LCDs continue to evolve and improve, and they are likely to remain a significant part of the display market for the foreseeable future[47].

Conclusion

Liquid Crystal Displays have transformed the way we interact with technology, providing clear, energy-efficient, and versatile displays for a wide range of devices[4][49]. Understanding the principles behind LCD technology allows us to appreciate the intricate engineering that goes into creating these displays[1][4][5]. While newer technologies like OLED are emerging, LCDs continue to evolve and remain a vital part of the display landscape[34][47].

Frequently Asked Questions (FAQ)

1. What is the difference between LCD and LED displays?

LED displays are actually a subset of LCD displays[35][47]. The main difference is the type of backlight used[47]. LCDs traditionally use fluorescent lamps, while LED displays use LEDs for backlighting, which offers better energy efficiency and brightness[4][47].

2. What are the advantages of IPS LCDs over TN LCDs?

IPS (In-Plane Switching) LCDs offer wider viewing angles and better color accuracy compared to TN (Twisted Nematic) LCDs[18]. TN panels have faster response times, but IPS panels provide a superior viewing experience with more consistent colors when viewed from different angles[18].

3. What is the role of polarizing filters in LCDs?

Polarizing filters are crucial for the operation of LCDs[2][3]. They control the direction of light waves passing through the display[2][3]. The first filter polarizes the light, and the second filter, oriented perpendicularly, either blocks or allows the polarized light to pass through, depending on the alignment of the liquid crystals[2][3].

4. What causes "screen burn-in" and do LCDs suffer from it?

Screen burn-in is a phenomenon where a static image displayed for a long time leaves a permanent ghost image on the screen[4][35]. LCDs do not suffer from screen burn-in because they use liquid crystals that do not emit light directly and are not susceptible to this issue[4][35].

5. How do color filters work in LCDs?

Color filters are used to create color images on LCDs[4][23]. Each pixel is divided into three sub-pixels: red, green, and blue (RGB)[1][2]. Each sub-pixel has a color filter that allows only light of that color to pass through[23]. By controlling the intensity of light passing through each sub-pixel, the LCD can produce a wide range of colors[1][2].
