Introduction

Liquid Crystal Display (LCD) screens are ubiquitous in modern technology, appearing in everything from smartphones and laptops to televisions and digital signage. Over time, these screens can develop issues such as dead pixels, fading displays, or physical damage. Restoring an LCD display can often be achieved through various methods, ranging from simple troubleshooting to more complex repairs. This guide provides a detailed exploration of how to diagnose and fix common LCD screen problems, complete with step-by-step instructions, essential tools, and preventive measures.

Understanding LCD Technology

Before delving into the repair process, it's crucial to understand the basic principles of LCD technology. An LCD screen consists of several layers, including a backlight, polarizing filters, liquid crystals, and a glass substrate[3]. The liquid crystals respond to electrical signals to control the passage of light, creating the images we see. When issues arise, they often stem from problems within these layers or their connections.

Common LCD Problems:

-  Dead Pixels: These are pixels that do not light up, appearing as black spots on the screen[1].

-  Stuck Pixels: Pixels that remain a single color, often red, green, or blue[1].

-  Fading Display: The screen appears dim or the colors are washed out[4].

-  Cracked Screen: Physical damage that impairs viewing quality[1][3].

-  Connectivity Issues: Problems with the connection between the LCD and the device's motherboard[1].

-  Color Distortion: Inaccurate or inconsistent colors on the display[1][3].

Initial Diagnosis

The first step in restoring an LCD display is to accurately diagnose the problem. A systematic approach can save time and prevent further damage[1].

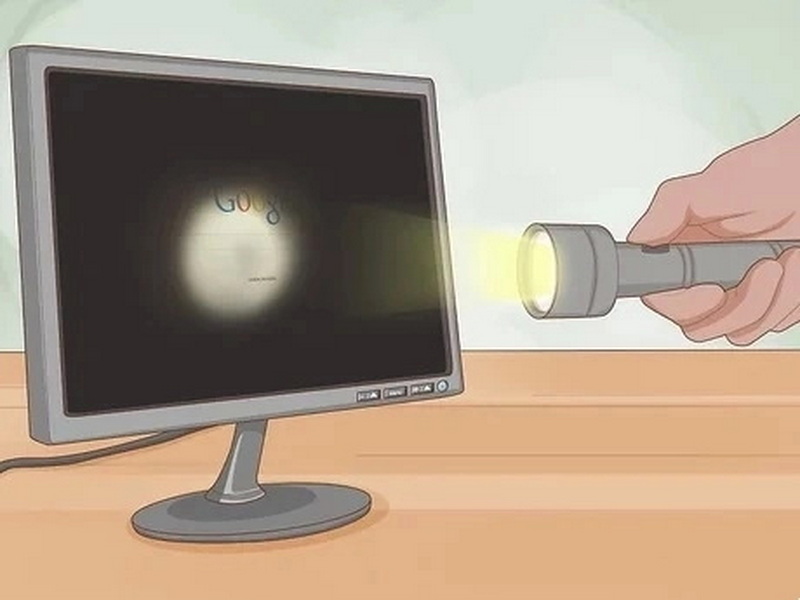

1. Visual Inspection:

Begin by thoroughly examining the screen for any visible signs of damage. Look for cracks, discoloration, or any physical abnormalities. Pay close attention to the edges and corners, where damage is more likely to occur[1].

2. Testing Functionality:

If the LCD is connected to a device like a computer or phone, connect the device to an external monitor (if possible). If the external display works correctly, the issue likely lies with the LCD screen itself[1].

3. Checking Connections:

For those comfortable with disassembling devices, check the internal connections between the LCD and the motherboard. Loose or damaged cables can cause a variety of display issues. Ensure all connections are secure[1].

Essential Tools for LCD Repair

Having the right tools is essential for any LCD repair. Here is a list of tools that you should have on hand[1]:

-  Small screwdrivers (Phillips and flathead)

-  Pry tools (for safely opening devices)

-  Adhesive tape (for securing components)

-  Microfiber cloth (for cleaning surfaces)

-  Heat gun or hairdryer (for softening adhesive)

-  Replacement parts (if necessary)

-  Isopropyl alcohol (for cleaning contacts)

-  Pencil eraser (for cleaning ribbon cables)

Addressing Common LCD Issues

Depending on the diagnosis, different methods can be employed to restore the LCD display.

Fixing Dead or Stuck Pixels

1. Software Solutions:

Pixel-fixing software rapidly changes colors on the affected area. These applications can help revive stuck pixels by cycling through colors quickly. Several free applications are available online[1].

2. Gentle Pressure:

Wrap your finger in a microfiber cloth and gently massage the area where the dead pixel is located. Be careful not to apply too much pressure, as this can cause further damage[1].

3. Tapping Method:

Gently tap around the pixel with a soft tool, such as a pencil eraser wrapped in cloth. This may help dislodge any debris affecting pixel function[1].

Restoring Fading Pixels

Fading pixels often result from poor connections between the LCD screen and the connector[4]. The following steps can help in restoring faded pixels:

1. Disassembly:

Carefully disassemble the device to expose the LCD screen and its connections[2][3].

2. Cleaning Contacts:

Use isopropyl alcohol and a microfiber cloth to clean the contacts on the LCD screen, the connector, and the PCB board[4][5].

3. Re-establishing Connections:

-  Zebra Connectors: If the LCD uses zebra connectors (rectangular-shaped connectors made of conductive and non-conductive layers), remove them and clean the connection areas. Reassemble everything carefully[4][5].

-  FPC (Flexible Printed Circuit) Connectors: Apply gentle pressure to the FPC to ensure it presses firmly against the LCD screen's connection array[4].

4. Heat and Pressure Method:

-  Apply low heat to the ribbon cable where it connects to the mainboard using a hot-air gun or a powerful hairdryer[2].

-  Gently rub the connection strip with a pencil eraser or the back of a plastic screwdriver to improve the connection[2].

Repairing Cracked Screens

Repairing a cracked LCD screen typically involves replacing the damaged components[3][8].

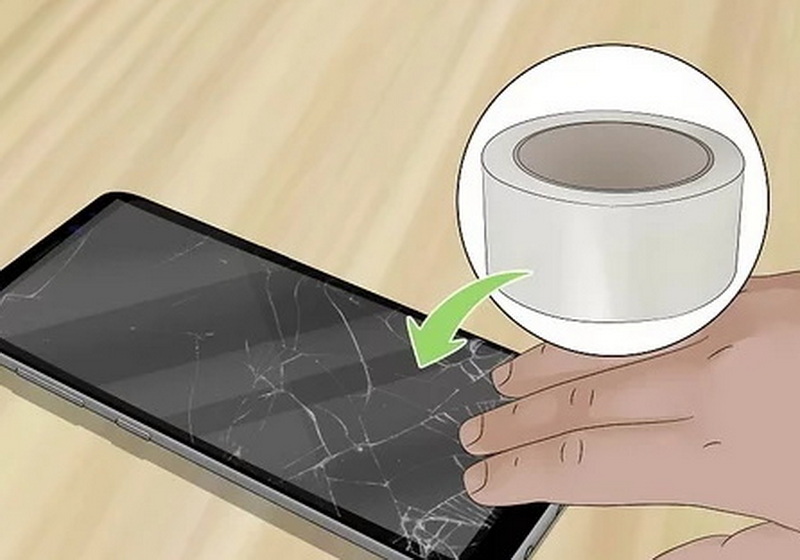

1. Assess the Damage:

Determine the extent of the damage. Minor cracks might be temporarily manageable with adhesive solutions, but significant damage usually requires a full screen replacement[1].

2. Screen Replacement:

-  Disassembly: Disassemble the device to access the LCD screen[2][3].

-  Removal: Remove the screws or clips holding the LCD screen in place[3].

-  Replacement: Carefully replace the damaged screen with a new one, ensuring all connections are properly aligned[3].

-  Reassembly: Reassemble the device, ensuring all components are securely in place[2][3].

Addressing Connectivity Issues

Connectivity issues can arise from loose or damaged ribbon cables that connect the LCD to the device's motherboard[1][2].

1. Inspection:

Carefully inspect the ribbon cables for any signs of damage, such as tears or kinks[2].

2. Re-seating Cables:

Gently disconnect and reconnect the ribbon cables to ensure they are properly seated. Use adhesive tape to secure them if necessary[1].

3. Cleaning Connectors:

Clean the connectors with isopropyl alcohol to remove any dirt or debris that may be interfering with the connection[4][5].

Step-by-Step Repair Process

To illustrate the repair process, let's consider a scenario where the LCD screen has dead rows or columns[2].

Step 1: Disassembly

Disassemble the device to expose the LCD. This step will vary depending on the device. Use a guide specific to your device model if needed[2][3].

Step 2: Prep the Screen

Prepare the screen for repair by exposing the ribbon cable on the backside of the screen. Remove any plastic clips holding the LCD in place[2].

Step 3: Repair the Connections

1. Apply low heat to the ribbon cable where it is connected to the mainboard[2].

2. Gently but firmly rub the connection strip with a pencil eraser[2].

3. Ensure not to direct too much heat onto the LCD itself, as this could damage it[2].

4. Apply enough heat to soften the glue holding the ribbon connection, but not enough to melt the cable itself[2].

Step 4: Reassemble and Test

Reassemble the device and test the LCD screen to see if the issue has been resolved[2].

Software and Tools for LCD Restoration

Several software and tools can aid in the restoration of LCD displays.

-  Pixel Repair Software: Applications like InjuredPixels or PixelHealer can help fix stuck pixels by cycling through various colors[1].

-  Display Calibration Tools: Software like Calman or DisplayCAL can help calibrate the colors on the LCD screen, ensuring accurate color representation.

-  Hardware Diagnostic Tools: Multimeters and logic analyzers can be used to diagnose hardware issues within the LCD screen.

Preventive Measures and Maintenance

Preventing LCD issues can significantly extend the lifespan of the display.

-  Regular Cleaning: Clean the LCD screen regularly with a microfiber cloth to remove dust and fingerprints[1].

-  Avoid Direct Sunlight: Prolonged exposure to direct sunlight can damage the LCD screen[5].

-  Proper Ventilation: Ensure adequate ventilation for devices with LCD screens to prevent overheating.

-  Screen Protectors: Use screen protectors to prevent scratches and minor physical damage.

-  Careful Handling: Handle devices with LCD screens carefully to avoid dropping or putting pressure on the screen[1].

When to Seek Professional Help

While many LCD issues can be resolved with DIY methods, some situations require professional assistance[1][7].

-  Extensive Damage: If the LCD screen has significant cracks or damage, professional replacement is necessary[1][3].

-  Complex Repairs: If the issue involves intricate hardware components, it is best to consult a professional[7].

-  Lack of Experience: If you are not comfortable disassembling electronic devices, seek professional help to avoid further damage[7].

Cost Considerations

When deciding whether to repair or replace an LCD screen, consider the cost implications[1].

-  Repair Costs: Simple repairs like fixing stuck pixels or cleaning connections are relatively inexpensive[2][4].

-  Replacement Costs: Replacing an entire LCD screen can be costly, especially for high-end devices[1][3].

-  New Device Costs: If the repair costs exceed half the price of a new device, consider investing in a new model, especially if the technology is outdated[1].

Case Studies

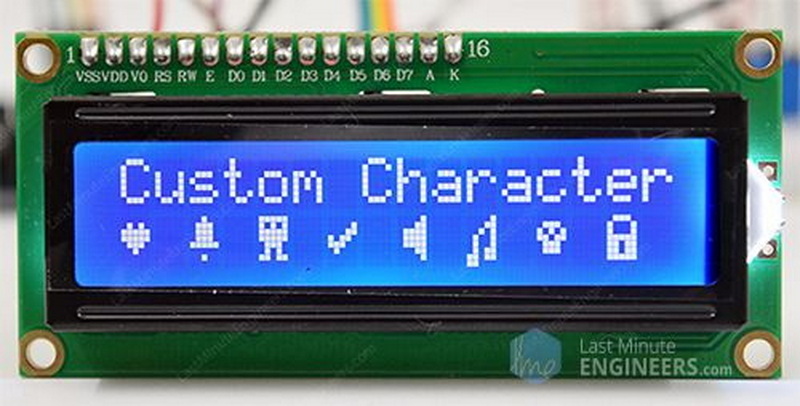

Case Study 1: Fixing Faded Pixels on a Calculator LCD

A user reported faded pixels on an old calculator LCD. Following the steps outlined in the "Restoring Fading Pixels" section, the user disassembled the calculator, cleaned the zebra connectors with isopropyl alcohol, and reassembled the device. The faded pixels were successfully restored[4][5].

Case Study 2: Repairing a Cracked Smartphone Screen

A smartphone user cracked their LCD screen. They purchased a replacement screen and followed a YouTube tutorial to disassemble the phone, remove the damaged screen, and install the new one. The smartphone screen was successfully repaired[3][8].

Conclusion

Restoring an LCD display involves a systematic approach that includes accurate diagnosis, the right tools, and careful execution. While some issues like dead pixels or loose connections can be resolved with simple DIY methods, more complex problems like cracked screens may require professional assistance. By understanding the principles of LCD technology and following the steps outlined in this guide, you can effectively restore your LCD displays and extend their lifespan.

FAQ

1. What causes dead pixels on an LCD screen?

Dead pixels can result from manufacturing defects, physical damage, prolonged exposure to static images, or electrical failures within the pixel circuitry[1].

2. Can software really fix stuck pixels?

Yes, pixel-fixing software can often revive stuck pixels by rapidly cycling through colors on the affected area[1].

3. How do I clean an LCD screen without damaging it?

Use a microfiber cloth and avoid applying too much pressure. For stubborn stains, use a mixture of distilled water and white vinegar[1].

4. Is it worth repairing a cracked LCD screen?

It depends on the extent of the damage and the cost of replacement. Minor cracks may be manageable, but significant damage usually requires a full screen replacement[1][3].

5. What tools do I need to disassemble an LCD device safely?

Essential tools include small screwdrivers (Phillips and flathead), pry tools, adhesive tape, a microfiber cloth, and a heat gun or hairdryer for softening adhesive[1].
