In the past decade, OLED (Organic Light Emitting Diode) technology has revolutionized the display industry, enabling screens that are not only thinner and more vibrant than ever before, but also capable of bending, folding, and even rolling. This flexibility has opened up new horizons for product design, usability, and user experience. But how can OLED screens bend while maintaining their performance and durability? This article explores the fundamental question: How can OLED screens bend? We will delve into the science behind flexible OLEDs, the engineering breakthroughs that make them possible, their real-world applications, and the future potential of this remarkable technology.
OLED stands for Organic Light Emitting Diode. Unlike traditional LCDs (Liquid Crystal Displays), which rely on a backlight to illuminate pixels, OLED screens use organic compounds that emit light when an electric current passes through them. This allows for:
- Self-emissive pixels: Each pixel generates its own light, resulting in superior contrast and energy efficiency.
- True blacks: Pixels can turn off completely for perfect contrast.
- Vivid colors: Wide color gamut and high brightness.
- Ultra-thin design: No need for bulky backlights or filters.
OLED displays are composed of several extremely thin layers, including organic emissive layers, electrodes, and encapsulation materials. The organic layers are the heart of the OLED, where light is produced as electrons and holes recombine. The entire structure can be just a fraction of a millimeter thick, making OLEDs much thinner and lighter than traditional display technologies.
Traditional LCD screens are built on rigid glass substrates and require several layers, including a backlight, polarizers, and liquid crystals. These layers are inflexible and brittle, making it impossible for the screen to bend without breaking or distorting the image. Even attempts to create curved LCDs have resulted in only fixed, non-adjustable curves, and the technology remains expensive and limited in form factor.
The glass and the complex stack of layers in LCDs are inherently rigid. Any attempt to flex or bend a traditional LCD would cause the glass to crack and the liquid crystals to lose their alignment, resulting in permanent damage and loss of display function. This fundamental limitation is why, for many years, screens remained flat and rigid, restricting the possibilities for innovative designs.
The key to OLED flexibility lies in its materials:
- Organic Semiconductors: OLEDs use thin films of organic molecules or polymers that can be deposited in layers only nanometers thick. These organic materials are inherently more flexible than the inorganic materials used in traditional displays.
- Flexible Substrates: Instead of glass, flexible OLEDs are built on plastic substrates such as polyimide or PET (polyethylene terephthalate). These plastics can bend, twist, and even roll without cracking.
When a flexible OLED display is bent, the plastic substrate and the organic layers flex together. The organic layers are so thin and elastic that they can tolerate significant deformation without losing their electrical properties or emitting light unevenly. The absence of a rigid backlight or glass layers means the entire display can conform to new shapes.
The electrodes used in flexible OLEDs are also designed to be flexible. Indium tin oxide (ITO), commonly used in rigid displays, is brittle and prone to cracking. In flexible OLEDs, alternative materials such as graphene, silver nanowires, or conductive polymers are used to create electrodes that can bend and stretch without breaking.
One of the challenges in making flexible OLEDs is protecting the sensitive organic materials from moisture and oxygen, which can quickly degrade performance. Flexible encapsulation layers, often made from thin films of inorganic materials or multilayer barrier films, are used to seal the OLED stack while maintaining flexibility.
The production of flexible OLEDs involves several advanced techniques:
- Vacuum Deposition: Organic materials are deposited onto the flexible substrate in a vacuum, ensuring uniform thinness and purity. This process is critical for achieving high-quality, defect-free layers.
- Roll-to-Roll Processing: Similar to printing newspapers, this method allows continuous production of OLED films on rolls of plastic, making it scalable and cost-effective. This process is essential for mass production of large-area flexible displays.
- Laser Patterning and Cutting: Precision lasers are used to pattern the layers and cut the displays into the desired shapes, allowing for custom form factors and sizes.
- Encapsulation: Flexible OLEDs are sensitive to moisture and oxygen, so they are sealed with thin, flexible barrier layers to protect them. Advanced encapsulation techniques ensure that the display remains flexible while providing long-term protection.

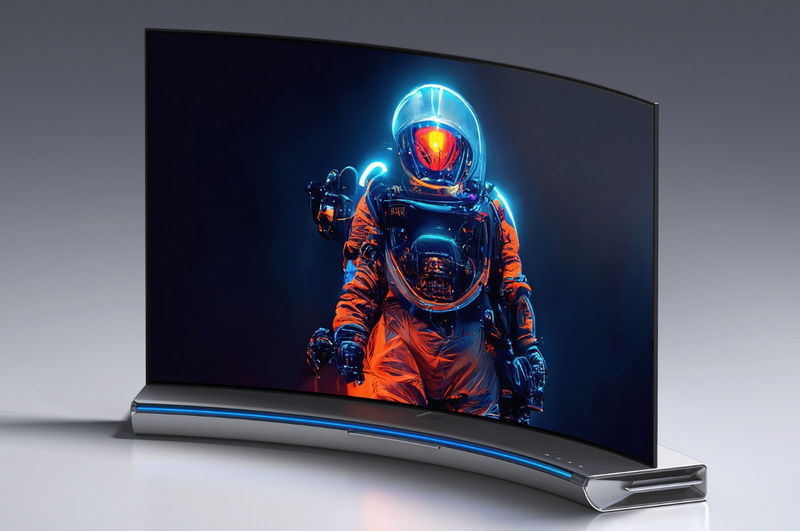

These displays are manufactured with a fixed curve, often used in TVs and monitors for immersive viewing experiences. The curvature is set during production and cannot be changed by the user. Curved OLEDs enhance the sense of depth and immersion, making them popular in gaming monitors and high-end televisions.
Foldable OLEDs can be bent repeatedly by the user, enabling devices like foldable smartphones and tablets. The display can withstand thousands of bends without degrading image quality. Special hinge mechanisms are often integrated into the device to support the folding motion and protect the display from excessive stress.
Rollable OLEDs can be rolled up like a newspaper, allowing for ultra-compact storage and innovative product designs such as roll-up TVs. These displays are built on ultra-thin, flexible substrates that can be rolled and unrolled repeatedly without damage.
The latest research has produced OLEDs that can stretch up to 50% beyond their original size, opening possibilities for wearable tech and integration into fabrics. Stretchable OLEDs use specially engineered materials and structures that allow them to expand and contract without losing functionality.

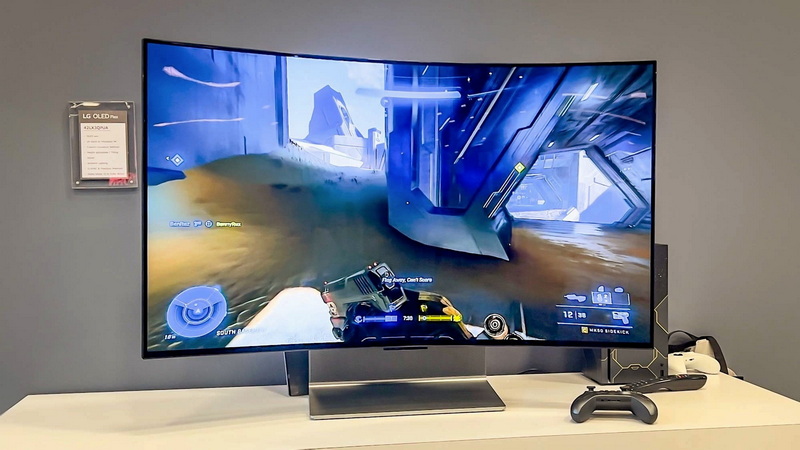

The LG OLED Flex is a 42-inch TV/monitor that can morph from a flat screen to a curved one at the press of a button. Motors in the back flex the display, allowing users to choose their preferred curvature for gaming or movie watching. This innovation demonstrates the practical application of flexible OLED technology, providing users with customizable viewing experiences.
Devices like the Samsung Galaxy Z Fold and Huawei Mate X2 feature foldable OLED screens, allowing a phone to open up into a tablet-sized display. These devices rely on ultra-thin, durable OLED panels that can survive thousands of folds. The hinge mechanisms are carefully engineered to minimize stress on the display, and advanced materials are used to ensure long-term reliability.
Flexible OLEDs are used in smartwatches, fitness bands, and even experimental clothing, thanks to their ability to wrap around wrists or integrate with textiles. The lightweight and thin nature of flexible OLEDs makes them ideal for wearable devices, providing bright, high-resolution displays in compact form factors.
Flexible OLEDs are also making their way into automotive dashboards, heads-up displays, and industrial control panels. Their ability to conform to curved surfaces allows for innovative designs and improved ergonomics in vehicles and machinery.
- Innovative Form Factors: Enables foldable phones, rollable TVs, and curved monitors.
- Durability: Flexible substrates are less likely to shatter than glass.
- Lightweight and Thin: Ideal for portable and wearable devices.
- Superior Image Quality: Maintains high contrast and vibrant colors even when bent.
- Energy Efficiency: OLEDs consume less power, especially when displaying dark content, making them suitable for battery-powered devices.
- Customization: Flexible OLEDs can be cut and shaped to fit a wide range of applications, from curved monitors to wearable patches.
- Cost: Manufacturing flexible OLEDs is currently more expensive than traditional displays, due to the complexity of materials and processes.
- Durability Challenges: While flexible, repeated extreme bending can eventually cause wear, especially at sharp folds or creases.
- Moisture Sensitivity: OLED materials degrade when exposed to water or oxygen, requiring robust encapsulation. Any breach in the encapsulation can lead to rapid deterioration.
- Limited Brightness for Some Applications: While OLEDs are bright, they may not match the peak brightness of some high-end LCDs, particularly in direct sunlight.
- Potential for Image Retention: Like all OLEDs, flexible versions can suffer from image retention or burn-in if static images are displayed for long periods.
Research and development in OLED technology continue to push boundaries:
- Stretchable OLEDs: Prototypes can stretch up to 50%, paving the way for displays that can be integrated into clothing or medical devices. This could lead to health-monitoring patches, smart bandages, or even interactive textiles.
- Rollable and Scrollable Screens: Concepts like roll-up TVs and tablets are moving closer to mass production. These devices offer unprecedented portability and convenience, allowing large screens to be stored in compact spaces.
- Wider Adoption: As costs decrease and durability improves, expect to see flexible OLEDs in more mainstream devices, from automotive dashboards to home appliances.
- Integration with AI and IoT: Flexible OLEDs could become key components in smart environments, providing adaptive displays that change shape and function based on user needs.
- Sustainable Manufacturing: Advances in materials and processes may lead to more environmentally friendly production methods, reducing waste and energy consumption.
The ability of OLED screens to bend is a result of groundbreaking advances in materials science and engineering. By replacing rigid glass with flexible plastics and using ultra-thin organic layers, manufacturers have created displays that can curve, fold, and even roll without sacrificing image quality. This flexibility is unlocking new product categories, transforming user experiences, and setting the stage for a future where screens are no longer confined to flat rectangles.
Flexible OLEDs are already making an impact in consumer electronics, automotive design, and wearable technology. As research continues and manufacturing processes improve, we can expect even more innovative applications and widespread adoption of bendable displays. The journey from rigid, flat screens to dynamic, flexible displays is just beginning, and the possibilities are limited only by our imagination.
OLED screens use organic materials and flexible plastic substrates, allowing them to bend and flex. In contrast, LCDs rely on rigid glass layers and require a backlight, making them inflexible and prone to breaking when bent.
Modern foldable OLED screens are engineered to withstand thousands of bends without significant loss of image quality. However, extreme or repeated folding beyond design limits can eventually cause wear or damage, especially at the fold crease.
Yes, rollable OLED prototypes have been demonstrated, and some products, like roll-up TVs, have reached the market. These displays use ultra-thin, flexible materials that allow them to be rolled and unrolled repeatedly without damage.
Key challenges include protecting the sensitive organic materials from moisture and oxygen, ensuring uniformity in thin-film deposition, and developing encapsulation methods that remain flexible and durable. Manufacturing costs and yield rates are also significant concerns.
Stretchable OLEDs could revolutionize wearable technology, medical devices, automotive interiors, and even smart textiles, enabling displays that conform to any surface or move with the human body. This could lead to new forms of interactive clothing, health monitors, and adaptive interfaces.
