LCD (Liquid Crystal Display) technology is widely used in devices such as monitors, televisions, and smartphones. While these displays are efficient and versatile, they are sensitive to temperature changes, particularly heat. This article explores how heat impacts LCD displays, the underlying mechanisms, and practical solutions to mitigate these effects.
LCDs use liquid crystals sandwiched between layers of glass or plastic. These crystals align themselves when an electric current is applied, controlling the light that passes through to create images. The performance of liquid crystals is highly temperature-dependent, making them vulnerable to extreme heat or cold.
- Operating Range: Most consumer-grade LCDs function optimally between 0°C (32°F) and 50°C (122°F)[9].
- Storage Range: LCDs can typically withstand storage temperatures from -20°C (-4°F) to 60°C (140°F)[9].
Excessive heat can cause permanent damage to the physical components of an LCD:
- Melting or Cracking: Prolonged exposure to temperatures above 100°C (212°F) can melt or crack the screen's hardware[5][9].

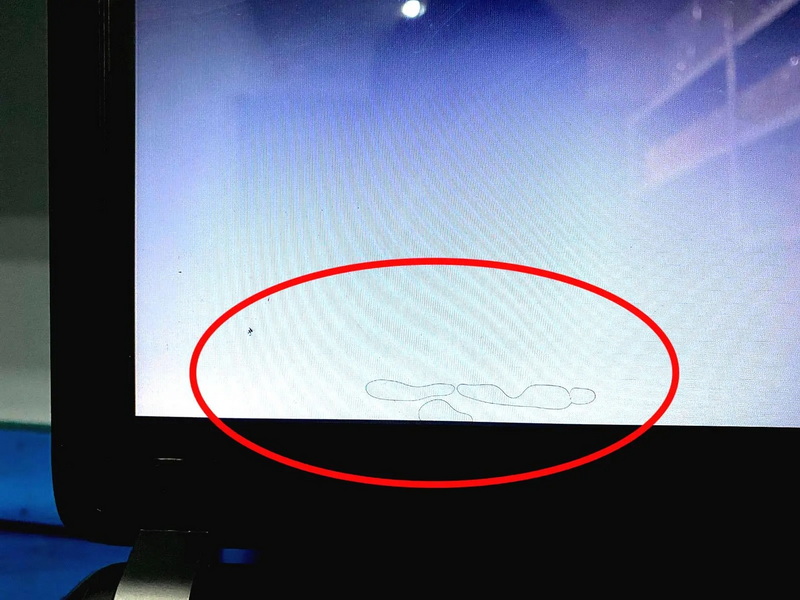

- Deformation of Liquid Crystals: High temperatures disrupt the alignment of liquid crystals, leading to dark patches or distorted images[5].
Heat affects the functionality and visual quality of LCDs in several ways:
- Brightness and Color Shifts: High temperatures can make screens appear overly bright or washed out due to increased mobility of liquid crystals[7].
- Response Time Changes: Elevated temperatures may decrease response times, causing rapid transitions that affect image clarity[7].
- Color Distortion: Heat can shift color wavelengths, leading to mismatched hues and reduced display accuracy[1][3].
The internal electronics of an LCD are also heat-sensitive:
- Overheating can shorten the lifespan of components like LED backlights and TFT circuits[9].
- Excessive internal heat may lead to open circuits or failure of the display entirely[1].
Heat increases the mobility of liquid crystals, disrupting their alignment and reducing light extraction efficiency. This leads to brightness reduction and color inconsistencies[1][7].
Silicone packaging materials used in LCDs can transition from solid to rubber-like states at high temperatures (above 125°C), causing expansion and circuit failure[1].
High temperatures reduce the quantum efficiency of phosphors in backlit displays, further diminishing brightness and color accuracy[1].
To prevent heat-related issues in LCD displays, consider these strategies:
- Use devices within their recommended temperature ranges.
- Install air conditioning or fans in environments with extreme heat[3][9].
Ensure adequate airflow around the display to dissipate heat effectively. Avoid blocking ventilation holes on devices[3][9].
Direct exposure to sunlight can significantly raise the temperature of an LCD screen. Use shades or anti-glare covers when operating outdoors[3][7].
Dust accumulation can block cooling vents, increasing internal heat. Clean vents regularly to maintain optimal airflow[3].
Below are some images and videos that illustrate how heat affects LCD screens and how to manage these effects effectively:

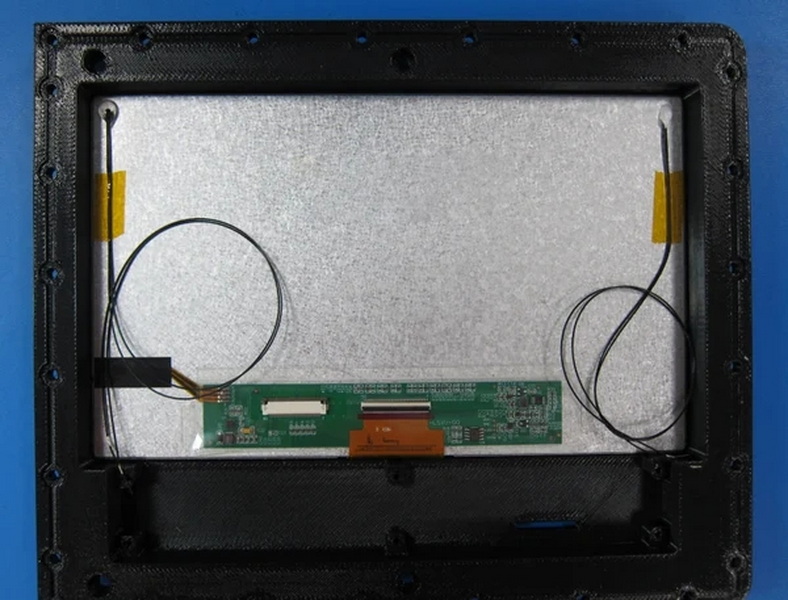

1. Image 1: A diagram showing the structure of an LCD panel.

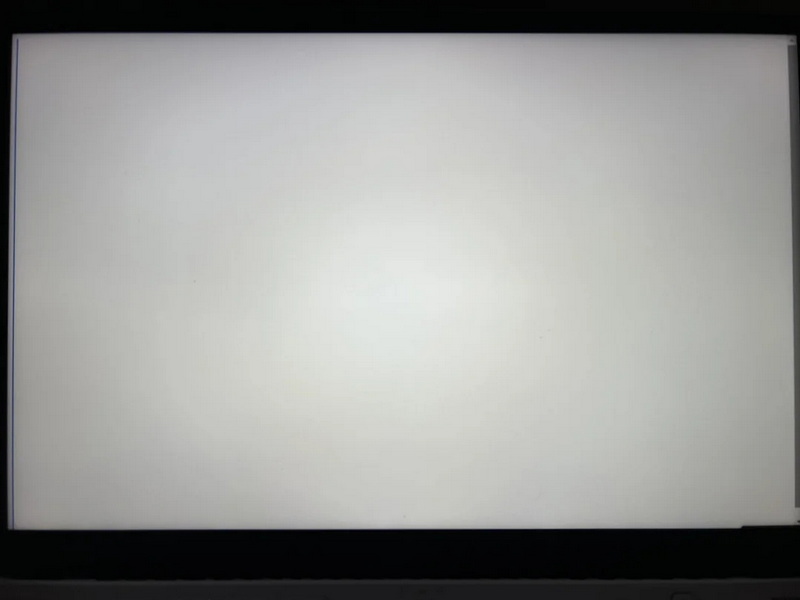

2. Image 2: A comparison of a normal LCD screen vs. one affected by excessive heat.
3. Video 1: Demonstration of how direct sunlight impacts an LCD screen.
4. Image 3: Proper ventilation setup for an LCD monitor.
Heat significantly impacts the performance and longevity of LCD displays by affecting liquid crystals, degrading materials, and damaging internal circuitry. By understanding these effects and implementing preventive measures such as temperature control, proper ventilation, and regular cleaning, users can extend the lifespan and maintain the quality of their devices.
Most consumer-grade LCDs operate best between 0°C (32°F) and 50°C (122°F)[9].
Yes, prolonged exposure to extreme heat (above 100°C or 212°F) can cause permanent damage such as hardware melting or cracking[5][9].
High temperatures increase liquid crystal mobility, leading to color distortion and mismatched hues[7].
Signs include dark patches on the screen, rapid response times causing blurry transitions, and noticeable color shifts[5][7].
Use anti-glare covers, avoid direct sunlight exposure, ensure proper ventilation, and consider installing cooling systems like fans or air conditioners[3][7][9].
