Liquid Crystal Display (LCD) technology has revolutionized the way we interact with electronic devices, from smartphones and laptops to televisions and instrument panels. The term "Liquid Crystal Display" reflects the unique physical state and optical properties of the materials used in these displays. This article explores why LCD is called a liquid crystal display, delving into the science behind liquid crystals, the structure and operation of LCDs, their historical development, and their widespread applications. Rich with explanations, images, and videos, this comprehensive guide will enhance your understanding of this ubiquitous technology.
Liquid crystals are a unique state of matter that exhibit properties between those of conventional liquids and solid crystals. Unlike ordinary liquids, the molecules in liquid crystals maintain some degree of order, similar to crystals, but they can still flow like a liquid. This intermediate phase allows liquid crystals to have anisotropic optical properties, meaning their interaction with light depends on the direction of the molecules.
- Molecular Alignment: The rod-shaped molecules in liquid crystals tend to align parallel to each other, creating ordered patterns while retaining fluidity.
- Phase Behavior: Liquid crystals can transition between solid-like and liquid-like phases depending on temperature and other conditions.
- Optical Anisotropy: Their ability to rotate polarized light varies with molecular orientation, which can be controlled by external electric fields.
This distinctive combination of fluidity and molecular order is why the term "liquid crystal" was coined, highlighting their dual nature as both liquid and crystalline.
Liquid crystals come in several types, each with unique molecular arrangements:
- Nematic: Molecules are aligned parallel but do not form layers. This type is most commonly used in LCDs.
- Smectic: Molecules are arranged in layers, with some degree of positional order.
- Cholesteric (or chiral nematic): Molecules form a helical structure, which can reflect light and produce iridescence.
Among these, nematic liquid crystals are the backbone of most LCD technologies due to their favorable electro-optical properties.
The name "Liquid Crystal Display" arises from the core component of these devices—the liquid crystal material—and the way it is used to display images.
- Liquid: The display uses a substance that flows like a liquid, allowing the molecules to move and reorient.
- Crystal: Despite being fluid, the molecules exhibit a crystalline order that affects how they interact with light.
- Display: The arrangement of liquid crystals is manipulated to control light transmission, enabling the display of images.
In essence, an LCD uses liquid crystals sandwiched between two glass plates with polarizing filters. By applying an electric field, the orientation of these liquid crystal molecules changes, modulating the passage of light through the display to create visible images.

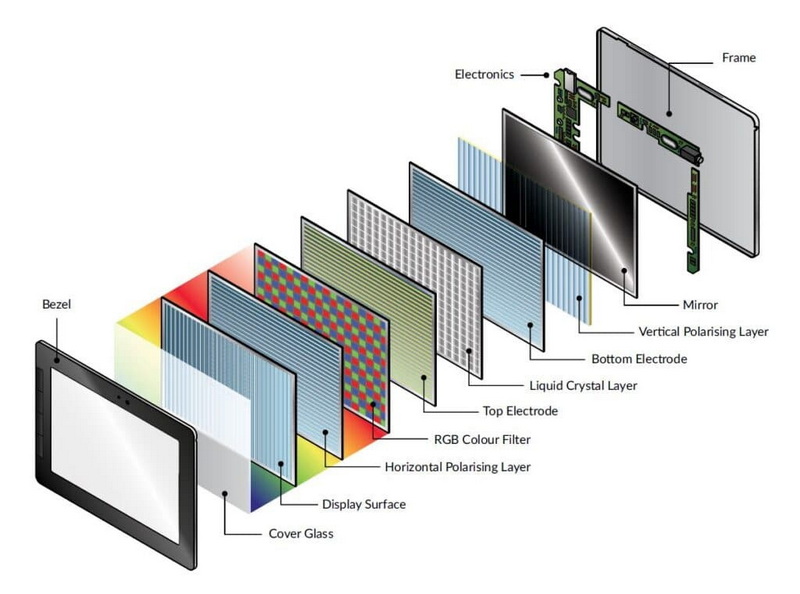

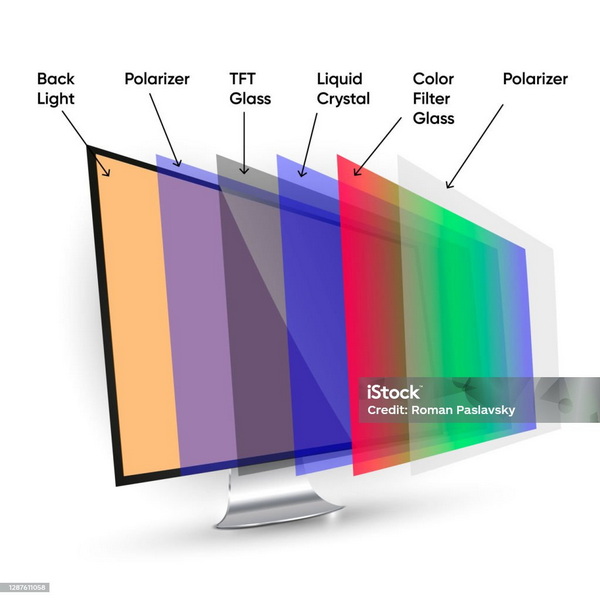

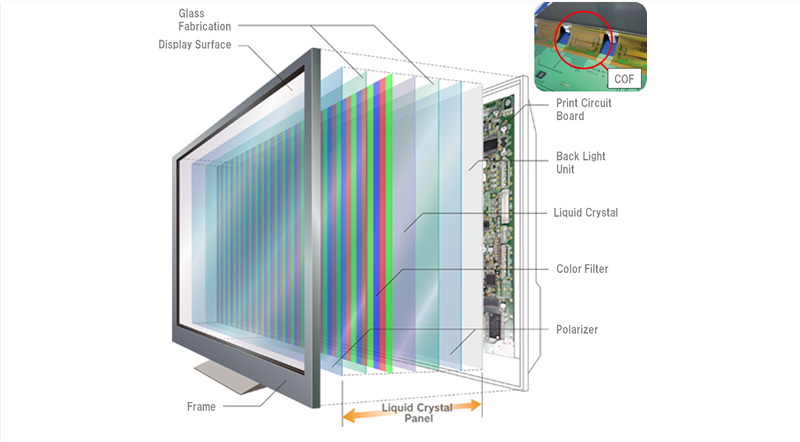

An LCD is a complex assembly of layers designed to control light precisely. The main components include:
- Backlight: Provides a uniform light source behind the display, usually LEDs or fluorescent lamps.
- Polarizers: Two polarizing filters are placed at 90 degrees to each other; light polarized by the first filter passes through the liquid crystal layer.
- Liquid Crystal Layer: The core layer where liquid crystal molecules are aligned or twisted depending on the applied voltage.
- Glass Substrates: Transparent conductive glass plates sandwich the liquid crystal layer.
- Electrodes: Thin transparent electrodes apply voltage to control the orientation of the liquid crystals.
- Color Filters: For color displays, red, green, and blue filters are used at the pixel level.
The liquid crystals can twist the polarization of light when no voltage is applied, allowing light to pass through the second polarizer. When voltage is applied, the crystals align, preventing the light from passing through, thus creating dark pixels. By controlling the voltage at each pixel, the display can show images.
Modern LCDs often include additional layers to improve performance:
- Alignment Layers: Thin polymer layers rubbed in a specific direction to guide the initial orientation of liquid crystal molecules.
- Spacer Beads: Tiny spheres maintain a uniform gap between the glass substrates.
- Diffuser and Prism Sheets: These layers help distribute the backlight evenly and increase brightness efficiency.
These components work together to ensure consistent image quality and durability.
The operation of an LCD is based on the electro-optical effect of liquid crystals, specifically their ability to rotate polarized light depending on their molecular orientation.
- Twisted Nematic Effect: In the off state, liquid crystal molecules are arranged in a twisted helical structure. This twists the polarized light by 90 degrees, allowing it to pass through the second polarizer, making the pixel appear bright.
- Voltage Application: When an electric field is applied, the molecules untwist and align with the field, losing their ability to rotate light. The polarized light is then blocked by the second polarizer, making the pixel appear dark.
- Gray Scale and Color: By varying the voltage, the degree of untwisting can be controlled, allowing different shades of gray. Color is achieved by combining sub-pixels with red, green, and blue filters.
This precise control of light modulation without emitting light directly is why LCDs require a backlight and are energy efficient compared to older technologies like CRTs.
Polarization is key to LCD function. Light waves vibrate in many directions; polarizers filter these waves to a single plane. The liquid crystals rotate this plane of polarization in the absence of voltage, allowing light to pass through the second polarizer. When voltage is applied, the rotation stops, and light is blocked.
The speed at which liquid crystal molecules can reorient affects display performance. Faster response times reduce motion blur in videos and gaming. Advances in liquid crystal materials and driving electronics have continually improved these parameters.
The journey of LCD technology spans over a century, beginning with scientific curiosity and culminating in widespread commercial use.
- 1888: Friedrich Reinitzer discovered liquid crystals while studying cholesterol extracted from carrots, noting their unusual melting behavior.
- 1904: Otto Lehmann coined the term "liquid crystals" and extensively studied their properties.
- 1920s-1930s: Researchers like Charles Mauguin and Vsevolod Frederiks explored the behavior of liquid crystals under confinement and electric fields.
- 1962: Richard Williams at RCA discovered electro-hydrodynamic effects in liquid crystals.
- 1964-1968: George Heilmeier and his team at RCA developed the first working LCDs using electronic control of light through liquid crystals.
- 1970s-1980s: Commercialization began with LCDs used in watches, calculators, and small displays.
- 1990s: The introduction of thin-film transistor (TFT) technology enabled high-quality color LCDs for monitors and televisions.
- 2000s-Present: LCDs replaced bulky CRTs in most applications and continue to evolve with improvements in resolution, color accuracy, and energy efficiency.
- First LCD Watch (1973): The Hamilton Watch Company released the first LCD watch, making the technology consumer-accessible.
- TFT LCDs (1980s): The introduction of TFT technology allowed for active matrix addressing, vastly improving image quality.
- Wide Adoption in Laptops and Monitors (1990s): LCDs became the standard for portable computers and desktop monitors.
- Large Screen TVs (2000s): LCD TVs overtook plasma and CRTs due to better energy efficiency and thinner profiles.
- Advances in OLED and Quantum Dots (2010s+): While LCDs remain dominant, new display technologies have emerged, often building upon or complementing LCD technology.
LCDs are now integral to countless devices and industries due to their versatility and efficiency.
- Consumer Electronics: Smartphones, tablets, laptops, digital cameras, and televisions.
- Instrumentation: Aircraft cockpit displays, medical devices, and industrial control panels.
- Signage: Indoor and outdoor digital signs and billboards.
- Wearables: Smartwatches and fitness trackers.
- Projectors: LCD projectors use small LCD panels to project images in color.
- Automotive: Dashboard displays, infotainment systems, and rear-seat entertainment.
- Gaming: High-refresh-rate LCD monitors are popular among gamers for smooth visuals.
- Energy Efficiency: Compared to older display types, LCDs consume less power, extending battery life in portable devices.
- Thin and Lightweight: LCDs enable slim device designs, crucial for modern electronics.
- High Resolution: Advances allow for ultra-high-definition displays with millions of pixels.
- Wide Viewing Angles: Improvements in panel technology have reduced color and contrast shifts when viewed from the side.
- Durability: LCDs are less prone to screen burn-in than plasma or OLED displays.
Despite their popularity, LCDs have some inherent limitations:
- Backlight Bleed: Uneven backlighting can cause light leakage around edges or between pixels.
- Contrast Ratio: LCDs typically have lower contrast ratios compared to OLEDs because black pixels still allow some backlight through.
- Viewing Angles: Although improved, some LCDs still show color distortion at extreme angles.
- Response Time: Slower response compared to OLEDs can cause motion blur in fast-moving images.
- Power Consumption: While efficient, LCDs require constant backlighting, unlike emissive displays that light pixels individually.
Ongoing research focuses on overcoming these challenges through new liquid crystal materials, backlighting techniques, and display architectures.
The term "Liquid Crystal Display" precisely describes the core principle behind this transformative technology: the use of liquid crystals—materials that flow like a liquid yet maintain molecular order like a crystal—to control light and produce images. Through a sophisticated structure involving polarizers, glass substrates, and backlighting, LCDs manipulate the orientation of liquid crystal molecules with electric fields to modulate light transmission. This technology has evolved over more than a century, from scientific discovery to a cornerstone of modern electronic displays. Today, LCDs power a vast array of devices, combining energy efficiency, thin form factors, and high image quality, making them indispensable in our digital world.
Liquid crystals have a molecular order like solids but can flow like liquids. This unique state allows them to control light in ways neither solids nor liquids can.
By changing their orientation under an electric field, liquid crystals rotate the polarization of light, allowing or blocking its passage through polarizing filters to create images.
Liquid crystals do not emit light themselves; they only modulate light. A backlight provides the necessary illumination for the display to be visible.
It is the arrangement of liquid crystal molecules in a twisted helix that rotates polarized light when no voltage is applied, making pixels appear bright.
From discovery in the late 19th century to practical displays in the 1960s and commercial products in the 1970s, LCDs have advanced through innovations like TFT technology to become the dominant display type today.
TFT technology allows individual control of each pixel with high precision, enabling high-resolution, full-color displays with fast response times, essential for modern monitors and TVs.
LCDs cannot produce true black because the backlight is always on, but advanced techniques like local dimming improve black levels.
Color LCDs use red, green, and blue sub-pixels with color filters. By adjusting the voltage to each sub-pixel, a full spectrum of colors can be displayed.
