Infrared (IR) remote control projects with Arduino often involve using an IR receiver module (like TSOP1738) to decode signals and an LCD display (such as a 16x2 character LCD) to show information. However, many hobbyists encounter a frustrating issue: when the IR receiver is activated or when calling the `irrecv.decode()` function, the LCD display either freezes, shows garbled characters, or completely disables. This article explores why calling `irrecv` functions can disable an LCD display, the technical reasons behind this interference, and practical solutions to prevent it.
The IR receiver module detects modulated infrared signals from a remote control and outputs a digital signal to the Arduino. The Arduino library `IRremote` provides the `IRrecv` class to handle receiving and decoding these signals.
Commonly used LCDs (like the Hitachi HD44780-based 16x2 LCD) communicate with Arduino via digital pins using parallel data lines or I2C. The `LiquidCrystal` or `LiquidCrystal_I2C` libraries manage the display, updating characters on the screen.
In a typical project, the Arduino continuously listens for IR signals using `irrecv.decode(&results)` inside the main loop and updates the LCD with the decoded information.
The IRremote library relies heavily on interrupts to accurately measure the timing of IR pulses. When `irrecv.decode()` is called, the library disables interrupts briefly to process the incoming IR data. This can interfere with the LCD library, especially if the LCD operations also depend on timing-sensitive code or interrupts.
- The LCD itself generally does not use interrupts but requires precise timing for data signals.
- If interrupts are disabled or delayed, LCD commands may not complete correctly, causing the display to freeze or show corrupted data.
This issue is particularly pronounced on microcontrollers like the Arduino Uno, where hardware timers and interrupts are shared resources. The IRremote library uses Timer2 on many Arduino boards to measure pulse widths. If the LCD library or other parts of your code also rely on timers or interrupts, conflicts can arise.
Sometimes, the pins used for the IR receiver and the LCD overlap or interfere electrically, especially if:
- The IR receiver is connected to a pin that conflicts with the LCD control or data pins.
- PWM or special-function pins are shared improperly.
This can cause the LCD to malfunction when the IR receiver is active. For example, if the IR receiver is connected to a pin that the LCD library uses for data or control, the signals can collide, resulting in garbled output or freezing.
Both IR receivers and LCDs draw current and can introduce electrical noise. When the IR receiver activates, it may cause voltage dips or spikes that affect the LCD's operation, especially if the power supply is insufficient or wiring is poor.
- IR receivers often require a stable 5V supply and can cause transient current spikes when detecting signals.
- LCD displays, especially backlit ones, can draw significant current.
- Poor wiring, long cables, or absence of decoupling capacitors can exacerbate noise issues.
If the power supply cannot maintain stable voltage under load, the LCD may reset or display corrupted characters when the IR receiver activates.
If the code structure waits inside `if (irrecv.decode(&results))` without properly calling `irrecv.resume()`, the IR receiver may block further code execution, preventing regular LCD updates. This can make it appear as if the LCD is disabled.
Moreover, some beginners write code that includes long delays or blocking loops inside the IR decoding block, which prevents the LCD from refreshing or responding.
- Garbled or random characters on the LCD when pressing remote buttons.
- LCD stops updating or freezes after calling `irrecv.decode()`.
- Correct IR codes are received only when the LCD is disconnected.
- Serial monitor shows correct IR codes, but LCD does not display them properly.
These symptoms often confuse beginners, leading them to suspect hardware failure or library bugs, when the root cause is usually timing and resource conflicts.
The IRremote library requires calling `irrecv.resume()` after processing an IR signal to prepare for the next reception. Failing to do so causes the IR receiver to block, which may freeze LCD updates.
This function resets the IR receiver's internal state machine, allowing it to listen for new signals. Without it, the IR receiver stops receiving new codes, causing the program to hang inside the decode function.
Do not put long loops or delays inside the IR decoding block. For example, avoid `while` loops waiting for IR input inside the decode block, as it blocks the LCD update and other code.
Instead, process the IR data quickly and return control to the main loop so the LCD and other peripherals can update smoothly.
Structure your code so that IR decoding and LCD updates happen independently in the main loop, allowing the LCD to refresh even when no IR signal is detected.
For example, check for IR signals, update a global variable with the decoded value, and then update the LCD outside the IR decoding block.
Ensure that the IR receiver pin and LCD pins do not overlap or interfere. Use pins recommended by the libraries and check your wiring carefully.
- Avoid using pins that have special functions unless you understand their behavior.
- Use Arduino pin mapping charts to verify pin roles.
- Consider changing the IR receiver input pin to a dedicated interrupt pin if possible.
Use decoupling capacitors and ensure the Arduino power supply can handle the current for both IR receiver and LCD. Keep wiring short and clean to reduce noise.
- Add a 0.1µF ceramic capacitor close to the IR receiver's power pins.
- Use a separate regulated power source if possible.
- Avoid running long wires parallel to noisy components.

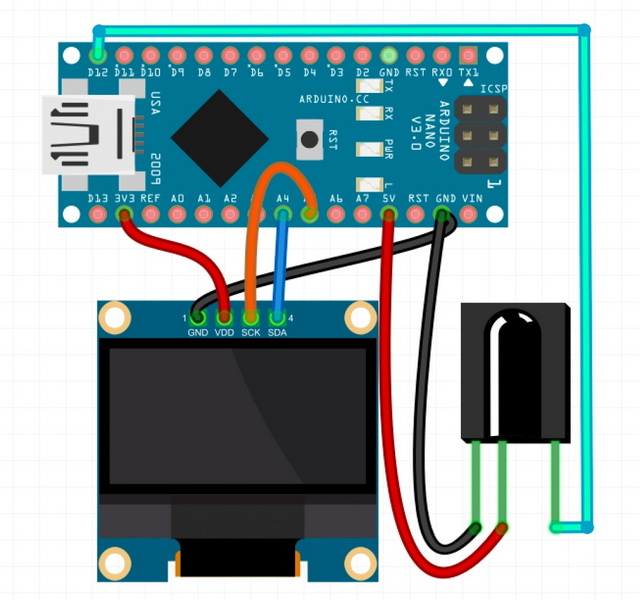

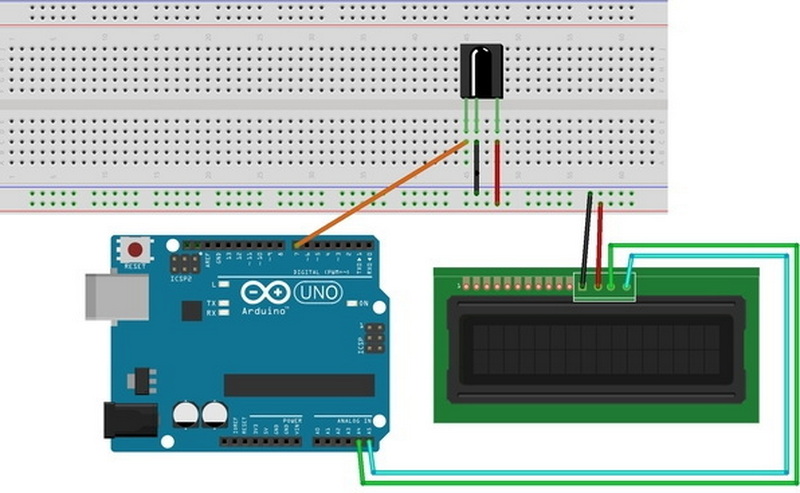

Using an I2C LCD module reduces the number of pins and potential conflicts, making it easier to integrate with IR receivers.
- I2C uses only two data lines (SDA and SCL), freeing up pins.
- The I2C bus has built-in noise immunity and can simplify wiring.
- Many I2C LCD modules come with backlight and contrast control.
On AVR-based Arduinos (Uno, Nano), all interrupts have the same priority level, so disabling interrupts for IR decoding can delay other time-sensitive tasks. This can cause the LCD's timing to be affected.
On more advanced microcontrollers (like ARM Cortex-M based boards), interrupts can have priorities, allowing better management of simultaneous tasks. However, the IRremote library may still disable interrupts during decoding, which can cause similar issues if the LCD library relies on interrupts.
Some alternative IR decoding libraries use different approaches, such as polling or hardware peripherals, which may reduce interrupt conflicts.
- Libraries like `IRLib2` or `IRremoteESP8266` (for ESP boards) may offer better multitasking.
- Using hardware timers dedicated to IR decoding can reduce interference.
- Use the serial monitor to print IR codes and LCD status messages to verify where the code blocks.
- Temporarily disconnect the LCD to verify IR decoding works without interference.
- Use a logic analyzer or oscilloscope to check signal integrity on data lines.
- Experiment with different pin assignments and library versions.
| Issue | Solution |
|---|---|
| Interrupt conflicts | Call irrecv.resume(), avoid blocking code |
| Pin conflicts | Reassign pins, avoid sharing pins |
| Power supply noise | Use stable power, add decoupling capacitors |
| LCD freezing | Structure code for non-blocking updates |
| Wiring noise | Use short wires, proper grounding |
| Library conflicts | Use compatible library versions |
Calling `irrecv` functions can disable or interfere with an LCD display primarily due to interrupt conflicts, pin conflicts, power supply issues, and improper code structure. The IRremote library relies on interrupts to decode signals, and if these interrupts interfere with the timing-sensitive LCD operations or if the code blocks without calling `irrecv.resume()`, the LCD can freeze or display corrupted data. By carefully managing pin assignments, ensuring proper power and wiring, structuring code to avoid blocking, and always calling `irrecv.resume()`, it is possible to integrate IR receivers and LCD displays smoothly in Arduino projects.
Understanding the underlying hardware and software interactions is key to troubleshooting and resolving these issues. With the right approach, your Arduino can reliably decode IR signals and display information on an LCD without interference.
This usually happens due to timing conflicts or electrical interference. The IR receiver's interrupts can disrupt LCD timing or the wiring may cause noise.
Use proper code structure with `irrecv.resume()`, avoid blocking code, ensure no pin conflicts, and use stable power supply and wiring.
Yes, I2C LCD uses fewer pins and is less prone to interference from IR receiver signals.
The IR receiver will stop receiving new signals, causing your code to block and the LCD to stop updating.
Generally no, but timer or interrupt conflicts can occur if other libraries disable interrupts or use the same hardware timers.
