Liquid Crystal Displays (LCDs) have become ubiquitous in modern technology, powering everything from smartphones to televisions. The heart of this technology lies in the unique properties of liquid crystals, which are used to manipulate light and create images. This article will explore the types of liquids used in LCDs, their working principles, components, advantages, and applications, along with visual aids and videos to enhance understanding.
What is Liquid Crystal?
Liquid crystals are a state of matter that combines properties of both liquids and solid crystals. They can flow like a liquid but have an ordered structure similar to that of a crystal. This unique state allows them to manipulate light in ways that are critical for display technology.

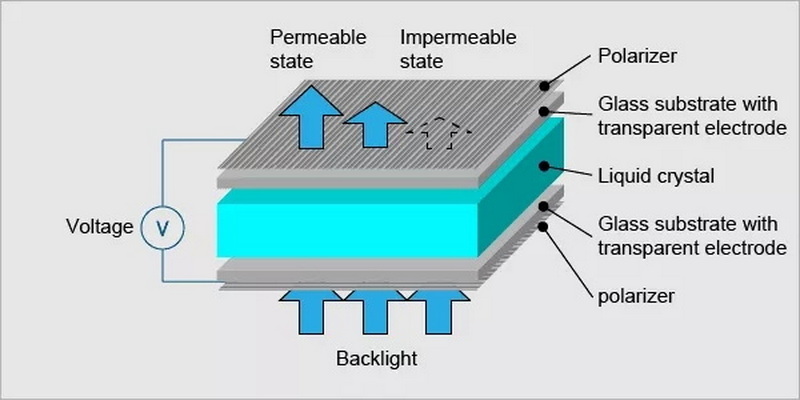

In an LCD, liquid crystals are sandwiched between two sheets of glass or plastic. These crystals do not emit light; instead, they control the passage of light from a backlight source. When an electric field is applied, the orientation of the liquid crystal molecules changes, allowing varying amounts of light to pass through.

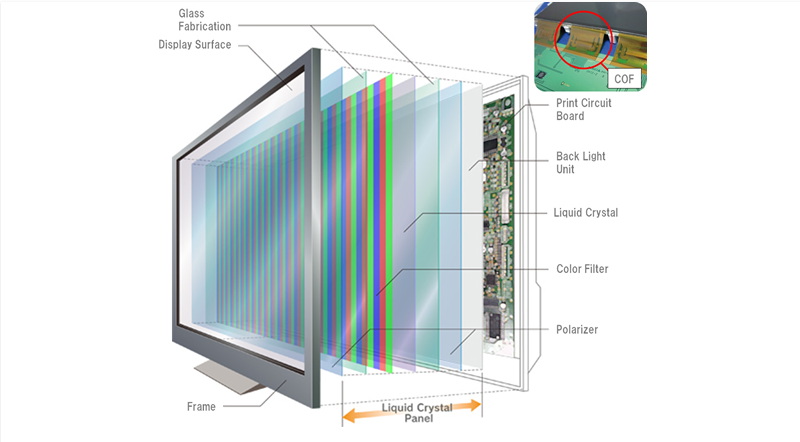

An LCD consists of several key components:
- Liquid Crystal Layer: The core component that manipulates light.
- Backlight: Provides illumination since liquid crystals do not emit light on their own.
- Polarizers: Two polarizing filters are placed at right angles to each other to control the light passing through.
- Color Filters: These filters add color to the images displayed by the liquid crystal layer.
- Electrodes: Usually made from indium tin oxide (ITO), these apply an electric field to the liquid crystals.

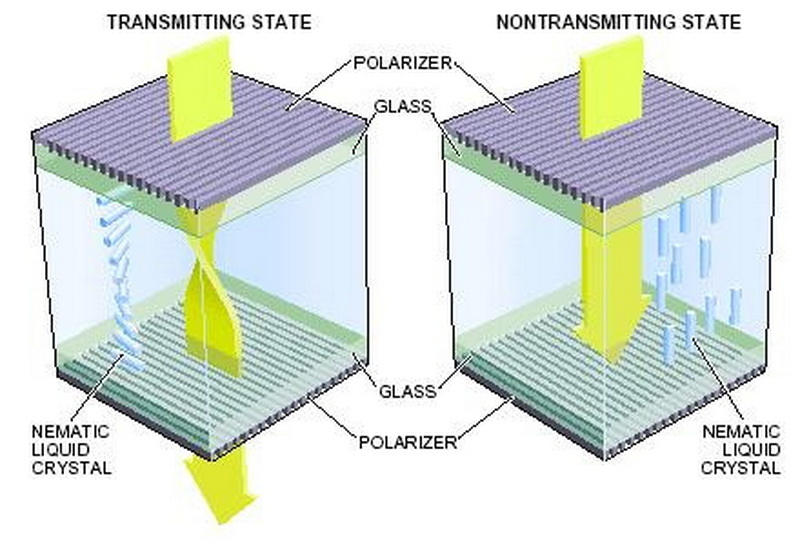

The operation of an LCD can be explained through its layers:
1. Backlight Activation: The backlight illuminates the screen.
2. Light Polarization: Light passes through the first polarizer, which only allows light waves aligned in a specific direction to pass through.
3. Liquid Crystal Manipulation: When voltage is applied through the electrodes, the liquid crystals align themselves according to the electric field. This alignment determines how much light can pass through the second polarizer.
4. Image Creation: By controlling the voltage applied across each pixel, different levels of brightness and colors can be achieved, forming images on the screen.

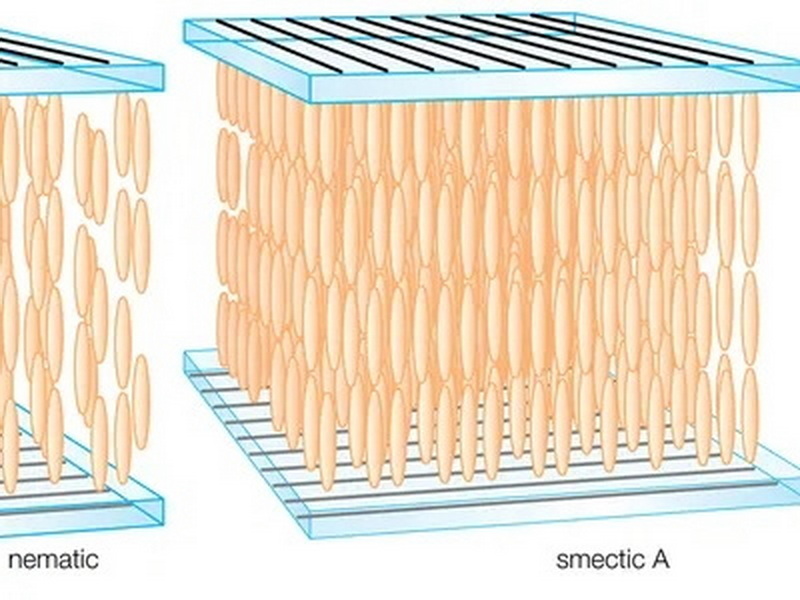

There are various types of liquid crystals used in LCD technology:
- Nematic Liquid Crystals: The most common type used in displays; they have a rod-like shape and can easily align under an electric field.
- Smectic Liquid Crystals: These have layered structures and are less commonly used in displays due to their complexity.
- Chiral Nematic Liquid Crystals: These are used in specialized applications due to their unique optical properties.
LCDs offer several benefits over traditional display technologies:
- Thin and Lightweight: Compared to cathode-ray tube (CRT) displays, LCDs are much thinner and lighter.
- Low Power Consumption: They consume significantly less power than CRTs and other display technologies.
- High Resolution and Clarity: LCDs can produce sharp images with high resolution.
- No Screen Burn-in: Unlike CRTs, LCDs do not suffer from screen burn-in issues.
- Wide Viewing Angles: Many modern LCDs provide wide viewing angles, allowing multiple viewers to enjoy consistent image quality without significant color distortion.
While there are many advantages to using LCD technology, it is not without its drawbacks:
- Limited Color Range: Although advancements have been made, some LCDs still struggle with reproducing deep blacks and vibrant colors compared to OLED displays.
- Response Time Issues: Older models may exhibit slower response times, leading to motion blur during fast-moving scenes in videos or games.
- Viewing Angle Limitations: While many newer models have improved viewing angles, some lower-end models may still suffer from color distortion when viewed from extreme angles.
LCD technology is widely used across various devices:
- Televisions: Most modern TVs utilize LCD technology for its clarity and efficiency.
- Computer Monitors: High-resolution monitors for gaming or professional use often rely on advanced LCD technology.
- Smartphones and Tablets: The majority of mobile devices use LCD screens due to their lightweight nature and energy efficiency.
- Digital Cameras: Many digital cameras feature LCD screens for viewing photos and navigating menus.
- Instrument Panels in Vehicles: Automotive displays often use LCD technology for dashboards and infotainment systems.
Recent developments in LCD technology continue to enhance performance and usability:
- IPS (In-Plane Switching): This technology improves color reproduction and viewing angles by aligning liquid crystal molecules horizontally rather than vertically. IPS panels provide better color accuracy and consistency across different viewing angles compared to traditional TN (Twisted Nematic) panels.
- VA (Vertical Alignment): VA panels offer superior contrast ratios compared to IPS panels by aligning liquid crystals vertically when no voltage is applied. This results in deeper blacks but may have slower response times than IPS panels.
- Quantum Dot Technology: Some modern LCDs incorporate quantum dots—nanoscale semiconductor particles that emit specific colors when illuminated by a backlight. This technology enhances color accuracy and brightness while maintaining energy efficiency.
As with any technology, environmental impacts must be considered:
- Manufacturing Process: The production of LCD panels involves various chemicals and materials that can pose environmental risks if not managed properly. Manufacturers are increasingly adopting greener practices to minimize waste and pollution during production.
- Recycling Challenges: Disposing of old or broken LCD screens can be problematic due to the materials used. Many manufacturers offer recycling programs to help mitigate this issue by recovering valuable materials from old displays.
To further illustrate how LCDs work, consider these diagrams:
1. Diagram showing the structure of an LCD panel.
2. Illustration depicting how light passes through polarizers and liquid crystals.
3. Flowchart outlining the steps involved in image creation on an LCD screen.
4. Comparison chart highlighting differences between TN, IPS, and VA panel technologies.
5. Infographic detailing environmental impacts related to LCD production and disposal.
Liquid Crystal Displays represent a significant advancement in display technology, combining unique materials with innovative engineering to produce high-quality images efficiently. As technology continues to evolve, including advancements such as quantum dots and improved panel technologies like IPS and VA, LCDs remain a cornerstone in visual display applications across various industries. Their versatility ensures they will continue playing a vital role in our daily lives for years to come.
An LCD (Liquid Crystal Display) is a flat-panel display technology that uses liquid crystals to control light passage for image creation.
Liquid crystals change their orientation when an electric field is applied, allowing varying amounts of light to pass through them and creating images on the screen.
LCD technology is commonly used in televisions, computer monitors, smartphones, tablets, and digital cameras.
While they offer many advantages, some disadvantages include limited viewing angles and slower response times compared to newer technologies like OLED displays.
Typically, liquid crystals do not leak out due to their encapsulated design; however, if damaged severely, there may be some leakage.
