Screen burn-in is a persistent concern for users of modern electronic displays. As display technologies evolve, the debate between LCD and OLED panels intensifies, particularly regarding their durability and resistance to burn-in. Choosing the right display is crucial, especially for those who use screens for extended periods or rely on static images. This comprehensive article delves into the science behind burn-in, compares LCD and OLED technologies, examines real-world cases, and provides practical guidance for users. By the end, you'll have a thorough understanding of which technology holds up better to screen burn-in and how to maximize your display's lifespan.
Screen burn-in, also known as image retention or ghosting, refers to the permanent discoloration or residual “ghost” images left on a display after static content has been shown for a prolonged time. This phenomenon is most apparent when a static image—such as a logo, navigation bar, or control panel—remains visible as a faint shadow even after the content changes. Burn-in can affect both LCD and OLED screens, but the underlying mechanisms differ.
- Temporary Image Retention: Often reversible, this occurs when a static image leaves a faint mark that disappears after a while or with the display of dynamic content.
- Permanent Burn-in: This is irreversible and results from prolonged exposure to static images, causing lasting discoloration.
Burn-in can significantly impact user experience, reducing image quality and distracting from content. For professionals in creative industries, gamers, or those using screens for signage, burn-in can compromise the accuracy and aesthetics of displayed information.
LCD (Liquid Crystal Display) panels use liquid crystals to modulate light from a backlight. Burn-in on LCDs is less common but can occur, especially with static images displayed at high brightness for extended periods. The phenomenon is often referred to as “image persistence” and is usually temporary. However, in rare cases, it can become permanent if the same image remains static for weeks or months.
- High brightness settings
- Prolonged display of static content
- Elevated temperatures
- Aging of liquid crystals
OLED (Organic Light-Emitting Diode) panels are composed of organic compounds that emit light individually at each pixel. This allows for deep blacks and vibrant colors, but also makes OLEDs more susceptible to burn-in. Static images can cause uneven wear of the organic materials, leading to permanent ghost images.
- Self-emissive pixels: Each pixel ages independently, so static content can wear out specific pixels faster.
- Organic materials: The compounds degrade over time, especially under high brightness.
- Frequent static elements: Logos, navigation bars, and UI elements are particularly risky.
- LCD panels: Generally have a longer lifespan and are less prone to burn-in due to their inorganic components.
- OLED panels: Offer superior contrast and color but have a shorter lifespan due to the organic nature of their pixels.
- LCD: Lower risk. Burn-in is rare and often reversible.
- OLED: Higher risk. Burn-in can be permanent and more visible due to pixel-level illumination.
- LCD: Slightly lower contrast and color accuracy but more resilient to static content.
- OLED: Exceptional picture quality, but at the cost of potential burn-in over time.
Persistent ghosting of static UI elements, such as taskbars or control panels, is rare but possible with extended use at high brightness. In office environments where the same software interface is displayed for months, faint outlines may appear but usually fade with dynamic content.

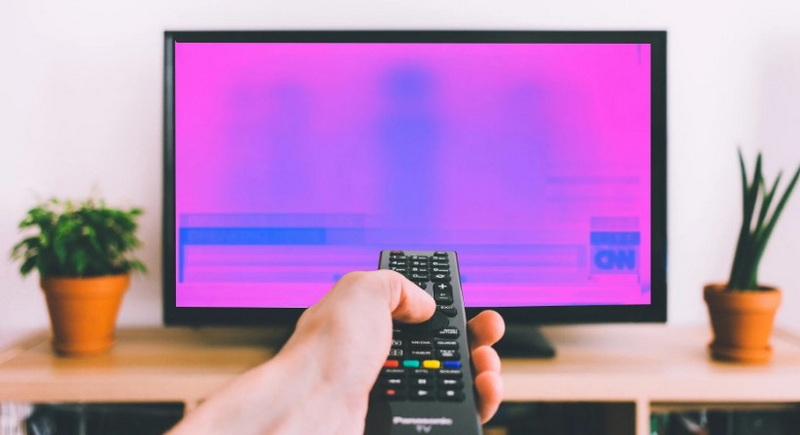

Ghost images of TV logos, navigation bars, or gaming HUDs are common in OLED displays subjected to static content for long periods. For example, a TV used as a digital signage display might show a persistent shadow of a logo after several months.
- Static content: Logos, navigation bars, and static UI elements increase the risk of burn-in.
- Dynamic content: Regularly changing images help distribute wear evenly across the screen.
- High brightness: Accelerates pixel degradation in both LCD and OLED.
- Lower brightness: Reduces the risk of burn-in and extends display lifespan.
- Prolonged static display: Devices used for gaming, productivity, or signage with static elements are more susceptible.
- Regular content change: Minimizes risk by preventing prolonged stress on specific pixels.
- High temperatures: Can worsen burn-in by accelerating material degradation.
- Proper ventilation: Helps maintain optimal operating temperatures and prolongs display life.
- Pixel-shifting: Slightly moves the image to prevent static areas from being overexposed.
- Screensavers: Automatically activates after periods of inactivity to refresh the screen.
- Panel refresh cycles: Some LCDs perform periodic maintenance routines to restore uniformity.
- Compensation cycles: Periodically refreshes pixels to even out wear and delay burn-in.
- Automatic brightness adjustment: Reduces brightness in static areas to slow degradation.
- Pixel refresh features: Runs maintenance routines to mitigate early signs of burn-in.
- Advanced materials: Newer OLED panels use more durable organic compounds to extend lifespan.
- Use dynamic wallpapers and screensavers to keep content moving.
- Lower screen brightness and avoid maximum settings for extended periods.
- Enable pixel-shifting or screen movement features if available.
- Turn off the display when not in use.
- Regularly update content on digital signage or dashboards.
- Avoid displaying static images for extended periods.
- Schedule periodic rest periods for devices used continuously.
- For OLED TVs, utilize built-in pixel refresh and compensation cycle features.
Display manufacturers are continuously innovating to address burn-in concerns. Recent advancements in both LCD and OLED technologies have significantly reduced the risk of burn-in, though not eliminated it entirely.
- Mini-LED backlighting: Offers improved contrast and brightness control, reducing the likelihood of localized burn-in.
- Quantum dot enhancements: Improve color accuracy and efficiency, potentially extending panel life.
- Improved organic materials: New compounds degrade more slowly, extending lifespan.
- Algorithmic compensation: Advanced software adjusts pixel usage to balance wear.
- Hybrid displays: Combining OLED with other technologies to mitigate weaknesses.
- MicroLED: Promises the deep blacks and color vibrancy of OLED with the durability of LCD, and is less prone to burn-in.
- Dual-cell LCD: Uses two LCD layers for improved contrast and reduced risk of image retention.
When it comes to screen burn-in, LCD displays generally hold up better than OLED in most scenarios. LCDs are less susceptible to permanent image retention, making them ideal for environments where static content is common, such as offices, public displays, or professional workstations. OLED panels, while offering unparalleled contrast and color, are more prone to burn-in due to the organic nature of their pixels. However, with proper usage and the latest mitigation technologies, both display types can offer years of reliable performance.
Ultimately, the choice between LCD and OLED depends on your usage patterns and priorities. Choose LCD for durability and peace of mind, especially if your screen will display static content for long periods. Opt for OLED if you prioritize visual excellence and are willing to take preventive measures to protect your investment. By understanding the strengths and weaknesses of each technology, you can make an informed decision and enjoy your display for years to come.
Screen burn-in primarily results from displaying static images for prolonged periods, causing uneven wear of pixels or liquid crystals, depending on the display technology.
Yes, although rare, LCD screens can experience burn-in, especially when static images are displayed at high brightness for long durations. However, the effect is usually less severe and sometimes reversible.
Recent advancements in OLED technology, such as compensation cycles and pixel-shifting, have reduced the risk, but OLED panels remain more susceptible than LCDs.
Burn-in appears as faint, persistent ghost images or discoloration that remains visible when the content changes, especially on uniform backgrounds.
If burn-in is a primary concern, LCD displays are generally safer. OLED offers better picture quality but requires more careful usage to avoid permanent damage.
