In today's technology-driven world, the display is the window through which we interact with digital content. Whether you're reading, designing, gaming, or simply watching videos, the quality and characteristics of your screen can dramatically influence your experience. Among the many display technologies available, IPS LCD displays have become a standard for devices that demand vibrant visuals, accurate color reproduction, and consistent performance. But what exactly is an IPS LCD display? This comprehensive article explores the meaning, structure, advantages, disadvantages, applications, and future trends of IPS LCD displays, providing an in-depth understanding for both casual users and tech enthusiasts.
IPS stands for *In-Plane Switching*, a technology developed to overcome the limitations of earlier LCD (Liquid Crystal Display) panels. Traditional LCDs, particularly those using TN (Twisted Nematic) technology, often suffered from poor color accuracy and narrow viewing angles. IPS technology was introduced to address these issues by altering the way liquid crystal molecules are aligned and switched within the panel.
In an IPS LCD, the liquid crystal molecules are aligned parallel to the glass substrates. When an electric field is applied, these molecules rotate within the same plane, allowing light to pass through in a controlled manner. This in-plane rotation is the key to the improved performance of IPS panels, resulting in more accurate color representation and wider viewing angles compared to TN or VA (Vertical Alignment) panels.
- Backlight: Provides the initial illumination for the display, typically using LEDs.
- Polarizers: Two polarizing filters control the direction of light entering and exiting the display.
- Liquid Crystal Layer: The core of the display, where IPS technology manipulates the alignment of liquid crystals.
- Color Filters: Separate the light into red, green, and blue subpixels, creating the full spectrum of colors.
- Glass Substrates: Sandwich the liquid crystal layer and provide structural support.
The layered design of an IPS LCD display ensures that each component works in harmony to produce clear, vibrant images. The backlight shines through the polarizer, liquid crystal layer, and color filters, with the liquid crystals controlling the amount and color of light that reaches the viewer. The precise alignment of crystals in IPS panels is what sets them apart, delivering consistent color and brightness across the entire screen.
One of the most significant benefits of IPS technology is its ability to produce highly accurate and vivid colors. This is particularly important for professionals in fields such as photography, graphic design, and video editing, where color fidelity is crucial.
IPS LCDs maintain consistent color and brightness even when viewed from extreme angles, typically up to 178 degrees. This makes them ideal for collaborative environments, such as offices and classrooms, where multiple people may be viewing the screen at once.
Thanks to improved backlighting and color reproduction, IPS LCDs perform better in bright environments. The screen remains readable and clear even under direct sunlight, making them a popular choice for mobile devices.
IPS panels are known for their durability and longevity. They tend to outlast other types of LCDs, maintaining their performance and image quality over time, even with heavy or prolonged use.
Unlike some display technologies that degrade or shift in color and brightness over time, IPS LCDs are engineered to deliver consistent performance, ensuring a reliable visual experience throughout their lifespan.
IPS LCDs generally consume more power than TN panels. The backlight must be brighter to maintain image quality, which can impact battery life in portable devices such as smartphones and laptops.
The advanced manufacturing processes required for IPS panels make them more expensive to produce. As a result, devices equipped with IPS LCDs often come with a higher price tag compared to those with TN or VA panels.
While IPS panels excel in color accuracy and viewing angles, they typically offer lower contrast ratios than OLED displays. OLED panels can produce true blacks by turning off individual pixels, whereas IPS LCDs rely on a backlight, limiting their ability to achieve deep blacks.
Although IPS panels have improved significantly in recent years, they may still exhibit slightly slower response times compared to TN panels. This can result in minor motion blur during fast-paced gaming or video playback, though the difference is negligible for most users.

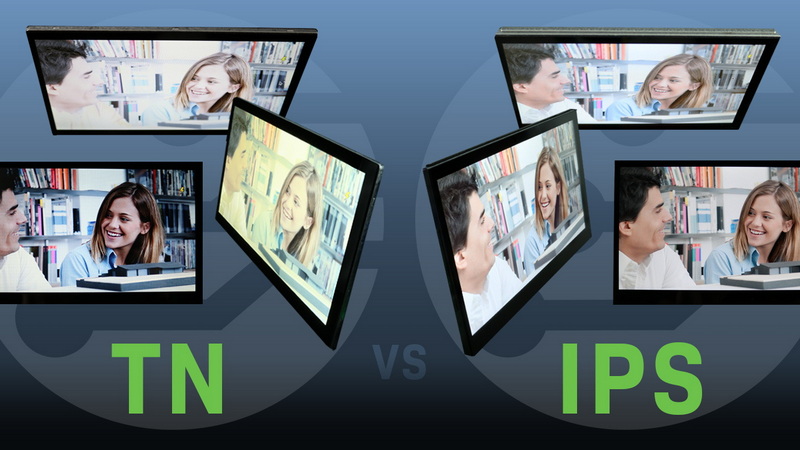

Feature | IPS LCD | TN LCD | VA LCD | OLED |
---|---|---|---|---|
Color Accuracy | Excellent | Poor | Good | Excellent |
Viewing Angles | Wide (up to 178°) | Narrow | Moderate | Wide |
Contrast Ratio | Good | Poor | Best | Best |
Response Time | Moderate | Fastest | Slowest | Fast |
Power Consumption | Higher | Lower | Moderate | Lowest |
Price | Higher | Lowest | Moderate | Highest |
Best Use Case | Professional, General | Gaming, Budget | General, Video | Premium, Creative |
This comparison highlights the strengths and weaknesses of IPS LCDs relative to other popular display technologies, helping users choose the right panel for their needs.
IPS LCDs are widely used in smartphones and tablets, where vibrant colors, sharp details, and wide viewing angles are essential for media consumption, gaming, and productivity. The technology's ability to maintain image quality in various lighting conditions enhances the user experience on the go.

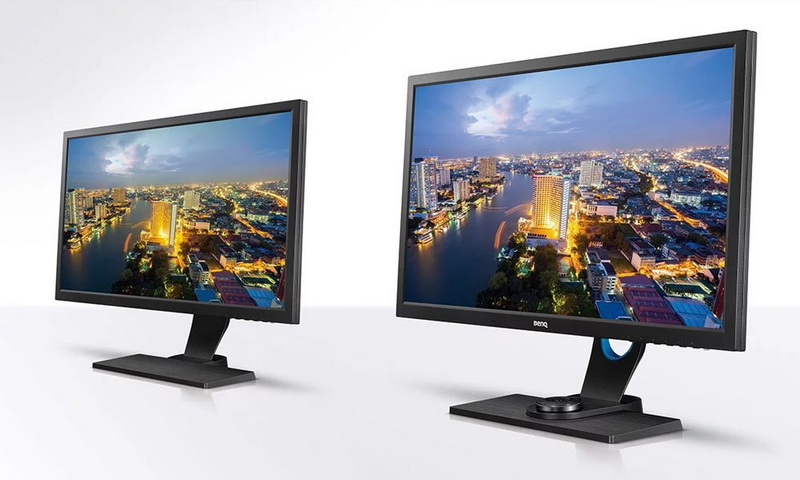

For both professional and personal use, IPS LCD monitors and televisions deliver exceptional image quality. They are favored by designers, photographers, and video editors for their accurate color reproduction, and by general consumers for their immersive viewing experience.
Many high-end laptops feature IPS LCD screens to provide accurate color representation and wide viewing angles. This is especially important for creative professionals who require precision in their work, as well as for users who value a premium visual experience.
In the medical field, the clarity and accuracy of visual information are critical. IPS LCDs are used in medical imaging devices, diagnostic monitors, and other healthcare equipment, where precise color and detail can impact patient care and outcomes.
The durability, readability, and performance of IPS LCDs make them suitable for industrial control panels, automotive dashboards, and other demanding environments. These displays are designed to withstand harsh conditions while providing clear and reliable information to users.
The defining feature of IPS technology is the parallel alignment of liquid crystal molecules. When voltage is applied, these molecules rotate within the same plane, allowing light to pass through and create an image. This alignment minimizes light leakage and color distortion, resulting in superior visual performance.
The backlight in an IPS LCD is typically made up of LEDs, which provide a bright and uniform source of illumination. Color filters divide the light into red, green, and blue subpixels, which combine to produce the full spectrum of colors. The precise control of light and color is what enables IPS displays to deliver accurate and vibrant images.
Polarizers are essential for controlling the direction of light as it enters and exits the display. The glass substrates provide structural support and protect the delicate liquid crystal layer, ensuring the durability and longevity of the panel.
Major smartphone manufacturers, including Apple, Samsung, and LG, have adopted IPS LCD technology in their devices to provide users with superior visual experiences. Many flagship tablets and laptops also feature IPS panels, catering to users who demand high-quality displays.
Graphic designers, photographers, and video editors rely on IPS LCD monitors for their work, as these panels offer the color accuracy and consistency required for professional-grade results.
IPS LCDs are used in digital signage, interactive kiosks, and public information displays, where wide viewing angles and durability are essential for effective communication.
In vehicles and industrial settings, IPS LCDs are chosen for their robustness and ability to deliver clear, readable information in challenging environments.
The trend toward higher resolutions, such as 4K and 8K, is making IPS LCDs even more detailed and immersive. These advancements enable sharper images and more lifelike visuals, enhancing the user experience across a range of devices.
Innovations in manufacturing are enabling the production of flexible and curved IPS LCD panels. These new form factors open up exciting possibilities for device design, from curved monitors to foldable smartphones.
Ongoing research is focused on reducing the power consumption of IPS LCDs. Advances in backlighting technology and panel design are making these displays more energy-efficient, extending battery life in portable devices.
IPS LCDs are increasingly being integrated with touch capabilities and smart sensors, enabling interactive applications and enhanced user experiences in everything from smartphones to smart home devices.
Manufacturers are also exploring ways to make IPS LCD production more sustainable, using eco-friendly materials and processes to reduce the environmental impact of display technology.
To maintain the clarity and performance of an IPS LCD display, it's important to clean the screen regularly using a soft, lint-free cloth. Avoid using harsh chemicals or abrasive materials, as these can damage the delicate surface of the panel.
While IPS LCDs are less susceptible to burn-in than OLED displays, prolonged display of static images can still cause image retention. To prevent this, use screen savers and avoid displaying static content for extended periods.
Adjusting the brightness, contrast, and color settings of your IPS LCD display can help reduce eye strain and extend the lifespan of the panel. Many devices offer preset modes for different activities, such as reading, gaming, or watching movies.
IPS LCD displays represent a significant advancement in display technology, offering a blend of vibrant color reproduction, wide viewing angles, and consistent performance that sets them apart from other LCD types. Their adoption across smartphones, monitors, televisions, laptops, and even medical equipment underscores their versatility and reliability. While they may come at a higher cost and consume more power than some alternatives, the visual benefits they provide make them the preferred choice for professionals and discerning consumers alike. As technology continues to evolve, IPS LCD displays are poised to remain at the forefront of visual innovation, adapting to new trends and meeting the ever-increasing demands of users.
IPS displays use in-plane switching technology to align liquid crystals parallel to the glass substrate, resulting in better color accuracy and wider viewing angles compared to traditional LCDs like TN panels.
Yes, IPS LCD displays offer excellent color reproduction and wide viewing angles, enhancing the gaming experience. However, some TN panels may offer faster response times, which are preferred for competitive gaming.
The advanced technology and manufacturing processes required for IPS panels increase production costs, making them more expensive than TN or VA panels.
IPS displays are generally easier on the eyes due to their accurate color reproduction and minimal color shift, even at wide viewing angles. However, factors like screen brightness and blue light emission also play a role in eye comfort.
IPS LCDs are used in smartphones, tablets, computer monitors, televisions, laptops, medical imaging equipment, and industrial control panels due to their superior visual performance.
