LCD technology utilizes liquid crystals to modulate light. When an electric current passes through the liquid crystals, they change orientation, allowing varying degrees of light to pass through. This principle is what enables the display of images and text.
Text LCDs are designed primarily for displaying alphanumeric characters. They typically consist of a fixed number of characters arranged in a grid format. For instance, a common configuration is 16x2, meaning it can display 16 characters across two lines.
- Structure: Text LCDs use a matrix of pixels that can be turned on or off to form characters. Each character is usually represented by a grid of pixels (like 5x8).
- Functionality: These displays are suitable for applications requiring simple text output, such as digital clocks, basic user interfaces, and simple data displays.
- Limitations: Text LCDs cannot display complex graphics or images. They are limited to predefined characters and symbols.

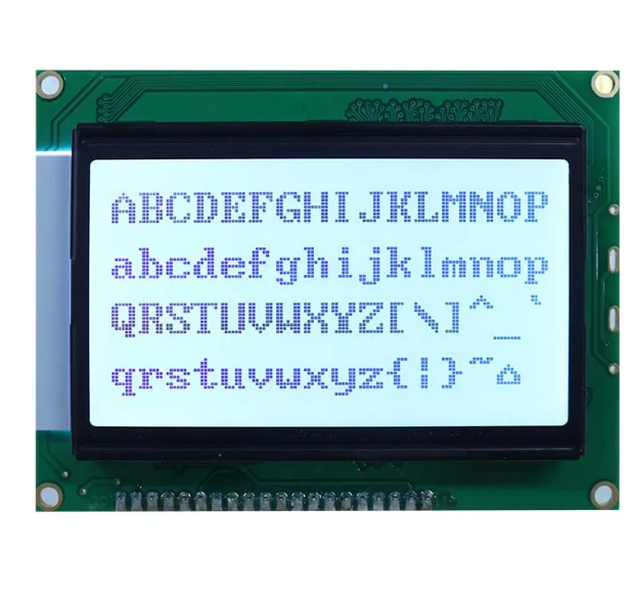

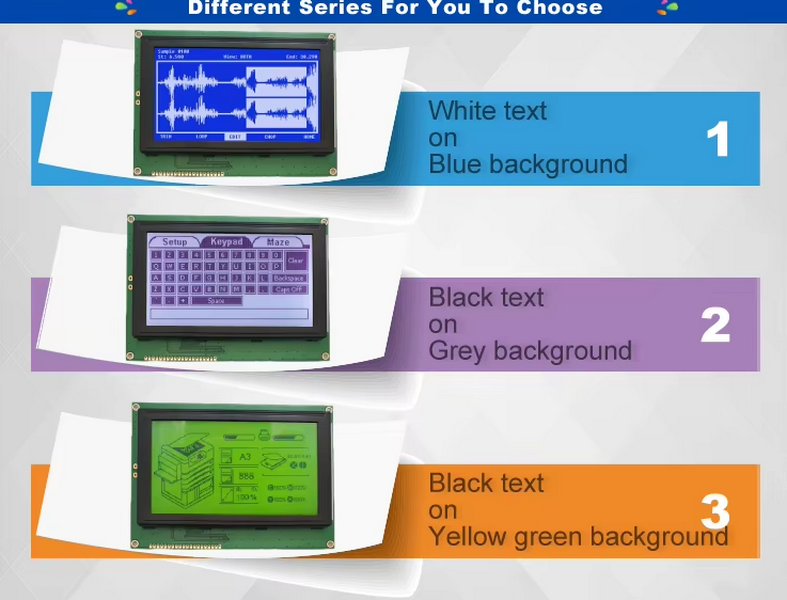

Graphic LCDs, on the other hand, can display both text and images. They consist of a matrix of pixels that can be individually controlled, allowing for more complex visual representations.
- Structure: Graphic LCDs have a higher resolution than text LCDs, often measured in pixels (e.g., 128x64). Each pixel can be independently controlled to create images or graphics.
- Functionality: These displays are versatile and can show complex graphics, animations, and various fonts. They are commonly used in applications like medical devices, handheld gaming consoles, and industrial equipment.
- Advantages: The ability to display detailed images and custom graphics makes graphic LCDs ideal for advanced user interfaces.
| Feature | Text LCD Display Modules | Graphic LCD Display Modules |
|---|---|---|
| Display Type | Alphanumeric characters | Images and graphics |
| Resolution | Limited (e.g., 16x2) | Higher (e.g., 128x64) |
| Complexity | Simple interface | Complex interface with graphics |
| Applications | Basic applications (e.g., clocks) | Advanced applications (e.g., medical devices) |
| Cost | Generally lower cost | Typically more expensive |
| Power Consumption | Lower power consumption | Higher power consumption due to complexity |
- Consumer Electronics: Used in devices like microwaves, washing machines, and other appliances where simple information display is needed.
- Industrial Equipment: Common in control panels for machinery where basic operational data is displayed.
- Toys and Gadgets: Found in educational toys that require simple text outputs.
- Medical Devices: Used in equipment like blood glucose monitors where detailed information is crucial.
- Gaming Consoles: Essential for handheld gaming devices that require rich graphical interfaces.
- Automotive Displays: Employed in dashboards for displaying various vehicle metrics visually.
- Cost-effective: Generally cheaper than graphic displays.
- Simplicity: Easier to implement for basic applications with straightforward requirements.
- Limited Functionality: Cannot display images or complex graphics.
- Character Limitations: Restricted to predefined character sets.
- Versatility: Can display both text and images; suitable for a wide range of applications.
- Customization: Users can create custom graphics tailored to specific needs.
- Higher Cost: More expensive than text displays due to complexity.
- Power Consumption: Typically consumes more power than text displays.
In summary, the choice between text and graphic LCD display modules largely depends on the specific needs of the application. Text LCDs are ideal for simple tasks requiring basic information display at a lower cost. In contrast, graphic LCDs offer versatility and advanced capabilities suitable for more complex applications. Understanding these differences allows designers and engineers to select the appropriate technology for their projects effectively.
Text LCD modules are primarily used in consumer electronics like microwaves and washing machines where simple information needs to be displayed clearly.
Yes, graphic LCDs can display both text and images due to their ability to control individual pixels.
Generally, yes; graphic LCDs tend to be more expensive due to their complexity and capabilities compared to text-only displays.
Graphic LCD resolutions vary widely but common examples include 128x64 or 240x320 pixels.
Consider the complexity of information you need to display; if it's only text, a text LCD suffices. For images or complex data visualization, opt for a graphic LCD.
