In the world of display technology, two terms often come up: LED and LCD. While these acronyms are frequently used interchangeably, they actually refer to different aspects of display technology. This article will delve into the key differences between LED and LCD backlight modules, exploring their working principles, advantages, and applications.
LCD, which stands for Liquid Crystal Display, is a type of flat panel display that uses liquid crystals as its primary form of operation. However, LCD panels do not produce light on their own. This is where backlight modules come into play.
An lcd backlight module is a crucial component in LCD displays. It provides the necessary illumination for the liquid crystal panel to create visible images. Without a backlight, an LCD screen would be practically invisible.
The structure of an lcd backlight module typically includes:
1. Light source (traditionally CCFL, now often LED)
2. Light guide plate
3. Diffuser
4. Reflector
5. Various optical films
There are two main types of lcd backlight modules:
1. CCFL (Cold Cathode Fluorescent Lamp) Backlight: This was the traditional method used in older LCD displays. CCFL backlights provide uniform illumination but consume more power and contain mercury.
2. LED Backlight: Modern LCD displays predominantly use LED backlights. These are more energy-efficient, thinner, and environmentally friendly compared to CCFL backlights.
LED (Light Emitting Diode) backlight technology has revolutionized the display industry. It offers several advantages over traditional CCFL backlights.

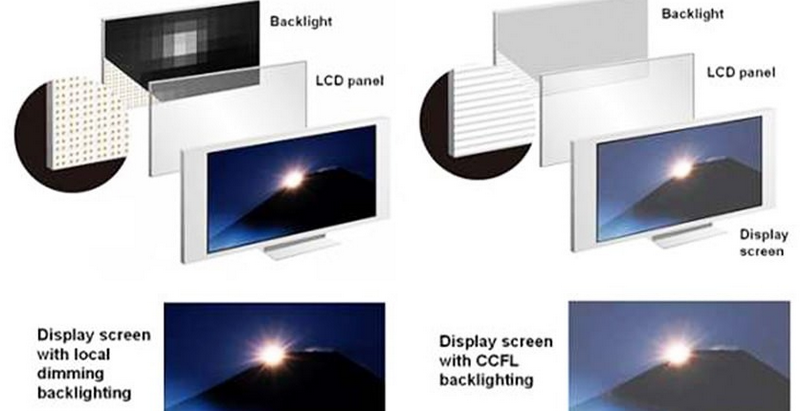

LED backlights use light-emitting diodes to illuminate the LCD panel. There are two main configurations:
1. Edge-lit LED: LEDs are placed along the edges of the screen, and a light guide plate distributes the light across the entire display.
2. Direct-lit LED: LEDs are placed directly behind the LCD panel, providing more uniform illumination and better local dimming capabilities.
LED backlights offer several benefits over CCFL:
1. Energy Efficiency: LED backlights consume less power, making them more environmentally friendly and cost-effective in the long run.
2. Thinner Displays: LED backlights allow for slimmer display designs, particularly with edge-lit configurations.
3. Better Color Reproduction: LED backlights can provide a wider color gamut, resulting in more vibrant and accurate colors.
4. Longer Lifespan: LED backlights typically last longer than CCFL backlights, reducing the need for replacements.
5. Mercury-Free: Unlike CCFL backlights, LED backlights do not contain mercury, making them more environmentally friendly.

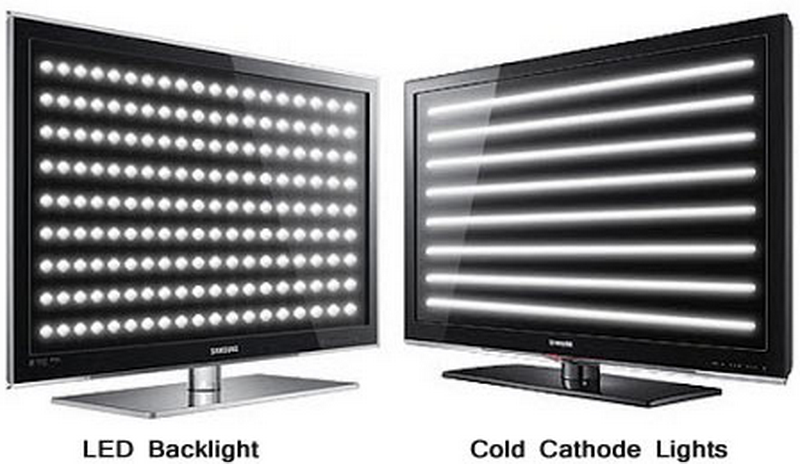

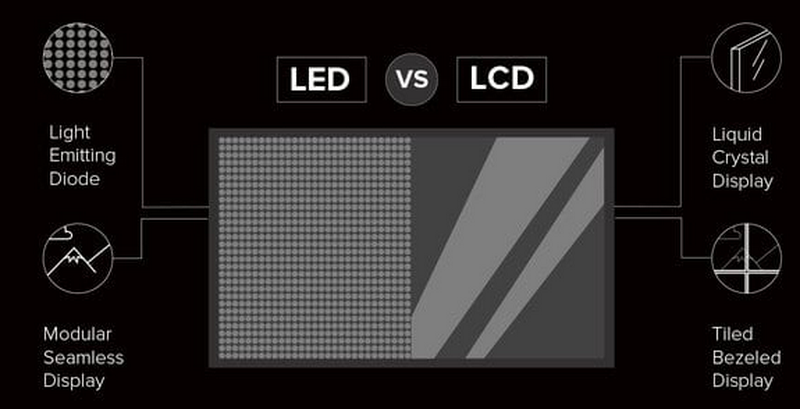

While the term "LED TV" is commonly used, it's important to note that these are actually LCD TVs with LED backlights. Let's compare the key differences between LED and traditional LCD (CCFL) backlight modules:
LED backlight modules are significantly more energy-efficient than CCFL backlights. They consume less power while providing the same or better brightness levels.
LCD displays with LED backlights can be made much thinner than those with CCFL backlights. This is particularly true for edge-lit LED configurations.
LED backlights offer a wider color gamut, allowing for more vibrant and accurate color reproduction compared to CCFL backlights.
LED backlights typically have a longer lifespan than CCFL backlights. While CCFL backlights may last around 30,000 hours, LED backlights can often exceed 50,000 hours of use.
LED backlights are more environmentally friendly as they do not contain mercury, unlike CCFL backlights.
LCD displays with backlight modules are used in a wide range of applications:
1. Television Screens: Most modern TVs use LCD panels with LED backlights.
2. Computer Monitors: Both desktop and laptop displays typically use LCD panels with LED backlights.
3. Smartphones and Tablets: These devices almost exclusively use LCD screens with LED backlights due to their energy efficiency and thin profile.
4. Automotive Displays: Car infotainment systems and dashboard displays often use LCD panels with LED backlights.
5. Digital Signage: Large-format displays for advertising and information often use LCD panels with LED backlights.
The display industry is constantly evolving, and new technologies are emerging to improve upon existing backlight modules:
Quantum dot technology enhances LED backlights by improving color accuracy and brightness. This technology uses nano-sized semiconductor particles to produce pure red, green, and blue light.
Mini-LED technology uses thousands of tiny LEDs as the backlight source, offering better local dimming capabilities and improved contrast ratios compared to traditional LED backlights.
While not a backlight technology per se, Micro-LED displays are emerging as a potential successor to LCD and OLED technologies. These displays use microscopic LEDs to create each pixel, eliminating the need for a separate backlight altogether.
For a visual explanation of LED backlight technology, watch this informative video:
The difference between LED and LCD backlight modules lies primarily in the technology used to illuminate the LCD panel. While traditional LCD displays used CCFL backlights, modern displays predominantly use LED backlights due to their numerous advantages.
LED backlight modules offer superior energy efficiency, thinner display designs, better color reproduction, and longer lifespans compared to CCFL backlights. As technology continues to advance, we can expect further improvements in backlight technology, leading to even better display quality and energy efficiency.
Understanding the differences between these backlight technologies can help consumers make informed decisions when purchasing displays and help professionals in the industry stay up-to-date with the latest advancements.
The main difference lies in the backlight technology. LCD (Liquid Crystal Display) is the display technology itself, while LED (Light Emitting Diode) refers to the type of backlight used in modern LCD displays. Traditional LCD displays used CCFL (Cold Cathode Fluorescent Lamp) backlights, while modern LCDs use LED backlights for improved efficiency and picture quality.
LED TVs are actually a type of LCD TV. The term "LED TV" refers to an LCD TV that uses LED backlighting instead of the older CCFL technology. LED-backlit LCD TVs generally offer better picture quality, energy efficiency, and thinner designs compared to older CCFL-backlit LCD TVs.
The lifespan of an lcd backlight module depends on the technology used. CCFL backlights typically last around 30,000 hours, while LED backlights can often exceed 50,000 hours of use. However, actual lifespan can vary depending on usage patterns and environmental factors.
In some cases, it is possible to replace the backlight module in an LCD display. However, this process can be complex and may require specialized tools and expertise. It's often more cost-effective to replace the entire display unit, especially for consumer electronics like TVs or monitors.
LED backlight modules offer several environmental benefits compared to older CCFL technology. They are more energy-efficient, reducing power consumption and associated carbon emissions. Additionally, LED backlights do not contain mercury, making them easier to recycle and dispose of safely at the end of their lifecycle.
