The 4.3-inch LCD display is a staple in modern electronics, powering everything from automotive dashboards to smart home panels and portable medical devices. A fundamental aspect of working with these displays—whether you are designing a user interface, calibrating touch input, or developing embedded systems—is understanding where the exact center of the display lies. This knowledge is crucial for precise alignment, optimal user experience, and technical troubleshooting.

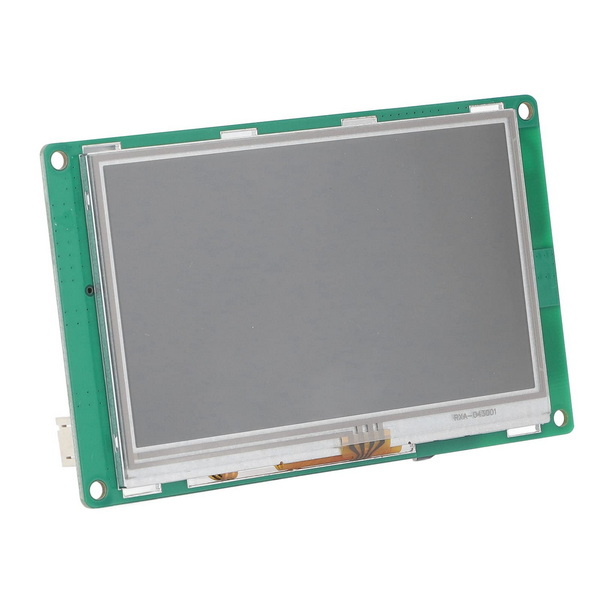

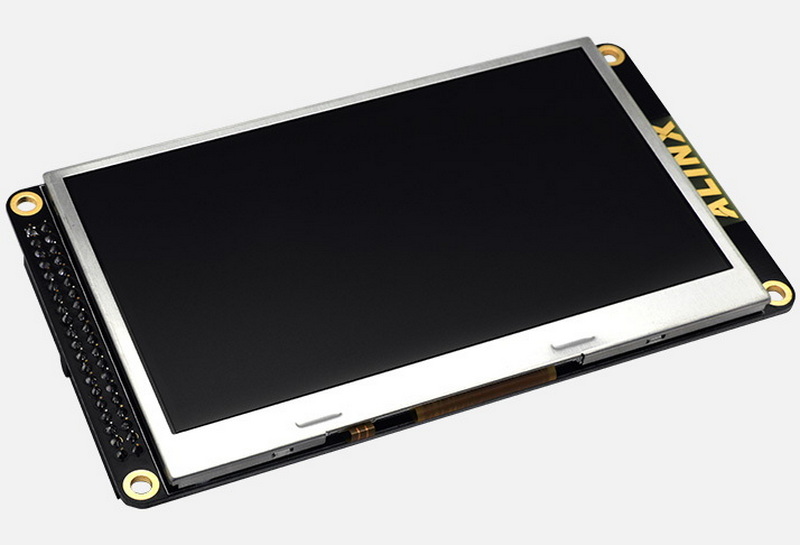

A 4.3-inch LCD (Liquid Crystal Display) refers to a screen with a diagonal measurement of 4.3 inches. These displays are widely used due to their compact size, high resolution, and versatility. They are available in various resolutions, with the most common being 480x272 pixels and 800x480 pixels.
Key Features:
- Diagonal Size: 4.3 inches
- Typical Resolutions: 480x272 pixels, 800x480 pixels
- Display Type: TFT (Thin-Film Transistor), often with IPS (In-Plane Switching) for wide viewing angles
- Backlight: LED, providing high brightness for sunlight readability
- Touch Options: Capacitive or resistive touch panels, or no touch at all
- Applications: Automotive, industrial, medical, consumer electronics, smart home, robotics
These displays are engineered to provide clear visuals in a variety of environments, making them ideal for both indoor and outdoor applications. Their size strikes a balance between portability and visibility, which is why they are found in so many different devices.
The "center" of a 4.3-inch LCD display is the point that is equidistant from the edges of the display's active area. This is not necessarily the geometric center of the entire module (including bezels or frames), but the center of the area where pixels are illuminated and content is displayed.
Why is the center important?
- User Interface Design: Aligning icons, text, or controls for symmetry and balance.
- Touch Calibration: Ensuring accurate touch response, especially for gestures or virtual joysticks.
- Mechanical Mounting: Properly aligning the display in enclosures or panels.
- Optical Performance: Maximizing visibility and minimizing distortion.
The center is the reference point for all symmetrical design and functional alignment, making it a critical factor for both hardware and software development.

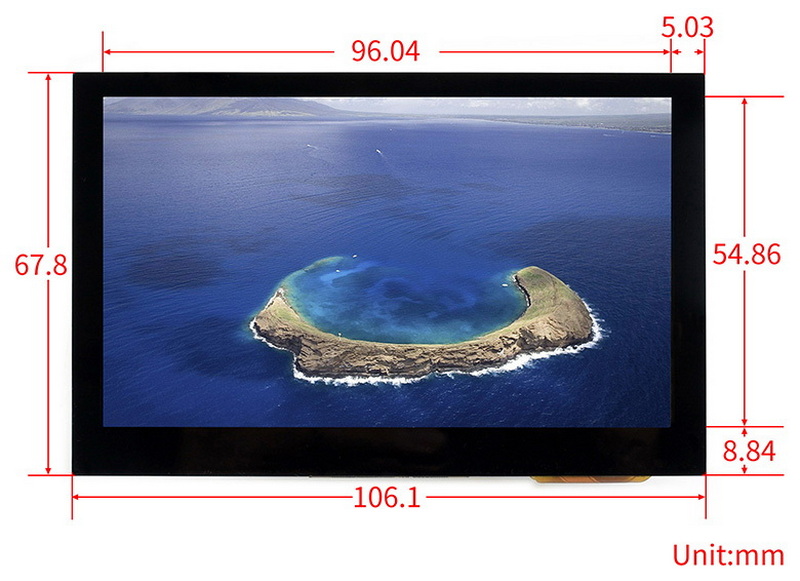

Most 4.3-inch LCDs have an active area of approximately 95.04 mm (width) by 53.86 mm (height).
To find the center:
- Horizontal Center (X): Active Width / 2 = 95.04 mm / 2 = 47.52 mm
- Vertical Center (Y): Active Height / 2 = 53.86 mm / 2 = 26.93 mm
So, the center is at (47.52 mm, 26.93 mm) from the top-left corner of the active area.
For a 480x272 pixel display:
- Horizontal Center: 480 / 2 = 240 pixels
- Vertical Center: 272 / 2 = 136 pixels
For an 800x480 pixel display:
- Horizontal Center: 800 / 2 = 400 pixels
- Vertical Center: 480 / 2 = 240 pixels
If you want to display a centered image or text, set its anchor point at (240, 136) for a 480x272 display, or (400, 240) for an 800x480 display. This ensures that your content is perfectly centered, both visually and functionally.
Centering elements ensures a visually balanced and professional look, essential for dashboards, control panels, and infotainment systems. Users expect key information and controls to be easily accessible and intuitively placed, which often means centering them on the display.
For touch-enabled displays, the center point is critical for accurate touch mapping and gesture recognition. Calibration routines often use the center as a reference to ensure that touch input corresponds precisely to on-screen locations.
In devices combining a display and camera (such as smart mirrors or inspection tools), aligning the camera with the display center ensures accurate overlays and augmented reality effects. Misalignment can lead to parallax errors and reduce the effectiveness of visual aids.
Precise centering is vital for control interfaces in industrial machinery and medical monitors, where user input and data visualization must be accurate and reliable. In these contexts, even minor misalignments can have significant consequences for safety and usability.
Most display libraries and frameworks allow you to specify coordinates for drawing elements. To center text or images:
- Calculate the center point as shown above.
- Adjust for element size: If your image is 100x50 pixels, its top-left corner should be at (center_x - 50, center_y - 25).
This approach ensures that the visual center of your content aligns with the display's center, regardless of the content's dimensions.
When mounting a display, use the active area dimensions to align the screen within an enclosure. The module's outline is typically larger than the active area, so always reference the datasheet for precise measurements.
Mechanical alignment is just as important as software alignment. Incorrect mounting can lead to visible misalignment, reduced touch accuracy, and even mechanical stress that shortens the display's lifespan.
Centering is not just a technical necessity but also a critical factor in user experience and device aesthetics. When users interact with a device, their eyes naturally gravitate towards the center of the screen. Misalignment can cause discomfort, reduce usability, and even lead to errors in touch input.
A well-centered display enhances the perceived quality of a device. Whether it's a consumer product or a piece of industrial equipment, attention to centering reflects a commitment to detail and user satisfaction. Inconsistent centering can make even the most advanced technology feel unpolished and unreliable.
In augmented reality (AR) and virtual reality (VR) devices, the center of the display plays a pivotal role in aligning virtual objects with the real world. Precise centering ensures that overlays and interactive elements appear exactly where users expect them, enhancing immersion and reducing motion sickness.
Similarly, in automotive heads-up displays (HUDs), the center is used to align critical information like speed and navigation cues directly in the driver's line of sight. In medical imaging, centering ensures that diagnostic data and images are presented with maximum clarity and minimal distortion.
As technology evolves, the importance of precise centering continues to grow. Devices are becoming more interactive and visually complex, making accurate alignment a fundamental requirement for both hardware and software designers.
- Always use precise measurement tools during the manufacturing process to avoid cumulative errors that can lead to misalignment.
- Implement software calibration routines that adjust for minor mechanical misalignments, especially in devices with touch input or camera overlays.
- Regularly test devices under different lighting conditions to ensure consistent visual performance, as lighting can affect perceived centering.
- Collaborate closely with hardware engineers to align mechanical and software aspects of the display, ensuring that design intentions are realized in the finished product.
- Document all centering procedures and measurements to maintain consistency across production batches and future revisions.
By following these best practices, manufacturers and designers can minimize alignment issues and deliver products that meet high standards of quality and usability.
Problem: Text or images are not centered as expected.
Solution: Double-check your coordinate calculations and adjust for the width and height of the element. Always use the active area as your reference, not the module outline.
Problem: Touch input does not register correctly at the center.
Solution: Recalibrate the touch controller using the display's datasheet reference points. Ensure the touch panel is properly aligned with the LCD's active area.
Problem: Black spots or lines appear at the center.
Solution: This may indicate LCD damage. Inspect for physical cracks, test with solid color backgrounds, and consult the manufacturer for repair or replacement if necessary.
Problem: Content appears centered in the emulator but not on the actual hardware.
Solution: Verify the display's resolution and pixel mapping. Some controllers may have offsets or require initialization commands to properly align the content.
Problem: The display appears off-center in its enclosure.
Solution: Use the active area dimensions for mechanical design and ensure the mounting aligns with the display's center, not just the PCB or frame.
By understanding and utilizing the center of a 4.3-inch LCD display in both physical and pixel terms, and by applying best practices in design and manufacturing, developers and engineers can create devices that are not only functional but also visually appealing and user-friendly. This comprehensive approach to centering ultimately leads to higher customer satisfaction and product success. Whether you are building automotive dashboards, smart home panels, or portable medical devices, mastering this fundamental concept will elevate your projects and enhance user satisfaction.
The active area is usually about 95.04 mm (width) by 53.86 mm (height), regardless of the resolution.
Divide the resolution by two. For 480x272, the center is at (240, 136) pixels. For 800x480, it is at (400, 240) pixels.
This could be due to using the wrong reference point (module outline vs. active area), incorrect resolution settings, or not accounting for the size of the element being centered.
Calculate the center coordinates, subtract half the width and height of your element, and use those as the starting point for drawing.
Recalibrate the touch panel, ensure it is properly aligned with the active area, and check for firmware updates or configuration settings specific to your touch controller.
