In the rapidly evolving world of DIY electronics, the touch screen LCD display has emerged as a transformative component. Whether you're building a smart home controller, a digital photo frame, a portable gaming console, or an interactive art installation, the right display can elevate your project from functional to fantastic. This comprehensive guide explores what makes a touch screen LCD display ideal for DIY projects, the different types available, how to choose the best one, and inspiring real-world examples—with plenty of images and videos to spark your creativity.
A touch screen LCD display combines the visual clarity of liquid crystal displays with interactive touch capabilities. These displays are widely used in smartphones, tablets, industrial controls, and increasingly in DIY projects. The main components include:
- LCD Panel: Provides the visual output.
- Touch Sensor: Detects user input via finger or stylus.
- Controller: Interprets touch signals and communicates with the main processor.
When you touch the screen, the sensor detects the location and sends this information to the controller, which then triggers the appropriate response on the display. The technology behind the touch sensor can vary, impacting sensitivity, durability, and cost.
The integration of touch capability into LCD displays allows for intuitive user interaction, eliminating the need for external input devices like keyboards or mice. This feature is especially valuable in compact or embedded systems where space is limited.
Choosing the right type of touch screen LCD display is crucial for your DIY project. Here are the most common types:

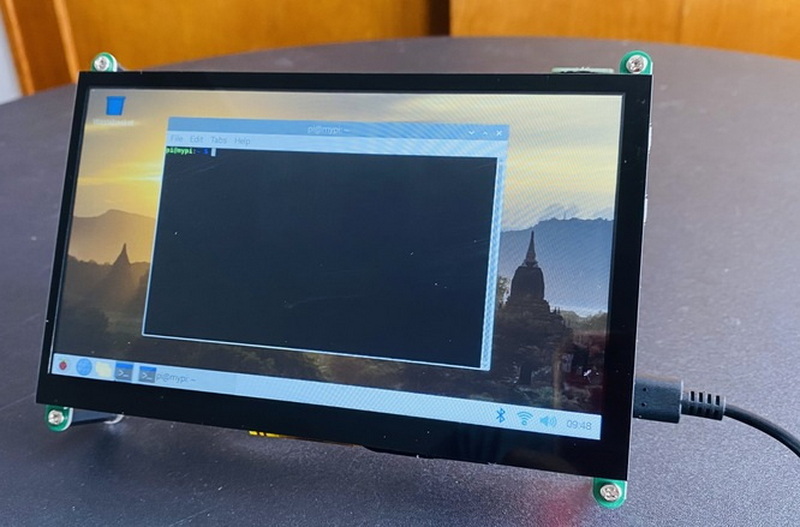

- How it works: Two flexible layers are pressed together by touch, registering the location.
- Pros: Works with any object (finger, stylus, glove), affordable.
- Cons: Lower clarity, less durable, limited multi-touch.
Resistive screens are often favored for budget projects or environments where users might wear gloves. They tend to be less sensitive but offer versatility in input methods.
- How it works: Uses the electrical properties of the human body to detect touch.
- Pros: High clarity, supports multi-touch, more responsive.
- Cons: Requires direct skin contact or special stylus, higher cost.
Capacitive touch screens are the standard in modern consumer electronics. They provide smooth, responsive interaction and support gestures like pinch-to-zoom, making them ideal for advanced DIY interfaces.
- How it works: Uses beams of infrared light or cameras to detect touch.
- Pros: Can detect any object, durable, supports large screens.
- Cons: More expensive, sensitive to dust and sunlight.
Infrared and optical touch screens are often used in large-format displays or kiosks. Their durability and ability to detect any input make them attractive for interactive installations or public-facing projects.
- How it works: Uses ultrasonic waves that are absorbed when touched.
- Pros: High image clarity, works with finger or soft stylus.
- Cons: Sensitive to contaminants, not suitable for harsh environments.
SAW touch screens provide excellent image quality and are often used in specialized industrial or medical equipment. However, their sensitivity to dirt and moisture limits their use in some DIY environments.
When selecting a touch screen LCD display for your DIY project, consider the following features:
- Ranges from small (2.4-inch) for compact devices to large (22-inch) for wall-mounted panels.
- 10-inch displays are popular for their balance of usability and portability.
Choosing the right size depends on your project's purpose and space constraints. Smaller screens suit handheld devices, while larger ones are better for control panels or media centers.
- Determines the sharpness of images and text.
- Common resolutions: 480x320, 800x480, 1280x800, and Full HD 1920x1080.
Higher resolution displays provide crisper visuals but may require more powerful hardware to drive them effectively.
- Capacitive for high responsiveness and multi-touch.
- Resistive for cost-effectiveness and versatility.
Your choice here affects user experience and input flexibility.
- IPS panels offer wide viewing angles and vibrant colors.
- Brightness (measured in cd/m²) affects visibility in different lighting.
For outdoor or brightly lit environments, high brightness and anti-glare coatings are essential.
- Ensure the display supports your microcontroller or single-board computer (e.g., Arduino, Raspberry Pi).
- Check for HDMI, USB, or GPIO connectivity.
Compatibility reduces integration time and troubleshooting.
- Tempered glass, optical bonding, and robust casing improve longevity.
Durability is important for projects exposed to frequent use or harsh environments.
- Built-in speakers, mounting options, and audio jacks can enhance your project.
These extras can simplify your design and add functionality.
Here are some of the best options for various needs:
Model/Size | Touch Type | Resolution | Best For | Key Features |
---|---|---|---|---|

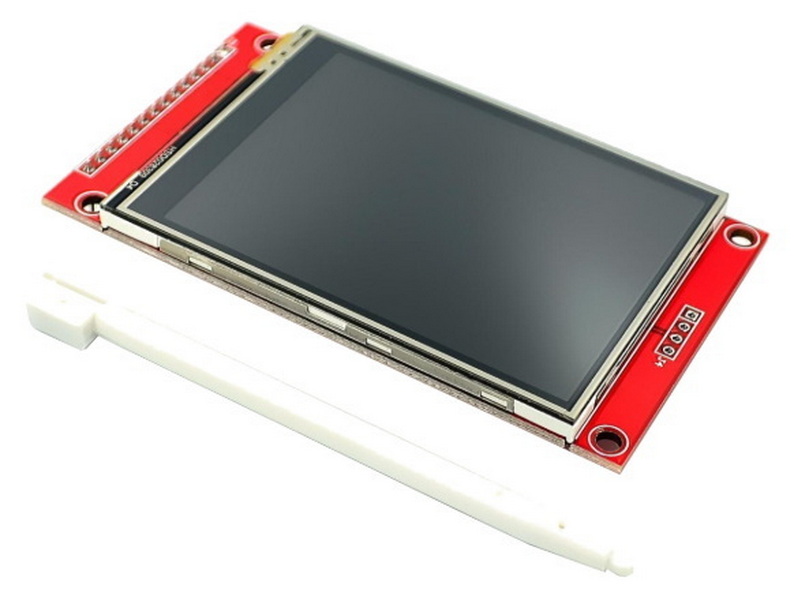

2.4" TFT LCD | Resistive | 320x240 | Compact Arduino projects | Affordable, easy integration |
3.5" TFT LCD | Resistive | 480x320 | Entry-level interfaces | SD card support, color display |
5" TFT LCD | Capacitive | 800x480 | HMI panels, photo albums | Multi-touch, vivid colors |
7" Raspberry Pi Official | Capacitive | 800x480 | Raspberry Pi projects | Plug-and-play, robust support |
10" IPS Touch Display | Capacitive | 1280x800+ | Smart mirrors, control panels | Wide viewing angle, HD |
22" IR Touch Monitor | Infrared | 1920x1080 | Wall displays, family organizers | Large, multi-user support |
- Match the display's size and resolution to your project's needs.
- Ensure compatibility with your controller (Arduino, Raspberry Pi, etc.).
- Use HDMI or GPIO for video.
- USB or dedicated pins for touch input.
- Provide sufficient power (some displays can power both the screen and the controller).
- Many displays are plug-and-play, especially with Raspberry Pi OS.
- Some require additional libraries (e.g., UTFT for Arduino).
- Use calibration tools if touch accuracy needs adjustment.
- Test multi-touch gestures and responsiveness.
- Use mounting holes, brackets, or custom enclosures for a professional finish.
- Consider environmental factors (dust, moisture, sunlight).
A simple yet fun project using a 2.4-inch TFT LCD touch screen display and Arduino Uno. Draw, erase, and change colors directly on the screen.
Build a digital photo album or HMI system using a 5-inch TFT LCD touch screen display and Arduino Mega. Display images, control LEDs, and create interactive menus.
Combine a 10-inch capacitive touch screen LCD display with a Raspberry Pi to create a smart mirror that shows weather, calendar, and news. Interact directly with widgets for a futuristic home accessory.
Use a touch screen LCD display as a central control panel for your smart home. Monitor and control lighting, temperature, and security systems with an intuitive interface.
Install a large 22-inch IR touch screen LCD display in your kitchen to display calendars, reminders, and weather for the whole family.
- Touch Not Registering? Ensure proper driver installation and check connections.
- Display Flickering? Verify power supply and cable quality.
- Calibration Issues? Use built-in calibration tools or software utilities.
- Ghost Touches? Clean the screen and check for electrical interference.
- Integration Problems? Consult the display's datasheet and community forums.
For experienced makers looking to push their projects further, here are some advanced factors to consider:
Capacitive displays support multi-touch, enabling gestures like pinch-to-zoom and swipe. Designing custom user interfaces that leverage these gestures can significantly improve user experience.
Optical bonding reduces internal reflections between the LCD and touch panel, improving contrast and durability. Anti-reflective coatings enhance visibility in bright environments, ideal for outdoor or well-lit rooms.
High-resolution touch screen LCD displays can consume significant power. Incorporating power-saving modes or using efficient backlighting can extend battery life in portable projects.
Combining touch screen displays with voice recognition, motion sensors, or cameras can create more immersive and accessible projects. For example, a smart home panel could respond to both touch and voice commands.
Many popular touch screen LCD displays have thriving communities offering libraries, tutorials, and troubleshooting help. Leveraging open-source resources can accelerate development and reduce frustration.
The touch screen LCD display has become an essential tool for modern DIY projects, offering interactive, visually stunning interfaces that can transform any idea into reality. From compact Arduino gadgets to expansive smart home systems, the right display balances size, resolution, touch responsiveness, and compatibility. For most makers, a 10-inch capacitive touch screen LCD display strikes the perfect balance, but your ideal choice depends on your project's unique requirements. With careful selection and thoughtful integration, your next DIY project can be more engaging, accessible, and professional than ever before.
For most DIY projects, a 10-inch touch screen LCD display offers an ideal balance between usability and portability, providing enough space for comfortable interaction and clear visuals.
Most modern touch screen LCD displays are plug-and-play, especially with Raspberry Pi OS and Arduino libraries. However, some models may require calibration or additional drivers for optimal performance.
Look for displays with high brightness (300+ cd/m²) and wide viewing angles (IPS panels) for outdoor use. However, direct sunlight may still affect visibility, so consider shading or anti-glare coatings.
Projects such as smart mirrors, home automation panels, digital photo frames, multimedia centers, and educational tools greatly benefit from the interactive capabilities of a touch screen LCD display.
Many displays come with dedicated power adapters. Some can power both the display and the controller (like Raspberry Pi) through a single adapter, simplifying setup and reducing cable clutter.
