Thin-Film Transistor (TFT) Active Matrix Liquid Crystal Display (LCD) technology has become a cornerstone of modern visual display systems. From smartphones to high-definition televisions, this technology delivers vibrant colors, sharp images, and fast response times that define today's digital experience. This article provides an in-depth understanding of what TFT Active Matrix LCD displays are, how they work, their components, advantages, applications, and answers to common questions.
A TFT Active Matrix LCD is a type of liquid crystal display that uses thin-film transistor technology to control each individual pixel on the screen actively. Unlike passive matrix LCDs, which control pixels through a grid of electrodes, active matrix displays have a dedicated transistor and capacitor for every pixel, allowing for precise control of the pixel state. This results in faster refresh rates, higher resolution, better color accuracy, and wider viewing angles.
The term “TFT” stands for Thin-Film Transistor, which is a tiny transistor embedded within each pixel of the display. The “Active Matrix” refers to the active control of pixels by these transistors, as opposed to passive control in older LCD technologies.
This active control means that each pixel can be addressed and maintained independently, enabling the display to show complex images with high clarity and minimal ghosting or blurring. This technology is fundamental to modern displays that require fast refresh rates and high image quality.
- Backlight Unit (BLU): Since liquid crystals cannot emit light, a backlight provides the illumination needed for the display. Typically, LED strips are used as the light source to ensure brightness and uniformity. The quality and brightness of the backlight significantly affect the display's overall visibility and color vibrancy.
- Polarizers: There are usually two polarizing filters; the first converts natural light into polarized light, and the second controls the amount of light passing through after modulation by the liquid crystals. These polarizers are essential for controlling light passage and contrast.
- Liquid Crystal Layer: This core layer contains rod-shaped liquid crystal molecules that twist and align under an electric field, modulating light polarization and intensity. The orientation of these molecules changes the light's polarization, which determines how much light passes through the second polarizer.
- Thin-Film Transistor Layer: Each pixel has its own transistor and capacitor that control the voltage applied to the liquid crystal, maintaining the pixel's state until the next refresh cycle. This layer is what distinguishes active matrix displays from passive ones, enabling precise pixel control.
- Color Filter: Positioned above the liquid crystal layer, the RGB (Red, Green, Blue) color filters determine the color output of each pixel by filtering the backlight accordingly. Each pixel is subdivided into three sub-pixels with these filters, combining to produce the full spectrum of colors.
- Glass Substrate: The entire assembly is sandwiched between glass layers for structural integrity and protection. These glass layers also serve as the base for depositing the thin-film transistors and other components.
- The graphics processor sends signals to the display's driver circuits.
- Each transistor corresponding to a pixel is activated to apply voltage.
- The voltage changes the orientation of liquid crystal molecules in that pixel.
- The altered liquid crystals modulate the polarized light passing through.
- The color filter refines the light into red, green, or blue sub-pixels.
- The backlight illuminates the modulated pixels, forming a full-color image visible to the user.
This process happens millions of times per second across the entire screen, creating smooth, vibrant images. The active matrix design ensures that each pixel's state is held stable between refresh cycles, preventing flickering and improving image stability.

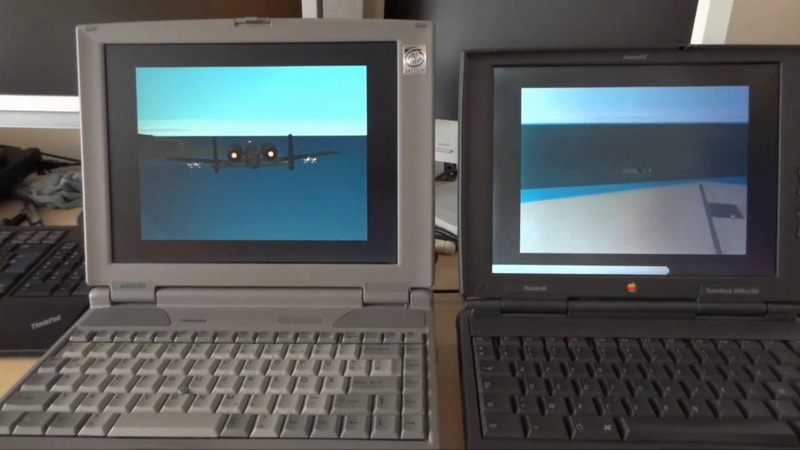

- High Resolution: Each pixel is individually controlled, allowing for extremely detailed images, supporting Full HD, 4K, and even 8K resolutions. This makes TFT LCDs suitable for applications requiring fine detail and clarity.
- Fast Response Time: The transistor control enables quick pixel state changes, reducing motion blur in videos and games. This responsiveness is critical for multimedia and gaming devices.
- Wide Viewing Angles: Active matrix technology maintains color and brightness consistency across wide angles, making the display viewable from different perspectives without significant color distortion or brightness loss.
- Vibrant Color Reproduction: The RGB sub-pixel arrangement combined with precise voltage control results in accurate, bright, and consistent colors. This ensures that images and videos appear lifelike and engaging.
- Energy Efficiency: Although TFT displays consume more power than passive matrix LCDs, the use of capacitors to hold pixel states reduces the need for constant refreshing, optimizing power usage. Advances in LED backlighting also contribute to lower power consumption.
- Touchscreen Integration: Many TFT LCDs incorporate resistive or capacitive touch panels, enabling interactive applications such as smartphones, tablets, and industrial control panels. This integration allows for versatile user interfaces.
Additionally, TFT LCDs are relatively thin and lightweight, making them ideal for portable devices. Their manufacturing processes have become highly standardized, resulting in cost-effective production and widespread availability.

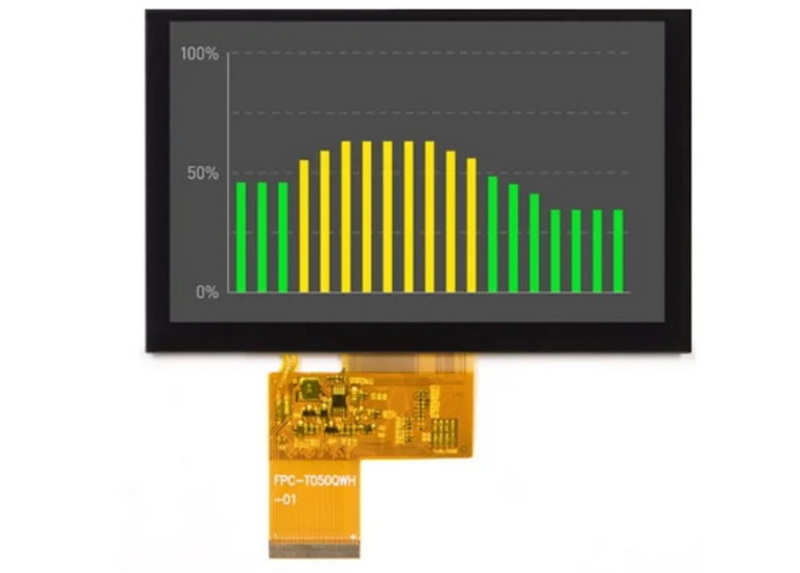

A typical TFT LCD module consists of several key components working together:
- Backlight Unit (BLU): Provides the necessary illumination for the display. The backlight's brightness and color temperature affect the overall image quality.
- Polarizers: Control the polarization of light entering and exiting the liquid crystal layer, essential for image contrast.

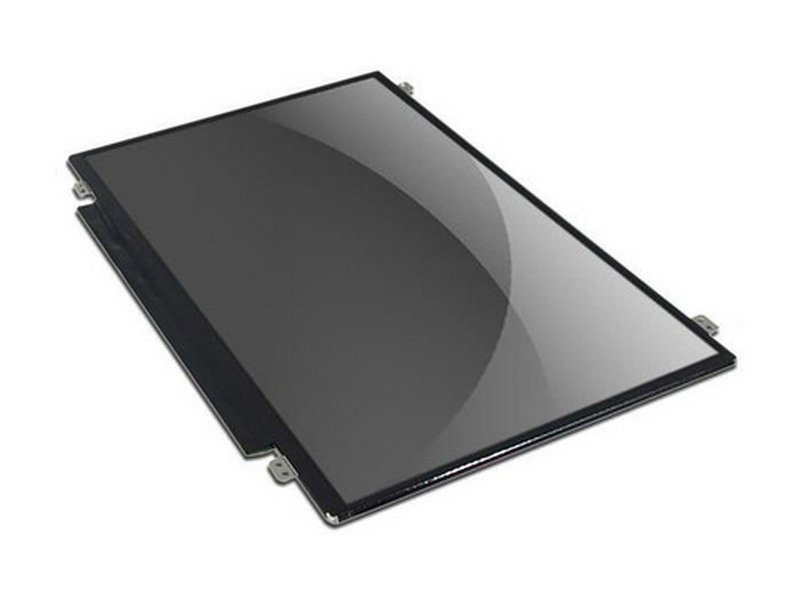

- LCD Panel: Contains the liquid crystals and thin-film transistors arranged in a matrix. This is the core display element.
- Driver ICs: Integrated circuits that manage pixel addressing and signal processing, converting digital image data into electrical signals for the TFTs.
- Flexible Printed Circuit (FPC): Connects the display module to the main device's control electronics, transmitting data and power efficiently.
Each component's quality and precision impact the display's performance, durability, and visual output.
TFT Active Matrix LCDs are ubiquitous across many industries due to their superior image quality and versatility:
- Consumer Electronics: Smartphones, tablets, laptops, digital cameras, and smartwatches rely on TFT LCDs for their high resolution and color fidelity. The technology supports the demanding visual needs of modern apps, games, and media consumption.
- Medical Devices: Diagnostic equipment such as ultrasound machines and patient monitors use TFT LCDs for precise imaging that assists in accurate diagnoses.
- Industrial and Automotive: Control panels, dashboards, and instrumentation in vehicles and industrial machinery utilize TFT LCDs for clear, reliable displays that can withstand harsh environments.
- Television and Monitors: High-definition TVs and computer monitors use TFT technology to deliver vibrant, smooth visuals essential for entertainment, professional work, and gaming.
- Outdoor Signage: Some TFT displays are enhanced with brighter backlighting or transflective layers to improve readability in sunlight, making them suitable for outdoor advertising and information kiosks.
The adaptability of TFT LCDs to various sizes, resolutions, and environmental conditions makes them a preferred choice in many fields.
For developers and hobbyists, interfacing TFT LCDs with microcontrollers such as Arduino or Teensy is common. Programming involves sending commands and data to the display driver ICs to control pixel states and render images.
Key considerations include:
- Wiring: Proper connection of power, ground, and data lines is essential.
- Voltage Levels: TFT LCDs typically operate at 3.3V or 5V logic levels; using level shifters may be necessary.
- Initialization Sequences: Displays require specific command sequences to initialize correctly.
- Libraries: Software libraries simplify communication by abstracting low-level commands.
Understanding these aspects allows for custom display projects, from simple text to complex graphics and animations.
Despite their reliability, TFT LCDs can encounter issues:
- Display Not Turning On: Often due to power supply problems or incorrect wiring.
- White or Blank Screen: May indicate initialization failure or damaged components.
- Dead Pixels: Pixels that remain permanently off or on; usually manufacturing defects.
- Uneven Brightness: Can result from backlight failure or power inconsistencies.
- Touchscreen Malfunction: If integrated, touch panel issues may arise from calibration errors or hardware faults.
Proper diagnosis and repair require understanding of the display's electrical and mechanical design.
TFT Active Matrix LCD displays represent a significant advancement in display technology, combining thin-film transistor technology with liquid crystal modulation to deliver high-resolution, vibrant, and responsive screens. Their widespread adoption across consumer electronics, medical imaging, industrial applications, and more underscores their versatility and performance. Understanding the structure, working principles, and programming of TFT LCDs empowers developers and users alike to leverage this technology fully. As display demands grow, TFT Active Matrix LCDs continue to evolve, promising even richer visual experiences.
TFT displays use a transistor for each pixel, allowing individual pixel control, faster refresh rates, and better image quality. Passive matrix LCDs control pixels through a grid and are slower with lower resolution and contrast.
Yes, due to their fast response times and active pixel control, TFT displays can show smooth video playback, depending on the interface speed.
No, TFT displays may come with resistive or capacitive touch panels, or none at all. Touchscreens add interactivity but increase cost.
Some TFT displays are designed with brighter backlights or transflective technology to improve sunlight readability, but most standard TFTs are challenging to read in direct sunlight.
TFT displays can produce from 64,000 to 64 million colors, depending on the color depth and interface.
