What Is Reverse Lcd Display?

Content Menu

Introduction

Understanding LCD Technology

>> How LCDs Work

>> Types of LCD Displays

What Makes Reverse LCD Displays Unique?

Advantages of Reverse LCD Displays

Disadvantages of Reverse LCD Displays

Applications of Reverse LCD Displays

Comparing Reverse and Standard LCD Displays

Future Trends in Display Technology

Conclusion

FAQ

>> 1. What is the main difference between reverse and standard LCD displays?

>> 2. Are reverse LCD displays more power-efficient?

>> 3. Where are reverse LCD displays commonly used?

>> 4. Do reverse LCD displays have better visibility than standard ones?

>> 5. Can I switch my existing display from standard to reverse?

Introduction

A Reverse LCD Display, often referred to as a negative LCD display, is a type of liquid crystal display that inverts the traditional color scheme of standard LCDs. Instead of dark characters on a light background, reverse LCDs feature light characters on a dark background. This design choice has become popular in various applications, particularly in digital watches and certain electronic devices. In this article, we will delve into the mechanics of reverse LCD displays, their advantages and disadvantages, applications, and comparisons with standard displays.

what is reverse lcd display_2

Understanding LCD Technology

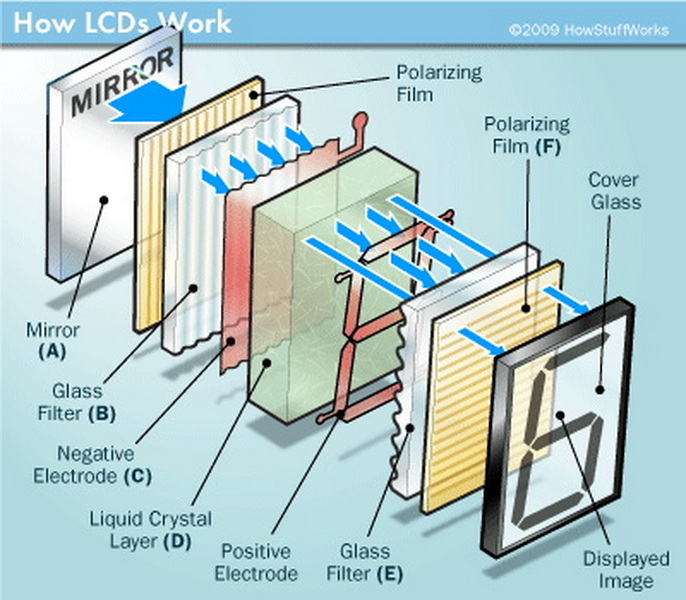

How LCDs Work

Liquid Crystal Displays (LCDs) operate based on the manipulation of light through liquid crystals. When an electric current passes through the liquid crystal material, it alters the orientation of the crystals, which in turn affects how light passes through them. This technology allows for the creation of images and text by blocking or allowing light to pass through specific areas of the display.

Types of LCD Displays

- Transmissive LCDs: These displays use a backlight to illuminate the screen. They are common in smartphones and tablets. The backlight is typically made up of LEDs that provide brightness and color accuracy.

- Reflective LCDs: These rely on ambient light to be visible and are often used in devices like calculators. Reflective displays are energy-efficient since they do not require a backlight and can be easily readable in bright environments.

- Transflective LCDs: Combining both transmissive and reflective properties, these displays can function well in various lighting conditions. They are particularly useful for outdoor devices where both direct sunlight and low-light conditions need to be addressed.

What Makes Reverse LCD Displays Unique?

Reverse LCD displays specifically utilize a negative image format. The technology behind reverse displays involves:

- Polarization: Light is polarized before entering the liquid crystal layer, which can either block or allow light to pass based on the orientation of the liquid crystals. The use of polarizers is crucial for enhancing contrast and visibility.

- Voltage Application: In reverse displays, voltage is applied differently than in standard displays. This results in lighter characters appearing against a darker background. The voltage levels can be finely tuned to achieve specific brightness levels for optimal visibility.

Advantages of Reverse LCD Displays

1. Aesthetic Appeal: Many users find reverse displays visually appealing, especially in modern design contexts. The sleek look can enhance user experience and attract attention.

2. Power Efficiency: In certain applications, reverse displays can consume less power, particularly when displaying predominantly dark images. This efficiency can lead to longer battery life in portable devices.

3. Readability in Low Light: For some users, reverse displays can be easier to read in low-light conditions since the characters stand out against a dark background. This feature is particularly beneficial for devices used at night or in dimly lit environments.

4. Reduced Eye Strain: Some studies suggest that darker backgrounds may reduce eye strain during prolonged use, making reverse LCDs a comfortable choice for users who spend long hours looking at screens.

5. Design Versatility: Reverse LCDs offer designers more flexibility in creating visually striking interfaces that stand out from conventional designs.

what is reverse lcd display_1

Disadvantages of Reverse LCD Displays

1. Legibility Issues: Reverse displays can be harder to read under bright lighting conditions or at certain angles compared to standard displays. Glare from sunlight or artificial lights can obscure visibility.

2. Limited Color Range: The color performance may not be as vibrant as that of traditional positive displays. This limitation may affect applications where color accuracy is crucial.

3. Viewing Angles: Users may experience reduced visibility from acute angles due to the nature of how light interacts with the liquid crystals. This issue can hinder collaborative work where multiple users need to view the display simultaneously.

4. Higher Production Costs: The manufacturing process for reverse LCDs may involve more complex technology, potentially leading to higher costs compared to standard displays.

5. Potential for Burn-In: Similar to other display technologies, reverse LCDs may suffer from burn-in effects if static images are displayed for extended periods, leading to ghosting issues over time.

Applications of Reverse LCD Displays

Reverse LCD technology is widely used in:

- Digital Watches: Many models feature reverse displays for aesthetic reasons and ease of use, allowing users to quickly glance at time without straining their eyes.

- Consumer Electronics: Devices like calculators and handheld gaming consoles often utilize this technology due to its compact size and energy efficiency.

- Automotive Displays: Some vehicles use reverse displays for dashboard instrumentation, where clarity and quick readability are paramount for drivers.

- Medical Devices: In certain medical equipment like blood glucose monitors, reverse LCDs provide clear readings under various lighting conditions, ensuring accurate monitoring for patients.

- Industrial Equipment: Reverse displays are also found in industrial control panels where operators need quick access to information without distraction from surrounding lights.

Comparing Reverse and Standard LCD Displays

Feature Reverse LCD Display Standard LCD Display
Background Color Dark Light
Character Color Light Dark
Visibility in Bright Light Poor Good
Aesthetic Appeal High Moderate
Power Consumption Variable Variable
Cost Higher Lower
Burn-In Risk Moderate Moderate

Future Trends in Display Technology

As technology continues to evolve, so too does display technology. The future may hold exciting advancements for reverse LCD displays:

- Integration with OLED Technology: OLED (Organic Light Emitting Diode) technology offers superior color reproduction and contrast ratios compared to traditional LCDs. Integrating these technologies could lead to hybrid displays that combine the benefits of both systems while minimizing their drawbacks.

- Flexible Displays: The development of flexible display technologies could allow for new form factors that incorporate reverse display features into bendable or foldable devices.

- Enhanced Touch Capabilities: As touch technology advances, we may see more interactive applications utilizing reverse LCDs that respond dynamically based on user input.

- Smart Features: With the rise of smart devices, integrating AI capabilities into display technologies could lead to adaptive screens that change based on environmental conditions or user preferences.

Conclusion

Reverse LCD displays offer a unique alternative to traditional display technologies, providing both aesthetic appeal and practical benefits in specific contexts. However, they also come with limitations that may affect usability under certain conditions. As technology continues to evolve, so too will the applications and designs surrounding reverse LCD technology. Understanding these nuances allows consumers and manufacturers alike to make informed decisions about which display technology best suits their needs.

what is reverse lcd display_3

FAQ

1. What is the main difference between reverse and standard LCD displays?

The primary difference lies in their color schemes; reverse LCDs feature light characters on a dark background, while standard LCDs have dark characters on a light background.

2. Are reverse LCD displays more power-efficient?

In some cases, yes; they can consume less power when displaying darker images compared to their standard counterparts.

3. Where are reverse LCD displays commonly used?

They are often found in digital watches, calculators, automotive dashboards, medical devices, and various consumer electronics where aesthetic appeal is prioritized.

4. Do reverse LCD displays have better visibility than standard ones?

Not necessarily; they can be harder to read under bright lighting conditions and at certain angles compared to standard displays due to glare issues.

5. Can I switch my existing display from standard to reverse?

It depends on the specific device; some devices allow for software adjustments while others may require hardware modifications or replacement screens designed specifically as reverse displays.
