In today's digital age, display technology plays a crucial role in how we interact with devices, from smartphones and laptops to televisions and professional monitors. Two leading technologies dominate the market: OLED (Organic Light Emitting Diode) and LCD (Liquid Crystal Display). Each has distinct characteristics that influence image quality, device design, power consumption, and cost. This comprehensive guide explores what OLED and LCD displays are, how they work, their advantages and disadvantages, applications, and how to choose the right technology for your needs.
OLED stands for Organic Light Emitting Diode. It represents a cutting-edge display technology where each pixel is made from organic compounds that emit light when an electric current passes through them. Unlike traditional LCDs, OLEDs do not need a separate backlight because each pixel produces its own light. This self-emissive nature allows OLED displays to deliver exceptional image quality with deep blacks, vibrant colors, and high contrast.

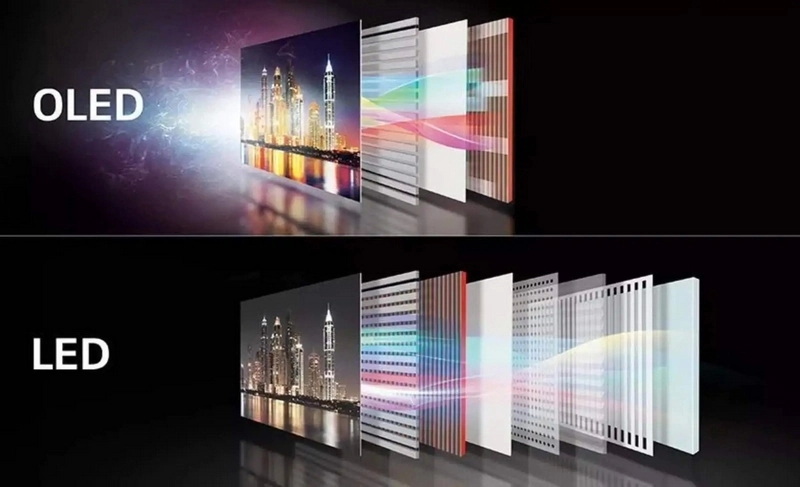

An OLED display consists of several ultra-thin layers of organic materials placed between two electrodes. When electricity flows through these organic layers, they emit light directly. Each pixel can be individually controlled to emit light or be completely turned off. This capability enables true black levels and infinite contrast ratios. Additionally, because OLED panels lack a backlight, they are thinner and can be made flexible, enabling innovative designs like curved, foldable, or even rollable screens.
LCD stands for Liquid Crystal Display. This technology uses liquid crystals that do not emit light themselves. Instead, LCDs rely on a backlight, commonly made of LEDs, which shines light through the liquid crystal layer to create images. The liquid crystals act as light modulators, controlling how much light passes through color filters to form the final picture.
An LCD panel is composed of liquid crystals sandwiched between two polarizing filters. When an electric current is applied, the liquid crystals align to either block or allow light from the backlight to pass through each pixel. Because the backlight is always on, LCDs cannot produce true blacks; even pixels meant to be black still allow some light leakage, causing blacks to appear as dark gray.
| Feature | OLED Display | LCD Display |
|---|---|---|
| Light Emission | Self-emissive pixels (each pixel emits light) | Requires backlight to illuminate pixels |
| Contrast Ratio | Infinite contrast with true blacks | Lower contrast due to backlight bleed |
| Black Levels | Perfect deep blacks by turning off pixels | Blacks appear grayish due to backlight |
| Color Accuracy | Superior, vibrant, and accurate colors | Good but generally less vibrant than OLED |
| Viewing Angles | Nearly perfect wide viewing angles | Narrower viewing angles with color shift |
| Brightness | Lower peak brightness, suitable for indoor use | Higher peak brightness, better for bright environments |
| Response Time | Faster response, ideal for gaming and video | Slower response, possible motion blur |
| Lifespan | Shorter, prone to burn-in and pixel degradation | Longer lifespan, less burn-in risk |
| Power Consumption | More efficient with dark images, less with bright | More consistent power use, efficient with bright images |
| Thickness | Ultra-thin and flexible | Thicker due to backlight |
| Cost | More expensive due to complex manufacturing | More affordable and widely available |
| Durability | Sensitive to moisture and static | More rugged and durable |
OLED displays are renowned for their stunning picture quality. Because each pixel emits its own light and can be completely turned off, OLED screens produce true blacks and an infinite contrast ratio. This results in images with exceptional depth and realism, making OLED ideal for watching movies, gaming, and viewing high dynamic range (HDR) content.
OLED screens maintain consistent color accuracy and brightness even when viewed from extreme angles, typically up to 178 degrees. This wide viewing angle means that image quality does not degrade when you look at the screen from the side, unlike many LCDs which suffer from color shifting and reduced contrast.
The organic pixels in OLED displays switch on and off much faster than the liquid crystals in LCDs. This rapid response reduces motion blur and ghosting, providing smoother visuals for fast-paced gaming and high-definition video playback.
Without the need for a backlight, OLED panels are significantly thinner and lighter than LCDs. This allows manufacturers to create innovative device designs such as curved, foldable, or rollable screens, expanding the possibilities for smartphones, TVs, and wearable devices.
Because OLED pixels can be individually turned off, they consume less power when displaying dark or black images. This can lead to improved battery life in portable devices like smartphones and smartwatches, especially when using dark mode interfaces or watching content with many dark scenes.
One of the main drawbacks of OLED technology is the risk of screen burn-in. This occurs when static images, such as logos or UI elements, remain on the screen for extended periods, causing uneven pixel wear and permanent ghost images. Although manufacturers have introduced technologies to mitigate burn-in, it remains a concern for heavy users.
The organic materials used in OLED displays degrade over time, leading to reduced brightness and color accuracy after prolonged use. Typically, OLED panels have an estimated lifespan of around 10 years under normal usage, which is shorter compared to LCDs.
OLED displays generally cannot reach the same peak brightness levels as LCDs. This limitation can affect visibility in very bright environments or direct sunlight, where LCDs often perform better.
Manufacturing OLED panels is more complex and costly than producing LCDs. As a result, OLED devices tend to be more expensive, which can be a barrier for budget-conscious consumers.
LCDs can achieve higher peak brightness because of their powerful backlight. This makes them easier to view in bright rooms or outdoor environments, where sunlight can wash out lower-brightness screens.
LCD panels typically have a longer operational lifespan, often exceeding 60,000 hours. They are also less susceptible to burn-in and more resistant to moisture and physical damage, making them suitable for rugged or industrial applications.
LCDs consume consistent power since their backlight is always on. They tend to be more energy-efficient when displaying bright or white images, which is common in office work and web browsing.
LCD technology is mature and mass-produced, resulting in lower manufacturing costs. This makes LCD devices more affordable and widely accessible.
Unlike OLEDs, LCDs do not suffer from burn-in, making them ideal for applications with static images, such as computer monitors, digital signage, and medical displays.
Because the backlight is always on, LCDs cannot display true blacks. Even when pixels are set to black, some light leaks through, causing blacks to appear as dark gray. This reduces overall contrast and image depth.
LCDs tend to lose color accuracy and contrast when viewed from sharp angles, leading to color shifts and washed-out images. This can be a disadvantage in group viewing situations.
The presence of a backlight layer makes LCD panels thicker and less adaptable to flexible or curved designs, limiting innovation in device form factors.
LCD pixels switch on and off more slowly than OLED pixels, which can cause motion blur in fast-moving images, affecting gaming and video quality.
- High-end smartphones and tablets, where image quality and design innovation are priorities.
- Premium televisions and monitors for immersive viewing experiences.
- Wearable devices like smartwatches that benefit from thin, flexible displays and energy efficiency.
- Innovative foldable and rollable displays that require flexible screen technology.
- Gaming monitors that demand fast response times and excellent color accuracy.
- Budget and mid-range TVs and monitors where cost is a key factor.
- Laptops and desktop computer screens that require durability and long lifespan.
- Industrial, medical, and military displays needing ruggedness and resistance to environmental factors.
- Devices used primarily in bright environments or outdoors where high brightness is essential.
- Applications where static images are common and burn-in must be avoided.
The display industry continues to evolve rapidly. OLED technology is advancing with improvements in lifespan, brightness, and burn-in resistance. New materials and manufacturing techniques aim to reduce costs and expand OLED adoption. Meanwhile, LCD technology is also progressing with innovations like mini-LED and micro-LED backlighting, which enhance contrast and brightness while maintaining the advantages of LCD durability and cost.
Hybrid technologies combining OLED and LCD benefits are also emerging, promising displays that offer high brightness, excellent contrast, and long lifespans. As consumer demands grow for better image quality, thinner devices, and energy efficiency, both OLED and LCD will continue to play vital roles in the display market.
OLED and LCD are two fundamentally different display technologies, each with distinct advantages and limitations. OLED excels in picture quality, contrast, color vibrancy, viewing angles, and design flexibility, making it the premium choice for immersive and innovative displays. However, OLED comes with challenges such as shorter lifespan, burn-in risk, lower peak brightness, and higher cost.
LCD remains a dependable and cost-effective technology, offering higher brightness, longer durability, and resistance to burn-in. It is well-suited for bright environments, budget devices, and applications requiring ruggedness.
Choosing between OLED and LCD depends on your specific needs and priorities. For the best image quality and cutting-edge design, OLED is unmatched. For affordability, longevity, and bright-environment usability, LCD remains a strong contender.
OLED displays have self-emissive pixels that produce their own light, enabling true blacks and infinite contrast. LCD displays require a backlight shining through liquid crystals, which prevents them from producing true blacks due to light leakage.
OLED displays offer superior contrast and true black levels because individual pixels can be turned off completely, unlike LCDs which always have some backlight bleed.
Yes, OLED displays can suffer from burn-in if static images are displayed for long periods. LCDs generally do not experience burn-in issues.
Energy efficiency depends on the content displayed. OLEDs consume less power when showing dark images, while LCDs are more efficient with bright images due to their constant backlight.
LCD displays typically perform better outdoors because they can achieve higher brightness levels, improving visibility in sunlight compared to OLEDs.
