In the world of modern display technology, acronyms like LTPS and IPS often come up, especially when discussing LCD screens used in smartphones, tablets, laptops, and other electronic devices. Understanding what LTPS IPS LCD means and how it works can help consumers, engineers, and tech enthusiasts appreciate the advances in display quality, performance, and efficiency.
This article will explore the meaning of LTPS and IPS technologies, how they combine in LCD displays, their advantages and disadvantages, and their applications. We will also compare LTPS IPS LCD with other display types and answer common questions related to this technology.

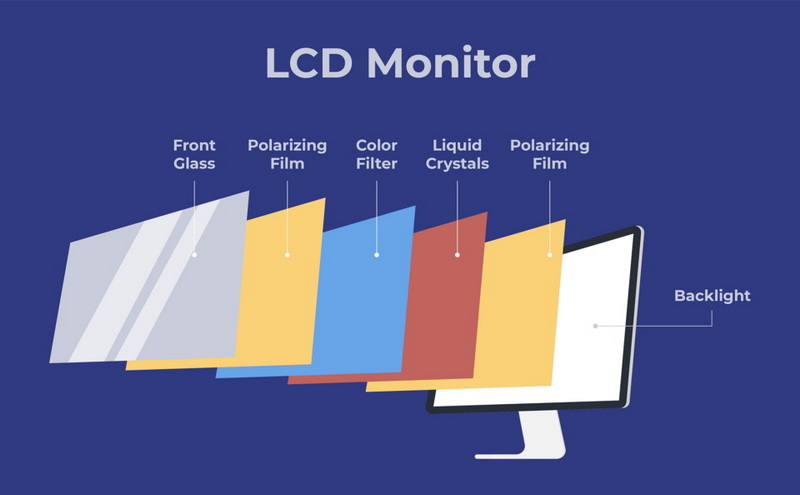

LCD stands for Liquid Crystal Display, a technology that uses liquid crystals sandwiched between glass layers to control light and create images. LCDs require a backlight since liquid crystals do not emit light themselves. The quality of an LCD depends heavily on the technology used to control the pixels and the arrangement of the liquid crystals.
IPS stands for In-Plane Switching. It is a type of LCD panel technology that improves on earlier LCD designs by changing how the liquid crystal molecules are aligned and switched.
- In IPS panels, liquid crystals are aligned parallel to the glass substrates and rotate in-plane when voltage is applied.
- This arrangement provides wider viewing angles and better color reproduction compared to traditional LCDs like TN (Twisted Nematic).
- IPS displays maintain color accuracy and brightness even when viewed from sharp angles, making them popular in high-end monitors, smartphones, and TVs.
LTPS stands for Low-Temperature Polycrystalline Silicon. It refers to a type of thin-film transistor (TFT) backplane technology used in LCD and OLED displays.
- LTPS involves depositing silicon on a glass substrate at relatively low temperatures (around 300°C to 650°C) and then using laser annealing to crystallize it into polycrystalline silicon.
- This process creates transistors with much higher electron mobility than traditional amorphous silicon (a-Si) backplanes.
- Higher electron mobility means pixels can switch on and off faster, allowing for higher resolution, better energy efficiency, and faster response times.
- LTPS also allows for the integration of driver circuits directly onto the glass substrate, reducing the number of external components and enabling thinner, lighter displays.
An LTPS IPS LCD display combines the advantages of both technologies:
- The IPS panel provides wide viewing angles and excellent color consistency.
- The LTPS backplane improves the electrical performance of the display, enabling higher pixel densities, faster refresh rates, and lower power consumption.
This combination is widely used in modern smartphones and high-end devices to deliver sharp, vibrant, and responsive screens.
IPS technology ensures that colors remain consistent and vibrant even at wide viewing angles. LTPS enhances this by supporting higher pixel densities, resulting in sharp and detailed images.
Thanks to LTPS's high electron mobility, displays can pack more pixels into the same area without sacrificing performance. This enables high-resolution screens with pixel densities often exceeding 300 PPI, ideal for smartphones and tablets.
LTPS allows pixels to switch states quickly, reducing motion blur and improving the smoothness of video playback and gaming experiences.
The smaller transistors and improved control in LTPS reduce power consumption, which helps extend battery life in portable devices.
Integrating driver circuits on the glass substrate reduces the number of components and connections, making the display module thinner, lighter, and more reliable.
LTPS technology is more complex and expensive to produce compared to traditional amorphous silicon LCDs, which can increase the cost of devices.
LTPS displays may deteriorate faster than standard IPS LCDs over time, potentially affecting longevity.
While excellent for small to medium-sized displays, LTPS is less common in very large panels due to manufacturing challenges.
Feature | LTPS IPS LCD | Standard IPS LCD | AMOLED |
Electron Mobility | Very High (100x a-Si) | Moderate (a-Si based) | Not applicable (OLED based) |
Viewing Angles | Wide (due to IPS) | Wide (IPS) | Wide |
Color Accuracy | Excellent | Excellent | Very High |
Brightness | High | Moderate | Very High |
Power Consumption | Lower (due to LTPS) | Higher (a-Si backplane) | Variable (depends on usage) |
Response Time | Fast | Moderate | Very Fast |
Cost | Higher | Lower | Higher |
Lifespan | Moderate (may deteriorate faster) | Longer than LTPS | Variable (may degrade over time) |
- Smartphones: Most high-end smartphones use LTPS IPS LCDs for their sharpness, color accuracy, and energy efficiency.
- Tablets and Laptops: Devices requiring high-resolution displays with wide viewing angles often adopt LTPS IPS technology.
- Wearable Devices: The thin and power-efficient nature of LTPS IPS displays makes them suitable for smartwatches and fitness trackers.
- Industrial and Medical Displays: Where clarity and reliability are critical, LTPS IPS LCDs are preferred.
LTPS IPS LCD technology represents a significant advancement in display engineering by combining the superior color and viewing angle benefits of IPS panels with the high electron mobility and efficiency of LTPS backplanes. This synergy enables high-resolution, energy-efficient, and visually stunning displays that are widely used in modern smartphones, tablets, and other portable electronics.
While LTPS IPS LCDs come with higher manufacturing costs and some concerns about longevity, their benefits in image quality, response time, and power consumption make them a preferred choice for premium devices. Understanding these technologies helps consumers make informed decisions and appreciate the innovation behind the screens they use every day.
LTPS stands for Low-Temperature Polycrystalline Silicon, a backplane technology used in LCDs that allows for faster electron mobility, higher resolution, and better energy efficiency compared to traditional amorphous silicon backplanes.
IPS (In-Plane Switching) improves LCDs by aligning liquid crystals parallel to the glass substrates, resulting in wider viewing angles and better color accuracy compared to older LCD technologies.
Yes, LTPS IPS LCDs offer higher pixel density, faster response times, and better energy efficiency than standard IPS LCDs, making them superior for high-resolution and high-performance displays.
The primary drawbacks are higher manufacturing costs and potentially faster deterioration over time compared to standard IPS LCDs.
LTPS technology is mostly used in small to medium-sized screens such as smartphones and tablets. Larger screens typically use other technologies due to manufacturing complexities and costs.
