Liquid Crystal Display (LCD) panels have revolutionized the way we interact with our laptops, providing crisp, clear visuals for work and entertainment. This article delves into the intricacies of LCD technology, exploring its components, functionality, and impact on modern computing.

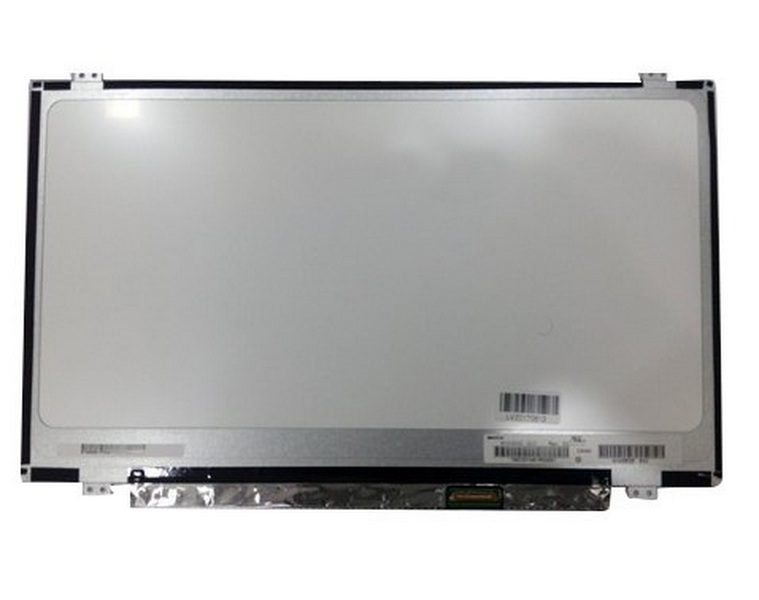

An LCD panel is a flat-panel display technology used in various electronic devices, including laptops, monitors, smartphones, and tablets. It consists of a layer of liquid crystals sandwiched between two transparent electrodes[1]. When an electric current is applied, these crystals align to control the amount of light passing through them, creating the images we see on our screens.
The functionality of LCD panels is based on the unique properties of liquid crystals. These molecules can be manipulated by electric fields to either block or allow light to pass through. Here's a simplified breakdown of the process:
1. Backlight illumination
2. Light polarization
3. Liquid crystal alignment
4. Color filtering
5. Image formation
The process begins with a backlight, typically LED-based in modern laptops. This light passes through a polarizing filter, which only allows light waves oriented in a specific direction to pass through[1].
The polarized light then encounters the liquid crystal layer. When no electric current is applied, the crystals are arranged in a twisted structure that rotates the light, allowing it to pass through a second polarizer[3].
Transparent electrodes on either side of the liquid crystal layer can apply an electric field. When activated, this field untwists the liquid crystals, preventing light from passing through the second polarizer[3].
To produce color, each pixel in an LCD panel is divided into three sub-pixels: red, green, and blue. By controlling the intensity of light passing through each sub-pixel, a wide range of colors can be created[3].
Understanding the layers that make up an LCD panel is crucial to appreciating its complexity and functionality:
1. Polarizer: Acts as a one-way filter for light[8].
2. Color Filter: Gives each pixel its specific color[8].
3. Color Filter Glass: Houses the color filters[8].
4. Liquid Crystal Layer: The active component that controls light passage[8].
5. TFT Glass: Contains thin-film transistors for pixel control[8].
6. TFT Substrate: The base layer with circuitry for pixel addressing[8].
7. Backlight Unit: Provides illumination for the entire panel[8].
Several types of LCD panels are commonly used in laptops, each with its own strengths and weaknesses:
IPS panels offer wide viewing angles and excellent color accuracy, making them ideal for graphic design and multimedia consumption[2].
TN panels are known for their fast response times, making them suitable for gaming laptops, but they suffer from limited viewing angles and color reproduction[7].
VA panels provide high contrast ratios and good color accuracy, striking a balance between IPS and TN technologies[7].
LCD technology continues to evolve, with recent advancements including:
Mini-LED technology uses smaller, more numerous LEDs in the backlight, allowing for more precise local dimming and improved contrast[2].
Some high-end laptops now incorporate quantum dot technology, which enhances color accuracy and brightness[7].
When selecting a laptop, consider the following factors related to the LCD panel:
1. Resolution: Higher resolutions offer sharper images but may impact battery life.
2. Refresh Rate: Gamers should look for higher refresh rates for smoother motion.
3. Color Accuracy: Creative professionals should prioritize panels with wide color gamuts.
4. Brightness: Higher nit ratings are beneficial for outdoor use.
5. Power Efficiency: More efficient panels can extend battery life.
The adoption of LCD technology has significantly influenced laptop design:
1. Thinner Profiles: LCD panels are much thinner than older CRT displays, allowing for sleeker laptops.
2. Improved Portability: The lightweight nature of LCDs has made laptops more portable.
3. Energy Efficiency: LCDs consume less power, contributing to longer battery life.
4. Versatility: Touchscreen LCD panels have enabled the creation of 2-in-1 laptops and tablets.
To ensure the longevity and performance of your laptop's LCD panel:
1. Clean gently with a microfiber cloth
2. Avoid applying pressure to the screen
3. Use screen protectors for added durability
4. Adjust brightness settings to conserve battery and reduce eye strain
5. Be cautious of extreme temperatures, which can affect LCD performance
While OLED and other emerging technologies are gaining ground, LCD panels continue to evolve:
1. Higher Refresh Rates: Panels with 240Hz and beyond are becoming more common.
2. Improved Energy Efficiency: Advancements in backlighting and pixel design are reducing power consumption.
3. Enhanced Color Accuracy: New color filter technologies are expanding the achievable color gamut.
4. Flexible and Foldable LCDs: Research is ongoing to create bendable LCD panels for innovative laptop designs.
LCD panels have come a long way since their inception and continue to be the dominant display technology in laptops. Their balance of performance, energy efficiency, and cost-effectiveness makes them an ideal choice for most users. As technology progresses, we can expect to see even more impressive advancements in LCD panels, further enhancing our computing experiences.
LCD panels in laptops can last anywhere from 30,000 to 60,000 hours of use, which translates to about 10 to 20 years for average users. However, factors such as usage patterns, environmental conditions, and manufacturing quality can affect longevity.
In some cases, dead pixels can be revived using software tools or gentle physical pressure. However, these methods are not guaranteed to work and may potentially cause more damage. If under warranty, it's best to contact the manufacturer for repair or replacement.
LCD technology offers better brightness, longer lifespan, and is more cost-effective. OLED provides superior contrast ratios, true blacks, and wider viewing angles but is generally more expensive and can be susceptible to burn-in over time.
LCD panels themselves are not inherently harmful to eyes. However, prolonged use of any digital display can lead to eye strain. Using proper ergonomics, taking regular breaks, and adjusting screen brightness can help reduce eye fatigue.
Yes, LCD panels can be recycled. They contain valuable materials such as glass, metals, and plastics. However, due to the presence of potentially harmful substances, it's important to recycle them through proper e-waste channels rather than disposing of them in regular trash.
