The world of display technology is filled with acronyms and technical jargon, but few terms are as foundational as "TN panel." If you've ever shopped for a monitor, laptop, or television, you've likely encountered the phrase "TN panel LCD display." But what is a TN panel, how does it work, and why does it matter for your viewing experience? This comprehensive guide will answer these questions and more, diving deep into the science, structure, advantages, disadvantages, and ideal use cases for TN panel LCD displays.
A TN (Twisted Nematic) panel is a type of LCD (Liquid Crystal Display) technology that uses a specific arrangement of liquid crystals to control the passage of light and create images on a screen. TN panels are known for their fast response times, high refresh rates, and affordability, making them popular in gaming monitors, budget laptops, and entry-level displays.
The "twisted nematic" name comes from the way liquid crystal molecules are aligned in a helical (twisted) structure when no voltage is applied. This unique alignment allows the panel to modulate light quickly and efficiently, resulting in rapid pixel transitions and low input lag.
A TN panel is composed of several key layers:
- Backlight: Provides the illumination for the display, typically using LEDs.
- First Polarizer: Polarizes light in one direction.
- Glass Substrate with Electrodes: Contains thin-film transistors (TFTs) that control the electric field.
- Twisted Nematic Liquid Crystal Layer: The heart of the panel, where the liquid crystals twist or untwist in response to voltage.
- Second Glass Substrate: Contains another set of electrodes.
- Second Polarizer: Oriented at 90 degrees to the first, it determines how much light passes through based on the liquid crystal alignment.
- Color Filter: Adds color to the image by filtering the light into red, green, and blue subpixels.
- No Voltage (Pixel On): The liquid crystals are twisted at a 90-degree angle, allowing light to pass through both polarizers. The pixel appears bright.
- Voltage Applied (Pixel Off): The crystals align with the electric field, untwisting and blocking light from passing through the second polarizer. The pixel appears dark.
By varying the voltage, the panel can control the degree of twist, modulating the brightness and creating grayscale or color images.
Below is a schematic representation of a typical TN panel structure:
- LED Backlight
- Vertical Polarizer
- Glass Substrate with TFT Electrodes
- Twisted Nematic Liquid Crystal Layer
- Glass Substrate with Electrodes
- Horizontal Polarizer
- Color Filter
- Display Surface
Imagine a cross-section of a TN panel showing the above layers and the 90-degree twist of liquid crystals. As voltage is applied and removed, the twisting and untwisting of liquid crystals change how much light passes through, altering the brightness and color of each pixel.
- Liquid Crystals: Organic molecules in a state between liquid and solid, capable of changing orientation in response to electric fields.
- Polarization: Only light aligned with the polarizer's direction can pass through; the twist of the crystals determines the final light output.
- Color Creation: Each pixel is divided into red, green, and blue subpixels. By controlling the brightness of each, millions of colors can be displayed.
The twisted nematic effect is what allows for the rapid switching of pixels, which is crucial for applications where fast motion is displayed, such as gaming or video playback. The ability to quickly change the orientation of the liquid crystals ensures that the image on the screen can keep up with rapidly changing content without noticeable lag or ghosting.
- Fast Response Times: TN panels typically offer response times as low as 1ms, minimizing motion blur and ghosting in fast-paced content. This makes them a favorite among competitive gamers who require split-second reactions.
- High Refresh Rates: Many TN monitors support refresh rates up to 240Hz, ideal for competitive gaming. This allows for smoother motion and a more responsive feel during gameplay.
- Low Input Lag: Quick pixel transitions result in minimal delay between input and on-screen action, giving users an edge in fast-paced scenarios.
- Affordability: TN panels are cheaper to manufacture, making them the most budget-friendly option for monitors and laptops. This accessibility has made them a staple in offices, schools, and homes worldwide.
- Energy Efficiency: Lower power consumption compared to some other panel types, contributing to longer battery life in portable devices.
- Lightweight Construction: Simpler design leads to lighter displays, which is beneficial for portable devices and wall-mounted monitors.
These advantages have ensured that TN panels remain relevant, even as newer technologies emerge. Their combination of speed, efficiency, and cost-effectiveness makes them hard to beat in certain use cases.
- Narrow Viewing Angles: Image quality degrades significantly when viewed from off-center, with colors shifting and contrast diminishing. This can be problematic in multi-monitor setups or when sharing your screen with others.
- Limited Color Accuracy: TN panels generally have a narrower color gamut and less precise color reproduction, making them unsuitable for color-critical work such as photo editing or graphic design.
- Lower Contrast Ratios: Blacks may appear grayish, and overall contrast is lower than VA or OLED panels. This can result in less vibrant images, especially in dark scenes.
- Inconsistent Backlighting: Some TN panels suffer from uneven brightness, especially at the edges, which can be distracting during use.
- Not Ideal for HDR: Limited contrast and color range make TN panels a poor choice for high dynamic range content, which relies on deep blacks and vivid colors.
Despite these drawbacks, TN panels continue to be a popular choice where speed and cost are the primary concerns.

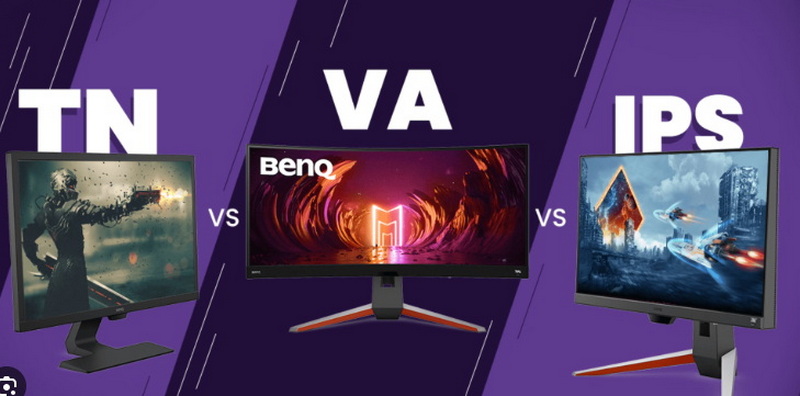

Feature | TN Panel | IPS Panel | VA Panel |
---|---|---|---|
Response Time | 1-5 ms | 4-8 ms | 2-6 ms |
Refresh Rate | Up to 240Hz | Up to 165Hz | Up to 200Hz |
Viewing Angles | 160°/140° (H/V) | 178°/178° (H/V) | 178°/178° (H/V) |
Color Accuracy | Moderate | Excellent | Good |
Contrast Ratio | 700:1 – 1000:1 | 1000:1 – 1400:1 | 3000:1 – 6000:1 |
Price | Lowest | Highest | Moderate |
Best Use | Gaming, Budget | Design, Media | Movies, General |
When compared to IPS and VA panels, TN panels clearly excel in speed and price, but fall short in color reproduction and viewing angles. IPS panels are favored for their superior color accuracy and wide viewing angles, making them the top choice for creative professionals. VA panels offer the best contrast ratios, making them ideal for watching movies and enjoying deep blacks.
- Gaming Monitors: Preferred for eSports and competitive gaming due to speed and low input lag.
- Budget Laptops and Monitors: Cost-effective solution for everyday computing needs.
- Office Displays: Suitable for document editing, browsing, and general productivity where color accuracy is less critical.
- Security and Surveillance: Fast response and low cost make TN panels ideal for monitoring systems.
- Portable Devices: Lightweight and energy-efficient, used in some tablets and handheld devices.
In these environments, the limitations of TN panels are less significant, and their strengths shine through, making them a practical and popular choice.
While TN panels have traditionally lagged behind IPS and VA in color and viewing angles, recent advancements have improved their performance:
- Enhanced Color Gamut: Some modern TN panels offer better color coverage, though still not on par with IPS.
- Improved Backlighting: More uniform brightness and reduced edge bleed.
- Higher Resolutions: Full HD, QHD, and even 4K TN monitors are now available.
- Slimmer Bezels: Newer TN panels come with slimmer bezels, making them more attractive for multi-monitor setups.
- Adaptive Sync Technologies: Many TN monitors now support technologies like FreeSync and G-Sync, which reduce screen tearing and improve gaming experiences.
These improvements have helped TN panels remain competitive, especially in the gaming market, where speed and responsiveness are paramount.
Consider a TN panel if:
- You prioritize speed and responsiveness over color fidelity.
- You're a competitive gamer seeking the lowest input lag.
- You're on a tight budget and need a functional display for everyday tasks.
- You generally view your screen head-on and don't require wide viewing angles.
Look elsewhere (IPS or VA) if:
- You need accurate colors for design, photography, or video editing.
- You often share your screen or use multi-monitor setups.
- You want the best possible contrast and deep blacks for movies or HDR content.
- Proper Positioning: Always view your TN panel straight on to minimize color and contrast shifts.
- Calibrate Your Display: Adjust brightness, contrast, and color settings for the most comfortable and accurate image possible.
- Update Drivers: Ensure your graphics drivers are up to date to take advantage of the latest performance enhancements and compatibility fixes.
- Use High-Quality Cables: For high refresh rates, use certified cables (such as DisplayPort or HDMI) to avoid signal degradation.
- Enable Gaming Features: If your monitor supports features like overdrive, adaptive sync, or custom gaming modes, enable them for the best gaming experience.
As display technology continues to evolve, TN panels are likely to remain a fixture in the market, especially for budget and performance-focused applications. Manufacturers are continually working to address their traditional weaknesses, and as a result, the gap between TN and other panel types is narrowing. However, as OLED and mini-LED technologies become more affordable, TN panels may eventually be relegated to niche markets or phased out in favor of superior alternatives.
TN panel LCD displays remain a staple in the display industry thanks to their unmatched speed, affordability, and energy efficiency. While they have notable drawbacks—especially in color accuracy and viewing angles—ongoing improvements continue to make them a viable choice for gamers, budget-conscious consumers, and everyday computing. As always, the best display technology for you depends on your specific needs and priorities. By understanding the strengths and weaknesses of TN panels, you can make an informed decision and choose the right monitor or device for your lifestyle.
TN panels are unique for their fast response times and high refresh rates, making them ideal for gaming and fast-paced applications. They are also more affordable but have narrower viewing angles and less accurate color reproduction compared to IPS or VA panels.
No, TN panels are not recommended for professional graphic design or video editing due to their limited color accuracy and narrow viewing angles. IPS or VA panels are better suited for color-critical work.
Recent advancements include improved color accuracy, higher resolutions, and better backlighting. However, the main strengths of TN panels remain their speed and affordability.
For gaming, use the highest available refresh rate and the lowest response time. For general use, adjust contrast and brightness to comfortable levels and always view the display straight on for the best image quality.
Yes, TN panels can be used for 3D displays. Their fast response times make them suitable for 3D applications, but viewing angles and color quality may affect the depth and realism of the 3D effect.
