What does an OLED screen mean? This article provides a comprehensive exploration of OLED technology, its working principles, advantages, applications, and future prospects. We will also answer frequently asked questions about OLED screens and displays. The article is structured with clear headings and includes references to authoritative sources.

Understanding OLED: What Does an OLED Screen Mean?

OLED stands for Organic Light-Emitting Diode. It is a type of display technology that uses organic compounds which emit light in response to an electric current. Unlike traditional LCD or LED screens, OLED screens do not require a backlight because each pixel emits its own light independently[1][7][9].

How Does an OLED Screen Work?

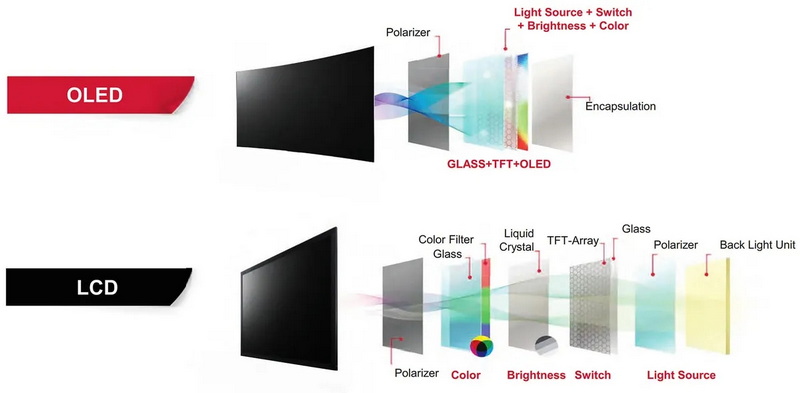

An OLED screen is made up of thin layers of organic materials sandwiched between two electrodes—an anode and a cathode—deposited on a substrate. When an electric current passes through, the organic layer emits light. This self-emissive property allows each pixel to be turned on or off individually, enabling perfect black levels and exceptional contrast[1][6][7].

- Organic Layers: These are carbon-based materials that conduct electricity and emit light.

- Electrodes: At least one electrode is transparent to allow light to pass through.

- Pixel Control: Each pixel can emit red, green, or blue light independently.

The absence of a backlight means OLED displays can be thinner, lighter, and more flexible than LCDs[1][7][12].

Advantages of OLED Screens

OLED technology offers several benefits over traditional display technologies such as LCD and LED:

1. Perfect Black Levels and Infinite Contrast

Because OLED pixels can completely turn off, they produce true blacks with no light bleed. This results in an infinite contrast ratio, making images appear more vivid and lifelike[1][7][8].

2. Wide Viewing Angles

OLED screens maintain consistent color and contrast even when viewed from extreme angles, unlike LCDs which can suffer from color shifting[5][7].

3. Faster Response Times

OLED pixels switch on and off faster than LCD pixels, reducing motion blur and making OLED ideal for gaming and fast-action video[5][6].

4. Energy Efficiency

OLED screens consume less power when displaying darker images or using dark mode, since black pixels are off and do not consume energy[5].

5. Thin, Lightweight, and Flexible Design

Without the need for backlighting, OLED panels are thinner and lighter. They can also be made flexible or even transparent, enabling innovative device designs such as foldable smartphones and curved displays[1][7][12].

Types of OLED Displays

There are several types of OLED technologies used depending on application and design:

Type	Description	Typical Use Cases
PMOLED	Passive Matrix OLED, simpler control, higher power consumption	Small displays like MP3 players
AMOLED	Active Matrix OLED, uses thin-film transistors for pixel control, more efficient and scalable	Smartphones, TVs, large displays
Top-emitting OLED	Emits light through the top layer, more efficient for small devices	Smartwatches, smartphones
Transparent OLED	Panels that are see-through when off, used in augmented reality and heads-up displays	Retail displays, AR glasses
Flexible OLED	Built on plastic substrates allowing bending and folding	Foldable phones, wearable devices

AMOLED is the most common in high-end smartphones and TVs due to its efficiency and high resolution[1][12][7].

Applications of OLED Screens

OLED technology is widely used in various consumer electronics and emerging applications:

- Televisions: Premium OLED TVs provide superior picture quality with deep blacks and vibrant colors[5][13].

- Smartphones: Many flagship phones use OLED displays for their slim profiles and excellent image quality[10].

- Wearables: Smartwatches benefit from OLED's flexibility and power efficiency[12].

- Lighting: OLED panels are also used in innovative lighting solutions due to their thinness and diffuse light emission[4].

- Augmented Reality: Transparent OLEDs are used in AR glasses and heads-up displays[12].

Challenges and Limitations of OLED

While OLED offers many advantages, it also has some drawbacks:

- Burn-in Risk: Prolonged display of static images can cause permanent image retention or burn-in[6][8].

- Lifespan: Blue OLED materials degrade faster than red or green, affecting overall panel longevity, although this has improved over time[8][4].

- Cost: OLED panels are currently more expensive to produce than LCDs, especially for large sizes[8][13].

- Fragility: OLED panels, especially those on glass substrates, can be delicate and require careful handling[11].

Conclusion

An OLED screen means a display technology where each pixel emits its own light via organic compounds, enabling superior image quality with perfect blacks, high contrast, wide viewing angles, and fast response times. OLEDs are thinner, lighter, and can be flexible, making them ideal for modern devices such as smartphones, TVs, and wearables. Despite challenges like burn-in and cost, OLED technology continues to evolve and expand into new applications, promising an exciting future for display and lighting technologies.

Frequently Asked Questions About OLED Screens

1. What does OLED stand for and how does it differ from LED?

OLED stands for Organic Light-Emitting Diode. Unlike LED displays that use a backlight, OLED pixels emit their own light, allowing for better contrast and thinner screens[1][7][9].

2. Why do OLED screens have better black levels than LCDs?

Because OLED pixels can turn off completely, they produce true black without light bleed, unlike LCDs which rely on backlighting that leaks light even in dark areas[7][8].

3. Are OLED screens flexible?

Yes, OLEDs built on plastic substrates can be bent and folded within certain limits, enabling flexible and foldable device designs[12][11].

4. What are the main disadvantages of OLED technology?

OLEDs can suffer from burn-in, have shorter lifespans especially for blue pixels, and are currently more expensive to manufacture than LCDs[6][8].

5. How long do OLED screens last?

Typical OLED panel lifetimes are around 30,000 hours at nominal brightness, with some panels lasting up to 100,000 hours at lower brightness levels[4].
