LCD (Liquid Crystal Display) technology has revolutionized how we interact with digital devices, from smartphones and televisions to industrial control panels and medical equipment. However, one persistent issue that users and manufacturers face is the gradual fading of LCD displays. This phenomenon can be frustrating, especially when it affects the readability and usability of critical devices. In this comprehensive guide, we will delve deeply into what causes LCD display fading, how to repair and prevent it, and what steps you can take to maximize the lifespan of your screens.
LCD display fading refers to the gradual loss of brightness, contrast, or color accuracy on an LCD screen. This can manifest as dimming, uneven lighting, ghosting, or even complete loss of certain segments or pixels. Fading can occur suddenly due to a specific failure or develop slowly over months or years of regular use. Understanding the root causes of this issue is essential for both users and technicians aiming to maintain optimal screen performance.
The polarizer film is a crucial component of every LCD panel. It controls the direction and intensity of light passing through the liquid crystals, making images visible. Over time, exposure to ultraviolet (UV) radiation, high temperatures, and even certain cleaning chemicals can degrade this film. As the polarizer deteriorates, it may delaminate, bubble, or discolor, resulting in faded or distorted images. Devices frequently exposed to sunlight, such as outdoor digital signage or wristwatches, are especially vulnerable.
Within every LCD module, tiny ceramic capacitors help regulate the voltage supplied to the liquid crystals. These capacitors are subject to natural aging, which causes their capacitance to decrease over time. When this happens, the voltage delivered to the display becomes unstable, leading to uneven pixel activation, dim segments, or complete fading of certain areas. This is a common issue in older digital watches, calculators, and industrial displays.
While LCDs are less prone to burn-in than OLEDs, they can still suffer from image persistence. This occurs when static images are displayed for prolonged periods, causing the liquid crystals in those areas to become less responsive. The result is a ghostly afterimage or faded sections that persist even after the content changes. Devices used for displaying static information-such as point-of-sale terminals, medical monitors, or security panels-are at higher risk.
The electrical connections between the LCD panel and the main circuit board are typically made using zebra connectors or flexible printed circuits (FPCs). Over time, these connections can degrade due to corrosion, physical stress, or repeated thermal cycling. When the connection is compromised, electrical signals fail to reach certain segments or pixels, causing them to fade or disappear entirely.
Ultraviolet light is particularly damaging to both the polarizer film and the liquid crystals themselves. Prolonged exposure accelerates the breakdown of these materials, leading to rapid fading.
High temperatures destabilize the liquid crystals and can cause the adhesives holding the polarizer films to weaken. This not only affects image quality but can also lead to physical separation of the display layers.
Moisture can penetrate the display assembly, corroding internal components and causing short circuits. Even small amounts of condensation can lead to visible fading or malfunction.
LCD fading is not always uniform. It can appear as:

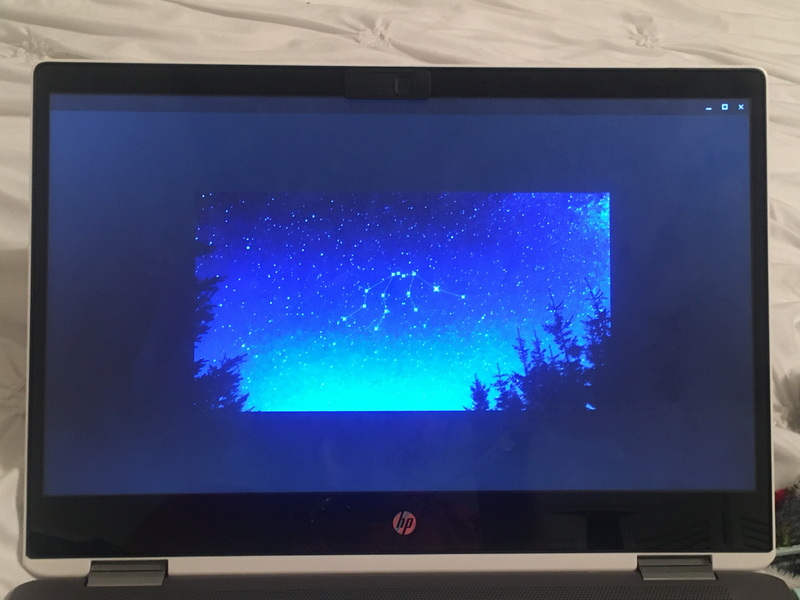

- General dimming: The entire screen appears less bright than before.

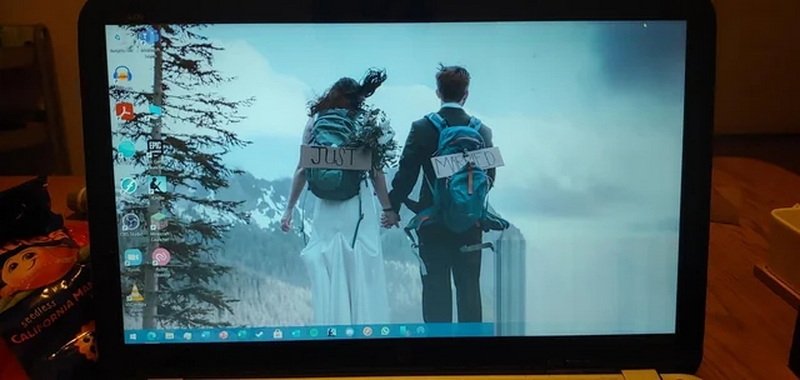

- Partial fading: Specific areas, lines, or segments become faint or disappear.
- Color distortion: Whites may turn yellowish; colors lose vibrancy.
- Ghosting: Previous images faintly linger on the screen.
- Spotting or blotching: Uneven patches of brightness or darkness.
Recognizing the pattern of fading can help diagnose the underlying cause and guide effective repairs.
If the polarizer film is degraded, it can often be replaced. This involves carefully removing the old film, cleaning the glass substrate, and applying a new polarizer. Precision is crucial, as any misalignment or trapped air bubbles can affect display quality. This repair is common in high-value devices like industrial monitors or vintage electronics.
In devices such as digital watches or calculators, replacing aged ceramic capacitors can restore proper voltage regulation. This process requires identifying the faulty capacitor, desoldering it, and installing a new one with matching specifications. Proper handling and anti-static precautions are essential to avoid damaging sensitive components.

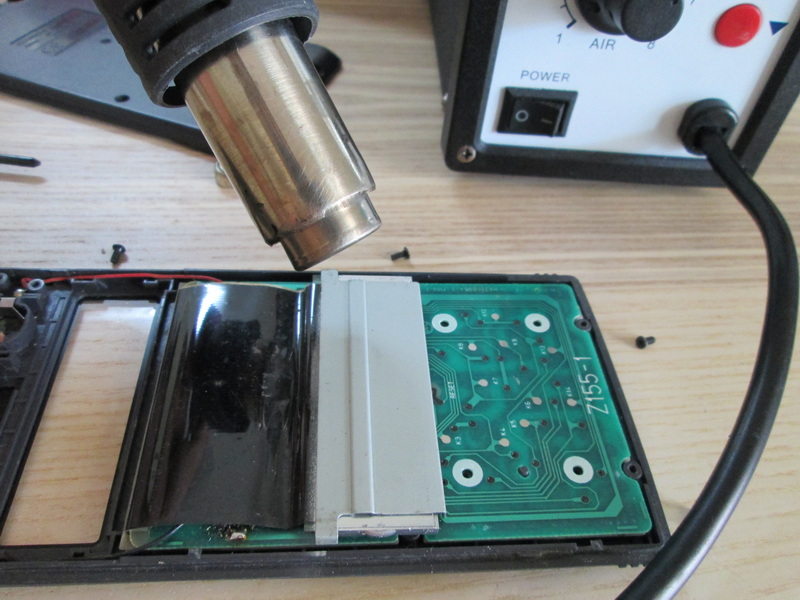

If the fading is due to poor connections, cleaning the contact points with isopropyl alcohol and reseating the zebra connector or FPC can often resolve the issue. In more severe cases, reflowing solder joints or applying conductive adhesive may be necessary.
For temporary image persistence, running a pixel-refreshing program or displaying dynamic, full-screen content can help restore uniformity. In severe cases, however, the display may need to be replaced.
If humidity or condensation is the culprit, thoroughly drying the device and sealing it against future moisture intrusion can prevent further damage. This may involve replacing gaskets or improving the device's enclosure.
- Avoid direct sunlight: Position devices away from windows or use shades to block UV rays.
- Maintain optimal temperature: Keep the ambient temperature below 40°C (104°F) to prevent heat-related degradation.
- Control humidity: Use dehumidifiers in high-moisture environments and ensure devices are properly sealed.
- Enable screensavers: Prevent static images from lingering on the screen.
- Adjust brightness: Use the lowest comfortable brightness setting to reduce stress on the display.
- Regular rest cycles: Power down devices when not in use to extend component life.
- Industrial-grade components: For mission-critical applications, select displays with high-quality capacitors and ruggedized connectors.
- UV-resistant materials: Choose screens with enhanced polarizer films or additional UV protection for outdoor use.
- Inspect connections: Periodically check and clean connectors and contact points.
- Update firmware: Manufacturers often release updates to optimize power management and display performance.
- Monitor for early signs: Address minor fading promptly to prevent more severe damage.
Proper diagnosis is essential for effective repairs. Here's a step-by-step approach:
1. Visual inspection: Look for patterns in the fading (e.g., uniform, segmental, or patchy).
2. Test in different environments: Move the device to a cooler, drier location to see if the issue improves.
3. Check for physical damage: Examine the screen for cracks, delamination, or signs of moisture.
4. Open the device (if safe): Inspect capacitors for bulging or leakage and connectors for corrosion.
5. Use diagnostic tools: Some devices have built-in test modes to help identify display faults.
Fading not only affects the aesthetics of a display but can also compromise usability and safety. In industrial settings, faded screens can obscure critical data, leading to operational errors. In consumer electronics, poor display quality diminishes user satisfaction and may prompt premature device replacement. For medical devices, display fading can have serious consequences, making regular inspection and maintenance essential.
Manufacturers are continually improving LCD technology to address fading:
- Improved polarizer films: New materials offer better UV resistance and longer life.
- Advanced capacitors: Modern ceramic and tantalum capacitors have higher stability and longer service life.
- Better sealing: Enhanced assembly techniques reduce vulnerability to moisture and dust.
- Smart power management: Firmware updates optimize voltage delivery and reduce stress on components.
Despite these advances, no display is immune to aging. Proper care and timely intervention remain the best defenses.
LCD fading is a multifaceted issue resulting from component degradation, electrical inefficiencies, and environmental stressors. While repairs such as polarizer film or capacitor replacement can restore functionality in many cases, prevention is always preferable. By understanding the causes of LCD fading and implementing best practices for care and maintenance, users can significantly extend the life of their displays and maintain optimal performance.
Under normal conditions, LCDs can last between 30,000 and 60,000 hours. However, fading may start earlier if the screen is exposed to harsh environments, high temperatures, or direct sunlight.
Some fading issues, such as those caused by capacitor or polarizer film degradation, can be partially or fully restored through repair. However, severe cases of burn-in or extensive material breakdown may require complete panel replacement.
While LCDs are less sensitive to color-related fading than OLEDs, displaying bright, static images (such as white or red backgrounds) for long periods can contribute to image persistence and uneven wear.
Most manufacturer warranties do not cover fading caused by environmental factors or normal wear and tear. It is important to review your device's warranty policy for specific coverage details.
Heat accelerates the aging of liquid crystals, weakens the adhesives holding the polarizer films, and can cause capacitors to fail more quickly. Prolonged exposure to high temperatures is one of the most significant contributors to LCD fading.
