Twisted Nematic (TN) LCD displays are widely used due to their cost efficiency and fast response times. However, one of their notable drawbacks is the phenomenon known as gray level inversion, which affects image quality and viewing experience. This article explores the causes of gray level inversion in TN LCDs, the physics behind it, its impact on display performance, and current technologies aimed at mitigating this issue.
TN LCDs operate by manipulating the orientation of liquid crystal molecules to control light transmission through polarized filters. When no voltage is applied, the liquid crystals are twisted in a way that rotates polarized light, allowing it to pass through the second polarizer and produce an image. Applying voltage untwists the crystals, changing the light's polarization and thus the brightness of each pixel.
- No Voltage: Liquid crystals twist light to pass through polarizers → pixel appears bright.
- Voltage Applied: Crystals untwist → light blocked or partially blocked → pixel appears dark or shaded.
This twisting and untwisting mechanism enables grayscale image rendering but also introduces angular viewing limitations.
Gray level inversion is a visual distortion phenomenon where shades of gray (and sometimes colors) appear to invert or flip when the display is viewed from certain angles. For example, a dark gray may suddenly appear lighter or even white, and vice versa, depending on the viewer's position relative to the screen.
TN LCDs rely on twisted nematic liquid crystals that rotate polarized light. When voltage is applied, the crystals untwist, altering the light's polarization and intensity. However, this rotation effect is highly dependent on the viewing angle.
- At normal (perpendicular) viewing angles, light passes through as intended, producing accurate grayscale.
- At oblique angles, the twisting mechanism does not rotate the light polarization uniformly, causing inconsistent light transmission.
Polarizers in TN LCDs filter light based on its polarization direction. Because the liquid crystals' orientation changes with voltage and viewing angle, the amount of light passing through the polarizers varies unpredictably at off-angles.

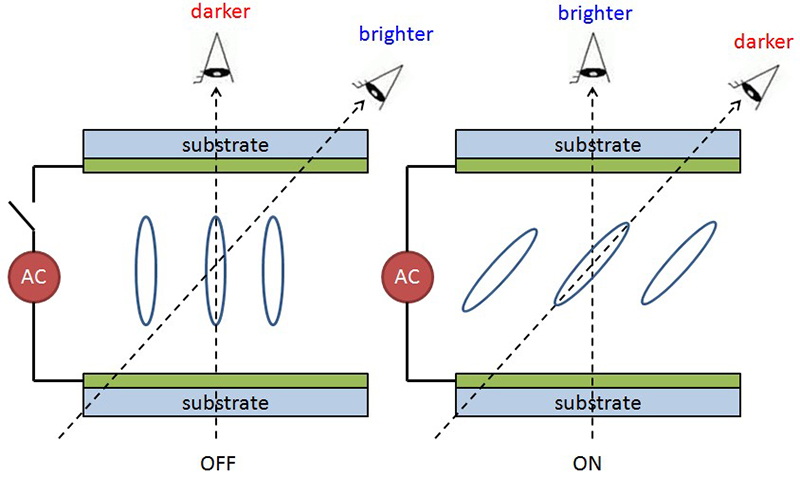

This optical trait, called birefringence, causes light to split into two rays traveling at different speeds when passing through the liquid crystals. The varying phase difference at different angles leads to brightness and contrast changes, causing gray level inversion.
The core reasons for gray level inversion in TN LCDs include:
- Twisted Molecular Structure: The twisted nematic structure untwists with voltage but cannot maintain consistent light rotation at all angles.
- Polarization Dependency: The display's reliance on polarized light means that off-axis viewing disrupts light transmission.
- Viewing Angle Limitations: TN LCDs inherently have narrow viewing cones, and beyond these angles, the inversion effect becomes visible.
- Contrast Ratio Drop: Contrast diminishes rapidly at oblique angles, worsening the inversion effect.
Gray level inversion can cause:
- Color and grayscale distortion: Images appear washed out or inverted in color intensity.
- Reduced viewing comfort: Users must view the screen from a specific angle to avoid distortion.
- Limited application suitability: TN LCDs are less ideal for devices requiring wide viewing angles, such as tablets or monitors for collaborative work.
This phenomenon can be particularly frustrating in professional environments where color accuracy is critical, such as graphic design, photography, and video editing. It also affects gaming and multimedia consumption, where consistent image quality is desired.
| Feature | TN LCD | VA LCD | IPS LCD |
|---|---|---|---|
| Gray Level Inversion | Pronounced at off-angles | Less pronounced | Minimal to none |
| Viewing Angle | Narrow (typically ~60-70°) | Moderate (~85°) | Wide (~178°) |
| Response Time | Fast | Moderate | Slower |
| Color Reproduction | Lower | Better than TN | Best |
| Contrast Ratio | Moderate | High | Moderate |
TN LCDs are cost-effective but suffer from gray level inversion, unlike IPS and VA panels designed to minimize this effect.
A recent innovation known as O-film modifies the LCD structure and polarizer films to widen the viewing angle and eliminate gray level inversion. By changing the top polarizer and TFT structure, O-film enables more uniform light transmission across angles.
This technology is a game-changer for TN LCDs, allowing manufacturers to produce displays that maintain TN's fast response times and cost benefits while significantly improving viewing angle performance.
Manufacturers specify a preferred viewing direction (e.g., 12 o'clock or 6 o'clock) to minimize inversion effects. Correctly orienting the display during installation ensures users view the screen from angles with minimal inversion.
For example, many laptop TN panels are designed to be viewed from slightly above (12 o'clock direction) to reduce inversion when the lid is open.
Switching to IPS or VA panels can eliminate gray level inversion but at higher costs and sometimes slower response times.
- IPS (In-Plane Switching) panels maintain liquid crystal molecules parallel to the screen plane, providing wide viewing angles and color accuracy.
- VA (Vertical Alignment) panels align crystals vertically and offer better contrast and viewing angles than TN but typically slower response times.
- Device Placement: Position TN LCDs so users view from the optimal angle to avoid inversion.
- Application Suitability: Use TN LCDs in devices where cost and response time matter more than viewing angle.
- Customization: Work with manufacturers to customize viewing angles and polarizer films for specific use cases.
- User Awareness: Educate users about viewing angle limitations to reduce dissatisfaction.
For example, gaming monitors often use TN panels because of their fast response times, where viewing angle is less critical. Conversely, professional monitors prioritize IPS or VA panels to avoid gray level inversion and color distortion.
Recent research uses advanced optical simulations to model the liquid crystal behavior and light propagation within TN LCDs. These models help engineers understand how molecular orientation, voltage levels, and polarizer alignment contribute to inversion.
By simulating different configurations, manufacturers can optimize the cell gap (distance between substrates), liquid crystal material properties, and polarizer angles to reduce inversion without sacrificing response time or brightness.
Gray level inversion in TN LCD displays is primarily caused by the twisted nematic liquid crystal structure and its interaction with polarized light at off-axis viewing angles. This phenomenon results in grayscale and color distortions that limit the usability of TN LCDs in applications requiring wide viewing angles. Advances like O-film technology and careful viewing direction optimization help mitigate these effects. However, designers must carefully consider TN LCD limitations and potentially opt for alternative panel technologies like IPS or VA for critical visual applications.
By understanding the root causes and available solutions, manufacturers and users can make informed decisions to balance cost, performance, and visual quality in their display choices.
Gray level inversion is a visual distortion where gray shades invert or flip at certain viewing angles due to the twisted nematic liquid crystal structure affecting light polarization.
It occurs because TN LCDs rely on twisted liquid crystals that rotate polarized light, but this rotation is inconsistent at oblique angles, causing light transmission to invert.
While it cannot be completely prevented in standard TN LCDs, technologies like O-film and proper viewing angle orientation can significantly reduce or eliminate the effect.
It causes color and grayscale distortion, reduces contrast, and limits the usable viewing angles, impacting user experience and display application.
Yes, IPS and VA LCD panels offer wider viewing angles and minimal gray level inversion but typically come at higher cost and slower response times.
