Views: 222 Author: Tina Publish Time: 2024-12-13 Origin: Site
Content Menu
● Overview of the GC9A01 1.28 Inch Round LCD Module
● Benefits of Using the GC9A01 LCD Module
>> 1. High Resolution and Color Depth
>> 2. Compact and Lightweight Design
>> 3. Easy Integration with Microcontrollers
>> 5. IPS Technology for Better Viewing Angles
>> 6. Enhanced User Interaction
>> 8. Robust Community Support
● FAQ
>> 1. What microcontrollers are compatible with the GC9A01 module?
>> 2. Can I use this module in battery-operated devices?
>> 3. How do I connect the GC9A01 to my microcontroller?
>> 4. Is there any software support available for this display?
>> 5. What are some common uses for this LCD module?
The GC9A01 1.28 inch round LCD module has emerged as a popular choice among hobbyists and professionals alike for various display projects. With its compact size, high resolution, and versatile interface, this module offers numerous benefits that make it suitable for a wide range of applications, from wearables to IoT devices. This article explores the advantages of using the GC9A01 LCD module, its specifications, and practical applications, along with a comprehensive FAQ section.

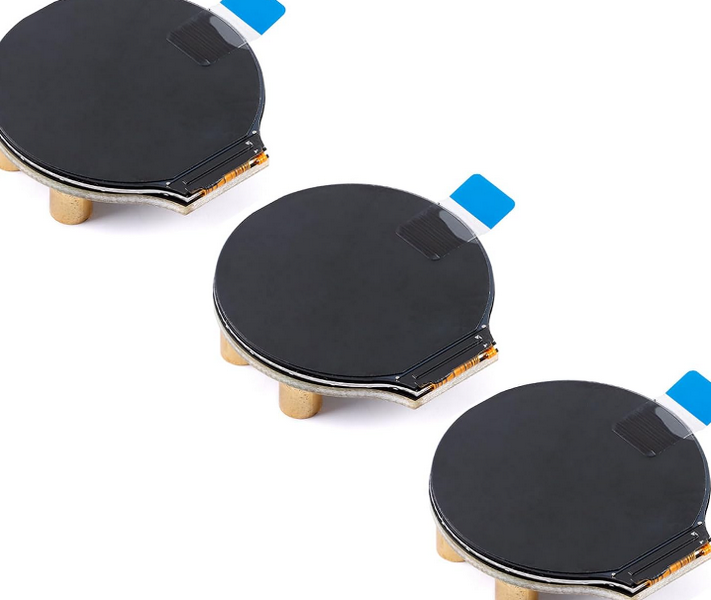

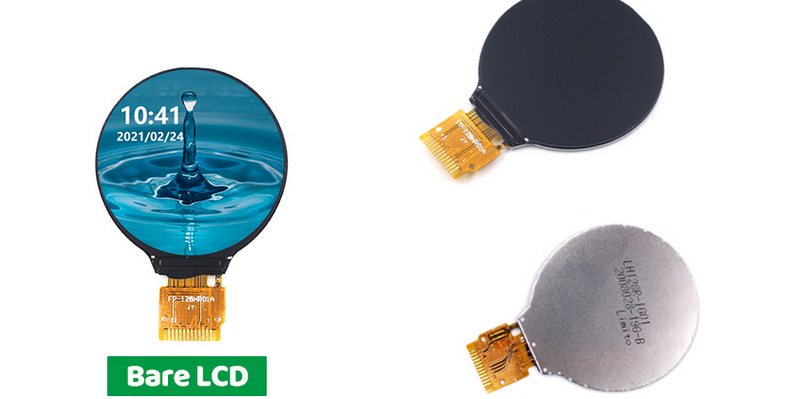

The GC9A01 1.28 inch round LCD module features a resolution of 240 x 240 pixels, providing crisp and vibrant visuals. Its unique circular design allows for innovative display solutions in various projects. The module is driven by the GC9A01 controller, which is known for its reliability and performance in handling graphical displays.
- Display Size: 1.28 inches
- Resolution: 240 x 240 pixels
- Interface: 4-wire SPI
- Operating Voltage: 3.3V
- Color Depth: Up to 65K colors
- Viewing Angle: Wide viewing angles thanks to IPS technology
The GC9A01 1.28 inch round LCD module boasts a resolution of 240 x 240 pixels, which is impressive for its size. This high pixel density ensures that images and text appear sharp and clear, making it ideal for applications where detail is crucial.
Additionally, with a color depth of up to 65K colors, the display can render vibrant images that enhance user experience. This capability is particularly beneficial in applications such as smartwatches or custom interfaces where visual appeal is essential.
The compact size of the GC9A01 module makes it an excellent choice for projects where space is limited. Its small footprint allows for easy integration into wearable devices or compact electronic projects without compromising on functionality.
This lightweight design also contributes to the overall portability of devices that utilize this module, making it suitable for mobile applications.
One of the significant advantages of the GC9A01 1.28 inch round LCD module is its compatibility with various microcontrollers through a simple SPI interface. This feature simplifies wiring and reduces the number of GPIO pins required for communication.
The module can be easily interfaced with popular microcontrollers such as Arduino, Raspberry Pi, and STM32, making it accessible to both beginners and experienced developers.
The versatility of the GC9A01 module allows it to be used in a wide range of applications:
- Wearable Devices: The circular design fits perfectly into smartwatches or fitness trackers.
- IoT Projects: Ideal for displaying data in Internet of Things applications.
- Custom User Interfaces: Perfect for creating unique interfaces in home automation systems or gaming devices.
The use of In-Plane Switching (IPS) technology in the GC9A01 module enhances viewing angles significantly compared to traditional LCDs. This means that users can view the display from various angles without experiencing color distortion or loss of brightness.
This feature is particularly useful in applications where multiple users may need to view the display simultaneously or when the device is positioned at an angle.
The GC9A01 1.28 inch round LCD module can be utilized in various projects:
- Smartwatches: The circular display fits seamlessly into smartwatch designs, allowing users to view notifications and health metrics elegantly.
- Home Automation Displays: Use the module as a control interface for smart home systems, displaying information such as temperature settings or security alerts.
- Gaming Devices: Create custom gaming consoles or handheld devices that utilize the vibrant display for graphics and user interaction.
User interaction is vital in modern electronic devices, and the GC9A01 module facilitates this through touch capabilities when combined with appropriate touch sensors. This feature allows users to interact directly with what they see on the screen, enhancing engagement and usability.
For example, developers can create interfaces that allow users to swipe through notifications on a smartwatch or select options in a home automation system directly from the display.
In an era where energy efficiency is paramount, especially in battery-operated devices, the GC9A01 excels with its low power consumption characteristics. Operating at just 3.3V ensures that devices using this display can maintain longer battery life without sacrificing performance.
This efficiency makes it particularly suitable for wearable technology where battery life is critical.
Another significant advantage of using the GC9A01 module is the strong community support surrounding it. Many developers share their experiences, code libraries, and project ideas online, making it easier for newcomers to learn how to implement this technology effectively.
Resources such as forums, GitHub repositories, and tutorial websites provide valuable insights into best practices and troubleshooting tips when working with this display module.
When integrating the GC9A01 1.28 inch round LCD module into your project, several design considerations should be kept in mind:
- Mounting Options: Ensure that you have appropriate mounting solutions if you are incorporating this display into a product design.
- Heat Management: While this module generally operates at low temperatures, ensure that your overall device design allows for adequate heat dissipation if other components generate heat.
- User Interface Design: Given its circular shape, consider how your user interface will adapt to this format; designing intuitive icons and layouts will enhance usability.
In conclusion, the GC9A01 1.28 inch round LCD module offers numerous benefits that make it an excellent choice for display projects across various fields. Its high resolution, compact design, easy integration with microcontrollers, versatile applications, superior viewing angles, enhanced user interaction capabilities, low power consumption features, and robust community support position it as a leading option in modern electronic designs.
Whether you are developing wearable technology or innovative IoT solutions, this display module can enhance your project's functionality and aesthetics significantly.
The GC9A01 module is compatible with various microcontrollers including Arduino, Raspberry Pi, and STM32 through its SPI interface.
Yes, the low operating voltage (3.3V) makes it suitable for battery-powered applications while maintaining energy efficiency.
You can connect the GC9A01 using four wires (MISO, MOSI, SCLK, CS) along with power (VCC) and ground (GND). Detailed pinouts are typically provided in datasheets or product documentation.
Yes, many libraries are available for Arduino and other platforms that simplify programming and control of the GC9A01 display.
Common uses include smartwatches, IoT device displays, home automation interfaces, and gaming handhelds due to its unique design and vibrant output.
