Liquid Crystal Displays (LCDs) have become ubiquitous in modern technology, serving as the primary display technology for a wide range of devices, from smartphones to industrial equipment. Among the various types of LCDs available, Film Compensated Super Twisted Nematic (FSTN) LCDs stand out due to their superior performance characteristics compared to traditional LCD technologies like Twisted Nematic (TN) and Super Twisted Nematic (STN) displays. This article explores the advantages of using FSTN LCD modules over regular LCDs, highlighting their unique features, applications, and benefits.
FSTN LCDs are an advanced form of STN displays that incorporate a compensating film to enhance image quality. This film allows FSTN displays to achieve higher contrast ratios and wider viewing angles than their TN counterparts. The liquid crystal material used in FSTN displays is specially formulated to provide better light modulation, resulting in clearer images and text.
- High Contrast: FSTN displays offer significantly higher contrast ratios than TN displays, making them easier to read in various lighting conditions.
- Wide Viewing Angles: The design of FSTN modules allows for wider viewing angles without color distortion or loss of clarity.
- Monochrome Display Options: While primarily monochrome, FSTN modules can also be adapted for color applications through the use of filters.
- Reflective and Transflective Modes: Many FSTN displays can be configured to reflect ambient light or utilize a backlight, enhancing visibility in both bright and dim environments.
One of the most significant advantages of FSTN LCD modules is their enhanced visual clarity. The combination of the compensating film and the twisted nematic structure allows for sharper images and text. This is particularly beneficial in applications where readability is critical, such as medical devices, automotive dashboards, and consumer electronics.
For instance, in medical devices like blood pressure monitors or glucose meters, clear visibility is essential for accurate readings. An FSTN module ensures that healthcare professionals can quickly interpret data without straining their eyes.
FSTN displays provide much sharper contrast compared to regular TN displays. This improvement is crucial for applications requiring high visibility under varying lighting conditions. For instance, an FSTN display can maintain clear visibility outdoors in bright sunlight, where TN displays may wash out or become difficult to read.
In consumer electronics like smartwatches or fitness trackers, high contrast ensures that users can easily view notifications and health metrics at a glance without needing to adjust their position relative to the light source.
The design of FSTN modules allows for wider viewing angles without significant degradation in image quality. Users can view the display from different angles without experiencing color shifts or blurriness. This feature is particularly useful in collaborative environments where multiple users may need to view the screen simultaneously.
For example, in automotive settings, passengers sitting at different angles can still read navigation information clearly from an FSTN display embedded in the dashboard.
FSTN LCD modules are versatile and can be used across various industries. They are commonly found in:
- Consumer Electronics: Used in devices like GPS units and coffee machines.
- Industrial Equipment: Ideal for control panels where readability is essential.
- Medical Devices: Ensuring clear display of critical information.
In addition to these applications, FSTN modules are also employed in home appliances such as microwaves and washing machines, where user interfaces require clear instructions and settings display.
While both TN and FSTN displays require external backlighting for visibility in low light conditions, FSTN modules are generally more energy-efficient due to their reflective capabilities. In bright environments, they can utilize ambient light effectively, reducing the need for power-hungry backlights.
This energy efficiency is particularly important in battery-operated devices like remote controls or portable gaming consoles, where prolonged battery life is a key consideration for consumers.
To better understand the advantages of FSTN technology, it's essential to compare it directly with regular TN and STN displays:
| Feature | TN LCD | STN LCD | FSTN LCD |
|---|---|---|---|
| Contrast Ratio | Low | Moderate | High |
| Viewing Angle | Narrow | Moderate | Wide |
| Response Time | Fast | Moderate | Slower |
| Power Consumption | Low | Moderate | Moderate |
| Cost | Lowest | Moderate | Higher |

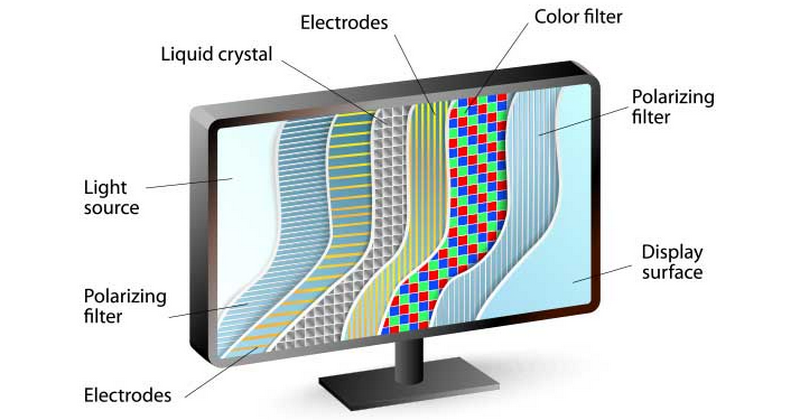

FSTN displays consist of several layers:
- Liquid Crystal Layer: This is the core component that modulates light based on electrical signals.
- Polarizers: Two polarizing filters sandwich the liquid crystal layer; one aligns with the incoming light while the other aligns with the outgoing light.
- Compensating Film: Positioned between these layers, this film enhances contrast and reduces color distortion.
The precise arrangement of these layers contributes significantly to the performance characteristics that set FSTN apart from traditional displays.
While many FSTN displays are monochrome (typically green or black), they can be adapted for color applications using additional filters or by employing a color matrix overlay. This flexibility allows manufacturers to create visually appealing products without sacrificing performance.
FSTN LCD modules are increasingly popular due to their superior performance characteristics. They find applications in:
- Automotive Displays: Used in dashboards where clarity and quick readability are paramount.
- Consumer Electronics: Devices like digital cameras and gaming consoles benefit from high-quality displays.
- Industrial Controls: Control panels that require frequent monitoring use FSTN technology for better visibility.
Moreover, as smart home technology continues to evolve, FSTN displays are being integrated into smart thermostats and home security systems due to their ability to convey information clearly under various lighting conditions.
As technology advances, so does the demand for better display solutions. The following trends may influence the future development of FSTN LCD modules:
- Integration with Touch Technology: As touchscreens become more prevalent, integrating touch capabilities into FSTN modules could enhance user interaction while maintaining clarity.
- Advancements in Backlighting: Innovations in LED backlighting could further improve energy efficiency while enhancing brightness levels for outdoor use.
- Flexible Displays: The development of flexible display technologies may allow for new applications where traditional rigid screens would not suffice.
FSTN LCD modules represent a significant advancement over traditional TN and STN displays by providing enhanced visual clarity, improved contrast ratios, wider viewing angles, versatility across applications, and energy efficiency. These advantages make them an excellent choice for a variety of industries where display quality is critical. As technology continues to evolve, the demand for high-performance displays like FSTN will likely increase, further solidifying their place in modern electronics.
FSTN LCDs offer higher contrast ratios and wider viewing angles compared to TN LCDs, which typically have lower image quality and narrower viewing angles.
Yes, FSTN displays are generally more expensive than TN displays due to the advanced technology used in their construction.
Yes, many FSTN displays have reflective properties that make them suitable for outdoor use by enhancing visibility in bright sunlight.
FSTN modules are widely used in automotive displays, consumer electronics, medical devices, and industrial control panels.
While both types require backlighting for low-light conditions, FSTN displays can be more energy-efficient due to their reflective capabilities that utilize ambient light effectively.
