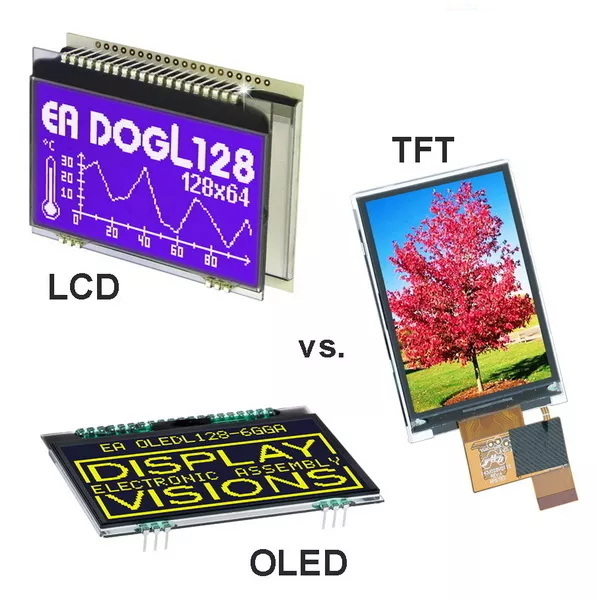

Thin-Film Transistor (TFT) technology is indeed used with Liquid Crystal Display (LCD) screens, forming what is commonly known as TFT LCD displays. This combination is fundamental in modern display technology, widely employed in devices ranging from smartphones and computer monitors to automotive dashboards and industrial equipment. This article provides a detailed exploration of how TFT is used with LCD displays, their structure, working principles, advantages, applications, and practical usage including interfacing with microcontrollers.
LCD stands for Liquid Crystal Display. It is a flat-panel display technology that uses liquid crystals sandwiched between two layers of polarized glass. These liquid crystals do not emit light by themselves but modulate light from a backlight to create images. When an electric current is applied, the liquid crystals align in a way that controls the passage of light, producing images on the screen.
The fundamental principle behind LCD technology is the manipulation of polarized light. The liquid crystals twist and untwist in response to electric fields, which affects the polarization of light passing through them. By controlling the orientation of these crystals, the display can control how much light passes through each pixel, thus creating images.
TFT stands for Thin-Film Transistor. It is a type of semiconductor device used as a switch for each individual pixel on an LCD screen. The TFT acts as an active matrix, controlling the voltage applied to each pixel precisely and independently, which improves image quality, response time, and enables higher resolution displays.
Each thin-film transistor is essentially a tiny switch that can turn the pixel on or off, or modulate its brightness by controlling the voltage applied. This precise control allows for much finer detail and faster refresh rates compared to older passive matrix LCDs, where pixels were controlled in groups rather than individually.
When TFT technology is integrated with LCD, the result is a TFT LCD display, also known as an active matrix LCD. Each pixel on the display is paired with its own thin-film transistor, allowing for precise control of the pixel's state. This combination enhances the display's sharpness, color accuracy, and refresh rate compared to passive matrix LCDs.
This active matrix approach means that each pixel can be addressed directly and held at a specific state until the next refresh cycle, resulting in clearer images, better contrast, and faster response times. This technology has become the standard for most modern LCD screens.
A TFT LCD display consists of multiple layers and components working together:
- Backlight: Since liquid crystals do not emit light on their own, a backlight provides illumination. This is usually a series of LEDs or fluorescent lamps that shine light through the layers.
- Polarizing Filters: Positioned on both sides of the liquid crystal layer, these filters control the polarization of light. The alignment of the liquid crystals changes the polarization, allowing varying amounts of light to pass through.
- Liquid Crystal Layer: Contains rod-shaped molecules that twist and align under electric fields to modulate light. The orientation of these molecules affects how much light passes through the pixel.
- Thin-Film Transistors: Located behind each pixel, these act as switches to control the voltage applied to the liquid crystals. Each transistor controls one pixel, enabling active matrix control.
- Pixel Electrodes: Transparent electrodes that apply voltage to liquid crystals. These are usually made of indium tin oxide (ITO), which is conductive and transparent.
- Color Filters: Red, green, and blue filters placed over sub-pixels to produce full-color images. Each pixel is typically divided into three sub-pixels, each with a different color filter.
This layered structure allows the TFT LCD to display vibrant, sharp images with precise color control.
The TFT in a TFT LCD display functions as an active switch for each pixel. Here is the detailed working mechanism:
1. Signal Reception: The display receives an electrical signal representing image data.
2. TFT Switching: Each TFT corresponding to a pixel switches on or off based on the signal, applying voltage to the liquid crystal molecules.
3. Liquid Crystal Alignment: The applied voltage causes the liquid crystals to align in a specific way, modulating the light passing through.
4. Light Modulation: The twisted liquid crystals alter the polarization of the backlight, controlling brightness and clarity.
5. Color Filtering: Light passes through the RGB color filters, producing the desired color for each pixel.
6. Image Formation: The combined effect creates the full image visible to the user.
The active matrix control via TFTs allows for fast response times and high-resolution displays, making TFT LCDs suitable for dynamic images and video.
TFT LCD displays offer several benefits over traditional LCDs and other display technologies:
- High Image Quality: TFT control provides sharp, vibrant images with accurate color reproduction. The precise voltage control over each pixel allows for smooth gradients and detailed visuals.
- Fast Response Time: Active matrix technology reduces motion blur, ideal for video and gaming. The quick switching of TFTs means pixels can change state rapidly.
- Larger Viewing Area: More screen real estate with better pixel control. TFT LCDs can be made in a variety of sizes, from small smartwatch displays to large computer monitors.
- Wide Viewing Angles: Improved over passive matrix LCDs. Although TFT LCDs have some limitations compared to OLEDs in viewing angles, modern technology has significantly enhanced this aspect.
- Low Power Consumption: More efficient than older CRT displays, though higher than some OLEDs. The power used depends largely on the backlight and display brightness settings.
- Thin and Lightweight: Suitable for portable devices like smartphones and tablets. The slim profile of TFT LCDs makes them ideal for mobile electronics.
- Wide Operating Temperature Range: Can be used in various environments, including automotive and industrial sectors. TFT LCDs are robust and can operate reliably under different conditions.
TFT LCD technology is widely used across many industries:
- Consumer Electronics: Smartphones, tablets, laptops, monitors, and TVs. Virtually all modern mobile devices use TFT LCDs or variants thereof.
- Automotive: Dashboards, infotainment systems, rear-seat entertainment. TFT LCDs provide clear, bright displays for vehicle information and entertainment.
- Healthcare: Medical imaging devices such as ultrasound and MRI displays. The high resolution and clarity are critical for diagnostic accuracy.
- Industrial: Human-machine interfaces (HMI), control panels for manufacturing. TFT LCDs are used in rugged environments for monitoring and control.
- Retail and Hospitality: Digital signage, kiosks, point-of-sale terminals. Bright, colorful displays attract attention and provide information.
- Aviation and Aerospace: Instrument panels and navigation systems. Reliability and clarity are paramount in these high-stakes environments.

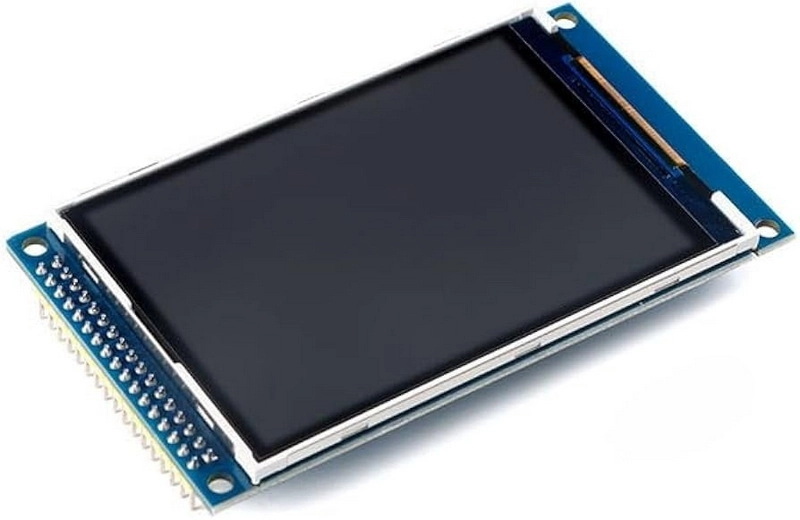

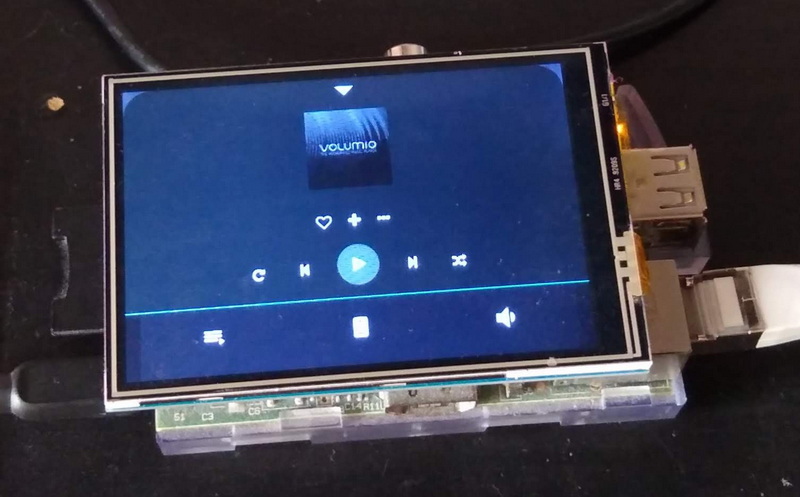

TFT LCDs can be interfaced with microcontrollers like Arduino, STM32, or Raspberry Pi for custom projects involving image or data display.
- Communication Protocols: TFT LCDs typically communicate via SPI (Serial Peripheral Interface) or parallel interfaces. SPI is slower but uses fewer pins, while parallel interfaces offer faster data transfer but require more connections.
- Power Requirements: Most TFT LCD modules operate at 3.3V or 5V. It is important to match the microcontroller's voltage levels or use level shifters.
- Libraries and Drivers: Using established libraries simplifies development. Libraries handle low-level communication, pixel addressing, and graphics rendering.
- Display Resolution and Size: Choose a display that matches the project requirements. Higher resolution displays require more memory and processing power.
- Backlight Control: Backlight brightness can often be controlled via PWM (Pulse Width Modulation) to save power and adjust visibility.
- Displaying sensor data such as temperature, humidity, or GPS coordinates.
- Creating user interfaces with buttons, sliders, and menus.
- Showing images or animations stored on external memory like SD cards.
- Building portable gaming devices or multimedia players.
These practical applications highlight the versatility of TFT LCDs in embedded systems and DIY electronics.
One of the main limitations of traditional TFT LCDs is viewing angle and color shifting. To address this, In-Plane Switching (IPS) technology was developed. IPS TFT LCDs orient liquid crystals parallel to the glass substrates, improving viewing angles and color accuracy dramatically.
Many TFT LCDs are integrated with capacitive or resistive touchscreens, enabling interactive displays. This combination is standard in smartphones, tablets, and kiosks, allowing users to interact directly with the display.
Advancements in TFT technology have enabled displays with resolutions exceeding Full HD and refresh rates up to 240Hz or more, catering to gaming and professional applications where smooth motion and detail are critical.
TFT technology is integral to modern LCD displays, significantly enhancing their performance by providing active matrix control of pixels. TFT LCDs combine the light-modulating properties of liquid crystals with the precise switching capabilities of thin-film transistors, resulting in high-resolution, vibrant, and responsive displays. This technology is prevalent in numerous applications, from everyday consumer electronics to specialized industrial and medical devices. Understanding how TFT is used with LCD displays unlocks opportunities for creating advanced visual interfaces and innovative electronic projects. The continuous evolution of TFT LCD technology, including IPS and touchscreen integration, ensures that these displays remain relevant and essential in the display market.
TFT refers to the thin-film transistor technology that acts as a switch for each pixel, while LCD is the liquid crystal display technology that modulates light to form images. TFT LCD is an LCD display that uses TFTs for active matrix control, offering better image quality and faster response times than passive LCDs.
Yes, TFT LCDs can display video smoothly due to their fast response times and active matrix control, which allows rapid pixel switching and refresh rates suitable for motion images.
No, not all LCDs use TFT technology. Passive matrix LCDs exist but are less common today due to poorer image quality and slower response times. Most modern high-quality LCDs are TFT LCDs.
TFT LCDs consume less power than older CRT displays but generally more than OLED displays. The backlight is the main power consumer in TFT LCDs, and power can be optimized by controlling backlight brightness.
TFT LCDs are commonly interfaced via SPI or parallel interfaces using microcontrollers like Arduino or STM32. Libraries and drivers help manage the complex communication to display images, text, and graphics on the screen.
