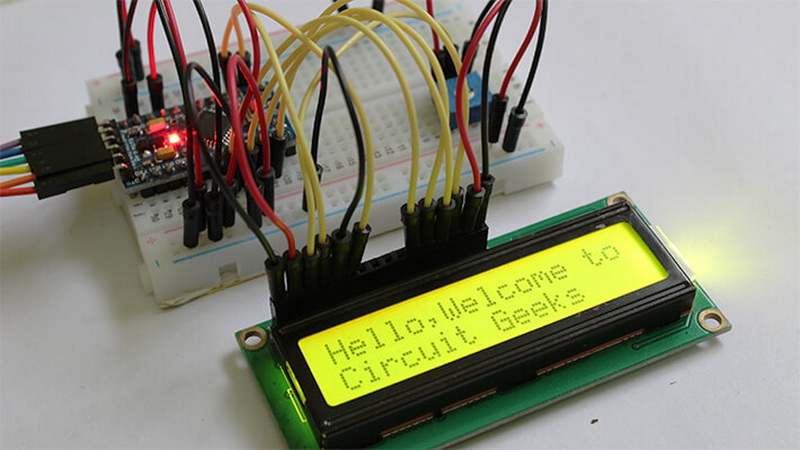

Wiring an LCD display directly to an Arduino without using an I2C backpack module is a fundamental skill for electronics enthusiasts and makers. Although the I2C backpack simplifies connections by reducing the number of wires, knowing how to wire an LCD manually gives you better control and understanding of the hardware. This comprehensive guide will walk you through the entire process of wiring a 16x2 LCD display to an Arduino board without a backpack, including wiring diagrams, code examples, troubleshooting tips, and detailed explanations to help you visualize every step.

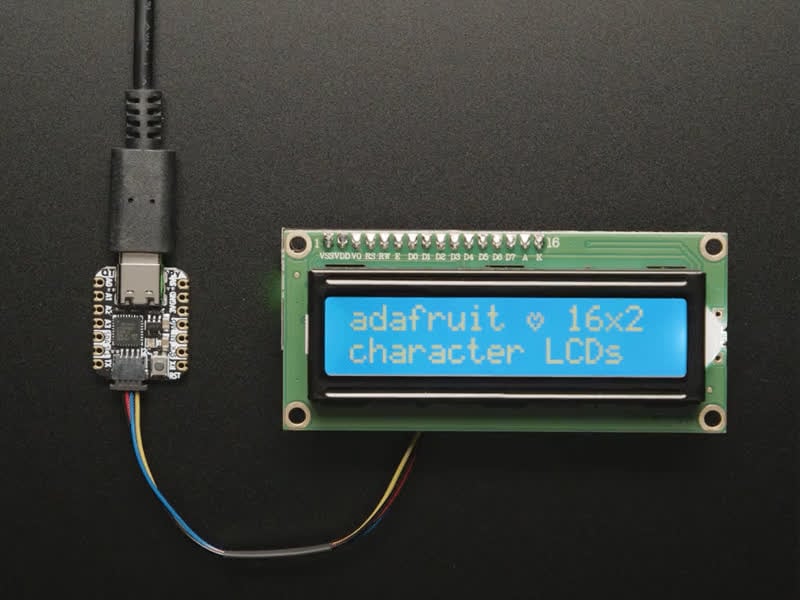

A typical 16x2 LCD display based on the HD44780 controller has 16 pins. Each pin has a specific function:
- Pin 1 (VSS): Ground (GND)
- Pin 2 (VDD): +5V Power supply
- Pin 3 (VO): Contrast adjustment (connected to a potentiometer)
- Pin 4 (RS): Register Select (selects command or data register)
- Pin 5 (RW): Read/Write (usually grounded for write mode)
- Pin 6 (E): Enable pin (used to initiate data read/write)
- Pins 7-14 (D0-D7): Data pins (8-bit data bus; often only D4-D7 used in 4-bit mode)
- Pin 15 (A): LED backlight anode (+5V)
- Pin 16 (K): LED backlight cathode (GND)
Understanding the role of each pin is crucial before starting the wiring process. The LCD communicates with the Arduino by sending data and instructions through these pins. The RS pin determines whether the data sent is a command or character data, while the Enable pin signals the LCD to read the data lines. The RW pin tells the LCD whether to read from or write to the data lines, but since most projects only write to the LCD, this pin is typically connected to ground.
Before beginning the wiring, gather the following components:
- Arduino Uno (or any compatible Arduino board)
- 16x2 LCD Display (HD44780 compatible)
- 10K Ohm potentiometer (for contrast adjustment)
- Jumper wires
- Breadboard (optional, but recommended for prototyping)
- USB cable to connect Arduino to PC
Having these materials ready will ensure a smooth assembly process.
Start by powering the LCD:
- Connect Pin 1 (VSS) of the LCD to Arduino GND.
- Connect Pin 2 (VDD) of the LCD to Arduino 5V.
- Connect Pin 15 (A) (backlight anode) to Arduino 5V.
- Connect Pin 16 (K) (backlight cathode) to Arduino GND.
These connections power the LCD and its backlight.
The contrast pin (Pin 3, VO) controls the visibility of characters on the LCD. To adjust it:
- Connect the middle pin of the 10K potentiometer to Pin 3 (VO).
- Connect one side pin of the potentiometer to 5V.
- Connect the other side pin of the potentiometer to GND.
Turning the potentiometer knob changes the voltage on VO, adjusting the LCD contrast. This is essential because without proper contrast, the display may show only blocks or be unreadable.
Next, connect the control pins that manage the LCD's operation:
- Connect Pin 4 (RS) to Arduino digital pin 12.
- Connect Pin 5 (RW) to GND to set the LCD in write mode permanently.
- Connect Pin 6 (E) to Arduino digital pin 11.
The RS pin switches between sending commands and data, while the Enable pin tells the LCD when to read the data lines.
To save Arduino pins, use the 4-bit mode, which requires only four data lines instead of eight:
- Connect Pin 11 (D4) of LCD to Arduino digital pin 5.
- Connect Pin 12 (D5) of LCD to Arduino digital pin 4.
- Connect Pin 13 (D6) of LCD to Arduino digital pin 3.
- Connect Pin 14 (D7) of LCD to Arduino digital pin 2.
Using only four data pins reduces wiring complexity and frees up Arduino pins for other uses.
Here is a summary of the connections:
| LCD Pin | Function | Arduino Pin |
|---|---|---|
| 1 (VSS) | GND | GND |
| 2 (VDD) | +5V | 5V |
| 3 (VO) | Contrast (Potentiometer middle pin) | Potentiometer middle pin |
| 4 (RS) | Register Select | Digital 12 |
| 5 (RW) | Read/Write | GND |
| 6 (E) | Enable | Digital 11 |
| 11 (D4) | Data 4 | Digital 5 |
| 12 (D5) | Data 5 | Digital 4 |
| 13 (D6) | Data 6 | Digital 3 |
| 14 (D7) | Data 7 | Digital 2 |
| 15 (A) | Backlight Anode | 5V |
| 16 (K) | Backlight Cathode | GND |
This table helps visualize and verify your wiring before powering the circuit.
The LCD controller can operate in either 8-bit or 4-bit mode. In 8-bit mode, all eight data pins (D0-D7) are used, which requires more Arduino pins but can be slightly faster. However, 4-bit mode is preferred in most Arduino projects because it uses fewer pins, simplifying wiring.
In 4-bit mode, data is sent in two 4-bit chunks (nibbles). First, the higher nibble (D4-D7) is sent, then the lower nibble. The LCD controller internally combines these two nibbles into a full byte. This is why only pins D4 to D7 are connected to the Arduino.
If the LCD shows only blocks or nothing at all, adjust the potentiometer connected to pin 3 (VO) slowly until the text becomes visible. This contrast adjustment is crucial for readability. If the potentiometer is turned too far in one direction, the characters may disappear or become faint.
While a potentiometer is the best way to adjust contrast, you can connect pin 3 (VO) directly to GND or 5V to fix the contrast. Connecting VO to GND usually results in maximum contrast, which might make the characters visible but sometimes too dark or with a black screen effect. Connecting VO to 5V usually makes the display very faint or invisible.
Some advanced projects use Arduino PWM output to digitally control contrast by varying the voltage on VO through a low-pass filter or a DAC. However, for beginners, the potentiometer method is simplest and most effective.
Always power the LCD from the Arduino's 5V and GND pins. Do not attempt to power the LCD from Arduino digital pins, as they cannot supply sufficient current and may damage the Arduino or cause erratic behavior.
The backlight LED inside the LCD typically consumes around 20mA. If you want to reduce power consumption, you can add a current-limiting resistor (usually around 220 ohms) in series with the backlight anode (Pin 15). Some LCD modules already include this resistor internally, so check your datasheet.
- No Display or Blocks Only: Adjust the contrast potentiometer. If still no display, check wiring connections, especially power and ground.
- Garbled or Random Characters: Verify that the Arduino pins in your code match your wiring. Ensure the RW pin is connected to GND.
- Backlight Not Working: Confirm that pins 15 and 16 are connected correctly to 5V and GND, respectively.
- Display Flickering: Check for loose connections and ensure stable power supply.
- LCD Not Responding: Try resetting the Arduino and re-uploading the code. Also, test with a different LCD module if available.
Once you have the basic LCD wired and working, you can expand your project in many ways:
- Display Sensor Data: Connect sensors like temperature, humidity, or light sensors to Arduino and display real-time values on the LCD.
- Scrolling Text: Use the LCD library functions to scroll messages across the screen.
- Custom Characters: Create and display custom characters or icons using the LCD's CGRAM memory.
- Menu Systems: Build simple user interfaces with buttons to navigate menus displayed on the LCD.
- Multiple Lines and Larger Displays: Use LCDs with more rows or columns for more complex displays.
These enhancements make your projects more interactive and informative.
Wiring an Arduino LCD display without a backpack module is a valuable skill that provides a deeper understanding of how LCDs operate and interface with microcontrollers. Although it requires more wiring and careful attention to pin connections, it allows for greater flexibility and troubleshooting opportunities. By following the wiring guide, uploading the example code, and adjusting the contrast properly, you can successfully display text on a 16x2 LCD using only a few Arduino pins.
Mastering manual wiring also prepares you for more advanced projects where custom wiring or different LCD types are involved. Whether you are a beginner or an experienced maker, this knowledge enhances your ability to create engaging and functional Arduino projects.
Typically, six digital pins are used: RS, E, and four data pins (D4-D7). RW is grounded, and power and ground are connected to the Arduino 5V and GND pins.
Yes, but the contrast will be fixed and may be hard to read. It is recommended to use a potentiometer for adjustable contrast.
This usually indicates incorrect contrast settings. Adjust the potentiometer connected to pin 3 (VO) until the text appears clearly.
In 4-bit mode, only data pins D4-D7 are used, reducing Arduino pin usage. In 8-bit mode, all eight data pins (D0-D7) are used, requiring more pins but sometimes faster communication.
No, Arduino digital pins cannot supply sufficient current for the LCD. Always power the LCD from the 5V and GND pins on the Arduino.
