Using an LCD display with a microcontroller is a fundamental skill in embedded systems, enabling visual output for user interfaces, data monitoring, and interactive projects. This comprehensive guide will walk you through the process of interfacing an LCD with a microcontroller, covering hardware connections, software initialization, programming examples, troubleshooting tips, and advanced usage. The focus will be on character LCDs (like the common 16x2 LCD) and graphic LCDs, with practical insights applicable to popular microcontrollers such as PIC, Arduino, and 8051.
LCD (Liquid Crystal Display) modules are widely used to display alphanumeric characters and simple graphics. They typically do not emit light themselves but manipulate ambient or backlight illumination to show information. Microcontrollers, which are small computers on a single chip, control these displays by sending commands and data through digital pins.
- Character LCDs: Typically 16x2 or 20x4 characters, each character formed by a matrix of dots (usually 5x8 or 5x11). These are easier to interface and program.
- Graphic LCDs: Higher resolution displays capable of showing images and custom graphics, requiring more complex control.
Character LCDs are ideal for beginners due to their simplicity, while graphic LCDs provide flexibility for advanced projects requiring detailed visuals.

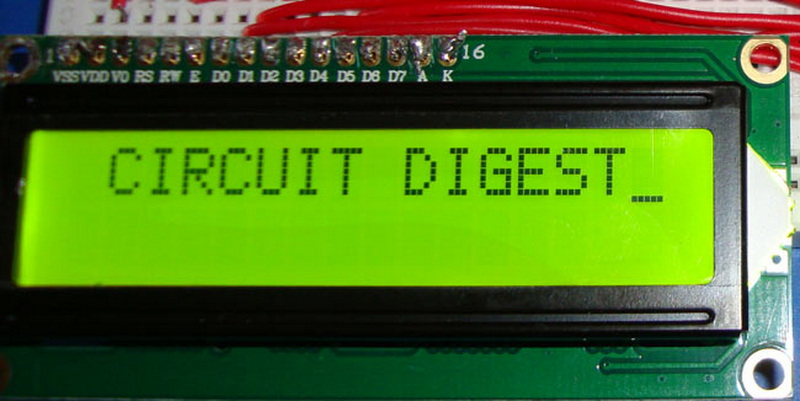

A standard 16x2 LCD module usually has 16 pins:
| Pin Number | Name | Function |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VCC | +5V Power Supply |
| 3 | VO | Contrast adjustment (via potentiometer) |
| 4 | RS | Register Select (0 = Command, 1 = Data) |
| 5 | RW | Read/Write (0 = Write, 1 = Read) |
| 6 | E | Enable signal to latch data |
| 7-14 | D0-D7 | Data bus lines |
| 15 | LED+ | Backlight + (through resistor) |
| 16 | LED- | Backlight - |
- Connect RS to a digital pin (e.g., pin 12)
- Connect Enable (E) to a digital pin (e.g., pin 11)
- Connect data pins D4-D7 to digital pins (e.g., pins 5, 4, 3, 2) for 4-bit mode
- Connect RW to ground (write mode only)
- Connect VSS to ground and VCC to 5V
- Connect VO to the middle pin of a 10k potentiometer, with other ends connected to 5V and ground, to adjust contrast
- Connect LED+ to 5V through a 220-ohm resistor and LED- to ground for backlight
This setup uses the 4-bit mode, which reduces the number of data lines needed and simplifies wiring.
LCDs support both 8-bit and 4-bit modes. While 8-bit mode uses all eight data lines (D0-D7), 4-bit mode uses only the upper four (D4-D7). Although 8-bit mode can be faster, 4-bit mode saves microcontroller pins, which is valuable in projects with limited I/O availability. The microcontroller sends data in two 4-bit nibbles, which the LCD combines.
1. Check if LCD is Busy
The LCD has a busy flag that indicates if it is ready to receive new commands or data. The microcontroller must check this before sending new information to avoid data loss.
2. Control Cursor and Display Functions
Commands control cursor position, blinking, display on/off, and scrolling.
3. Write Characters to the Display
Data sent to the LCD is interpreted as characters to be displayed.
Before displaying anything, the LCD must be initialized with a specific sequence of commands to set the interface mode (4-bit or 8-bit), display parameters, and clear the screen. For example:
- Wait for LCD power-up delay (~40 ms)
- Function set (e.g., 4-bit mode, 2 lines, 5x8 dots)
- Display ON/OFF control (turn on display, cursor off)
- Clear display command
- Entry mode set (increment cursor)
Proper initialization ensures the LCD interprets subsequent commands and data correctly.
- Commands configure the LCD's behavior (e.g., clear screen, move cursor).
- Data represents the characters to be shown.
The microcontroller sets the RS pin low for commands and high for data. The RW pin is usually grounded to write-only mode, simplifying control.
LCDs require certain delays between commands to process data internally. Typical delays are a few microseconds to milliseconds. Most microcontroller libraries handle these delays automatically, but when writing low-level code, implementing precise delays is essential.
Arduino's LiquidCrystal library abstracts much of the complexity. It provides easy-to-use functions for initialization, printing text, setting cursor, and controlling display features.
- Connect LCD data pins D4-D7 to PORTC pins RC4-RC7.
- Control pins RS and EN connected to PORTC pins (e.g., RC2 and RC3).
- RW pin grounded for write-only operation.
- Use MikroC PRO LCD library functions like `Lcd_Init()`, `Lcd_Out(row, column, "text")`, and `Lcd_Cmd()` for commands.
- Ensure enable pin gets a HIGH-to-LOW pulse to latch data.
Programming in C or assembly requires managing timing and control signals carefully.
- Use Port 2 for data lines D0-D7.
- Assign bits of Port 0 for RS, RW, and Enable.
- Write assembly or C code to send commands and data.
- Implement delay routines to meet LCD timing requirements.
- Initialize LCD with proper command sequence.
- Write subroutines for sending commands and data.
8051 microcontrollers often require more manual control but offer flexibility for custom applications.
Graphic LCDs require sending pixel data rather than characters. The process involves:
- Creating the graphic in an editor.
- Converting the image to a format compatible with the LCD controller (e.g., bitmap arrays).
- Sending initialization commands specific to the graphic LCD controller (e.g., ST7920).
- Writing functions to send pixel data to the display buffer.
- Refreshing the display by transmitting the buffer.
Graphic LCDs are ideal for applications such as simple games, icons, and complex user interfaces. However, they require more memory and processing power than character LCDs.
Character LCDs allow defining up to eight custom characters by programming the CGRAM (Character Generator RAM). This feature is useful for displaying symbols, icons, or language-specific characters not included in the default character set.
- Define a 5x8 pixel pattern for each character.
- Write the pixel pattern to CGRAM addresses.
- Use the custom character by printing the corresponding CGRAM code.
This technique enhances the versatility of character LCDs without switching to graphic displays.
- LCD not displaying anything: Check wiring, power supply, and contrast potentiometer.
- Characters not displaying correctly: Verify initialization sequence and data/command distinction (RS pin).
- Display flickering or not refreshing: Ensure proper use of clear and cursor functions, and avoid overlapping text.
- Backlight not working: Confirm LED+ and LED- connections and resistor value.
- I2C LCD not responding: Verify SDA and SCL connections, run I2C scanner to detect address, and adjust contrast.
Proper troubleshooting often involves checking both hardware connections and software logic.
LCD modules require a stable 5V power supply for logic and backlight. The backlight typically consumes more current, so using a current-limiting resistor is essential to prevent damage. Some modules support adjustable backlight brightness via PWM (Pulse Width Modulation) control on the LED+ pin.
I2C LCD modules integrate a serial interface chip that converts I2C data into parallel signals for the LCD. This reduces the number of microcontroller pins needed to only two (SDA and SCL).
- Saves microcontroller pins.
- Simplifies wiring.
- Easier to expand multiple devices on the same bus.
Requires using specific libraries that handle I2C communication and LCD commands. Initialization and data writing are abstracted, making it beginner-friendly.
Interfacing an LCD display with a microcontroller is a versatile and essential skill in embedded systems development. By understanding the hardware connections, command protocols, and programming techniques, you can effectively display text and graphics on various LCD modules. Whether using simple character LCDs or advanced graphic displays, the principles remain consistent: initialize the display, send commands and data correctly, and manage timing and control signals. With practice and troubleshooting, LCD interfacing can greatly enhance your projects by providing a clear visual interface.
Connect the LCD data pins D4-D7 to four microcontroller pins, control RS and EN pins to two more microcontroller pins, ground RW pin, and use a potentiometer for contrast. Initialize the LCD in 4-bit mode by sending specific commands during setup.
The Enable pin latches the data present on the data bus into the LCD when it transitions from HIGH to LOW. This pulse tells the LCD to read the data or command.
Use a 10k potentiometer connected between +5V and ground, with its wiper connected to the VO (contrast) pin of the LCD. Turning the potentiometer adjusts the voltage and thus the contrast.
Yes, I2C LCD modules reduce the number of pins needed by using a serial communication protocol. You need to connect SDA and SCL lines and use an appropriate library to communicate.
For character LCDs, you can define custom characters by programming the CGRAM. For graphic LCDs, convert images to bitmap arrays and send pixel data according to the LCD controller's protocol.
