Displaying sensor values on an LCD using Arduino is a popular project among electronics enthusiasts and hobbyists. This guide will provide you with a comprehensive overview of how to set up your Arduino with an LCD, connect various sensors, and display their readings effectively.
Before diving into the wiring and coding, let's familiarize ourselves with the essential components involved in this project.
The Arduino board is the brain of your project. It processes the input from sensors and sends output to the LCD. There are several types of Arduino boards available, including the Arduino Uno, Nano, and Mega. For beginners, the Arduino Uno is often recommended due to its simplicity and wide support.
Liquid Crystal Displays (LCDs) are used to present information visually. For this project, we will use a 16x2 LCD, which can display two lines of text with up to 16 characters each. These displays are widely used due to their affordability and ease of use.
Various sensors can be used depending on what values you want to display. Common options include:
- Temperature Sensors (e.g., DHT11, LM35): These sensors measure temperature and can be used in weather stations or climate control systems.
- Humidity Sensors: Often paired with temperature sensors, these devices measure moisture in the air.
- Light Sensors (e.g., LDR): Light-dependent resistors can detect ambient light levels and are useful in projects like automatic lighting systems.
- Potentiometers: These variable resistors can be used to measure voltage levels and are often used in audio applications for volume control.
You will need jumper wires, a breadboard, and possibly resistors for certain sensors. Jumper wires come in different lengths and colors, making it easier to organize your connections.

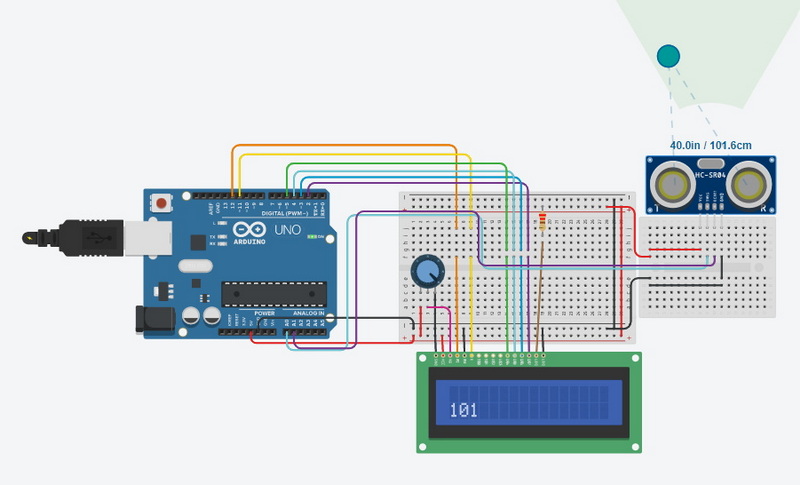

Here's how to connect a 16x2 LCD to an Arduino:
| LCD Pin | Function | Arduino Pin |
|---|---|---|
| 1 | Ground | GND |
| 2 | VCC (Power) | +5V |
| 3 | Contrast Adjust | Potentiometer |
| 4 | RS (Register Select) | Pin 12 |
| 5 | R/W (Read/Write) | GND |
| 6 | Enable | Pin 11 |
| 11 | D4 | Pin 5 |
| 12 | D5 | Pin 4 |
| 13 | D6 | Pin 3 |
| 14 | D7 | Pin 2 |
| 15 | Backlight + | +5V |
| 16 | Backlight - | GND |
Note: The contrast pin (Pin 3) should be connected to the middle pin of a potentiometer, with the other two pins connected to +5V and GND respectively.
The connections will vary based on the type of sensor you are using. For example, if you are using a DHT11 temperature and humidity sensor:
- Connect VCC to +5V
- Connect GND to GND
- Connect the data pin to a digital pin on the Arduino (e.g., Pin 7)
To display sensor values on the LCD, you need to write code that reads data from the sensor and sends it to the LCD. The code typically includes initializing libraries for both the LCD and sensors, setting up pin modes in the `setup()` function, and continuously reading sensor values in the `loop()` function.
1. Upload Code: Connect your Arduino to your computer and upload the code using the Arduino IDE.
2. Power Up: Ensure all connections are secure and power up your Arduino.
3. Observe Output: You should see "Potentiometer:" on the first line and the voltage reading on the second line of your LCD.
If you encounter issues displaying data on your LCD:
- Ensure all connections are correct.
- Check if the contrast adjustment is set correctly.
- Verify that your code matches your wiring configuration.
- If using I2C, ensure you have installed necessary libraries and that addresses match.
Once you have successfully displayed basic sensor values on your LCD, consider expanding your project by adding more sensors or features:
You can integrate multiple sensors into your project for a more comprehensive data display:
- Multiple Temperature Sensors: Use different types of temperature sensors (like LM35 for analog readings alongside DHT11 for digital readings).
- Environmental Monitoring: Combine temperature, humidity, and light sensors for a complete environmental monitoring system.
Consider adding buttons or rotary encoders that allow users to interact with your display:
- Menu Navigation: Create a simple menu system that lets users choose which sensor data they want displayed.
- Adjustable Settings: Allow users to adjust settings directly from the interface.
Incorporate data logging capabilities by connecting an SD card module:
- Store Readings: Save sensor readings over time for analysis later.
- Graphical Representation: Use software like Excel or Google Sheets to visualize logged data.
To make your display more informative or visually appealing:
You can create custom characters for specific icons or symbols that represent different statuses or alerts:
- Icons for Alerts: Design icons that indicate when certain thresholds are exceeded (e.g., high temperature).
- Bar Graphs: Use custom characters to represent bar graphs visually.
Adding backlighting can improve visibility in low-light conditions:
- LED Control: Use PWM pins to control brightness based on ambient light levels detected by a light sensor.
For those looking for more advanced projects, consider integrating wireless communication:
Using Bluetooth modules like HC-05 allows you to send sensor data wirelessly:
- Mobile App Integration: Create a mobile app that displays real-time data from your Arduino setup.
Connect your setup to IoT platforms such as Blynk or ThingSpeak:
- Remote Monitoring: Monitor sensor values from anywhere via an internet connection.
- Alerts via Email/SMS: Set up alerts that notify you when certain conditions are met.
Using an Arduino to display sensor values on an LCD is an excellent way to visualize data in real-time. With just a few components and simple coding, you can create informative displays for various applications. Whether you're monitoring environmental conditions or creating interactive devices, this foundational project opens up numerous possibilities for learning and creativity in electronics.
You can use either a standard parallel LCD or an I2C-enabled LCD for easier wiring.
Use a potentiometer connected to the contrast pin (Pin 3) of your LCD.
Yes, you can read multiple sensors and display their values sequentially or simultaneously on your LCD.
The primary library required is `LiquidCrystal.h`, which comes pre-installed with the Arduino IDE.
This often indicates incorrect wiring or initialization issues; double-check connections and ensure that R/W pin is grounded.
