LCD (Liquid Crystal Display) modules are versatile components that can greatly enhance your DIY electronics projects. These displays provide a simple yet effective way to show information, making them ideal for a wide range of applications. In this comprehensive guide, we'll explore how to incorporate LCD module displays into your projects, from basic setup to advanced techniques.

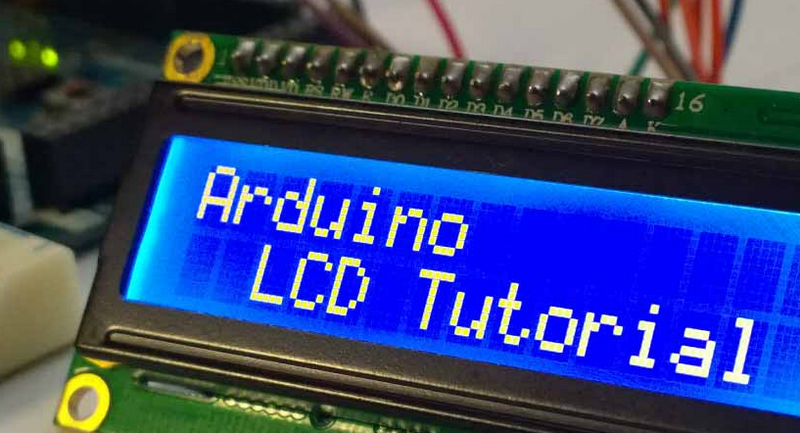

LCD module displays come in various sizes and configurations. The most common type for DIY projects is the 16x2 LCD, which can display 16 characters across 2 lines. These displays use liquid crystals to produce visible characters when an electric current passes through them.
To get started with an LCD module display, you'll need:
1. An Arduino board (Uno, Nano, or Mega)
2. 16x2 LCD module
3. Potentiometer (10k ohm)
4. Breadboard
5. Jumper wires

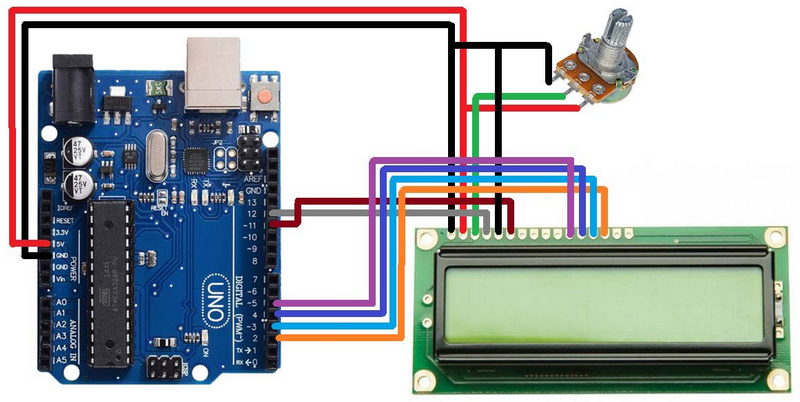

Here's how to connect a standard 16x2 LCD to an Arduino:
1. Connect VSS pin to Arduino GND
2. Connect VDD pin to Arduino 5V
3. Connect V0 pin to the middle pin of the potentiometer
4. Connect RS pin to Arduino digital pin 12
5. Connect RW pin to Arduino GND
6. Connect E pin to Arduino digital pin 11
7. Connect D4, D5, D6, D7 pins to Arduino digital pins 5, 4, 3, 2 respectively
8. Connect A pin (LED+) to Arduino 5V through a 220-ohm resistor
9. Connect K pin (LED-) to Arduino GND

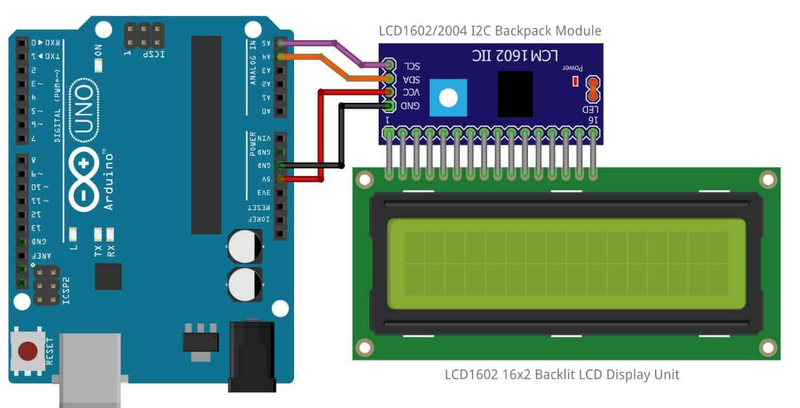

For a cleaner setup, you can use an I2C adapter with your LCD:
1. Connect GND to Arduino GND
2. Connect VCC to Arduino 5V
3. Connect SDA to Arduino A4
4. Connect SCL to Arduino A5
1. Digital Clock
Create a simple digital clock using an Arduino and LCD display.
2. Weather Station
Build a weather station that shows temperature, humidity, and pressure on an LCD.
3. Game Console
Develop a simple game like Snake or Pong using an LCD for the display.
4. Smart Home Control Panel
Use an LCD to display and control various aspects of a smart home system.
5. Digital Voltmeter
Create a voltmeter that displays readings on an LCD screen.
If your LCD isn't displaying anything:
- Check all connections
- Adjust the contrast using the potentiometer
- Verify your code for any errors
If you see strange characters:
- Ensure you're using the correct library
- Check if you've initialized the LCD correctly in your code
For a flickering display:
- Check your power supply
- Ensure you're not overloading the Arduino's current capacity
For a visual guide on using LCD displays with Arduino, check out this helpful video:
LCD module displays are powerful tools for adding visual feedback to your DIY projects. From simple text displays to complex sensor readouts, these versatile components can significantly enhance the functionality and user experience of your Arduino-based creations. With the knowledge gained from this guide, you're well-equipped to start incorporating LCD displays into your projects, opening up a world of new possibilities for your DIY endeavors.
Character LCDs are designed to display alphanumeric characters and some pre-defined symbols. They typically come in configurations like 16x2 or 20x4, indicating the number of characters per line and the number of lines. Graphical LCDs, on the other hand, can display both text and images. They have a matrix of pixels that can be individually controlled, allowing for more complex displays including custom graphics and even simple animations.
To adjust the contrast on your LCD display, you typically use a potentiometer connected to the V0 pin of the LCD. By turning the potentiometer, you can increase or decrease the voltage applied to this pin, which in turn adjusts the contrast of the display. If you're using an I2C adapter, it often has a built-in potentiometer that you can adjust with a small screwdriver.
Yes, LCD displays can be used with a wide variety of microcontrollers, not just Arduino. They can be interfaced with Raspberry Pi, ESP8266, ESP32, PIC microcontrollers, and many others. The key is to ensure that you have the correct library for your microcontroller and that you're connecting the LCD pins to the appropriate GPIO pins on your chosen board.
There are two main ways to reduce the number of pins used by an LCD:
1. Use 4-bit mode instead of 8-bit mode. This reduces the number of data pins from 8 to 4, but may slightly slow down the display update speed.
2. Use an I2C adapter. This allows you to connect the LCD using only two pins (SDA and SCL) on your Arduino, plus power and ground. This is particularly useful when you're running low on available pins for other components in your project.
The power consumption of an LCD module can vary depending on its size and whether it has a backlight. A typical 16x2 LCD without backlight might consume around 1mA, while the same display with backlight could use up to 20-30mA. It's important to consider this when designing battery-powered projects. If power consumption is a concern, you can implement power-saving techniques like turning off the backlight when it's not needed or putting the display to sleep during periods of inactivity.
