The 16x2 I2C LCD display is a popular and versatile component for microcontroller projects, offering a simple way to display text and data with minimal wiring. This article provides an in-depth explanation of how to use a 16x2 I2C LCD display, including hardware setup, wiring, software libraries, troubleshooting, and practical applications. Throughout the article, visual aids and video tutorials are referenced to enhance understanding.
A 16x2 LCD display consists of 16 characters per line and 2 lines, capable of displaying alphanumeric characters and symbols. The I2C (Inter-Integrated Circuit) interface significantly reduces the number of pins needed to connect the LCD to a microcontroller, using only two data lines: SDA (Serial Data) and SCL (Serial Clock).
- Fewer pins required compared to parallel LCDs (only 4 pins: VCC, GND, SDA, SCL)
- Simplifies wiring and reduces circuit complexity
- Supports multiple devices on the same bus with unique addresses
- Compatible with popular microcontrollers like Arduino, ESP32, and Raspberry Pi
- 16x2 LCD display with I2C interface module (usually with PCF8574 chip)
- Microcontroller board (e.g., Arduino Uno, Arduino Nano, ESP32)
- Jumper wires (male-to-female or female-to-female depending on setup)
- Breadboard (optional, for prototyping)
- USB cable for programming the microcontroller
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | VCC | Power supply (usually 5V) |
| 3 | SDA | I2C data line |
| 4 | SCL | I2C clock line |
Some modules may have an additional pin for backlight control, but typically only these four are used.

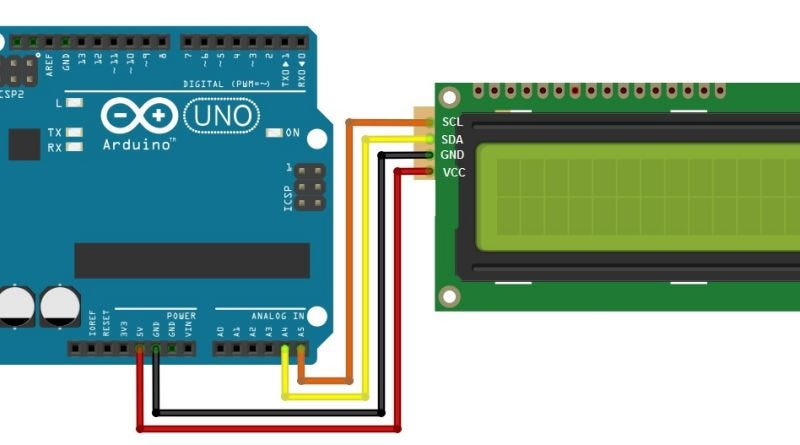

- Connect VCC of LCD to 5V on Arduino
- Connect GND of LCD to GND on Arduino
- Connect SDA of LCD to A4 pin on Arduino
- Connect SCL of LCD to A5 pin on Arduino
- Connect VCC of LCD to 5V (VIN) on ESP32
- Connect GND of LCD to GND on ESP32
- Connect SDA of LCD to GPIO 21
- Connect SCL of LCD to GPIO 22
- Connect VCC of LCD to 3.3V or VIN (depending on module)
- Connect GND of LCD to GND
- Connect SDA of LCD to GPIO 4 (D2)
- Connect SCL of LCD to GPIO 5 (D1)
To control the 16x2 I2C LCD, you need to use a compatible library that supports I2C communication. The most commonly used library for Arduino is LiquidCrystal_I2C.
1. Install the Arduino IDE and connect your microcontroller.
2. Download and install the LiquidCrystal_I2C library via the Library Manager or manually.
3. Use an I2C scanner sketch to find the LCD's I2C address (commonly 0x27 or 0x3F).
4. Initialize the LCD in your code using the address and size (16 columns x 2 rows).
5. Use functions such as `lcd.init()`, `lcd.backlight()`, `lcd.setCursor()`, and `lcd.print()` to display text.
- Initialize the LCD with the correct I2C address.
- Turn on the backlight.
- Set the cursor position.
- Print messages or variables.
- Optionally, create custom characters or implement scrolling text.
The 16x2 I2C LCD is widely used in projects such as:
- Displaying sensor data (temperature, humidity, distance)
- User interfaces for menus and settings
- Real-time clocks and timers
- Debugging information during development
Some advanced examples include:
- Displaying scrolling text messages
- Showing variables and sensor readings dynamically
- Creating custom characters or emojis on the LCD
- Interfacing multiple I2C LCDs on the same bus
- Check the I2C address using an I2C scanner sketch; update the address in your code accordingly.
- Adjust the contrast potentiometer on the I2C module (usually a small blue screw) to improve visibility.
- Verify wiring connections, especially SDA and SCL pins; ensure they are not swapped.
- Inspect solder joints between the LCD and I2C backpack for dry or bridged joints.
- Try different libraries if one does not work properly.
- Confirm the LCD initialization function is correct (`lcd.init()` instead of `lcd.begin()` in some libraries).
- Check power supply voltage and stability.
- Ensure no interference on the I2C bus from other devices or code conflicts.
- Verify that the LCD size parameters in the code match your hardware (16x2 vs 20x4).
- Confirm that the wiring and library support the LCD model you are using.
- Always use pull-up resistors on SDA and SCL lines if your module does not have them built-in.
- Use level shifters if interfacing with 3.3V microcontrollers to protect 5V LCD modules.
- For multiple LCDs, ensure each has a unique I2C address or use multiplexing techniques.
- Use libraries that support custom characters to enhance display capabilities.
The 16x2 I2C LCD display is an efficient and user-friendly component for adding visual output to microcontroller projects. Its I2C interface simplifies wiring and conserves microcontroller pins, making it ideal for beginners and advanced users alike. By following proper wiring, using the right libraries, and troubleshooting common issues, you can effectively integrate this display into various applications, from simple text output to complex sensor interfaces.
With the availability of numerous tutorials, libraries, and community support, mastering the use of a 16x2 I2C LCD display is accessible and rewarding for electronics enthusiasts.
You can use an I2C scanner sketch available for Arduino and other platforms. This program scans the I2C bus and reports the addresses of connected devices. Common addresses for 16x2 LCD I2C modules are 0x27 and 0x3F.
Yes, but it is recommended to use a level shifter to match voltage levels between the 5V LCD module and the 3.3V microcontroller to avoid damage.
Most I2C LCD modules have a small potentiometer (blue screw) on the I2C backpack. Turning this screw adjusts the contrast of the display.
Yes, the LCD controller supports custom characters, which can be created using functions like `createChar()` in the LiquidCrystal_I2C library.
Check that your wiring is correct, especially SDA and SCL lines. Verify the I2C address and ensure the correct initialization function (`lcd.init()`) is used. Also, adjust the contrast and inspect solder joints for defects.
