LCD modules are essential components in many Arduino projects, providing a visual interface for displaying information. The 20x4 LCD module, in particular, is a popular choice due to its ability to display 20 characters across 4 lines. However, when working with these modules, you may encounter various issues that can be frustrating. This comprehensive guide will walk you through the process of troubleshooting a 20x4 LCD module with Arduino, ensuring your project runs smoothly.

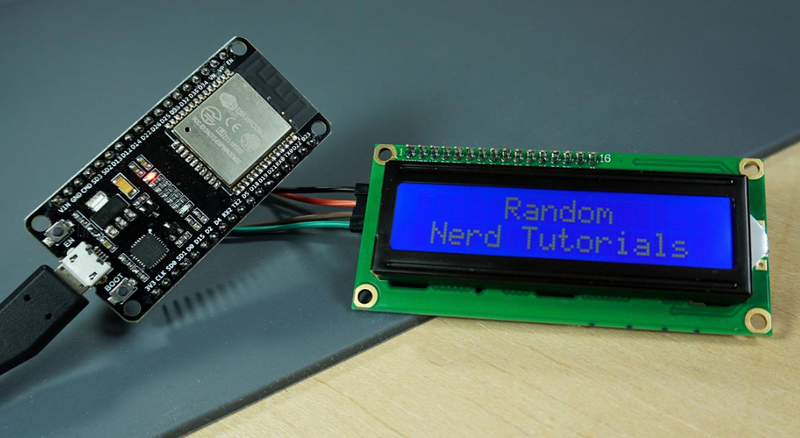

Before diving into troubleshooting, it's crucial to understand the basics of a 20x4 LCD module. This display can show 20 characters in each of its 4 rows, allowing for a total of 80 characters at any given time[1]. The module typically comes with either a parallel interface or an I2C interface, with the latter being more popular due to its simplified wiring.
When working with a 20x4 LCD module, you might encounter several issues:
1. Blank display
2. Garbled or incorrect characters
3. Only partial display functioning
4. Backlight issues
5. Contrast problems
Let's explore how to address each of these issues.

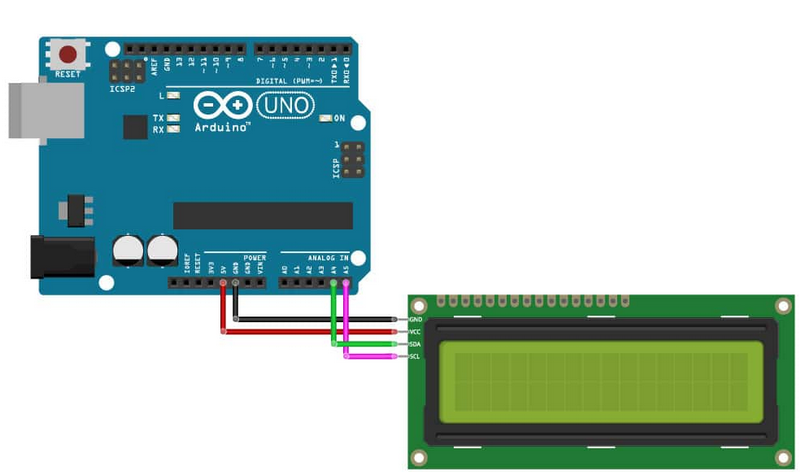

The first step in troubleshooting any Arduino project is to verify all connections. For a 20x4 LCD module, ensure that:
- Power (VCC and GND) is correctly connected
- Data lines (SDA and SCL for I2C, or D4-D7 for parallel) are properly wired
- Control pins (RS, E, and RW if used) are connected correctly
Ensure that your 20x4 LCD module is receiving the correct voltage. Most modules require 5V, but some can operate at 3.3V. Using a multimeter, check the voltage across the VCC and GND pins of the LCD module[2].
If your display is blank or shows faint characters, the contrast might need adjustment. For modules with a potentiometer, turn it slowly while observing the display.
For I2C 20x4 LCD modules, ensure you're using the correct I2C address. Common addresses are 0x27 and 0x3F, but it can vary.
Ensure you have the correct library installed for your 20x4 LCD module. For I2C modules, the LiquidCrystal_I2C library is commonly used. Install it through the Arduino IDE's Library Manager[3].
For parallel interface 20x4 LCD modules, you can test individual pins using a simple LED circuit. Connect an LED and resistor to each data pin (D4-D7) and observe if they light up when the Arduino sends data.
An oscilloscope can be invaluable for troubleshooting I2C communication issues. Connect the probes to the SDA and SCL lines to observe the signal and ensure proper communication[4].
In some cases, the 20x4 LCD module may malfunction due to overheating. Ensure proper ventilation and consider adding a small heatsink if necessary.
1. Incorrect voltage: Always double-check that you're using the correct voltage for your 20x4 LCD module.
2. Loose connections: Ensure all wires are securely connected, especially when using a breadboard.
3. Incorrect library: Make sure you're using the appropriate library for your specific 20x4 LCD module.
4. Forgetting to initialize: Always call `lcd.init()` or `lcd.begin()` in your setup() function.
5. Overwriting display: Be mindful of cursor positions to avoid overwriting previous content.
For a visual guide on troubleshooting a 20x4 LCD module with Arduino, check out this helpful video:
Troubleshooting a 20x4 LCD module with Arduino can be a challenging but rewarding process. By following the steps outlined in this guide, you should be able to identify and resolve most common issues. Remember to always start with the basics: check your connections, verify power supply, and use simple test sketches. With patience and systematic troubleshooting, you'll have your 20x4 LCD module working perfectly in no time.
Strange characters on a 20x4 LCD module can be caused by incorrect wiring, improper initialization, or issues with the data being sent. Double-check your connections, ensure you're using the correct library, and verify that your code is sending the intended data to the display.
For modules with a potentiometer, simply turn it to adjust the contrast. For I2C modules without a physical potentiometer, you can adjust the contrast in software using the `setContrast()` function provided by some libraries.
First, check if the backlight pins are correctly connected. For I2C modules, ensure you've called the `backlight()` function in your setup. If the issue persists, the backlight LED might be damaged and may need replacement.
Most 20x4 LCD modules are designed for 5V operation. However, some modules can work with 3.3V. Check your module's specifications, and if it's not compatible, consider using a level shifter to safely interface it with a 3.3V Arduino board.
Use an I2C scanner sketch (provided earlier in this article) to detect the correct address. Common addresses are 0x27 and 0x3F, but it can vary depending on the manufacturer and module configuration.
