Soldering an LCD display is a fundamental skill for electronics enthusiasts, makers, and engineers. Whether you're building a custom Arduino project, repairing a device, or integrating a display into your prototype, mastering this process ensures reliable connections and optimal performance. This comprehensive guide covers everything you need to know about soldering an LCD display, from essential tools and materials to advanced techniques, troubleshooting, and frequently asked questions. Throughout, you'll find detailed explanations, visual aids, and curated video resources to help you achieve professional results.
Soldering is the process of joining electronic components with a metal alloy (solder) that melts at a relatively low temperature. For LCD displays, soldering is critical to ensure stable electrical connections between the display and your circuit. Poor solder joints can lead to display glitches, intermittent connections, or even permanent damage to the LCD.
This guide focuses on through-hole character LCDs (such as the popular 16x2 model), but the principles apply to other types as well.
LCDs (Liquid Crystal Displays) are widely used because of their efficiency, clarity, and versatility. The most common type for hobbyists is the 16x2 character LCD, which displays 16 characters per line over two lines. These modules typically interface with microcontrollers like Arduino or Raspberry Pi and require soldering header pins for connection.
Key Features:
- Character Display: Up to 32 characters (16 per line)
- Backlight: For improved visibility
- Interface: Parallel or I2C (for reduced wiring)
- Pin Headers: Usually 16 pins for basic operation
LCDs come in various forms, including graphic LCDs, OLED displays, and TFT screens. Each type may have different pinouts or soldering requirements, but the basic process remains similar. Understanding the datasheet for your specific LCD is crucial for identifying pin functions and ensuring correct connections.
Before you begin, gather the following:
- Soldering iron (15–30W is ideal for electronics)
- Solder (preferably rosin-core, 60/40 tin-lead or lead-free)
- Soldering iron stand and damp sponge or brass coil
- Header pins (16-pin strip for most 16x2 LCDs)
- LCD display module
- Soldering flux (optional, but recommended)
- Desoldering braid or solder sucker (for corrections)
- Tweezers or small pliers
- Safety glasses
- Clean, well-lit workspace
- Isopropyl alcohol and brush (for cleaning flux residue)
- Side cutters (for trimming pins)
- Anti-static mat (optional, for sensitive components)
- Ensure your workspace is clean, organized, and well-lit.
- Use an anti-static mat if available.
- Keep flammable materials away from the soldering area.
- Set up your soldering station with the iron, stand, and cleaning sponge or brass coil.
- If your header strip is longer than needed, trim it to the correct length (usually 16 pins).
- Insert the header pins into the LCD module's holes. For best alignment, insert the header into a breadboard first, then place the LCD on top. This ensures the pins remain straight during soldering.
- Double-check the orientation of the LCD and header pins to avoid reversed connections.
- Heat your soldering iron and clean the tip with a damp sponge or brass coil.
- Apply a small amount of solder to the tip (tinning). This improves heat transfer and prevents oxidation.
- Secure the LCD and header pins. If using a breadboard, the pins should be stable.

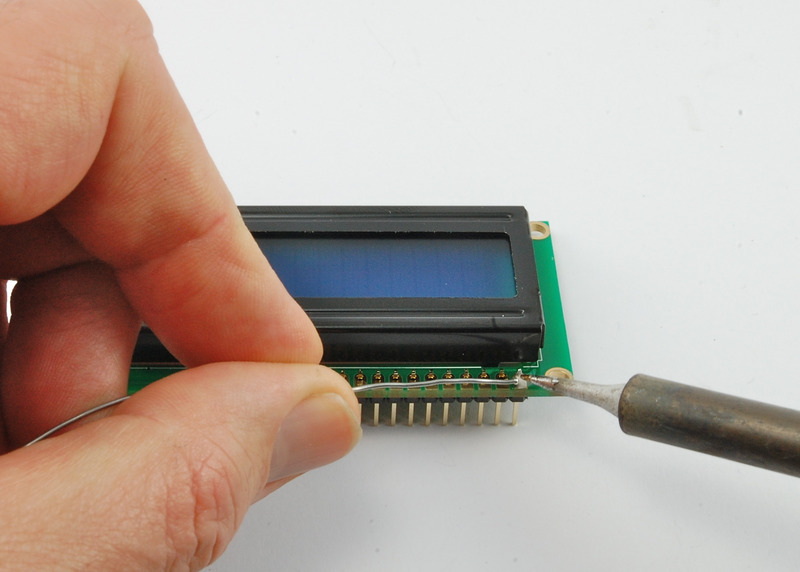

- Heat the joint by touching both the pin and the pad with the soldering iron for about 2–3 seconds.
- Feed solder into the joint (not directly onto the iron). The solder should flow smoothly around the pin and pad.
- Remove the solder, then the iron.
- Check that the joint is shiny and conical.
- After confirming alignment with the first pin, proceed to solder the rest.
- Repeat the process: heat the pin and pad, apply solder, remove solder, then iron.
- Work methodically from one end to the other to avoid missing pins.
- Avoid excessive movement of the pins while the solder is cooling, as this can create weak joints.
- Examine each joint for quality. Good joints are shiny, smooth, and cover both the pin and pad.
- If a joint is dull, uneven, or has gaps, reheat and add a small amount of solder.
- Avoid excessive solder, which can cause shorts between adjacent pins.
- Wipe the soldering iron tip after use.
- Trim any excess pin length with side cutters.
- Clean the board with isopropyl alcohol if flux residue is present.
- SMT involves soldering components directly onto the PCB surface.
- Requires precision, often with a fine-tipped iron or hot air rework station.
- Use solder paste and tweezers for placement, then reflow with heat.
- Common in mass production.
- Apply solder paste to pads, place components, and heat in an oven until the solder melts and forms solid joints.
- Used for through-hole components in large-scale manufacturing.
- The board passes over a wave of molten solder, connecting all pins simultaneously.
Mistake | Description | Solution |
---|---|---|
Excessive Solder | Too much solder creates rounded joints and potential shorts | Use minimal solder; rework if needed |
Cold Joints | Dull, grainy joints from insufficient heat | Reheat joint until solder flows |
Solder Bridges | Solder connects two adjacent pins, causing a short | Use desoldering braid to remove excess |
Overheating Components | Prolonged heat damages LCD or PCB pads | Limit heat to 2–4 seconds per joint |
Poor Alignment | Pins not straight, causing connection issues | Solder one pin, adjust, then finish |
Tip: Always let the joint cool before moving the board or pins to avoid weak connections.
- Look for missing display segments, flickering, or lines on the LCD.
- Visually inspect solder joints for dullness, cracks, or bridges.
- Apply flux to the joint.
- Reheat until solder flows and joint is shiny.
- If excess solder is present, use desoldering braid to wick it away.
- If a pin or pad is damaged from overheating, the LCD may not be repairable.
- Always use the lowest effective temperature (below 260°C) and limit contact to 2–4 seconds per joint.
- If repairs fail, consider replacing the LCD module. Always have a spare on hand for critical projects.
- Practice on scrap boards: Before soldering your actual LCD, practice on an old or unused board to build confidence.
- Keep your iron tip clean: A clean tip ensures better heat transfer and neater joints.
- Use the right amount of solder: Too little solder can cause weak joints; too much can cause shorts.
- Work in a ventilated area: Solder fumes can be harmful, so ensure good ventilation or use a fume extractor.
- Double-check pin alignment: Misaligned pins can cause connection issues or damage sockets.
- Label your pins: If you're working with multiple LCDs or complex circuits, label the pins to avoid confusion during wiring.
- Wear safety glasses: Protect your eyes from accidental solder splashes.
- Handle the soldering iron with care: The tip can reach temperatures above 350°C (662°F).
- Wash hands after soldering: Solder contains metals and flux that should not be ingested.
- Keep your workspace tidy: Clutter increases the risk of accidents.
- Be cautious with lead-based solder: If using leaded solder, avoid inhaling fumes and wash hands thoroughly.
- Avoid excessive force: Do not bend or twist the LCD after soldering, as this can stress the joints.
- Store in anti-static bags: Protect sensitive displays from static discharge.
- Inspect regularly: Check solder joints periodically for signs of corrosion or fatigue, especially in environments with vibration or temperature changes.
- Clean contacts as needed: If you notice erratic display behavior, clean the contacts with isopropyl alcohol.
Soldering an LCD display is a manageable task with the right preparation, tools, and patience. By following the steps outlined in this guide, you can achieve strong, reliable connections and avoid common pitfalls. Remember to use proper heat management, inspect your work carefully, and practice to refine your technique. As you gain experience, you'll be able to tackle more complex soldering challenges and integrate LCDs into a wide range of electronic projects. Mastery of this skill not only enhances your technical abilities but also opens the door to more advanced and creative electronics work.
Use rosin-core solder for best results. Lead-free solder is safer for health and the environment but may require a slightly higher temperature. For beginners, 60/40 tin-lead solder is easier to work with.
A good solder joint is shiny, smooth, and forms a concave shape around the pin and pad. It should not be dull, cracked, or have excess solder.
Yes, a soldering iron in the 15–30W range is suitable for LCD soldering. Higher wattages can risk overheating and damaging the display.
Use desoldering braid or a solder sucker to remove excess solder, then re-solder the joint carefully. Always double-check for bridges before powering up your circuit.
While rosin-core solder contains flux, adding extra flux can help solder flow better and improve joint quality, especially during rework or repairs.
