When working with Arduino and LCD displays, soldering and desoldering are common tasks, especially when modifying or repairing your projects. Removing solder from an LCD display can be tricky due to the delicate nature of the components and the risk of damaging the PCB pads or the display itself. This article provides a detailed, step-by-step guide on how to safely and effectively remove solder from an LCD display used with Arduino, along with tips, tools, and troubleshooting advice. We also include visual aids and videos to enhance understanding.
LCD displays, such as the popular 16x2 character LCD modules, typically have through-hole pins soldered onto a PCB. These pins connect the display to your Arduino or other microcontrollers. Removing solder from these pins is necessary when replacing headers, switching to an I2C backpack, or repairing faulty connections.
However, the solder pads on LCD PCBs are often small and fragile. Excessive heat or mechanical force can lift or damage these pads, rendering the display unusable. Therefore, careful technique and the right tools are essential.
Before starting, ensure you have the following tools:
- Soldering iron with a fine tip (preferably temperature-controlled)
- Desoldering pump (solder sucker)
- Solder wick (braid)
- Flux (to improve solder flow and removal)
- Needle-nose pliers
- Tweezers
- Cutters
- Heat gun or hot air station (optional, for advanced techniques)
- Safety glasses and ventilation (to protect from fumes and solder splashes)
- Work in a well-ventilated area.
- Wear safety glasses.
- Heat your soldering iron to the appropriate temperature (around 350°C/662°F for leaded solder).
- Apply a small amount of flux to the solder joints to help the solder melt evenly.
- Place the soldering iron tip on the solder joint of the LCD pin.
- Allow the solder to melt completely. Avoid prolonged heating to prevent damage to the PCB.
- Desoldering pump method: Once the solder is molten, quickly place the tip of the desoldering pump over the solder and activate it to suck the molten solder away.
- Solder wick method: Place the solder wick over the molten solder and press the soldering iron tip on top. The wick will absorb the solder.
Repeat this process until the solder is sufficiently removed and the pin can be gently moved or removed.
- After removing enough solder, gently wiggle and pull the pin out using needle-nose pliers.
- If the pin resists, reheat and remove more solder as needed.
- Use solder wick and flux to clean any residual solder from the pads.
- Inspect the pads for damage. If pads are lifted or missing, repair may be difficult and could require wiring directly to the LCD contacts or replacing the display.
- Using a Heat Gun or Hot Air Station: These tools can heat the entire area evenly, making it easier to remove solder from multiple pins simultaneously. Hold the board with pliers and gently pull the pins once the solder is molten[7].
- Cutting and Removing Headers: For headers joined together, cut the plastic between pins with flush cutters, remove the plastic, then desolder pins individually to avoid excessive heat on the PCB[1].
- Kinetic Method: Heat the solder joint and then gently tap or slam the PCB edge on a padded surface to jar molten solder out of the holes. This method is risky for LCDs and should be used cautiously[5][6].
- Applying too much heat for too long, which can lift or burn the solder pads.
- Pulling pins forcefully without fully melting the solder.
- Using lead-free solder without adequate experience, as it melts at higher temperatures and is harder to remove.
- Not using flux, which helps solder flow and removal.
If solder pads are damaged or lifted:
- Consider soldering wires directly to the LCD contacts, bypassing the damaged pads[4].

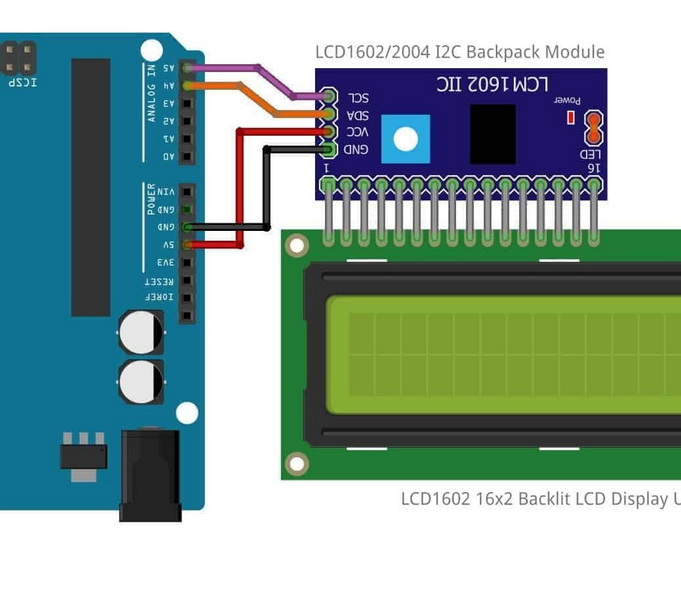

- Switch to using an I2C backpack module for the LCD, which reduces the number of pins and solder joints required, minimizing risk[4].
- Practice soldering and desoldering on cheaper or scrap electronics before working on your LCD display[4][6].
Removing solder from an LCD display for Arduino projects requires patience, the right tools, and careful technique. Using a soldering iron with a desoldering pump or solder wick, combined with flux, allows for effective solder removal while minimizing damage to the delicate LCD PCB. Advanced tools like heat guns can aid in difficult cases, but caution is necessary to avoid harming the display. If damage occurs, alternative wiring methods or switching to I2C modules can save your project. With practice and proper precautions, solder removal becomes a manageable skill in your electronics toolkit.
Use a fine-tip soldering iron, apply flux, and remove solder with a desoldering pump or solder wick carefully. Avoid prolonged heating and mechanical force. If pads are damaged, consider wiring directly to contacts or using an I2C module[1][4][6].
A temperature-controlled soldering iron, desoldering pump, solder wick, flux, and optionally a heat gun or hot air station are recommended[1][7].
Yes, if removed carefully without bending or damaging them, pins can be reused. Cutting headers before desoldering helps preserve pins[1][2].
Use solder wick and flux to clean the holes. If solder is stubborn, gently reheat and use a toothpick to clear the hole. Avoid excessive force to prevent pad damage[6].
If the solder pads or PCB are severely damaged, buying a new LCD is often more cost-effective. Using an LCD with an I2C backpack simplifies connections and reduces soldering risks[4][5].
