Liquid Crystal Displays (LCDs) are widely used in electronic devices, from household appliances to industrial equipment. Reading data from an LCD display can enable applications such as data logging, remote monitoring, IoT integration, and device automation. This article explores the principles, methods, hardware considerations, and practical steps for reading data from various types of LCDs. It also includes visual aids and video resources to enhance understanding.
LCDs do not generate data themselves; they display information sent from a controller or microcontroller. The data shown on an LCD is typically encoded in signals sent via control and data lines. To read data from an LCD, one must intercept or monitor these signals and decode them into meaningful information.
- Character LCDs: Display alphanumeric characters, often controlled by standard drivers like the HD44780.
- Segment LCDs: Show digits or symbols using segments (e.g., 7-segment or multi-segment displays).
- Graphic LCDs: Can display images or complex graphics, controlled by more advanced drivers.
Each type requires different approaches to reading data.

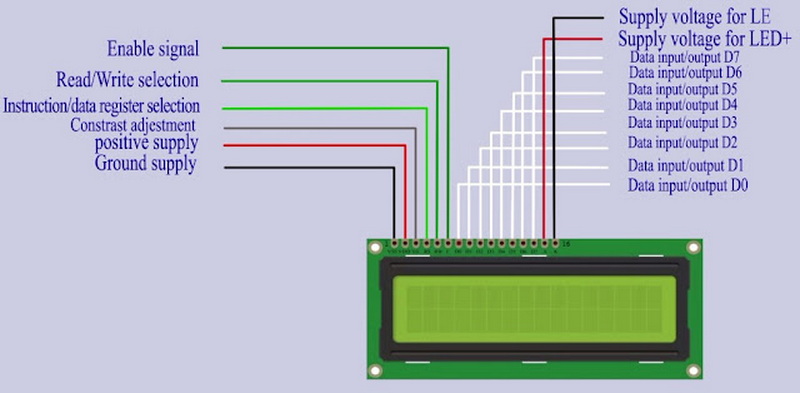

Before reading data, it is crucial to understand the LCD interface pins:
| Pin Name | Function |
|---|---|
| RS (Register Select) | Selects command register (RS=0) or data register (RS=1) |
| RW (Read/Write) | 0 for write, 1 for read operations |
| E (Enable) | Latches data on data pins when pulsed |
| D0-D7 (Data Pins) | Parallel data bus carrying command or display data |
For example, in a common 16x2 LCD using the HD44780 controller, these pins control how data is sent or read from the display[4].
One effective method involves connecting a microcontroller (e.g., Arduino, AVR) to the LCD's control and data pins and monitoring the signals as the LCD updates its display. This requires:
- Identifying the LCD's interface pins (RS, RW, E, D0-D7).
- Configuring microcontroller pins as inputs.
- Monitoring the Enable (E) pin to know when data is valid.
- Reading the data bits on the data lines.
- Decoding the bits into characters or segment states.
This approach was demonstrated in a project using an 8-bit AVR microcontroller to read LCD screen data by monitoring individual control pins and decoding the control signals to identify active segments[1].
Some LCDs use dedicated driver ICs (e.g., HT1621B) communicating via serial or parallel protocols. By sniffing the communication lines between the microcontroller and the LCD driver, you can capture the raw data sent to the display. This requires:
- Identifying communication lines (SPI, I2C, or parallel).
- Using a logic analyzer or oscilloscope to capture signals.
- Analyzing timing and protocol.
- Decoding the captured data.
If the LCD interface is unknown or undocumented, a logic analyzer or oscilloscope can help:
- Capture signals on the LCD data and control lines.
- Analyze timing and signal patterns.
- Identify the protocol and data format.
- Develop decoding algorithms accordingly.
For character LCDs with parallel data buses (4-bit or 8-bit), you can connect a microcontroller in parallel to the data bus and read bits directly. This involves:
- Using pull-down resistors to stabilize signals.
- Reading data lines synchronously with the enable (E) signal.
- Converting raw bits into characters using the LCD's character set.

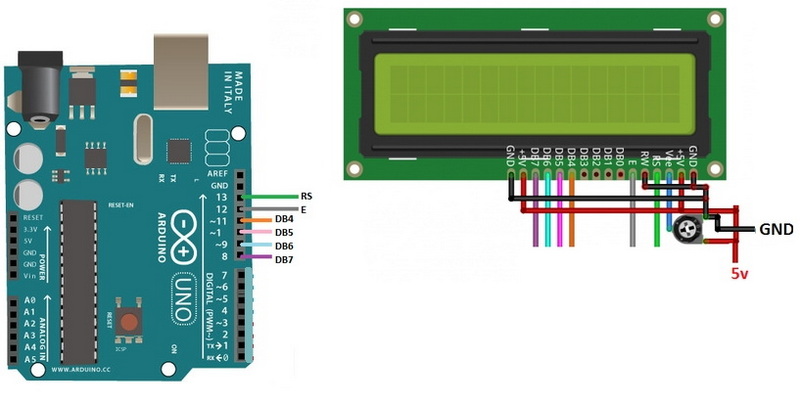

A common LCD is the 16x2 character LCD using the HD44780 controller. To read data:
- Connect data pins (D4-D7) and control pins (RS, RW, E) to a microcontroller.
- Configure microcontroller pins as inputs.
- Monitor the enable (E) pin to detect when data is valid.
- Read data bits on the data lines.
- Decode bits into ASCII characters.
- Display or transmit decoded data.
- Microcontroller (Arduino Uno, AVR ATmega328P, ESP32, etc.)
- Logic Analyzer or Oscilloscope (for unknown protocols)
- Pull-up or pull-down resistors (to stabilize signals)
- Connecting wires and breadboard
- Arduino IDE or equivalent microcontroller programming environment
- Logic analyzer software (e.g., Sigrok Pulseview)
- Custom decoding scripts or libraries
- Signal Timing: LCDs update quickly; reading data requires precise timing to capture valid data.
- Unknown Protocols: Proprietary or undocumented LCDs may require reverse engineering.
- Segment Mapping: For segment LCDs, mapping pins to segments can be complex and time-consuming.
- Noise and Interference: Use resistors and proper grounding to avoid reading errors.
- Data Rate: Some LCD drivers operate at frequencies up to 300 kHz, manageable by most microcontrollers.
- IoT Integration: Connect legacy devices to the internet by reading their LCD data.
- Data Logging: Capture measurements from devices without digital output.
- Remote Monitoring: Transmit LCD data wirelessly for remote display.
- Automation: Use LCD data as input for automated control systems.
While character LCDs display text, graphic or TFT LCDs can show images. Reading data from these displays involves different techniques, such as reading pixel data from frame buffers or SD cards.
For example, displaying images on a TFT LCD using an Arduino Due involves:
- Converting images to raw pixel data using LCD Image Converter software.
- Saving the data on an SD card.
- Reading and displaying the image data on the TFT LCD via microcontroller[3].
Reading data from an LCD display involves understanding the type of LCD, its interface pins, and communication protocols. By monitoring control and data pins directly with a microcontroller or using tools like logic analyzers, you can capture and decode the displayed information. Although challenges such as timing precision and protocol complexity exist, with the right hardware, software, and methods, extracting meaningful data from most LCDs is achievable. This capability enables enhanced monitoring, control, and integration of traditional devices into modern digital ecosystems.
Use a multimeter to trace connections and continuity. Look for common pin labels like VCC, GND, RS, RW, E, and data lines. Datasheets or manufacturer part numbers help identify pinouts. If unknown, use a logic analyzer to observe signal patterns during operation[5].
Yes, but it requires mapping each segment by monitoring which pins activate which segments during known display states. This involves recording pin states for various displayed characters and deducing the segment-to-pin mapping[5].
Yes, by connecting high-impedance inputs (e.g., microcontroller inputs with pull-up/down resistors) in parallel to the LCD data and control lines, you can monitor signals passively without affecting the LCD's function[5].
Microcontrollers with sufficient I/O pins and fast input reading capabilities, such as Arduino Uno, ESP32, or AVR ATmega328P, are suitable. The choice depends on the LCD interface complexity and required data processing speed[5].
You need to understand the driver's RAM or register map, which represents the LCD segments. By capturing the data sent to the driver and knowing the segment layout, you can translate the raw bits into displayed characters or symbols[5].
