Programming a scrolling LCD display with the MSP430 microcontroller is a popular project for embedded systems enthusiasts and developers. This article provides a comprehensive guide on how to program a 16x2 LCD display to scroll text using the MSP430 microcontroller, covering hardware interfacing, software programming concepts, and practical tips. It also includes visual aids and video references to enhance understanding. By the end, you will be able to create dynamic scrolling text displays for your MSP430 projects.
The MSP430 is a low-power microcontroller family from Texas Instruments, widely used in embedded applications. A common peripheral for user interaction is the 16x2 Liquid Crystal Display (LCD), which can show 16 characters per line on two lines.
- It is an alphanumeric display module with 16 columns and 2 rows.
- Uses the HD44780 controller or compatible, which supports commands for text display and cursor control.
- Requires multiple pins for data and control signals.
- Can be interfaced in 4-bit or 8-bit mode; 4-bit mode uses fewer pins.
- LCDs have limited display area; scrolling allows longer messages to be shown.
- Enhances user interface by making information dynamic.
- Useful in applications like status displays, clocks, counters, and IoT devices.
- MSP430G2 LaunchPad or similar MSP430 microcontroller board
- 16x2 LCD display module
- Connecting wires
- Breadboard (optional)
- Power supply (usually 5V for LCD)

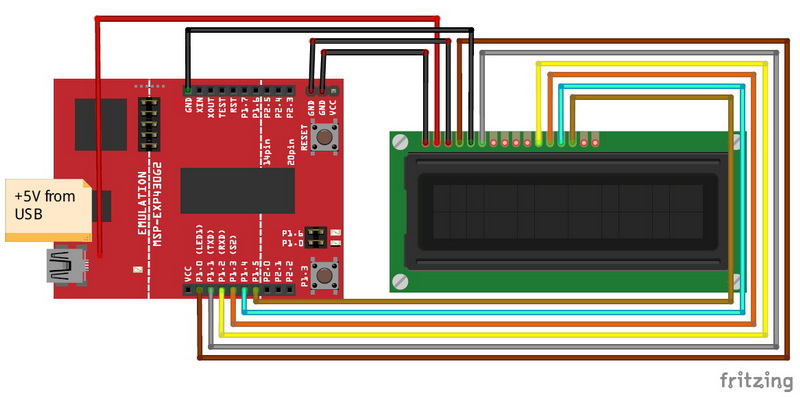

LCD Pin | Function | MSP430 Pin Connection |
---|---|---|
Vss | Ground | GND |
Vdd | +5V Power | +5V |
RS | Register Select | GPIO pin (e.g., P1.2) |
RW | Read/Write | Ground (write mode) |
EN | Enable | GPIO pin (e.g., P1.3) |
D4 | Data 4 | GPIO pin (e.g., P1.4) |
D5 | Data 5 | GPIO pin (e.g., P1.5) |
D6 | Data 6 | GPIO pin (e.g., P1.6) |
D7 | Data 7 | GPIO pin (e.g., P1.7) |
V0 | Contrast | Potentiometer middle pin (for contrast adjustment) |
The LCD is typically powered by 5V, while MSP430 operates at 3.3V; level shifting may be required for data pins depending on the board.
- Energia IDE (Arduino-like environment for MSP430)
- Alternatively, Code Composer Studio (CCS) for native MSP430 programming
- Initialize the LCD with correct dimensions (16 columns, 2 rows).
- Use GPIO pins to send commands and data to the LCD.
- Display static text initially.
- Use built-in functions or custom code to scroll text left or right.
The Energia IDE's LiquidCrystal library provides two essential functions:
- `scrollDisplayLeft()`: Scrolls the entire display one character to the left.
- `scrollDisplayRight()`: Scrolls the entire display one character to the right.
By calling these functions repeatedly with delays, you can create a smooth scrolling effect.
1. Initialize LCD and print static messages on both lines.
2. Use a loop to call `scrollDisplayRight()` multiple times with a delay to move text right.
3. Use another loop to call `scrollDisplayLeft()` multiple times to move text left.
4. Repeat the process to create continuous scrolling.
Instead of using built-in scroll functions, you can manually update the displayed text by shifting the substring shown on the LCD. This allows:
- Scrolling only one line while keeping the other static.
- Custom animation effects.
- Smooth pixel-level scrolling using custom characters.
By defining custom characters that represent partial letters or pixels, you can create the illusion of smooth scrolling beyond character-by-character shifts. This requires:
- Creating custom character bitmaps.
- Updating the display buffer accordingly.
- More complex timing and memory management.
- Use appropriate delays (e.g., 150-500 ms) between scroll steps for readability.
- Clear the display or line before updating text to avoid ghosting.
- Use the `lcd.setCursor()` function to position text precisely.
- Adjust LCD contrast using a potentiometer for clear visibility.
- Test with simple static messages before implementing scrolling.
Programming a scrolling text display on a 16x2 LCD using the MSP430 microcontroller is straightforward with the right hardware setup and software approach. Utilizing the Energia IDE and its LiquidCrystal library simplifies the process with built-in scrolling functions. For more advanced applications, manual scrolling and custom character techniques offer greater control and smoother animations. This capability enhances the user interface of embedded projects, making information display dynamic and engaging.
Connect the LCD's power pins to 5V and ground, connect RS, EN, and data pins D4-D7 to MSP430 GPIO pins, and set RW to ground. Use a potentiometer for contrast adjustment. Refer to the pin mapping table above for details[1][2].
Energia IDE is beginner-friendly and supports Arduino-style programming with LiquidCrystal library. For advanced users, Code Composer Studio (CCS) offers native MSP430 programming capabilities[1][2][5].
Use the built-in functions `scrollDisplayLeft()` and `scrollDisplayRight()` from the LiquidCrystal library to move text across the screen. Call these functions repeatedly with delays to create scrolling effects[1][4].
Yes, by manually updating the text displayed on that line while keeping the other line static. This requires custom code to manage the text buffer and cursor position[4].
Smooth scrolling can be simulated by creating custom characters that represent parts of letters and shifting them pixel by pixel. This is more complex but results in visually appealing animations[4].
