Programming LCD displays for Arduino is a fundamental skill for many electronics projects, allowing you to display text, numbers, and even custom characters. This guide will walk you through the basics of setting up and programming an LCD display with Arduino, including both parallel and I2C interfaces.
LCD displays are widely used in electronics projects due to their affordability and ease of use. The most common type is the 16x2 LCD, which can display two lines of text with 16 characters per line. These displays typically use the Hitachi HD44780 driver and can be connected in either 4-bit or 8-bit mode. The choice between these modes depends on the number of available pins on your Arduino board and the complexity of your project.
To set up an LCD display, you need a few components:
- Arduino Board: The brain of your project.
- LCD Display: Typically a 16x2 or 20x4 display.
- Breadboard: For connecting components.
- Jumper Wires: For connecting the LCD to the Arduino.
- Potentiometer: For adjusting the display contrast.

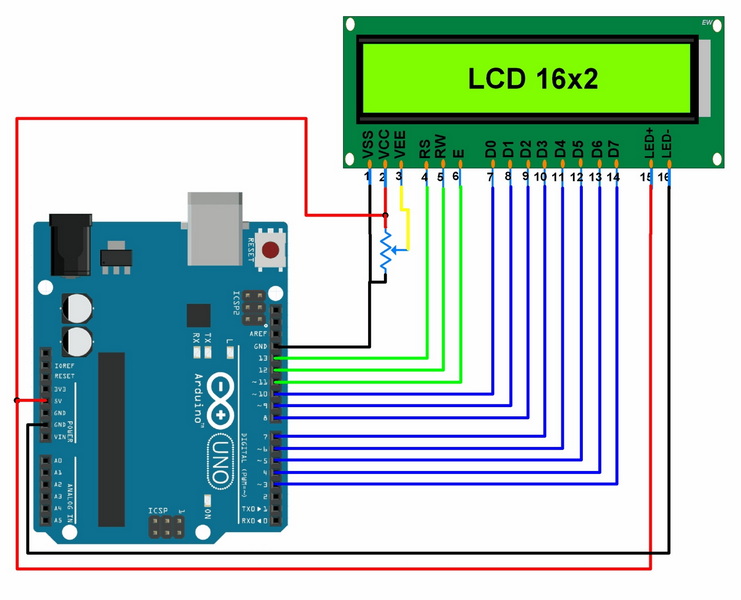

For a parallel interface LCD, you'll need to connect the following pins:
- VCC to Arduino's 5V.
- GND to Arduino's GND.
- Vo to a potentiometer for contrast control.
- RS (Register Select) to an Arduino digital pin.
- R/W (Read/Write) to GND for write mode.
- E (Enable) to an Arduino digital pin.
- D4-D7 to Arduino digital pins for 4-bit mode.
In 4-bit mode, you use fewer pins compared to 8-bit mode, which requires all eight data pins (D0-D7). This makes 4-bit mode more common for projects where pin availability is limited.
For an I2C LCD, you'll need:
- VCC to Arduino's 5V.
- GND to Arduino's GND.
- SDA to Arduino's A4.
- SCL to Arduino's A5.
I2C LCDs use fewer pins, making them more convenient for projects with limited pin availability. They also allow for easier expansion since multiple I2C devices can share the same two pins.
To program the LCD, you'll use the LiquidCrystal library for parallel LCDs or the LiquidCrystal_I2C library for I2C LCDs.
1. Include the Library: Add the necessary library at the top of your sketch.
2. Create an LCD Object: Define the pins used for the LCD.
3. Initialize the LCD: Set up the display dimensions.
4. Print Text: Use the print function to display text.
For more details on programming, refer to the Arduino documentation and examples provided with the library.
You can create custom characters using arrays of bytes and display them using the write function. Scrolling text is achieved with the scrollDisplayLeft or scrollDisplayRight functions. These features allow for more dynamic and interactive displays.
- Display Not Turning On: Check the backlight connection and contrast setting.
- Text Not Displaying: Ensure correct pin connections and library installation.
For more advanced projects, consider integrating sensors or other components to display real-time data. For example, you can use a temperature sensor to display the current temperature or a humidity sensor to monitor environmental conditions.
Programming an LCD display for Arduino is straightforward once you understand the basics of setup and programming. Whether you're using a parallel or I2C LCD, the LiquidCrystal libraries make it easy to display text and custom characters. For more advanced projects, consider exploring scrolling text and custom character creation.
Answer: Parallel LCDs require more pins (typically 7 for 4-bit mode) and are more common, while I2C LCDs use only two pins (SDA and SCL), making them more convenient for projects with limited pin availability.
Answer: Use a potentiometer connected to the Vo pin to adjust the contrast. Turning the potentiometer changes the voltage applied to the Vo pin, which affects the display's visibility.
Answer: Yes, you can create custom characters using arrays of bytes and display them using the write function. This allows for unique symbols or logos on your LCD.
Answer: Use the scrollDisplayLeft or scrollDisplayRight functions to scroll text across the display. You can adjust the scrolling speed with the delay function.
Answer: For parallel LCDs, use the LiquidCrystal library. For I2C LCDs, use the LiquidCrystal_I2C library. Both libraries are available in the Arduino IDE.
Answer: Yes, you can connect multiple LCD displays, but each parallel LCD requires its own set of pins. I2C LCDs can share the same two pins, making it easier to connect multiple displays.
Answer: Connect the VCC pin to Arduino's 5V and the GND pin to Arduino's GND. Ensure that the power supply can handle the current requirements of the display.
Answer: Yes, LCD displays can be used with any Arduino board that supports digital and analog pins. The setup and programming remain similar across different boards.
