LCD character displays are widely used in various applications due to their simplicity and efficiency. These displays are typically controlled by a microcontroller or can be interfaced directly with simple components. In this article, we will explore how to power an LCD character display, including the necessary components and steps for setup.

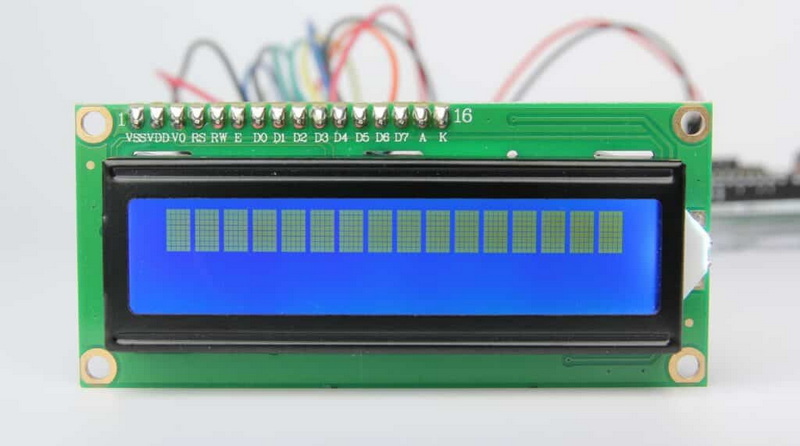

An LCD character display usually consists of a series of pins that need to be connected properly for it to function. The most common pins include:
- VCC (Power): Connects to a 5V power source.
- GND (Ground): Connects to the ground of the power source.
- RS (Register Select): Determines whether data or instructions are being sent.
- RW (Read/Write): Sets the mode to read or write data.
- E (Enable): Used to execute commands.
- D4-D7 (Data Pins): Used for data transmission in 4-bit mode.
- Backlight Pins: For displays with backlighting, these connect to a power source and ground.
To power an LCD character display, you need a few basic components:
- Power Supply: A 5V DC power supply is typical.
- Breadboard: For connecting components.
- Jumper Wires: For making connections.
- Potentiometer: For adjusting contrast.
- Optional: Backlight Resistor: If your display has a backlight.
1. Connect Power and Ground:
- Connect the VCC pin to the positive terminal of your power supply (5V).
- Connect the GND pin to the negative terminal (ground).
2. Connect the Potentiometer:
- Use a potentiometer to adjust the contrast. Connect one end to ground, the other to 5V, and the middle pin to the Vo pin of the LCD.
3. Connect Data and Control Pins:
- Connect RS, RW, E, D4-D7 to appropriate GPIO pins on your microcontroller or to switches/buttons for manual control.
4. Backlight Connection (If Applicable):
- Connect the backlight LED+ to 5V through a current limiting resistor.
- Connect the backlight LED- to ground.
The power consumption of an LCD character display is relatively low, typically around 1-2 mA for the display itself. However, if the display includes a backlight, the power consumption can increase significantly, often in the range of 50-200 mA depending on the backlight type and brightness.

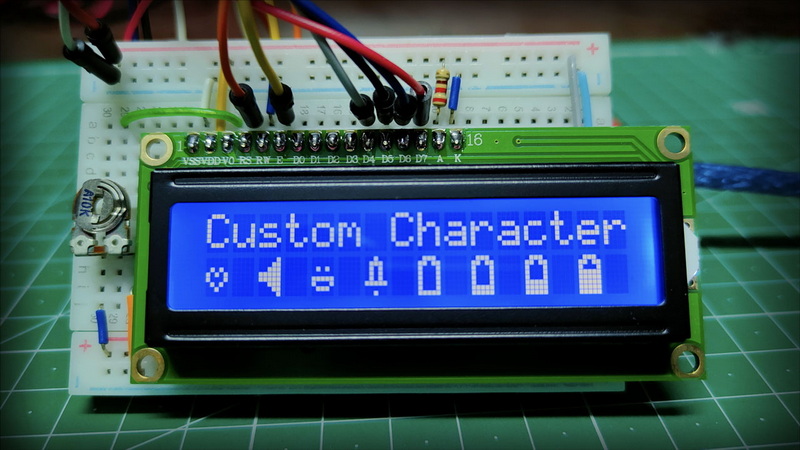

Creating custom characters on an LCD display allows for more personalized and creative messaging. Each character is formed by a 5x8 grid of pixels, which can be manipulated to create unique symbols or icons.
1. Understand the Pixel Grid:
- Each character is represented by a 5x8 pixel grid.
2. Design Your Character:
- Use a tool or manually decide which pixels to turn on/off.
3. Load into CGRAM:
- Use commands to store your custom character in the Character Generator RAM (CGRAM).
When designing custom characters, it's essential to visualize the 5x8 grid and decide which pixels to activate. This can be done using a piece of paper or a software tool. Once the design is finalized, the character can be loaded into the CGRAM using specific commands.
Beyond basic text display, LCD character displays can be enhanced with additional features such as scrolling text, blinking cursors, and custom fonts. These features are achieved through specific commands sent to the display controller.
Scrolling text allows dynamic messaging by moving text across the display. This is particularly useful for displaying longer messages or creating attention-grabbing effects.
A blinking cursor can be used to indicate where input is expected or to draw attention to specific parts of the display.
While not as common in character LCDs, some displays allow for custom fonts to be loaded, enhancing the visual appeal and uniqueness of the display.
When setting up an LCD character display, several common issues may arise:
1. No Display:
- Check power connections and ensure the display is receiving the correct voltage.
- Adjust the contrast using the potentiometer.
2. Incorrect Characters:
- Verify that the data pins are correctly connected to the microcontroller or switches.
- Ensure the RS and RW pins are set correctly for data transmission.
3. Backlight Not Working:
- Check the backlight resistor value and ensure it's not too high.
- Verify the backlight pins are correctly connected.
Powering an LCD character display involves connecting the necessary pins to a power source, adjusting contrast with a potentiometer, and optionally setting up a backlight. Understanding the components and setup process is crucial for successful integration into projects. Additionally, creating custom characters enhances the display's functionality and visual appeal.
The typical power consumption of an LCD character display is around 1-2 mA. However, if the display includes a backlight, the power consumption can increase significantly, often in the range of 50-200 mA.
Contrast is adjusted using a potentiometer connected between the power supply's positive and ground terminals, with the middle pin connected to the LCD's Vo pin.
Yes, you can use a battery to power an LCD display. However, ensure the battery voltage matches the display's requirements (typically 5V), and consider the power consumption to ensure sufficient battery life.
Custom characters are created by designing a 5x8 pixel pattern and loading it into the Character Generator RAM (CGRAM) using specific commands.
A character LCD can only display text and predefined characters, while a graphic LCD can display custom images and graphics by controlling individual pixels.
