Introduction to Measuring LCD Displays

Measuring LCD displays accurately is crucial for various applications, including purchasing screen protectors, optimizing workspace setups, and ensuring compatibility with accessories. This guide provides a comprehensive overview of how to measure LCD displays, including the tools needed, step-by-step instructions, and considerations for different types of screens.

Importance of Accurate Measurements

Accurate measurements are essential for ensuring that your LCD display fits perfectly in its designated space and functions optimally with other devices. Misjudging dimensions can lead to poorly fitting monitors or strained ergonomics, affecting both productivity and comfort. For instance, if you're setting up a multi-monitor workstation, precise measurements can help you align screens seamlessly, enhancing your overall computing experience.

Tools Needed for Measurement

To measure an LCD display, you will need the following tools:

- Flexible Measuring Tape: Ideal for curved screens, ensuring accurate readings without damaging the surface.

- Ruler or Straight Edge: Suitable for flat monitors where precision is necessary.

- Aspect Ratio Calculator: Converts diagonal measurements to width and height based on the monitor's aspect ratio.

- Screen Measurement Apps: Various applications can help measure screen sizes digitally if a ruler is unavailable.

Step-by-Step Guide to Measuring LCD Screens

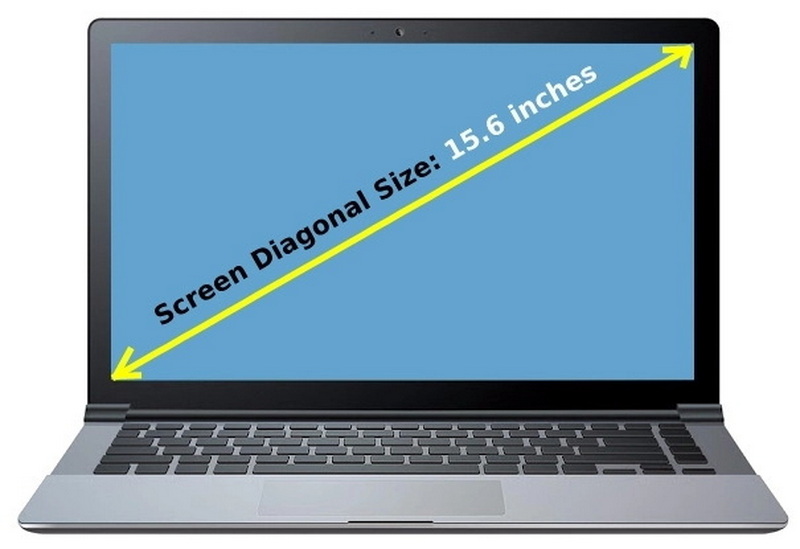

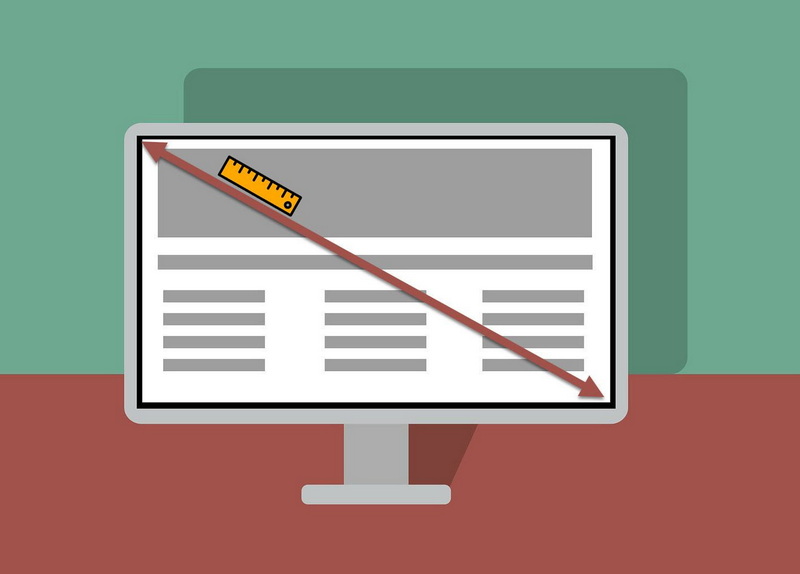

1. Diagonal Measurement (Standard Method)

The standard method for measuring LCD screens is diagonally, excluding bezels. This method standardizes comparisons across different aspect ratios.

Step-by-Step Instructions:

1. Position the tape measure at the bottom-left corner of the visible screen.

2. Extend it diagonally to the top-right corner.

3. Record the length in inches or centimeters.

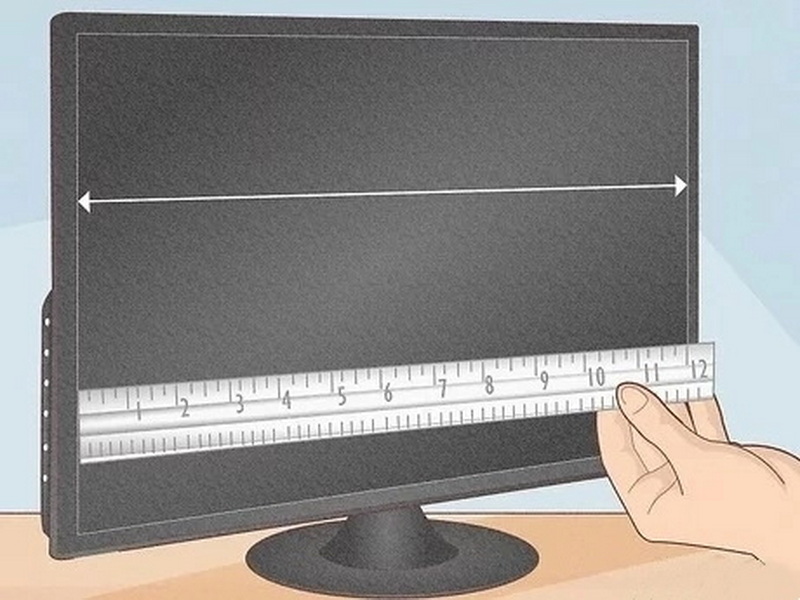

2. Width and Height Calculation

To calculate the width and height, use the aspect ratio formula:

- Height = Diagonal / √((Aspect Ratio Width)⊃2; + (Aspect Ratio Height)⊃2;)

- Width = Aspect Ratio × Height

For example, with a 16:9 aspect ratio:

- If the diagonal is 24 inches, the width is approximately 21.2 inches and the height is approximately 11.9 inches.

Calculating Aspect Ratio

The aspect ratio is the ratio of the width to the height of the screen. Common aspect ratios include 16:9 for widescreen monitors and 4:3 for traditional monitors. Understanding the aspect ratio helps in determining the best use for the screen, such as gaming or document editing.

Measuring Curved LCD Monitors

For curved monitors, use a flexible measuring tape or a string to trace the curve, then measure the string length.

1. Follow the diagonal method, ensuring the tape follows the curve.

2. Use a string to trace the curve, then measure the string length.

This method ensures that you capture the full diagonal length of the curved screen accurately.

Understanding Aspect Ratio

Aspect ratio significantly affects the width-to-height ratio of a screen. For instance, widescreen formats are ideal for movies and gaming but may not be suitable for traditional document formats.

Aspect Ratio Impact on Screen Dimensions

- Widescreen (16:9): Ideal for movies and gaming.

- Traditional (4:3): Better suited for documents and older content.

Choosing the right aspect ratio depends on your primary use for the screen. For example, graphic designers might prefer a wider aspect ratio for more workspace, while those working with documents might find a traditional aspect ratio more comfortable.

Choosing a Privacy Screen Using Screen Size

When selecting a privacy screen, match the filter dimensions closely with the visible screen area. Consider rounding up if necessary to ensure complete coverage without gaps. Privacy screens are designed to protect sensitive information from side viewers, making them essential for public or shared workspaces.

Measuring Pixel Resolution

To measure the pixel resolution of an LCD screen, you can use a camera and a ruler. Take a photo of the screen, zoom in, and count the pixels over a known distance.

Steps to Measure Pixel Resolution:

1. Take a Photo: Use a camera with sufficient resolution to capture individual pixels.

2. Zoom In: Enlarge the image to clearly see the pixels.

3. Count Pixels: Count the number of pixels over a few millimeters using a ruler.

This method provides an estimate of the screen's resolution, which is crucial for tasks requiring high detail, such as graphic design or video editing.

Advanced Display Features

Modern LCD screens often come with advanced features like HDR (High Dynamic Range), OLED (Organic Light-Emitting Diode), and refresh rates. These features enhance visual quality and responsiveness but may require specific measurement considerations.

HDR and OLED Displays

HDR and OLED displays offer superior color accuracy and contrast. When measuring these screens, ensure that the display settings are set to their optimal state to accurately assess their performance.

Refresh Rates

Higher refresh rates improve motion clarity, making them ideal for gaming. However, measuring refresh rates involves technical specifications rather than physical dimensions.

Conclusion

Measuring LCD displays accurately is vital for ensuring compatibility and optimal performance. By following the diagonal measurement method and considering aspect ratios, you can confidently measure any LCD screen. Additionally, understanding how to measure pixel resolution and other display characteristics can enhance your overall computing experience.

Frequently Asked Questions

1. What is the standard method for measuring LCD screens?

The standard method for measuring LCD screens is diagonally, excluding bezels, to standardize comparisons across different aspect ratios.

2. How do I calculate the width and height of an LCD screen?

Use the aspect ratio formula:

- Height = Diagonal / √((Aspect Ratio Width)⊃2; + (Aspect Ratio Height)⊃2;)

- Width = Aspect Ratio × Height.

3. What tools are needed to measure a curved LCD screen?

Flexible measuring tapes or strings are best for curved monitors, allowing precise following of curves without damaging surfaces.

4. How do I measure the pixel resolution of an LCD screen?

Use a camera and a ruler. Take a photo of the screen, zoom in, and count the pixels over a known distance.

5. Why is aspect ratio important when measuring LCD screens?

Aspect ratio affects the width-to-height ratio significantly, impacting the suitability of the screen for different content types, such as movies or documents.
