Creating a transparent LCD display can be an exciting DIY project that combines technology with creativity. This guide will walk you through the steps necessary to convert a standard LCD display into a transparent one, as well as discuss the applications and considerations involved in this process.

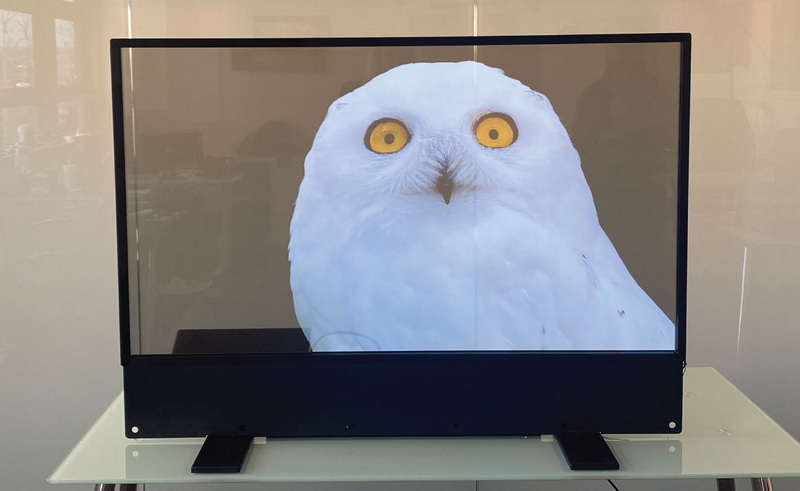

Transparent LCD displays are specialized screens that allow viewers to see through them while still displaying images or videos. They are used in various applications, including retail displays, interactive kiosks, and artistic installations. The technology behind these displays involves the manipulation of light and polarizers to create the desired effect.
Before starting your project, gather the following materials:
- An LCD screen (preferably one that you don't mind modifying)
- A polarizer film (larger than your display)
- X-Acto knife or sharp blade
- Alcohol wipes or cotton swabs for cleaning
- Adhesive (if your polarizer does not have adhesive backing)
- A breakout board for connecting the display
- Power supply and necessary wiring tools
Ensure that you have a clean, well-lit workspace. Gather all your tools and materials to avoid interruptions during the process.
Carefully open the LCD screen casing. This may involve removing screws or prying apart clips. Take your time to avoid damaging any components.
The backlight is what gives traditional LCDs their brightness. For transparency, you need to remove this assembly. Use your X-Acto knife to cut away any adhesive holding it in place. Be cautious not to damage the glass screen itself.
Most LCDs have a reflective backing that enhances brightness but obstructs transparency. Carefully peel off this backing using your knife, ensuring you do not scratch or break the glass.
Using alcohol wipes or cotton swabs, clean any residual adhesive from the screen. This step is crucial for ensuring that the new polarizer adheres properly without bubbles.
Take your polarizer film and align it over the display. If it has adhesive backing, press it down firmly; if not, use an appropriate adhesive to secure it in place. Make sure there are no air bubbles trapped underneath.
Using your X-Acto knife, carefully trim away any excess polarizer around the edges of the display. This will give it a clean finish.
Using a breakout board, connect your modified LCD display according to its datasheet specifications. Ensure all connections are secure to avoid short circuits.
Once everything is connected, power up your display to test its functionality. You should see images on the screen with some level of transparency depending on how well you executed each step.
Transparent LCDs open up numerous possibilities across various fields:
- Retail Displays: Engaging customers by showcasing products behind transparent screens.
- Interactive Kiosks: Allowing users to interact with digital content while viewing real-world objects behind the screen.
- Art Installations: Blending digital art with physical spaces for immersive experiences.
- Automotive Displays: Providing information without obstructing visibility.
- Smart Homes: Integrating transparent LCD panels into windows or mirrors to display real-time updates.
Transparent LCDs offer several advantages:
- Aesthetic Appeal: The transparent nature adds a futuristic touch to environments.
- Versatility: Customizable sizes and shapes make them suitable for various applications.
- Interactive Capabilities: Some models support touch functionality for enhanced user engagement.
- Energy Efficiency: Utilizing ambient light can lead to lower energy consumption compared to traditional displays.
As technology continues to advance, transparent displays are expected to become more prevalent in daily life. Researchers are working on improving color reproduction, increasing transparency levels, and enhancing touch sensitivity. Innovations such as transparent OLEDs and microLEDs promise even greater performance and flexibility.
Transparent OLED technology allows pixels to emit their light without needing a backlight, resulting in higher transparency and better contrast ratios compared to traditional LCDs. These displays can be integrated into various environments seamlessly while maintaining aesthetic appeal.
MicroLED technology is emerging as another promising avenue for transparent displays. MicroLEDs offer increased brightness and efficiency, making them suitable for applications where high visibility is crucial. Companies are already developing prototypes that could revolutionize how we interact with digital content in our surroundings.
While creating a transparent LCD can be rewarding, there are several factors to keep in mind:
- Transparency Level: The resulting transparency may not be as high as commercial transparent displays.
- Warranty Void: Modifying an LCD will void any warranty associated with it.
- Risk of Damage: There is a risk of breaking components during disassembly and modification.
- Limited Use Cases: Depending on how transparent your display is, it may not be suitable for all applications.
Making a transparent LCD display is an engaging project that can yield unique results if done carefully. It requires precision and patience but can lead to innovative uses in various fields such as retail and interactive media. With practice and experimentation, you can refine your technique and create stunning displays that merge digital content with physical objects.
The best type of LCD screen for this project is one that has a simple construction without complex backlighting systems, such as graphic LCDs.
While you can use any polarizer film, it's best to use one that has adhesive backing for easier application.
Modifying an LCD screen carries risks such as personal injury or damaging components. Always take safety precautions and work carefully.
DIY transparent displays typically won't match the clarity of commercial options due to limitations in materials and construction techniques.
Creative uses include retail advertising, interactive exhibits in museums, art installations, and even custom PC case modifications.
