Introduction to Mobile LCD Displays

Mobile LCD (Liquid Crystal Display) screens are a crucial component of modern smartphones, offering users a sleek and sophisticated way to interact with their devices. The evolution of mobile LCDs has been remarkable, from the early black and white displays to the high-resolution, color-rich screens we see today. This article will delve into the manufacturing process of mobile LCD displays, exploring the key components, steps involved, and the future of this technology.

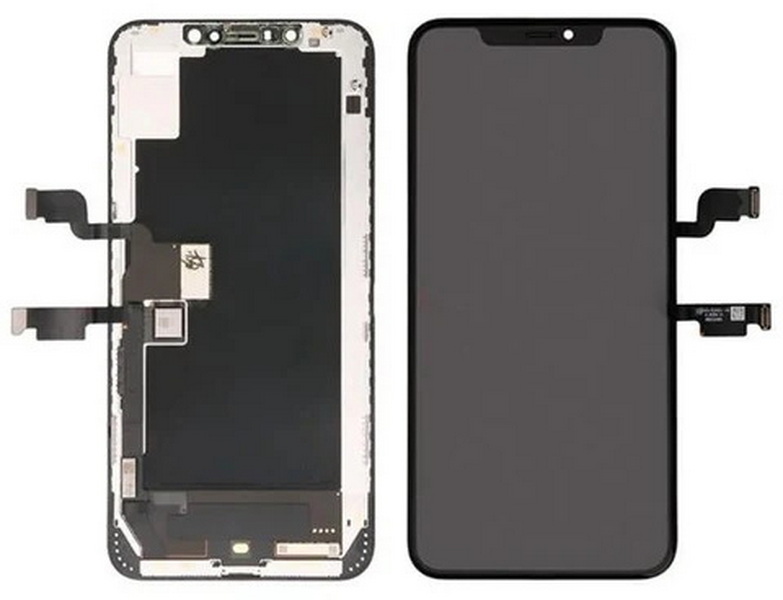

Key Components of Mobile LCDs

Mobile LCDs consist of several layers, each serving a specific function:

- Front Polarizer: This layer blocks external light and reduces glare, ensuring better visibility.

- TFT (Thin Film Transistor): Acts as an electronic switch to control pixel illumination.

- Color Filter: Comprises red, green, and blue pixels that combine to form images.

- Backlight: Provides the necessary light for the display to be visible.

Manufacturing Process of Mobile LCDs

The manufacturing process is complex and involves several stages:

1. Substrate Preparation: Glass substrates are cleaned and coated with indium tin oxide (ITO) for conductivity. This step is crucial as it ensures that the substrate can conduct electricity efficiently, allowing for the precise control of pixel illumination.

2. TFT Fabrication: Thin-film transistors are created using photolithography techniques to control pixel switching. This process involves depositing amorphous silicon and patterning it to form the transistors. The use of photolithography allows for the creation of extremely small transistors, enabling high-resolution displays.

3. Color Filter Fabrication: Red, green, and blue filters are applied using photolithography to create color pixels. Each color filter is carefully aligned to ensure that the resulting image is vibrant and clear.

4. Liquid Crystal Alignment and Injection: Liquid crystals are aligned and injected between the substrates. This alignment is critical as it determines how the liquid crystals will respond to electrical signals, affecting the display's overall quality.

5. Polarizer Attachment: Polarizers are attached to control light polarization. By aligning the polarizers correctly, the display can effectively manage light transmission and reflection, improving visibility.

6. Backlighting: A backlight module is added for illumination. The backlight is typically an LED array that provides uniform lighting across the display.

7. Testing and Inspection: Final quality checks are performed to ensure display functionality. This includes testing for pixel defects, color accuracy, and brightness uniformity.

Evolution of Mobile LCDs

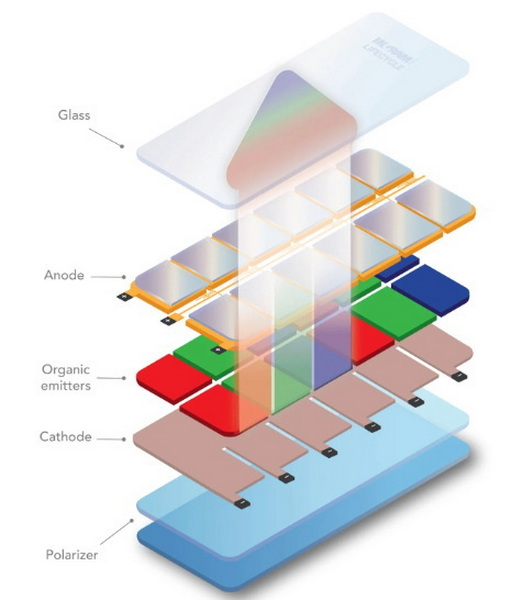

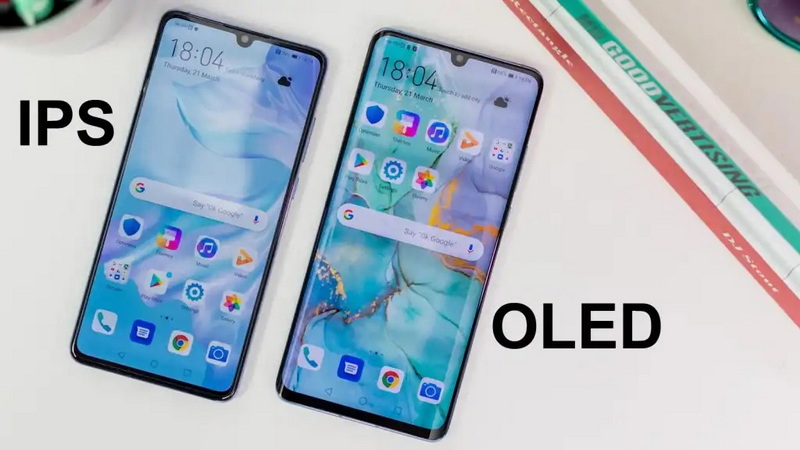

The first mobile phone displays were simple black and white LCDs. Over time, technology advanced to include color displays, higher resolutions, and better image quality. Today, we have advanced displays like AMOLED (Active Matrix Organic Light-Emitting Diode), which offer superior contrast and power efficiency compared to traditional LCDs. AMOLED displays do not require a backlight, as each pixel emits its own light, leading to deeper blacks and more vivid colors.

Advantages of AMOLED Displays

- Power Efficiency: AMOLED displays consume less power because they only illuminate the pixels that are needed, making them ideal for battery-powered devices.

- Contrast Ratio: The ability to turn off pixels completely results in a higher contrast ratio, enhancing visual clarity.

- Flexibility: AMOLED displays can be made flexible, allowing for innovative designs like foldable phones.

However, AMOLEDs are generally more expensive to produce than LCDs, which can make them less accessible for budget-friendly devices.

Future of Mobile LCDs

As technology continues to evolve, we can expect mobile LCDs to become even more sophisticated. Advances in materials and manufacturing processes will likely lead to displays with higher resolutions, faster response times, and improved energy efficiency. Innovations like quantum dot technology and microLED displays are also on the horizon, promising even better color accuracy and brightness.

Emerging Technologies

- Quantum Dot Displays: These displays use tiny crystals to create colors, resulting in a wider color gamut and improved brightness.

- MicroLED Displays: MicroLEDs use individual LEDs for each pixel, offering superior contrast and response times compared to traditional LCDs.

These emerging technologies have the potential to revolutionize the display industry by providing superior image quality and efficiency.

Challenges in LCD Manufacturing

Despite the advancements, LCD manufacturing faces several challenges:

- Cost and Complexity: The process is highly complex and requires significant investment in equipment and technology.

- Environmental Impact: The production process involves chemicals and materials that can have environmental implications if not managed properly.

- Quality Control: Ensuring consistent quality across large production volumes is a significant challenge.

Addressing these challenges will be crucial for the continued development of mobile LCDs.

Conclusion

Mobile LCD displays have come a long way since their inception, with advancements in technology leading to sleeker, more efficient screens. Understanding the manufacturing process and key components of these displays provides insight into the complexity and innovation behind modern smartphones. As technology continues to evolve, we can expect even more sophisticated displays that enhance user experience while addressing environmental and cost challenges.

Frequently Asked Questions

1. What are the main components of a mobile LCD display?

The main components include the front polarizer, TFT (Thin Film Transistor), color filter, and backlight.

2. How is the TFT layer fabricated in LCD manufacturing?

TFT fabrication involves coating the substrate with indium tin oxide (ITO) and depositing amorphous silicon using techniques like chemical vapor deposition (CVD). The silicon layer is then patterned to form thin-film transistors.

3. What is the role of the color filter in an LCD display?

The color filter is responsible for creating the red, green, and blue pixels that combine to form images on the screen.

4. How are liquid crystals aligned in the manufacturing process?

Liquid crystals are aligned by applying a layer of polyimide to the substrates and rubbing it in a specific direction to align the molecules.

5. What is the purpose of the backlight in an LCD display?

The backlight provides the necessary illumination for the display to be visible, as liquid crystals do not emit light themselves.
