LCD (Liquid Crystal Display) screens are widely used in various electronic devices due to their affordability and ease of programming. They are particularly popular in Arduino projects for displaying simple information like sensor data. In this article, we will explore how to make a simple LCD display using Arduino, covering the necessary components, wiring, and basic functionality.
To build a simple LCD display circuit with Arduino, you will need the following components:
- Arduino Board: The brain of your project, responsible for processing and sending data to the LCD.
- LCD Display Module: A 16x2 LCD is commonly used, capable of displaying 16 characters per line on two lines.
- Jumper Wires: For connecting the LCD module to the Arduino.
- USB Cable: To connect the Arduino to a computer for programming.
- I2C Module (Optional): Simplifies the connection by reducing the number of wires needed.
- Power Source: Batteries or a power adapter to power the Arduino and LCD.
If you are using a standard LCD module without an I2C interface, you will need to connect it directly to the Arduino's digital pins. The typical connections are:
- RS (Register Select) Pin: Connects to a digital pin on the Arduino (e.g., Pin 12).
- Enable Pin: Connects to another digital pin (e.g., Pin 11).
- Data Pins (D4-D7): Connect to digital pins (e.g., Pins 5-8).

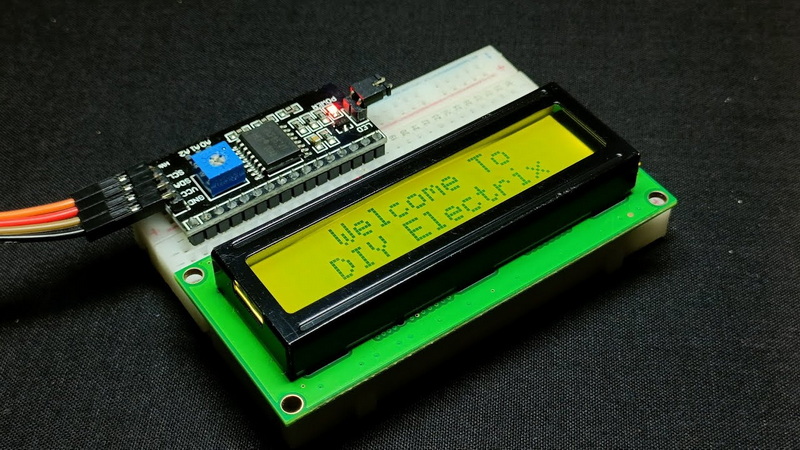

For an I2C LCD module, you only need to connect the SDA (Serial Data) and SCL (Serial Clock) pins to the Arduino's analog pins A4 and A5, respectively. This simplifies the wiring process significantly, making it easier to manage your project's physical layout.
To display text on the LCD, you need to upload a sketch to the Arduino. The sketch initializes the LCD and prints a message. You can use the LiquidCrystal library for standard LCDs or the LiquidCrystal_I2C library for I2C modules. These libraries provide functions to control the cursor position, clear the screen, and display text.
After uploading the code, power the Arduino and LCD. You should see your message displayed on the LCD screen. If everything is set up correctly, you will be able to view the text clearly.
You can create custom characters for your LCD by defining a 5x7 pixel matrix for each character. This is useful for displaying icons or symbols not available in the standard ASCII set. Custom characters can add a personal touch to your project and make it more visually appealing.

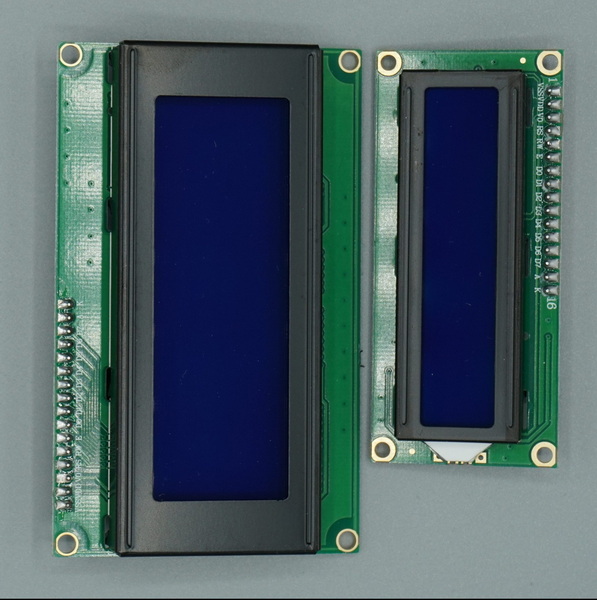

While the 16x2 LCD is common, you can use larger displays like 20x4 or even graphic LCDs for more complex projects. Larger displays allow you to show more information at once, which can be beneficial for projects that require displaying multiple lines of data.
Connect sensors to your Arduino to display real-time data on the LCD, such as temperature or humidity readings. This integration allows you to create interactive projects that can monitor and display environmental conditions. For example, you could build a weather station that displays current temperature and humidity levels.
- Backlight Control: Many LCD modules come with a backlight that can be controlled using an additional pin. This allows you to turn the backlight on or off, which can be useful for conserving power in battery-powered projects.
- Contrast Adjustment: The contrast of the LCD can be adjusted using a potentiometer. Proper contrast adjustment ensures that the text is clearly visible under different lighting conditions.
If your LCD is not displaying text, check the wiring connections to ensure they are secure and correct. Also, verify that the contrast is properly adjusted.
If the LCD displays incorrect characters, it might be due to incorrect pin connections or a problem with the library used in the sketch.
Creating a simple LCD display with Arduino is a straightforward project that can be completed with minimal components. It serves as a great introduction to working with displays and can be expanded upon by adding custom characters, using different LCD sizes, or integrating sensors. The flexibility and ease of use make LCD projects ideal for beginners and experienced makers alike.
- Standard LCD: Requires more wires to connect to the Arduino, typically using six digital pins.
- I2C LCD: Uses only two wires (SDA and SCL) for communication, simplifying the connection process.
Custom characters are created by defining a 5x7 pixel matrix for each character. This allows you to display icons or symbols not available in the standard ASCII set.
The most common size is the 16x2 LCD, capable of displaying 16 characters per line on two lines.
Yes, you can connect sensors to your Arduino and display their readings on the LCD, such as temperature or humidity.
You can power the circuit using batteries or a power adapter connected to the Arduino's power input.
